Pyle PWPSB2402 User guide

PWPSB2402

24” Powered ATV/UTV Soundbar System

Built-in Class D Stereo Power Amplifier

w/ Wireless BT Streaming and LED Lights

Installation

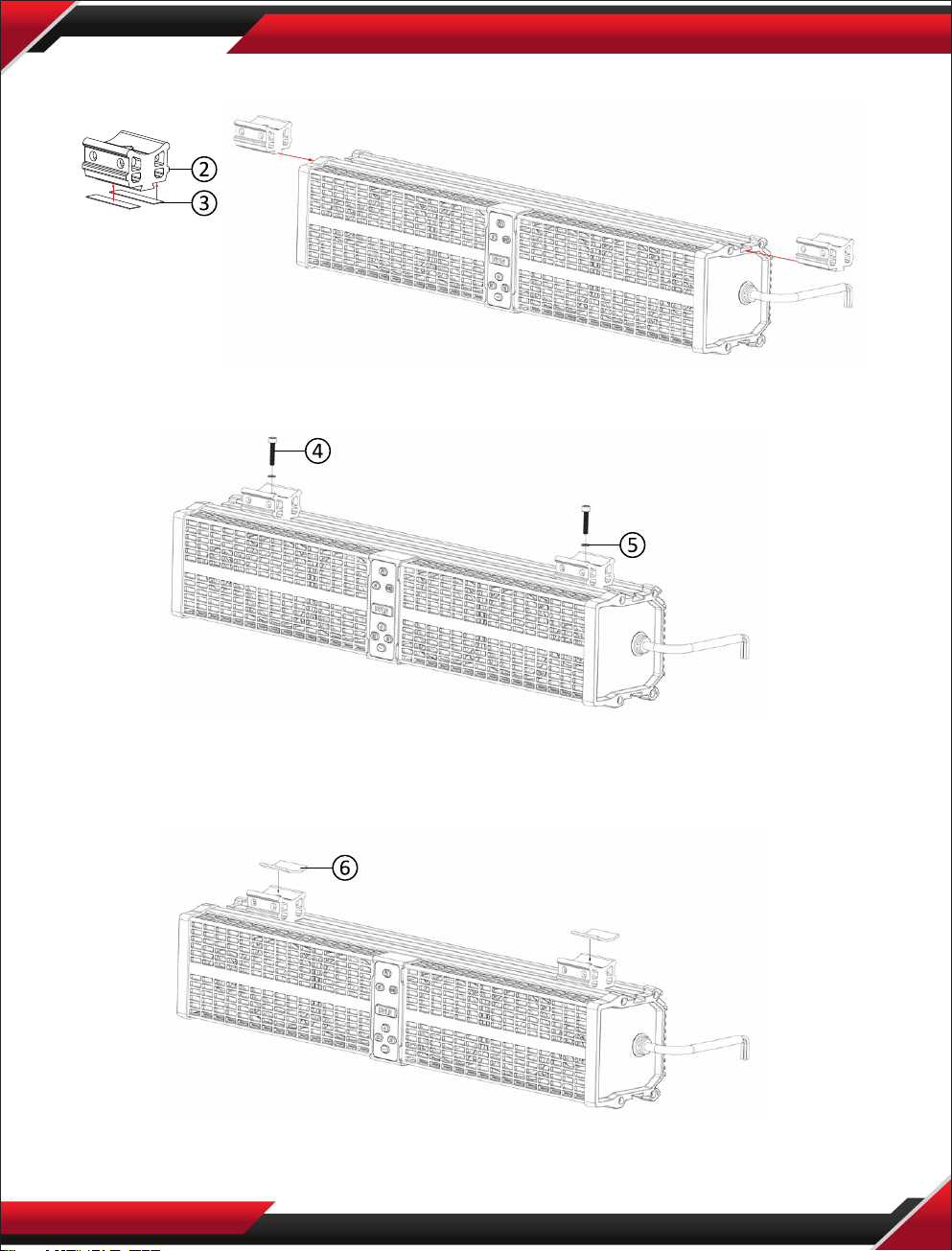

1. Stick the 45X10X0.5mm non-slip rubber strips (2 pieces) on the bottom of the clamps,
then insert them into the slider.

2. Align the screw holes at the bottom of the clamps with the positioning holes that have been
made in the slider and lock the M5X24mm screws and M5 spring washers to x the clamps.

3. Stick 48X30X2mm rubber non-slip pads on clamps.

www.PyleUSA.com

2

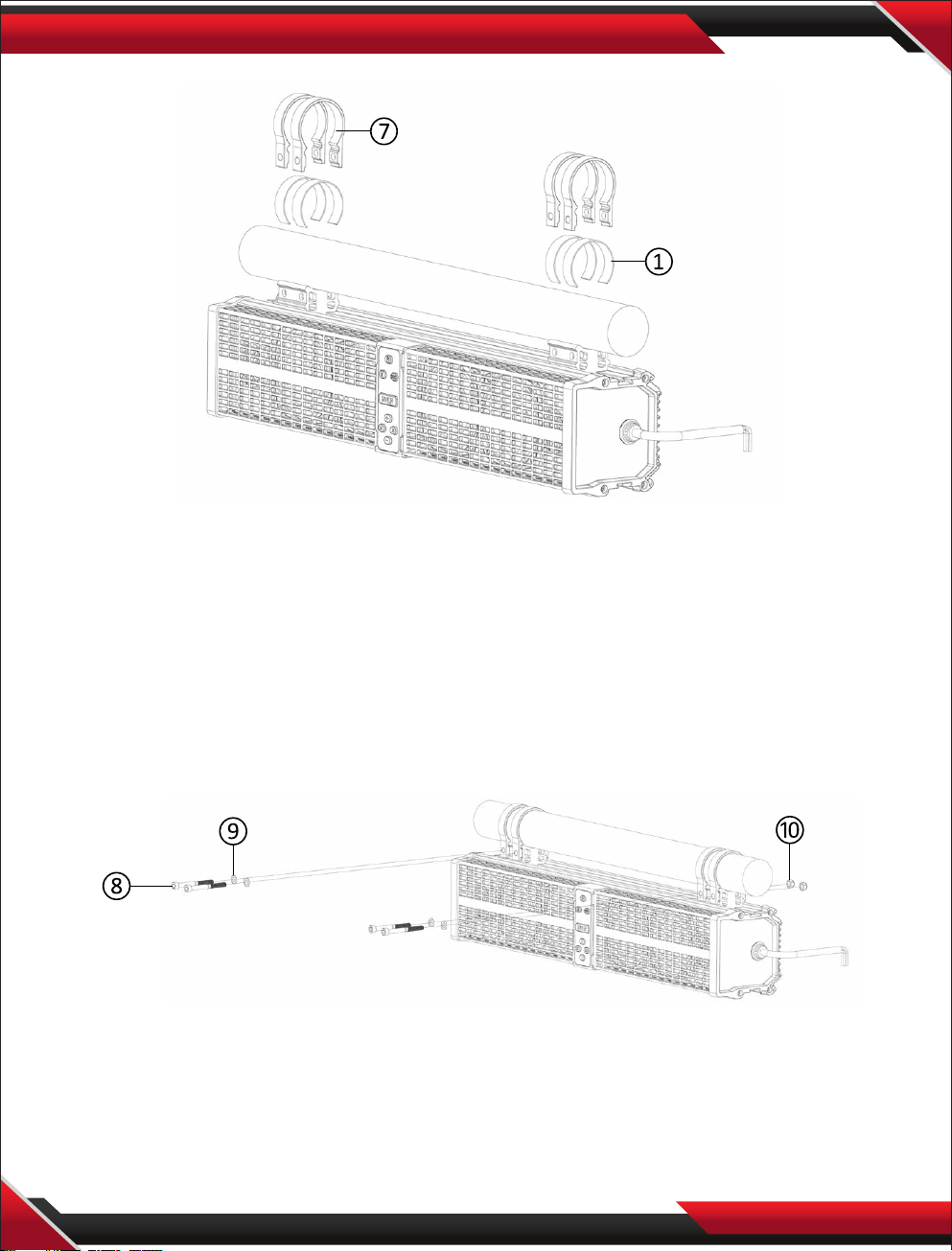

4. Installing on the cage bar of 1.5” to 2.0”. Wrap the rubber strip on the cage bar to prevent

being scratched. And then, press the aluminum rings on the rubber strip. The screw mounting

holes of the aluminum ring are aligned with the base.

• 2” Cage bar are installed using 2” aluminum ring and 120X14X1mm rubber strip.

• 1.875” Cage bar are installed using 2” aluminum ring and 130X14X2mm rubber strip.

• 1.75" Cage bar are installed using 1.75" aluminum ring and 120X14X1mm rubber strips.

• 1.5" Cage bar are installed using 1.75" aluminum ring and 120X14X4mm rubber strips.

5. Use M6X60mm screws and M6 spring washers to pass through the aluminum ring and the

base and the M6 non-slip nut at the back to x the aluminum ring on the base as shown in the

gure. Each nut should be installed in the hexagonal groove.

www.PyleUSA.com

3

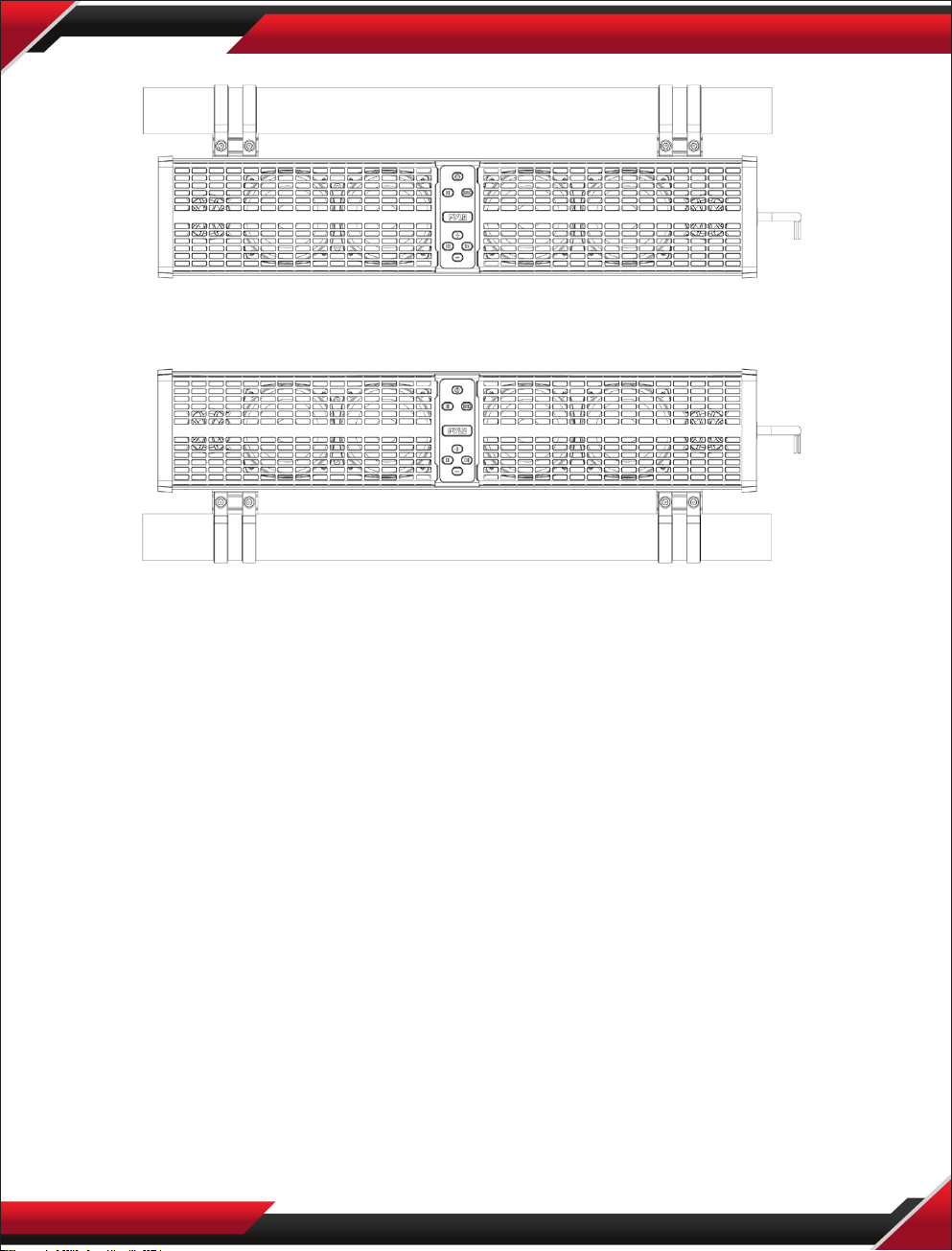

6. Complete the installation, the PWPSB2402 will be under the cage bar as shown in the gure.

7. The installation steps of the aluminum ring below are the same as above, after complete

installation, the PWPSB2402 will be above the cage bar as shown in the gure.

BT Pairing & Connection

*Power

1. Press and hold for 3 seconds for power on and off, when the powered ON, the background

led will be white.

*BT Pairing

1. Turn on the BT, and search for “PyleUSA” to be paired. While waiting for being connected, the

BT indicator light will be ashing as blue. No password needed.

2. When BT is connected, the BT indicator led will be blue constantly.

*AUX-IN

1. Short press the SRC button for switching to Aux-In mode, the indicator led will turn green.

www.PyleUSA.com

4

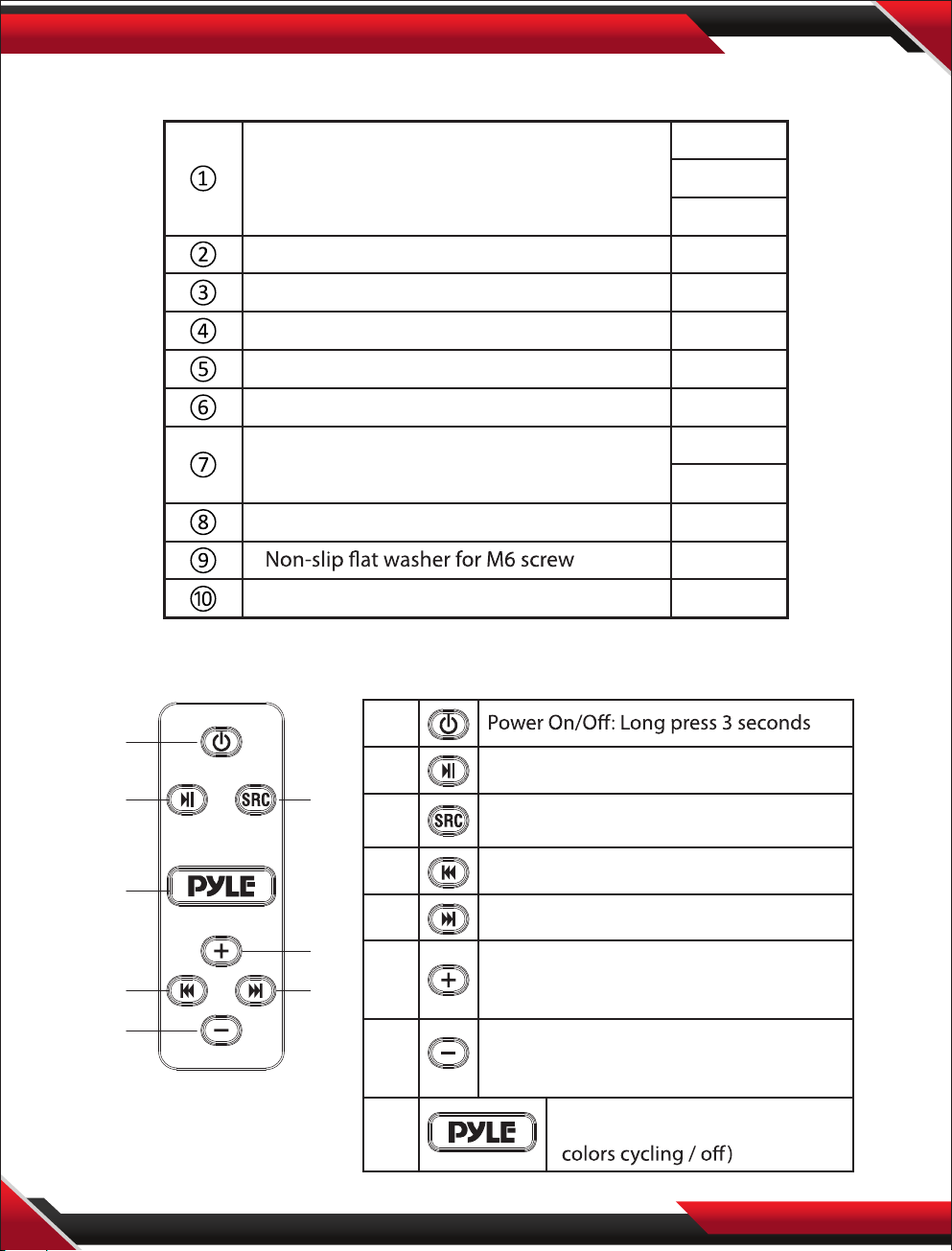

Parts List

Button Function

Non-slip rubber pad (120 x 14 x 1mm)

Non-slip rubber pad (120 x 14 x 4mm)

Non-slip rubber pad (130 x 14 x 2mm)

Clamp base

Non-slip rubber strip (45 x 10mm)

M5x24mm screw

Spring washer for M5 screw

Non-slip rubber pad (48 x 30mm)

Aluminum ring 1.75”

Aluminum ring 2”

M6x60mm screw

Non-slip nut for M6 screw

4 PCS

4 PCS

4 PCS

2 PCS

4 PCS

2 PCS

2 PCS

2 PCS

4 PCS

4 PCS

4 PCS

4 PCS

4 PCS

①

②

⑧

④ ⑤

⑦

③

⑥

①

②

③

④

⑤

⑥

⑦

⑧

Play / Pause: Short press

Switching BT /Aux In mode

BT Name: “PyleUSA”

Prevoious Song (Back): Short press

Next Song (Forward): Short press

Volume up:
Short press for increasing by scale
Long press for continuously increasing

Volume down:
Short press for decreasing by scale
Long press for continuously decreasing

Switching LED colors
(Red / blue / purple / 3

www.PyleUSA.com

5

Auto Connection

1. When the device is out of receiving distance range, the BT will disconnect automatically, and

the BT indicator led will be ashing as blue.

2. When the device is back to the receiving distance range within 10 minutes, the BT will be auto

connected, and the BT indicator led lights constantly.

3. If within 10 minutes, the device does not connect to the BT, then it needs to re-do BT

connection steps.

4. If other device occupies the BT connection within 10 minutes, then its needs to re-do BT

connection steps.

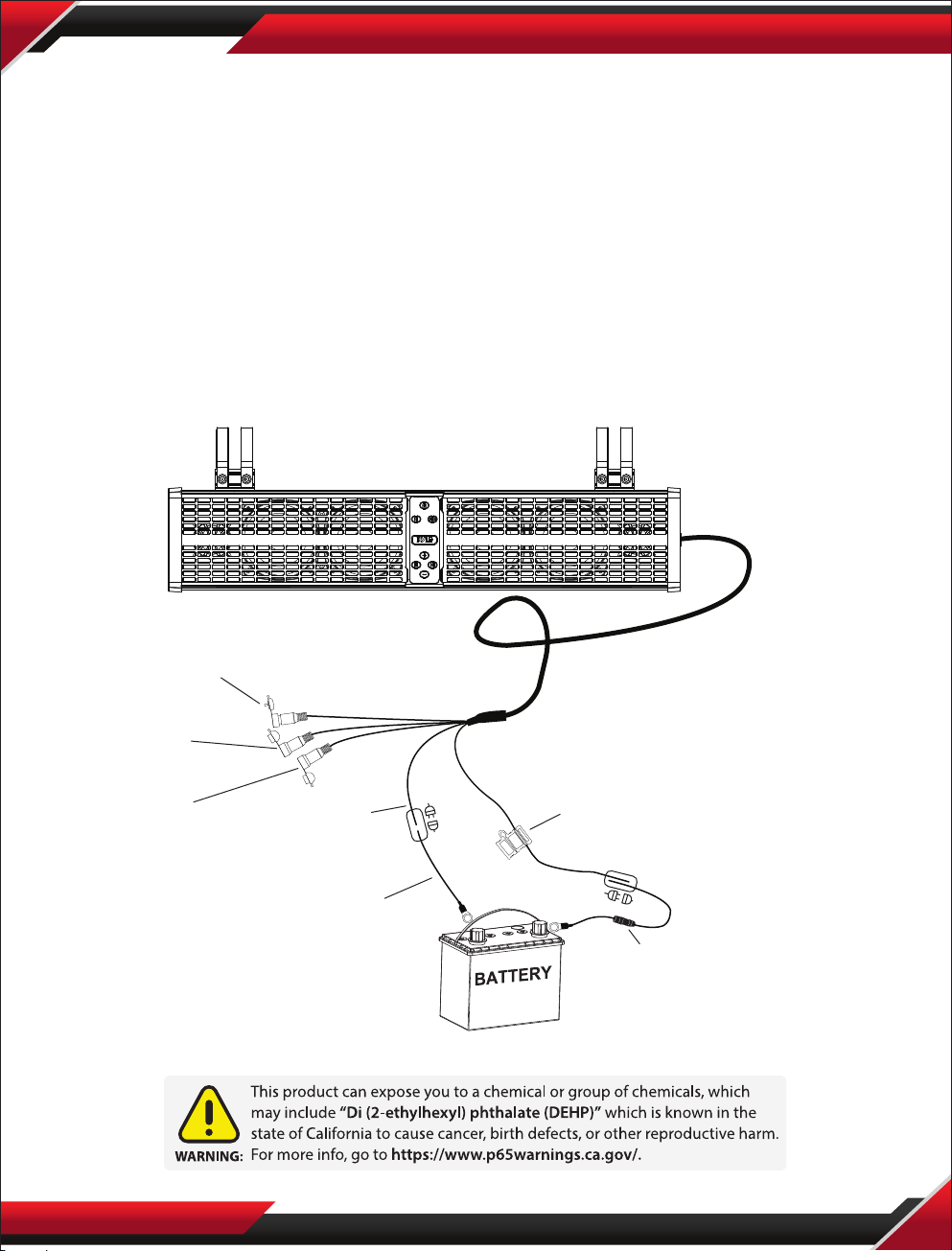

Wire Diagram

White RCA

LINE OUT L

Red RCA

LINE OUT R

www.PyleUSA.com

6

AUX IN

-Black

DC12V(-) Grounded

to metal chassis
Recommended wiring
(parts is included)

Fuse: 10A
+Red

DC12V(+)

Recommended wiring
with fuse (parts is included)

Features:

• Built-in Class D Stereo Power Amplier

• (4) 3.5” Mid-bass Drivers with Y35 Ferrite Magnets

• Forward-ring Speakers for Maximum SPL and Sound Staging

• (2) 1” PEI Dome Tweeters

• Built-in BT Technology

• Supports A2DP Audio Streaming

• 3.5mm Auxiliary Input

• RCA Output for a Second Sound Bar, Subwoofer, Amplier, or Powered Speakers

• Built-in LED lights (Red, Blue, Purple)

• LED Modes: Solid Color, Pulsating

• Marine Rated with Rugged Weatherproof Exterior

• IPX6 Waterproong/Weatherproong

• Weather Resistant Grill and Hardware

Wireless BT Connectivity:

• Wireless Music Streaming Ability

• Quick & Hassle-Free Device Pairing

• Works with All of Your Favorite BT-Enabled Devices (Smartphones, Tablets, Laptops, Computers, etc.)

• Wireless BT version 5.0

• Wireless BT Network Name: ‘PyleUSA’

What's in the Box:

• (1) 24’’ -inch Powered Soundbar

• (2) Aluminum clamp Base

• (4) 1.75“ Aluminum rings

• (4) 2“ Aluminum rings

• (1) 1.5” & 1.875“ Rubber Pads Bag

• (1) Screw Bag

• (1) Audio Connection Cable, 3.5mm

Technical Specs:

• Power Supply: 40 Watts RMS/80 Watts Peak

• Construction Materials: Polypropylene Mica Cone, Butyl Rubber Surround

• BT Range: 30’+ ft.

• Aluminum Clamp System Fits 1.5”- 2” Bars

• Frequency Response: 20Hz-20KHz

• Speaker Size: 3.67’’ x 3.67’’ x1.99’’ -inches

• Tweeters: 1'' -inch

• Product Dimensions (L x W x H): 23.4’’ x 4.6’’ x 4.76’’ -inches
