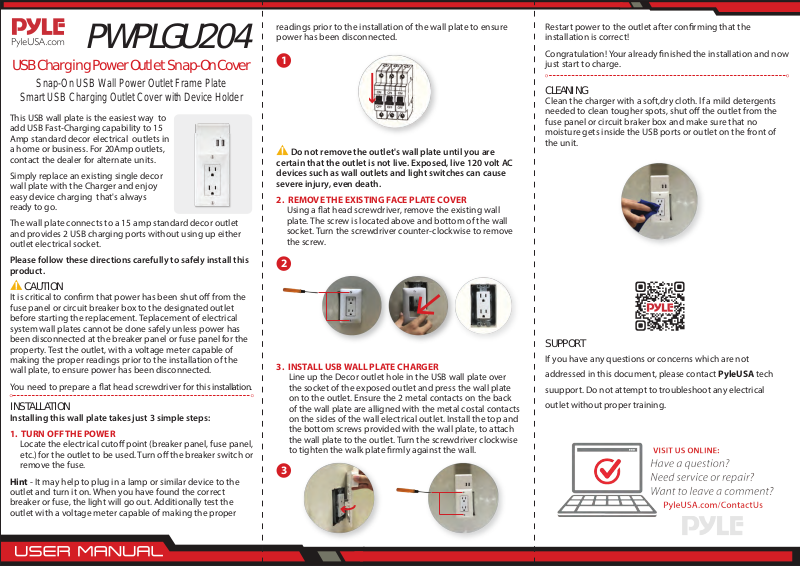

Page 1
PWPLGU204
USB Charging Power Outlet Snap-On Cover
readings prior to the installation of the wall plate to ensure
power has been disconnected.
1
Restart power to the outlet after confirming that the
installation is correct!
Congratulation! Your already finished the installation and now
just start to charge.
Snap-On USB Wall Power Outlet Frame Plate
Smart USB Charging Outlet Cover with Device Holder
This USB wall plate is the easiest way to
add USB Fast-Charging capability to 15
Amp standard decor electrical outlets in
a home or business. For 20Amp outlets,
contact the dealer for alternate units.
Simply replace an existing single decor
wall plate with the Charger and enjoy
easy device charging that's always
ready to go.
The wall plate connects to a 15 amp standard decor outlet
and provides 2 USB charging ports without using up either
outlet electrical socket.
Please follow these directions carefully to safely install this
product.
CAUTION
It is critical to conrm that power has been shut o from the
fuse panel or circuit breaker box to the designated outlet
before starting the replacement. Teplacement of electrical
system wall plates cannot be done safely unless power has
been disconnected at the breaker panel or fuse panel for the
property. Test the outlet, with a voltage meter capable of
making the proper readings prior to the installation of the
wall plate, to ensure power has been disconnected.
You need to prepare a at head screwdriver for this installation.
INSTALLATION
Installing this wall plate takes just 3 simple steps:
1. TURN OFF THE POWER
Locate the electrical cuto point (breaker panel, fuse panel,
etc.) for the outlet to be used. Turn o the breaker switch or
remove the fuse.
Hint - It may help to plug in a lamp or similar device to the
outlet and turn it on. When you have found the correct
breaker or fuse, the light will go out. Additionally test the
outlet with a voltage meter capable of making the proper
Do not remove the outlet's wall plate until you are
certain that the outlet is not live. Exposed, live 120 volt AC
devices such as wall outlets and light switches can cause
severe injury, even death.
2. REMOVE THE EXISTING FACE PLATE COVER
Using a at head screwdriver, remove the existing wall
plate. The screw is located above and bottom of the wall
socket. Turn the screwdriver counter-clockwise to remove
the screw.
2
3. INSTALL USB WALL PLATE CHARGER
Line up the Decor outlet hole in the USB wall plate over
the socket of the exposed outlet and press the wall plate
on to the outlet. Ensure the 2 metal contacts on the back
of the wall plate are alligned with the metal costal contacts
on the sides of the wall electrical outlet. Install the top and
the bottom screws provided with the wall plate, to attach
the wall plate to the outlet. Turn the screwdriver clockwise
to tighten the walk plate rmly against the wall.
3
CLEANING
Clean the charger with a soft,dry cloth. lf a mild detergents
needed to clean tougher spots, shut o the outlet from the
fuse panel or circuit braker box and make sure that no
moisture gets inside the USB ports or outlet on the front of
the unit.
SUPPORT
If you have any questions or concerns which are not
addressed in this document, please contact PyleUSA tech
suupport. Do not attempt to troubleshoot any electrical
outlet without proper training.
Page 2
CORRECT INSTALLATION STEPS
Turn o the power
1
2
Remove the existing face plate cover
WRONG INSTALLATION ACTION
1. Forget to turn
o the switch
2. Take o the power
socket from the wall
PWPLGU204
USB Charging Power Outlet Snap-On Cover
Snap-On USB Wall Power Outlet Frame Plate - Smart
USB Charging Outlet Cover with Device Holder
Features:
• Instantly Add Dual USB Charging Ports to Existing
Outlets
• Universal Duplex Size Wall Plate Frame Cover
• Quick & Hassle-Free ‘Snap-On’ & ‘Screw-In’ Installation
• Convenient Smartphone / Device Holder
• Instant USB Fast Charge Ability
• Energy Ecient Design
• Clean Installation with Modern Style
• Works with All of Today’s Latest Devices
• Integrated Charging LED Indicator Light
• Reliable, Safety Certied & Lab Tested
• Fireproof, Environmentally Friendly Construction
• Ideal for Home, Oce and Business Use
What’s in the Box:
• USB Wall Plate Frame
• Installation Screws
3
Install the new panel and tightened it
3. Finger dig into the
wall socket directly
5. Two hands insert hardly
4. Wrong direction
for the holder
Technical Specications:
• Duplex Outlet Size/Type: Fits Universal Standard
1-Gang (Single Gang) Square StyleOutlets
• Fast-Charge Support:
15 Amp Standard Electrical Outlets
• USB Port Power Output: 2.1A (x2)
• Construction Material: 94V0 Fire-proof Plastic
• *Duplex Receptacle Not Included
• Power Output: 5V, 3.1A - MAX
• Power Supply: 100-240V, AC
• Dimension (L x W x H): 6.88’’ x 2.95’’ x 1.27’’ -inches
• Sold as: 1
