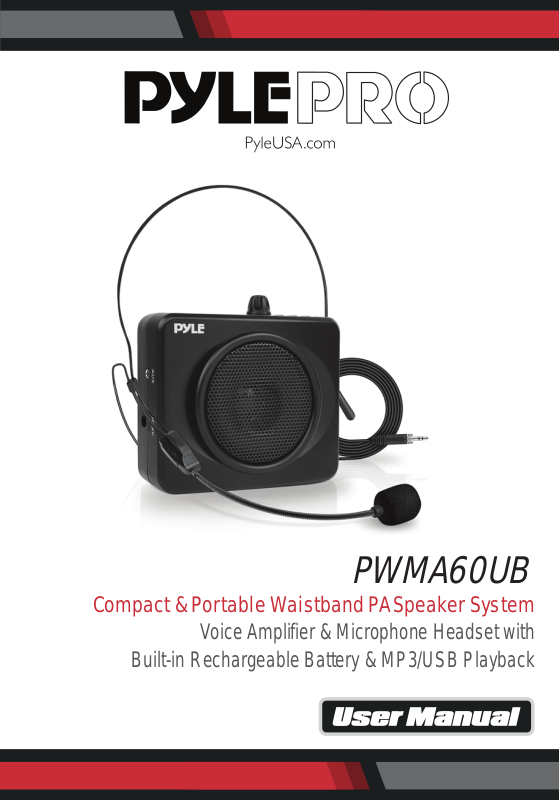

Pyle PWMA60UB User guide

PWMA60UB

Compact & Portable Waistband PA Speaker System

Voice Amplifier & Microphone Headset with

Built-in Rechargeable Battery & MP3/USB Playback

INTRODUCTION

Before operating, please read this instruction manual carefully and thoroughly

in order to understand the correct operating procedures to achieve the best

results. Keep this manual in a safe place for quick reference in the event that a

question arises. We try our best to make it accurate and integrated, errors may

still exists in this manual, so please tell us your suggestions. The contents of this

manual are subject to change without prior notice as a result of continuing

improvements to the instrument’s performance and functionality.

FEATURES

• Compact, Portable & Powerful

• PA Speaker Amplier Projects Your Voice

• Includes Headset Microphone

• USB Flash Drive Memory Reader

• MP3 Digital Audio File Playback Compatibility

• Used for Karaoke, Crowd Control, Presentations

• Built-in Rechargeable Battery, Up to 8+ Hour Life

• Aux (3.5mm) Input & Microphone Jack

• Connect & Stream Audio from External Devices

• Rotary Volume Control

Power Indicator

Microphone Jack

In Aux

Charging Socket

www.PyleUSA.com

2

LED Indicator

Power Switch/Volume
button

USB

BATTERY CHARGING PROCEDURES

• Please charge the battery if the LED light is dim or o.

• Turn o the voice amplier, and then insert the plug of the power adapter into

charging socket of the voice amplier, plug the power adapter to 220V power
source.

• When charging process is comple, the red LED turns to green.

• To extend the battery life, please charge after the battery is used out.

WEARING YOUR VOICE AMPLIFIER

With the attached waistband, you can

x the voice amplier to your waist in

front or back of your body. You can

adjust the length of the waistband.

Roughly 2-3 cm

Attentions before wearing
the Ear-hanging microphone:

Before wearing, please
don't turn ON the power
and volume.

MICROPHONE OPERATION

Wear microphone as the image shown.

The two hole inside the sponge must

aim at your mouth. The suitable distance

between the microphone and the mouth

is 20-30 millimeter. Insert the plug of

the microphone into the right hole

of the voice amplifer.

To achieve a maximum eect, please use the provided microphone. Cutting in and

pulling out the plug often may cause bad connection between microphone and

amplier.

There is a white line on
the end of microphone,
please position against
your mouth.

HOW TO USE

•

Fix the voice amplier to your body as image shown.

• Wear the microphone to your head and insert the microphone plug into the

voice amplier. Turn the power switch clockwise, then LED light is lightened,

that means the amplier is working. Turn the volume button clockwise or

counter-clockwise to increase or decrease the volume. Decrease the volume to

avoid noise.

www.PyleUSA.com

3

BATTERY CHANGE

•

Don't change the battery by yourself if under warranty

• The battery provided can work for long period of time and also to avoid the

damaging the voice amplier

• Be sure that the polarity is correct when you change the battery

FAQ

Question: Why the voice amplier produce so much noices?

Answer: Wear the microphone and adjust. Decreasing volume can avoid the noise

eectively.

Question: How long does it take to charge the battery?

Answer: Generally about 3-4 hours is needed for battery charge, temperature and

other factors may change the time.

Question: How long is the life of the battery, can I change the battery one year

later.

Answer: The battery life is about 2-4 years, and it is changeable, please get in

touch with us or our dealers.

Question: Why my voice amplier doesn’t work?

Answer: Please check if:

1. Your microphone is inserted properly

2. Batteries are low

3. The voice amplier is not turned ON

Please get in touch with us or our dealers if you still can’t solve it by yourself.

www.PyleUSA.com

4

WHAT'S IN THE BOX:

• Compact PA Speaker Amplier

• Headset Microphone

• Power Adapter

• Waist-Band Strap

• Belt Clip

TECHNICAL SPECS:

• MAX Power Output: 50 Watt

• S/N Ratio: 53dB

• Built-in Rechargeable Battery: 7.4V Lithium, 1600mAh

• Headset Microphone Cable Length: 3.3’ ft.

• Power: 110/240V

• Dimensions (L x W x H): 3.9’’ x 1.8’’ x 3.6’’

www.PyleUSA.com

5
