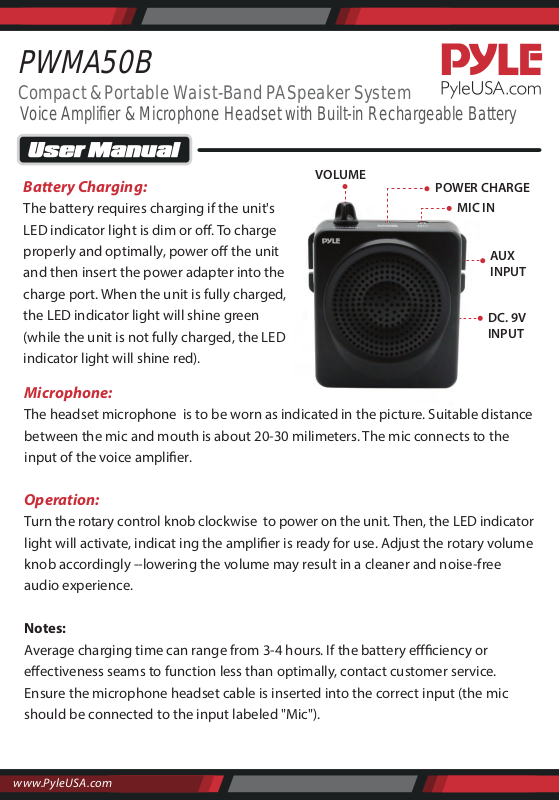

Pyle PWMA50B User guide

PWMA50B

Compact & Portable Waist-Band PA Speaker System

Voice Amplifier & Microphone Headset with Built-in Rechargeable Battery

Battery Charging:

The battery requires charging if the unit's

LED indicator light is dim or o. To charge

properly and optimally, power o the unit

and then insert the power adapter into the

charge port. When the unit is fully charged,

the LED indicator light will shine green

(while the unit is not fully charged, the LED

indicator light will shine red).

VOLUME

POWER CHARGE

MIC IN

AUX
INPUT

DC. 9V
INPUT

Microphone:

The headset microphone is to be worn as indicated in the picture. Suitable distance

between the mic and mouth is about 20-30 milimeters. The mic connects to the

input of the voice amplier.

Operation:

Turn the rotary control knob clockwise to power on the unit. Then, the LED indicator

light will activate, indicat ing the amplier is ready for use. Adjust the rotary volume

knob accordingly --lowering the volume may result in a cleaner and noise-free

audio experience.

Notes:

Average charging time can range from 3-4 hours. If the battery eciency or

eectiveness seams to function less than optimally, contact customer service.

Ensure the microphone headset cable is inserted into the correct input (the mic

should be connected to the input labeled "Mic").

www.PyleUSA.com

Features:

• Compact, Portable & Powerful

• PA Speaker Amplier Projects Your Voice

• Includes Headset Microphone

• Used for Karaoke, Crowd Control, Presentations

• Built-in Rechargeable Battery, Up to 8+ Hour Life

• Aux (3.5mm) Input & Microphone Jack

• Connect & Stream Audio from External Devices

• Rotary Volume Control

What's in the Box:

• Compact PA Speaker Amplier

• Headset Microphone

• Power Adapter

• Waist-Band Strap

• Belt Clip

Technical Specs:

• MAX Power Output: 50 Watt

• S/N Ratio: 53dB

• Built-in Rechargeable Battery: 7.4V Lithium, 1600mAh

• Headset Microphone Cable Length: 3.3’ ft.

• Power: 110/240V

• Dimensions (L x W x H): 3.9’’ x 1.8’’ x 3.6’’
