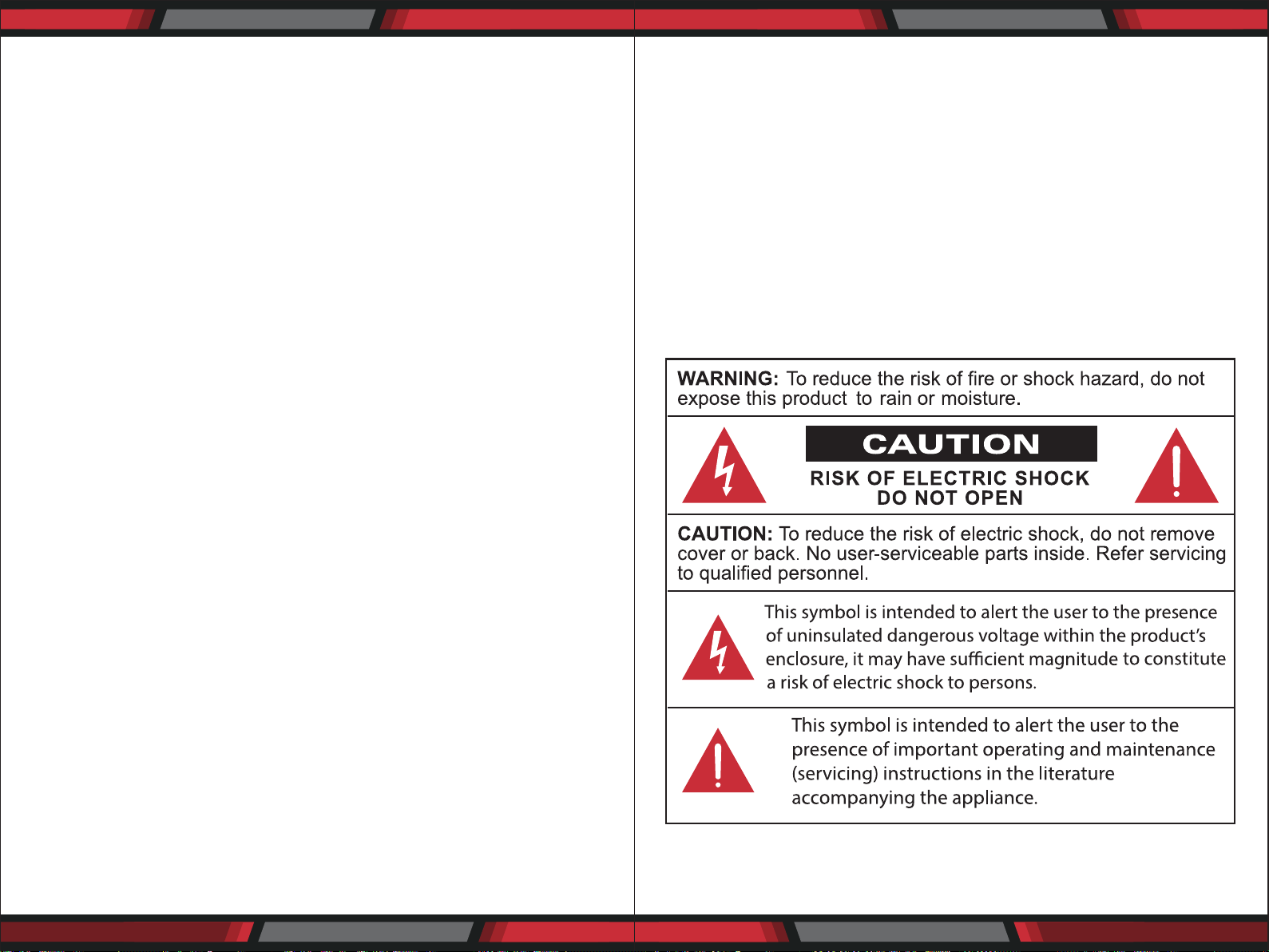

9. Attachments: Do not use attach ments not recommended by the product manufacturer as they may cause hazards.
10. Accessories: Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instruc­ tions, and should se a mounting accessory recommended by the manufacturer. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combi­ nation to overturn.
11. Disc tray: Keep your ngers well clear of the disc tray as it is closing. Neglecting to do so may cause serious personal injury and damage to the product.
12. Burden: Do not place a heavy object on or step on the product. The object may fall causing serious personal injury and serious damage to the product.
13. Damage Requiring Service Unplug this product from the
wall outlet and refer servicing to qualied service personnel under the following conditions:
a. When the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water. d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualied technician to restore the product to its normal operation. e. If the product has been dropped or damaged in anyway. f. When the product exhibits a distinct change in performance
- this indicates a need for service.
14. Servicing: Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualied service personnel.
15. Replacement Parts: When replacement parts are required, be sure the service technician has used replacement parts specied by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in re, electric shock, or other hazards.
16. Safety Check: Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
NOTICE AND DISC PROTECTION
NOTES ON HANDLING
• The top and rear panels of the unit
may become warm after a long period of use. This is not a malfunction.
• When the unit is not use, be sure to
remove the disc and turn o the power.
• If you do not use the unit for a long
period, the unit may not function properly in the future. Turn on and use the unit occasionally.
• Do not place foreign objects on the
tray.
LOCATION
Do not locate the unit in places such as:
• Near heating devices or in enclosed car.
• High temperature (39.2°F or higher)
or high humidity (90% or higher).
• Dirty places.
• Avoid direct exposure to sunshine
DISTURBANCE
When you place this unit near a TV, radio or VCR, the playback picture may become poor and the sound may be distorted. In this case, place the unit away from the TV, radio or VCR.
NOTES ON MOISTURE CONDENSATION
The pickup may be condensed with water under the following situation.
• When you bring the unit directly
from a cold place to a warm place.
• When you use the unit in a room
where you just turned on the heater, or a place where the cold air from the air conditioner directly hits the unit.
• During the summer, when you use
the unit in a hot and humid place just after you move the unit from an air conditioned room.
• The room is vaporous or damp.
If condensation exists, the unit will not operate properly. Remove the disc, connect the power cord of the unit to the wall outlet, turn on the unit, and leave it for two or three hours. After two or three hours, the unit have warmed up and evaporated any moisture. Keep the unit connected to the wall outlet and moisture condensation will seldom occur.
ON HANDLING DISCS
• Do not touch the playback side of
the disc.
• Do not attach paper or tape to disc.
ON CLEANING DISCS
• Fingerprints and dust on the disc
cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. Always keep the disc clean.
www.PyleUSA.com
6 7
www.PyleUSA.com
Page 5
• If you can’t wipe off the dust with a soft cloth, wipe the disc lightly with a
slightly moistened soft cloth and nish with a dry cloth.
• Do not use any type of solvent such as thinner, benzine, commercially available
cleaners or antistatic spray for vinyl Lps. It may damage the disc.
ON STORING DISCS
• Do not store discs in a place subject to direct sunlight or near heat source.
• Do not store discs in place subject to moisture and dust such as a bathroom or
near a humidier.
• Store discs vertically in a case. Stacking or placing object on discs outside or
their case may cause warping.
STRUCTURE OF DISC CONTENTS
Normally, DVD discs are divided into titles, and the titles are sub-divided into
chapters. Audio CDs are divided into tracks.
DVD DISC
PLAYABLE DISCS and ACCESSORIES
The following discs can be played:
• Discs than those listed above can not be played.
• Non-standardized discs, even if they may be labeled as above can not be played.
• The performance of recorded disc is depend on the method and quality of
disc-burning. In some cases, the disc may not be played.
FRONT PANEL and LED FUNCTION
TITLE 1
CHAPTER 1 CHAPTER 1 CHAPTER 1 CHAPTER 1 CHAPTER 1
TITLE 2
AUDIO CD
TRACK 1 TRACK 2 TRACK 3
TRACK 4 TRACK 5
1. LIGHT: Signal intensity light indicator
2. MEMORY: After a station has been found, you can store the station by pressing the MEMORY button, and the screen will display MEM above a channel number, then you can press the number knob. to save the station, when the channel number display to move from right to left, it means the station has
Each title, chapter, or track is assigned a number, which is called title number,
chapter number or track number respectively. There may be discs that do not
have these number.
www.PyleUSA.com
8 9
been saved.
3. ST/MONO: Stereo and mono selector.
4. INPUT: This is used to select the input sources DVD/CD/USB, TUNER, IPOD/ MP3, AUX
www.PyleUSA.com
Page 6
5. MENU CONTROL: This is used to increment and decrement level for the selected function of Master Volume, Bass, Treble, Balance, Auto Station seek.
6. AM/FM: Press it to select AM/FM when it is tuning
7. A/B SPEAKERS OUTPUT SELECTOR: Three mode: A, B, A+B
8. TUNING-/TUNING+ : The two keys are used to adjust to the best signal of the stations.
9. FUNCTION DISPLAYED FLUORESCENT WINDOW
10. REMOTE SENSOR WINDOW
11. OPEN/CLOSE CONTROL: Press this key at any play mode to turn to disc play mode
12. PLAY/PAUSE: Play and pause control
13. REV, FR: Quick/backward set searching
14. NUMBER KEYS: While in radio status, you can choose the music number directly, for example choose "28", press "10+" key twice, then press "8", you can get "28" music or station
15. FWD, FF: It is quick to enter/forward search the set
16. PREV,SKPR: Top of a song/top of a set
17. STOP: Stop control
18. NEXT, SKPF: Next song/next set
19. WIRELESS BT ANTENNA: Wireless BT receiver antenna for better signal.
20. Wireless BT Signal Indicator
21. BT BUTTON SWITCH
22. PRESS SWITCH: Press to switch the power unit ON or OFF
23. IPOD/MP3 JACKS: IPOD/MP3 connect to these jacks
24. HEADPHONE JACKS: Headphone connect to these jacks
25. MIC INPUT JACKS 1&2: KARAOKE MIC connect to these jacks
26. ECHO CONTROL: Turn the knob to adjust the MIC echo level
27. MIC TREBLE: Adjusts the treble of MIC
28. MIC BASS: Adjusts the bass of MIC
29. MIC VOLUME: Adjusts the volume level. Turn the knob clockwise to increase the MIC volume
30. SUB. OUT VOLUME CONTROL
31. MASTER VOLUME CONTROL: Adjusts the volume level. Turn the knob Clockwise to increase the volume
32. USB INPUT JACKS: Please note that this USB can only read MP3 les, PWA les not supported. In case of any damage to this unit, when you take USB out, please select the button "PAUSE" or other input source.

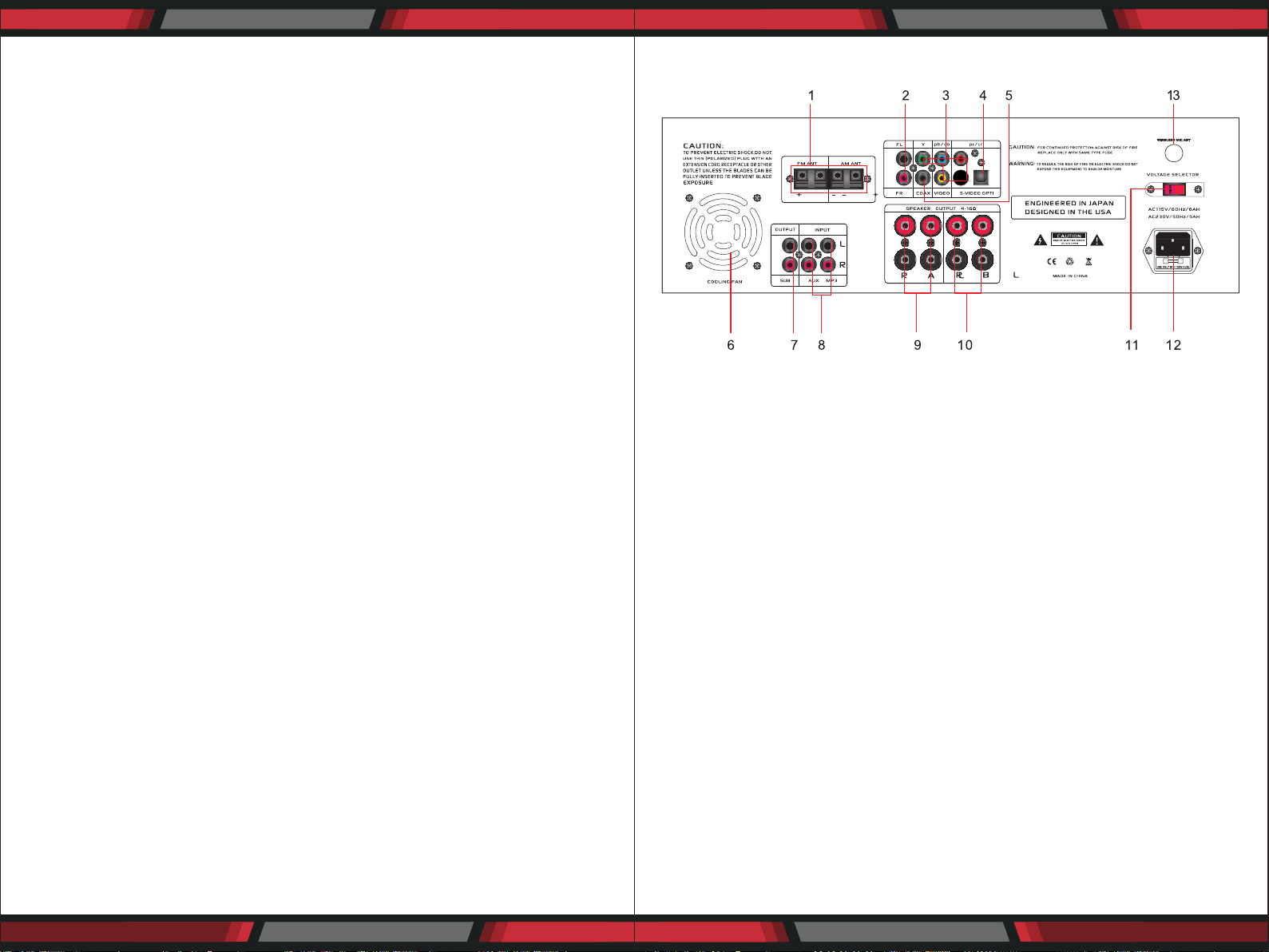

REAR PANEL FUNCTION
REAR PANEL FUNCTION
1. TUNER ANT: Connect for AM and FM antennas.
2. R/L OUTPUT
3. VIDEO OUTPUT, S-VIDEO OUTPUT, COMPONENT VIDEO OUTPUT
Press the "relevant" key on remote control to choose the output mode
4/5. DIGITAL AUDIO OUTPUT: One coaxial, one optical, this output can
connected to an amplier with dolby digital or DTS decoder to play the
movie with correspondent records.
6. COOLING FAN
7. SUB-WOOFER OUTPUT JACKS
8. AUDIO INPUT JACKS: Connect the audio output jacks of MP3, AUX to these
jacks.
9. A SPEAKER OUTPUT TERMINALS: Connect your speaker system to these
terminals.
10. B SPEAKER OUTPUT TERMINALS: Connect your other speaker system(s) to
these terminals.
11.120V/240V SWITCH: According to power voltage, push this button to the
station of the 120V or 240V.
12. POWER CORD: Connect to AC 120V 160Hz & 240V 150Hz outlet.
13. WIRELESS MIC ANTENNA
www.PyleUSA.com
10 11
www.PyleUSA.com
Page 7

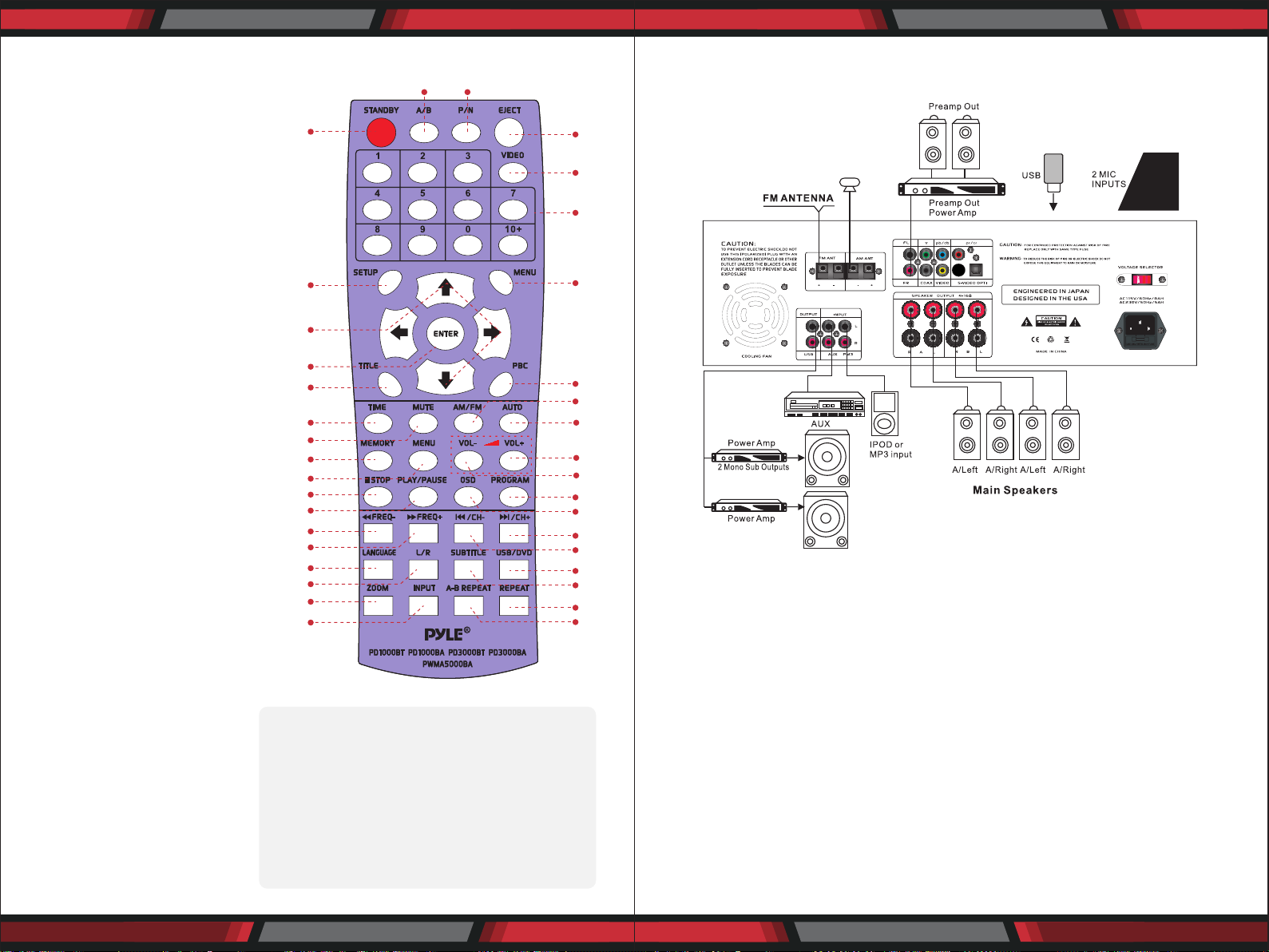

REMOTE DEVICE FUNCTION
1. POWER STANDBY button
2. Mode VIDEO button
3. Setup button
4. UP/DOWN/RIGHT
5. Play/Enter button
6. Title button
7. Stop button
8. PLAY/Pause button
9. Frequency DOWN button
10. Frequency UP button
11. AM/FM button
12. AUTO button
13. Langauge button
14. Channel UR button
15. ZOOM button
16. Select input model button
17. MENU CONTROL button
18. Volume + button
19. EJECT Open/Close button
20. PAL/NTSC switch button
21. Number button
22. Time select button
23. Menu button
24. PBC MENU button
25. PROGRAM button
26. Display button
27. NEXT/CH + button
28. PREV/CH - button
29. A/B SPEAKERS OUTPUT SELECT button
30. MEMORY button
31. USB/DVD button
32. Subtitle button
33. Repeat button
34. A-B Repeat button
35. Mute button
36. Volume - button
2029
1
19
2
21
3
23
4
5 6
22
24 11
12 35 30
17
7 8
9
10 13
14 15
16
18
36
25
26
27
28
31
32
33
34
Remote Control Operation
1. Remote control should be operated within 6
meter and the scope of 30° in front of receiver.
2. Make sure that there is no big obstacle between remote control and machme.
3. Remote sensor should be far away from the light, high amounts of light can aect its performance.
REAR PANEL CONNECTION
CONNECTING TO AMPLIFIER
SAFETY INSTRUCTIONS
1. Make sure that all connections are properly connected and the main volume is set to minimum level before turning on the unit.
2. When more than one pair of speakers are used, (specially the main speaker output) make sure that the speakers used are of the same wattage and impedance, otherwise the unit maybe damaged under high power or long term operation.
3. To avoid humming sounds and unwanted noise, make sure that all the wires are properly inserted.
4. For speaker cords, strip o the vinyl coating and twist the wire tip. Push down the pink jack or loosen the screw terminal, before inserting the wire tip, then fasten it and tighten the screw. Be careful not to let the wires stick out of the terminal otherwise this may cause a short circuit when wires of dierent terminal contact each other.
5. After the unit is turned on, adjust the main volume to the desired level same as the bass and treble volume, etc.
www.PyleUSA.com
12 13
www.PyleUSA.com
Page 8

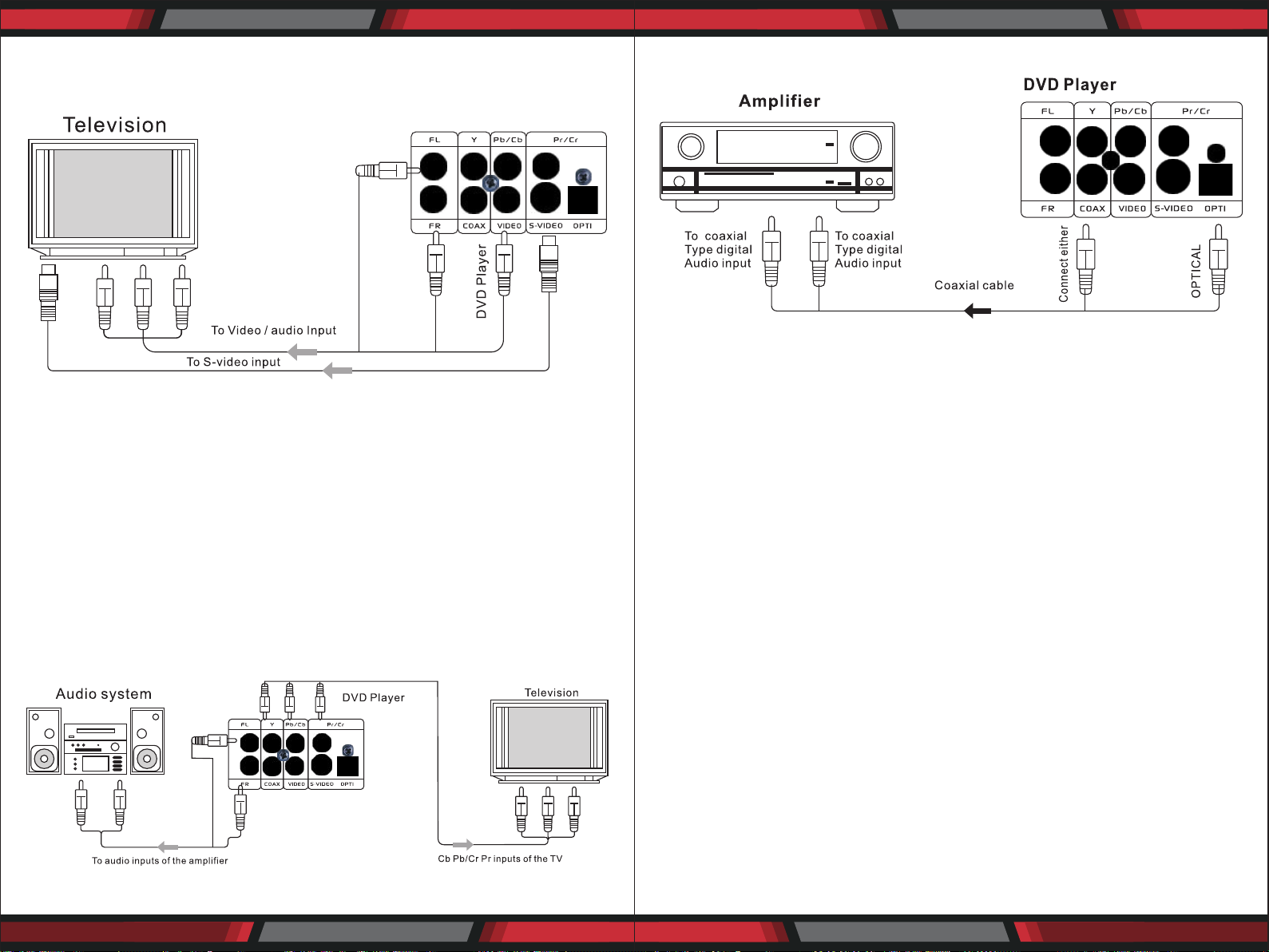

BASIC CONNECTION
Connecting to a TV with Audio/Video cable
• If the TV has an S-video input, connect the DVD player with an S-video cable.
When using an S-video cable, do not connect the yellow video cable.
Note: The volume adjusting here only works when it's connected to a power
amplier.
While it's connected to TV set without speakers, the volume cannot be adjusted
on this device. You can only adjust the volume on the TV set.
Connecting to an Audio System
Connecting to an Amplier Equipment
BASIC PLAYBACK
Preparations
• When you want to view a disc, turn on the TV and select the video input
connected to the unit.
Basic Playback
1. Press POWER switch in the front panel to ON, the unit turns on and the TV screen will display the start logo. If a disc is already in the tray, it will begin to play once the power is on.
2. Press OPEN/CLOSE to open the disc tray, place a disc on the disc tray.
• There are two different disc sizes. Place the disc in the correct guide on the
disc tray. If the disc is out of the guide, it may damage the disc and cause the unit to malfunction.
• Do not place disc which is unplayable in this unit.
3. Press OPEN/CLOSE to close the disc tray, the playback will automatically start.
• Some disc maybe can not playback automatically, you can press PLAY button to start playback.
4. Some disc may start playback with a menu, use the cursor button on the remote controller to select menu options and press PL AY to start, or press digits to select a menu options directly.
Pause/Step playback
1. Press PAUSE/STEP rst time to pause playback (still mode). The sound will be muted during still mode.
2. Press STEP continuous to single step forward to the next frame in the video.
3. Press PLAY to resume normal playback.
www.PyleUSA.com
14 15
www.PyleUSA.com
Page 9
Previous and Next
While playing, press PREV key to go back to start of this chapter, each press of
this key will skip a chapter. Each press of NEXT key while playing will skip the
current chapter and play the next one.
LISTEN TO RADIO, LINE INPUT OPERATION ADVANCED PLAYBACK
Mp3, AUX EXTERNAL CONNECTION OF AUDIO SIGNAL INPUT
Press lNPUT key on the remote control or on the machine panel, then you can input MP3/AUX and AM/FM audio signal external connection, the display shows the status. Audio signal of any equipment can be connected.
Fast Forward and Fast Reverse
1. Press FWD to fast forward through the disc. Each time the FWD button is
pressed, the fast forward motion speed changes.
2. Press ENTER/PLAY to resume normal playback.
3. Press REV to fast reverse through the disc. Each time the "REV" button is
pressed, the fast reverse motion speed changes.
4. Press ENTER/PLAY to resume normal playback.
Stop Playback
1. Press STOP button to go to stop mode, the TV screen will show the start logo.
As some disc the unit can recall the location where stopped, such as DVDs
and audio CDs.
2. Press PLAY to playback or to resume playback from the location where
playback is stopped or from the beginning of the disc.
3. Press STOP twice to stop completely.
Standby
Press STANDBY key on remote control to switch player to standby mode or
power on.
NOTES:
1. "INVALID KEY" may appear on the TV screen during operation.
A "INVALID KEY" means that the operation is not permitted by the unit or
the disc.
2. This unit controlled by CPU, under setting mode, there may be screen save ,
press any key to activate the unit. If you can’t use this function, you can set
SCREEN SAVER to OFF in SYSTEM SETUP PAGE of SYSTEM SETUP.
INPUT TRANSFER TO MP3, AUX
Press lNPUT key on the remote control or on the machine panel, then you can input MP3/AUX and AM/FM audio signal external connection, the display shows the status. Audio signal of any equipment can be connected.

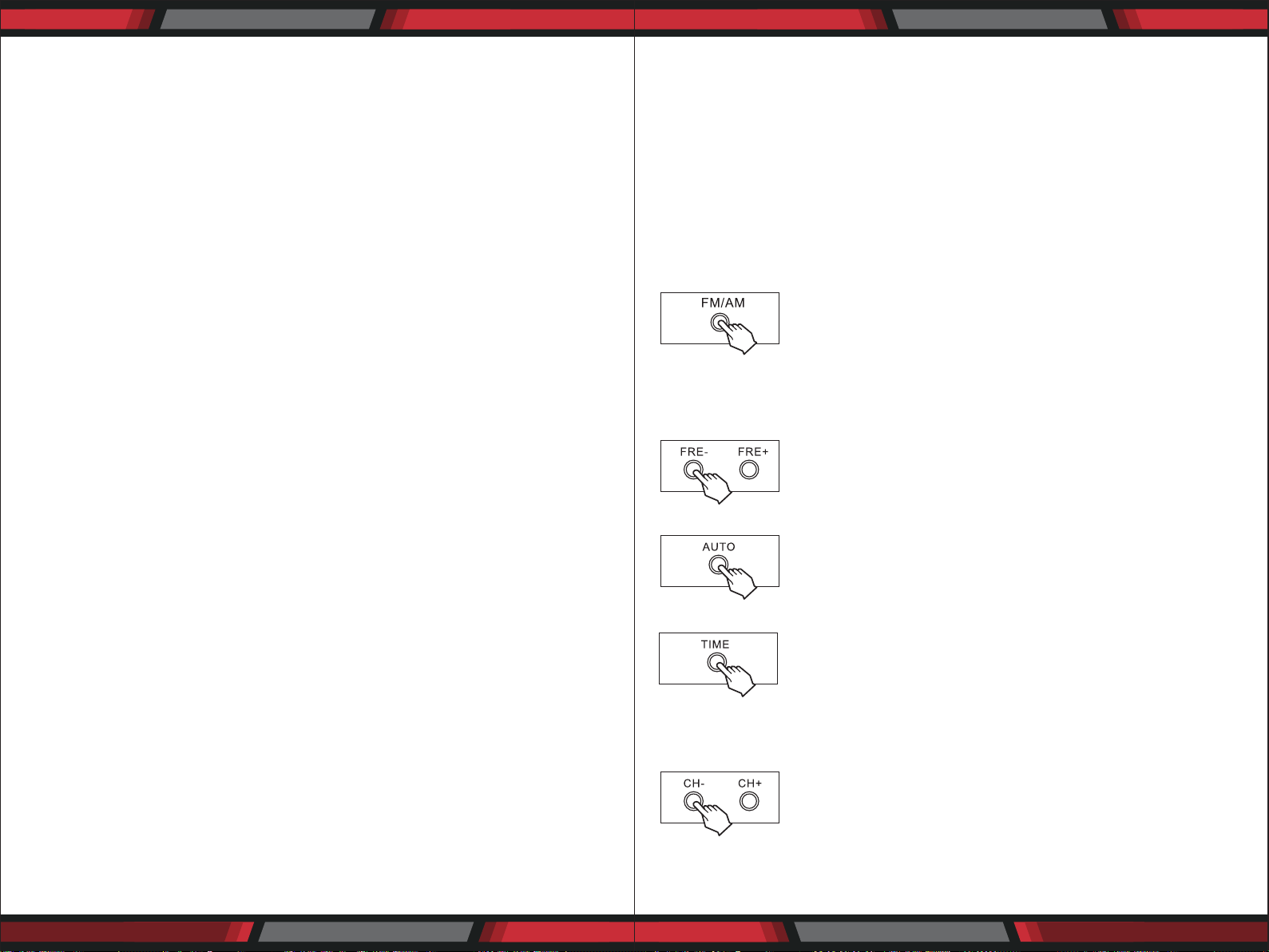

LISTEN TO RADIO: FM/AM Press INPUT key can transfer to the reception of a radio, then press (FM/AM) key on the machine or on the remote control, the machine will turn into FM/AM mode, and the display shows the frequency and the channel number of the current radio station.
MANUAL SCAN
Press [FRE-] or [FRE+] key on the machine panel or on the remote control to carry out manual scan to search for your need.
AUTO SCAN
Press AUTO key on the machine panel or on the remote control, then the machine itself will scan within the frequency range once complete automatically.
FREQUENCY SELECTION SCAN
Press [TIME] key on the remote control, the display shows the status. Then you can input the frequency of the radio station you want to listen to.
A. FM frequency range: 87.5-1 08.0MHz B. AM frequency range: 530-1620KHz
CHANNEL SELECT
Press [CH-] and [CH+] key on the remote control or on the panel, then you can select the channel you have already stored.
NOTES: You could store your favorite radio stations in continuous channels.
www.PyleUSA.com
16 17
www.PyleUSA.com
Page 10
MONOPHONY/STEREO MODE SELECT

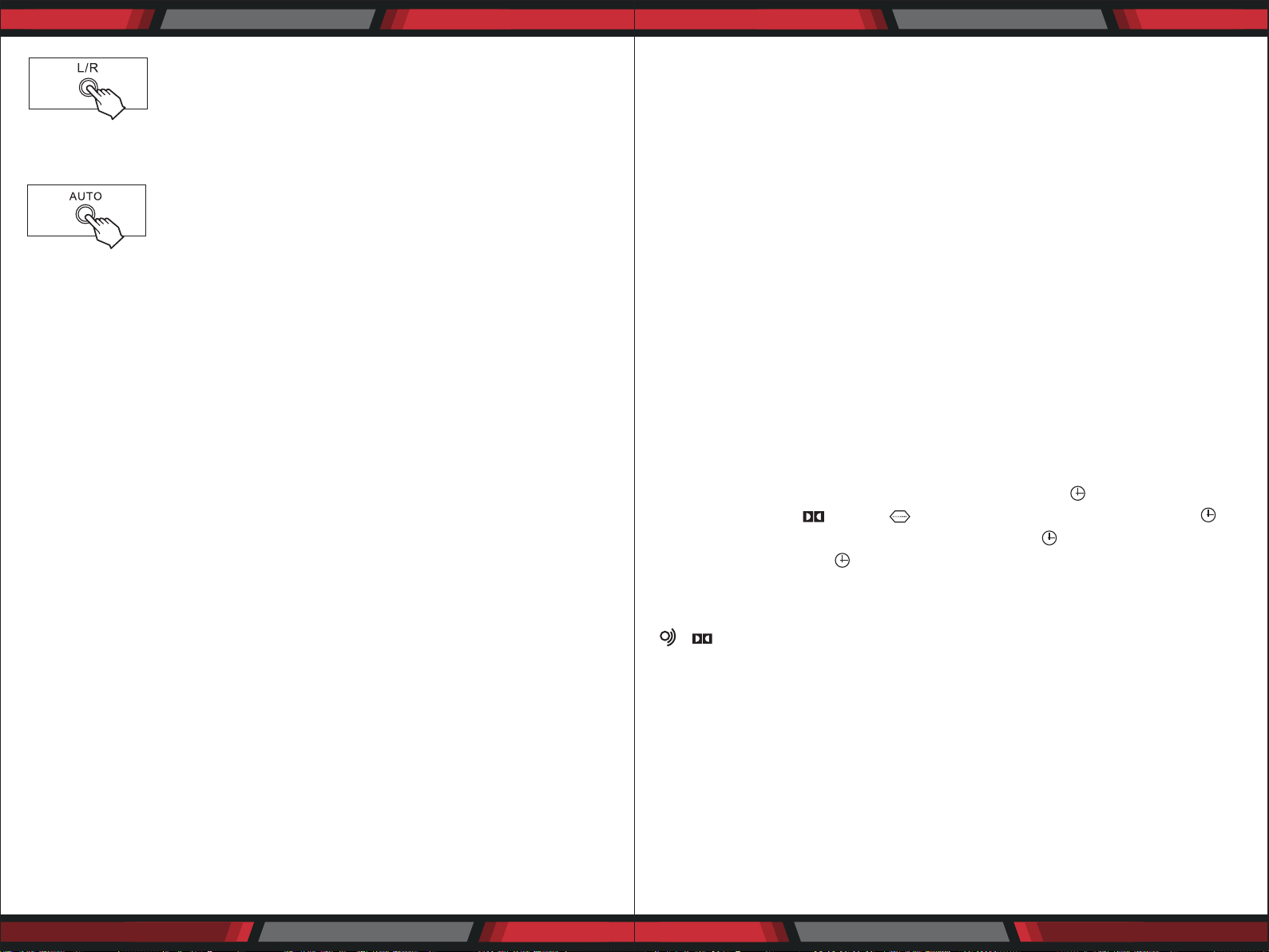

Press (L/R) key on the remote control to select monophony or stereo mode.
NOTES: We advise you to select monophony mode when the signal of the radio station you've chosen is not good enough.
AUTO STORING RADIO STATIONS
After starting AUTO SCAN function, the machine will store the radio stations received into original channels. The current frequency will be stored into current channel number auto­matically.
MANUALLY STORE RADIO STATIONS
Press [FRE-] and [FRE+] key to select the radio station you want to listen to, then press [MEMORY] key to store the current radio station into the channel number you want until the signal intensity is strong enough.
NOTES: The machine will store the radio station into current channel number when the machine receives one. The eect is much related to the intensity of the signal. If there are no signal or immethodical signal, you'd better choose manual scan or frequency selection scan.
ADVANCED PLAYBACK
TIPS: If the reception eect is not good or there is some noise and it doesn't become better even after changing into monophony mode, you should suitably adjust the antenna to a good position till the eect is the best.
USB READER FUNCTION
• The machine will play the same as disks when there is only single form of
playable le in the USB disk or in the triple card .
• MP3 and WMA forms les have the priority cover others to be played after the
machine has scanned if the USB disk contains several forms of playable les.
USB COPY FUNCTION OF SUBTITLE KEY
• You can insert USB equipment when the machine is playing MP3, CD or MPEG4. Documents will be copied into the USB after you press [SUBTITLE] key on the remote control.
1. When playing MP3 disk, press [SUBTITLE] to copy the les into USB.
2. When playing CD disk, press [SUBTITLE] to copy the songs into USB after converting into MP3 le. (Single le or all les can be chosen to transfer)
NOTES: It only works when the USB capacity is large enough. Some styles of the machine don't have the function.
IMPORTANT NOTE:
THE FOLLOWING FUNCTION DESCRIPTIONS ARE FOR DVDS OPERATION AND DISPLAY ON SCREEN MAY BE DIFFERENT FOR OTHER DISC FORMATS.
TIME
Once the TIME button is pressed, the screen will display messages. Use the LEFT/RIGHT cursor button to select your preference. Press ENTER then PLAY to
conrm.
OSD
Pressing this button will display "DVD n XXIXX CH XXIXX 00:00:05 (chapter elapsed)", "1/3 ENG 5.1 CHG 1/4 ENG • OFF", "DVD n XXIXX CH XXIXX
-00:00:00 (chapter remain)", "DVD n XXI XX CH XXIXX 00:00:00 (title elapsed)", "DVD n XXIXX CH XXIXX -00:00:00 (title remain)", the sixth will cancel function.
LANGUAGE
Press this button on remote control to change the mode of audio. For example:
[1 XX 5.1 CH J, "XX" indicates the language of country. (the number of
language depends on disc).
VIDEO
In play or stop status press VIDEO key on the remote control, the device will switch its video-output interface: TV-RGB, P-SCAN, S-VIDEO, INTERLACE YUV.
USB/DVD
When the device is playing DVD, you can press [USB/DVD] key, then the screen will displays READ USB after pressing [ENTER] key you can turn to USB status. The same when it's playing USB and you can change into DVD status by following above operation.
www.PyleUSA.com
18 19
P/N
Press the key to switch between NTSC, PAL and AUTO.
ZOOM
Press this button to zoom into the picture. Each time the button is pressed, the magnication level will change.
www.PyleUSA.com
Page 11
SUBTITLE
1. Press this button and the screen will display: " [1XX]" , "XX" indicates the language of country. (the number of language depends on disc).
PROGRAM
Press this key to store your favorite picture as starting frame. If you have chosen several pictures, the latest picture will be the starting frame. You can cancel it by pressing [SETUP], then press [ENTER] key after selecting [RESTORE] key of [LOGO SELECT] under system settings and the system will restore to the original frame.
TITLE/PBC
For DVD discs - Press this button to display the title menu. Press the digits to select your preferred chapter. For SVCD and VCD - Follow the menu instructions on screen. Press the digits during PBC playback.
AlB SPEAKERS OUTPUT SELECT
REPEAT
Press once to repeat CHAPTER. Press twice to repeat TITLE. Press thrice to repeat ALL. Press 4 times to cancel the repeat.
A-B REPEAT
Press A-B to begin start-point, press again to set an end point and complete setting. The selected section A-B will be repeated. The third press will cancel this function.
SPECIAL FUNCTION PLAYBACK
JPEG DISC PLAYBACK
When playing JPEG disc, a navigation menu will be displayed automatically if the disc is loaded in succession. In the menu, use UP or DOWN cursor button to select a le, then press "ENTER/PLAY" to be played as a slideshow. Press PREY or NEXT to select the previous or the next picture. Press PAUSE to pause the current picture for viewing, press ENTER/PLAY, to return to normal playing. Press ZOOM to start zoom function, when ZOOM function is on, press PREY or NEXT to switch between pictures . Pressing the CURSOR key can move the enlarged picture and the picture display direction can be changed by pressing "PROG" key, including RANDOM, WIPER L, WIPER R, UP-DOWN, LEFT-RIGHT, WINDOW V, EDGE TO CENTER, etc.
MP3 PLAYBACK
Place MP3 disc on the disc tray, the DVD player will begin to play once. Simultaneously, a navigation menu will be displayed automatically if the disc is loaded in succession. In menu, use UP or DOWN cursor button to choose folder, then press "ENTER/PLAY" button to confrim. In the folder, use the UP or DOWN button to select the le, then press "ENTER/PLAY" to play this le. In this page, using the LEFT cursor button will return to the previous menu press PREY or NEXT to go back to the previous or next page.
VOLUME AND MUTE
Press "+" at the right of VOLUME to increase volume, " - " to decrease volume. The rst press MUTE will display Mute no voice, the second press will return to normal.
MENU
This is used to increment and decrement level for the selected function of Master Volume, Bass, Treble, Balance, Auto Station seek. By pressing MENU key you can select the functions above. If you want to adjust bass, press MENU key to select bass, then press (Master volume + ) or (Master volume -) on the remote control you can increase or decrease bass. If you want to adjust treble, press MENU key to select treble, then press (Master volume +) or (Master volume -) on the remote control you can increase or decrease treble. Others function above can also be adjusted in the same way.
www.PyleUSA.com
20 21
MPEG-4 DISC FUNCTION INTRODUCTION
MPEG-4 is the forth video and audio encoding standard released by MPEG (The abbreviation of "Moving Pictures Experts Group"). VCD is based on MPEG-1 technology and DVD is based on MPEG-2. MPEG-4 takes advantage of narrow bandwidth, pursuing the best picture quality by compressing and transmitting the data in frame reconstructed technology. The audio data is compressed by WMA standard. MPEG-4 is the most advanced compression technology standard in AV eld. It has the highest compression rate.
www.PyleUSA.com
Page 12
By MPEG-4 technology, we can encode and compress a DVD lm into one or two CD-R disc with pretty good picture quality, or burn several lms that has same quality as VCD into one CD-R disc, or burn several lms that has similar quality to DVD into DVD-ROM disc.
Note:
1. The MPEG-4 discs available in the market now have many dierent formats, such as Xvid, AVI, RM etc. But some discs with "MPEG-4" logo in market are not encoded by MPEG technology. It is normal that some of the disc cannot function properly in this player because of the incorrect encoding standard.
2. The MPEG-4 les are displayed as a list in the screen, choose the icon using the cursors and press "ENTER/PLAY" button to playback the movie.
3. As AVI is the MPEG-4 format, and MPEG is MPEG-1 format, please do not combine AVI and MP3/JPEG together into a disc. The player will only recognise
MP3 or JPEG in that instance. However MP3 and JPEG can be included into
one disc together.
Kodak Picture CD Playback
Playback (Normal)
When a Kodak Picture CD is inserted into the unit, an automatic slide show is launched. Each picture in the Kodak Picture CD will be displayed consecutively in a slideshow fashion and will be scaled to t in the whole TV screen. Some slideshow transition modes are provided, use "PROG" key to select. You can set transition eects for each picture. To display an image indenitely, press the "PAUSE" key. To view the next or previous picture, press "NEXT" or "PREV" key. To resume the slide show, press the "ENTER/PLAY" key.
SPECIAL FUNCTION PLAYBACK
Image Rotation
There are four modes to rotate a picture: "Invert", " Mirror", " Left", and "Right". These operations are allowed only when a picture is being displayed normally and will be cancelled automatically when a new picture is displayed. The arrow key is used to select the dierent rotation modes:
If zoom mode is on, "ZOOM" key are used to control the ratio of zoom in/out. With ZOOM mode o, a picture is scaled to t the whole TV screen.
Notes: During zoom function, slide-show transition and image rotation are disabled. To cancel the zoom function press the "ZOOM" key again to resume the slide-show.
IMPORTANT NOTE: Quality of pictures displayed on the screen is highly dependent on the viewing device.
USB 2.0
Excellent turned a FAT document system to read, can support a higher ratio a rate document to broadcast especially.
Divx and Xvid Video Compatibility
1. Plays most version of DivX And Xvid Video with standard playback of DivX and Xvid media les.
2. File entensions: .avi and .divx (these must be used for the player to recorgnize DivX video les)
Note that all les with the. avi extension are recognized as Mp4, but not all of these are necessarily DivX video les and therefore may not be playable on this player
PC-Created disc compatibility
Discs recorded using a personal computer may not be playable in this unit due to the setting of the application software used to create the disc. In these particular instances, check with the software publisher for more detailed information. Discs recorded in packet write mode (UDF format) are not compatible with this player. Check the DVD-R / RW or CD-R / RW software disc boxes for additional compatibility information.
SYSTEM SETUP
When you press SETUP button on the remote control, the setup menu will be displayed. It will include "SYSTEM SETUP", "LANGUAGE SETUP", "AUDIO SETUP", " VIDEO SETUP", "SPEAKER SETUP", "DIGITAL SETUP".
Zoom
The "ZOOM" key is used to turn on or o this function. When this mode is on, any picture will be displayed at the last ratio selected by the user. A message on the screen will indicate the current zoom ratio.
www.PyleUSA.com
22 23
1. Within the setup menu, you can use UP, DOWN, LEFT and RIGHT buttons on
the remote control to move the cursor, and then press the ENTER/PLAY button to make your selection. Press LEFT to return to the previous menu.
2. To exit setup menu, you can select the exit setup menu or press SETUP button.
www.PyleUSA.com
Page 13
SYSTEM SETUP PAGE
1.2 AUTO PLAY
1.3 HD OUTPUT
• Some DVD titles may be recorded in
special formats. In such cases, the DVD titles will always appear on the screen in their original format, regardless of which TV display format you select.
1.7-2 SELECT LOGO
DEFAULT: Resets to all the manufac­turer's original settings for this DVD player Press ENTER/PLAY to perform the reset.
1.1 TV SYSTEM
TV SYSTEM: This player supports dierent TV output, including AUTO, NTSC, PAL60 and PAL systems.
• If your TV supports only NTSC or
PAL and you had inadvertently selected the wrong TV system, the TV screen will icker and only black and white colours will be display. In this case, you should press the SETUP button to set as following Note.
Note: How to Set the TV Type?
• You may switch the NTSC/PAL
setting of the DVD player to match the video signal of your TV.
• The table below shows what kinds
of disc are compatible with each setting (AUTO, PAL and NTSC)
1.4 VIDEO
VIDEO: Sets the video output.
1.5 TV TYPE
The TV TYPE will select the dierent ratio of display format and the screen of TV. There are various types of display on screen for dierent matches between Disc and TV (Please see Multi-image ratio mode).
Note:
• No matter which display format is
selected, a picture recorded in standard 4:3 format always displays in the 4:3 aspect ratio.
• The display format of DVD titles may
vary; please refer to the information that accompanies your specic DVD title.
• If the DVD title is recorded in16:9
wide display format while the TV is a standard 4:3 screen, horizontal compression of the image will result.
1.6 PASSWORD
PASSWORD CHANGE: You can change the password, please type 4 numerals as new password. The initial password is 0000.
1.7 NEXT PAGE
NEXT PAGE: Select sub-item of NEXT PAGE and press ENTER key to setup.
1.7-1 DEFAULT
DEFAULT: Resets to all the manufac­turer's original settings for this DVD player Press ENTER/PLAY to perform the reset.
1.7-3 RESUME
RESUME: This setup can realize the memory playback. When this setup is on, the player will recall the memory where the player stopped under the circumstances of power o or with­drawing the discs. That is to say, when you replay the disc, it will be played from there it stopped last time. Noted: With this function, each disc of dierent formats can be memorized.
1.7-4 PREV PAGE
1.7-5 EXIT SETUP
www.PyleUSA.com
24 25
www.PyleUSA.com
Page 14
2. LANGUAUAGE SETUP
2.1 OSD LANGUAGE
On Screen Display (OSD) Language: Users cans elect the whole setup menu and on-screen display language.
2.3 SUBTITLE LANG
SUBTITLE: Sets the preferred subtitle language as the default when playing DVD. (lf DVD support these languages)
2.4 MENU LANG
MENU LANG: Sets the preferred menu language as the default when playing DVD. (lf DVD support these languages)
3.1 AUDIO OUTPUT
AUDIO OUT: Sets the audio outputs.
3.2 KEY
KEY: Use the Up and Down arrow button to move the scroll and adjust the key.
4. VIDEO SETUP PAGE
4.2 CONTRAST
CONTRAST: Sets the contrast level of Video output
4.3 HUE
HUE: Sets the hue value of the Video.
2.2 AUDIO LANG
AUDIO: Sets the preferred audio language as the default when playing DVD. (If DVD support these languages)
4.4 SATURATION
SATURATION: Sets the saturation of the video.
2.5 EXIT SETUP
4.1 BRIGHTNESS
BRIGHTNESS: Sets the brightness level of video output.
3. AUDIO SETUP PAGE
www.PyleUSA.com
26 27
www.PyleUSA.com
Page 15
5. SPEAKER SETUP
5.1 SPEAKER SETUP PAGE
DOWN MIX MODE: Sets front speakers to LT/RT STEREO, V SURR * The rst 3 settings (LT/RT, STEREO, V SURR) downmix the sound Signal for 2-Speakers. This setting allows you to enjoy a surround sound­ eect with only two speakers. For this reason a setup for additional speakers (described in the following sections) is disabled when DOWN MIX MODE is set to these settings.
6.2 DYNAMIC RANGE
DYNAMIC RANGE: When LINE OUT is selected, choose this setting to adjust the line out ratio and get dierent eect. If adjusting to FULL, the audio signal peak value will be the minimum; while adjusting to OFF, maximum
6.3 DUAL MONO
DUAL MONO: If your amplier/de­coder has Dolby Digital output, you may select stereo, left mono, right mono, or mixed mono mode for your amplier decoder.
TROUBLESHOOTING
Before calling for service, you can perform the solution described in the troubleshooting guide for immediate solutions.
played
PROBLEM
Unit can not be turned on
Remote doesn't
No
Disc cannot be
control
work
POSSIBLE REASON
The power
in
properly
No
The remote is out of
Unit was not connected
Unit was not set up
Disc
loader
No disc in
plug is not plugged
or is
battery
or
batteries
control used
operational range
error
doesn't
tray
damaged
close
Put disc in
are o
properly
properly
tray
TREATMENT
Try plugging in
Replace batteries
Use
it
Connect again
Check setup
Label side should be up
Reload disc in
with right
instructions
tray
range
tray
again
6. DIGITAL SETUP PAGE
6.1 OP MODE
OP MODE: This can set the type of
7. SOURCE
SOURCE: This system will automati­cally read the USB if there is no playable disc loaded. Use the Source menu to select to read from either disc and USB directory.
No
sound
Poor
picture quality
and
audio
Display correctly but
no
response
Unit not
Volume too
connected properly
Disc dirty
Disc
scratched
Discwarpad
Operation
low
Adjust
is
wrong
Connect
Clean the
Replace Disc
Renew
again
it
volume
disc
operation
output and adjust audio frequency
Reset
Without response
www.PyleUSA.com
28 29
Main unit is
jammed
www.PyleUSA.com
Page 16
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
