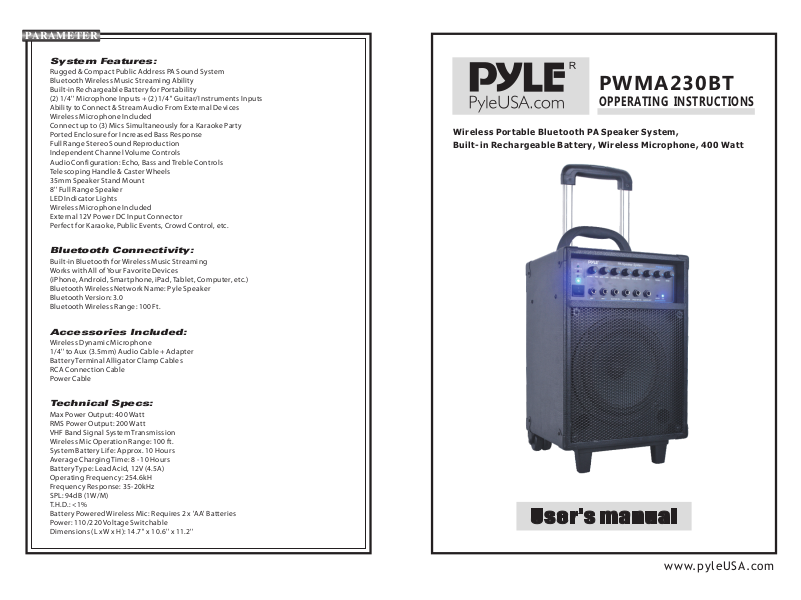

Page 1
PARAMETER
System Features:
Rug ged & Compact Pu blic Addre ss PA Sound System
Blu etoot h Wire less Mu sic Str eamin g Abili ty
Bui lt-in R echar geabl e Batte ry for Port abili ty
(2) 1 /4'' Microphon e Inputs + (2 ) 1/4'' G uitar /Instru ments I nputs
Abi lity to Connec t & Strea m Audio Fr om Extern al Devi ces
Wirele ss Microphone Incl uded
Connect up to (3 ) Mics Simu ltane ously for a Karaok e Par ty
Por ted Enc losur e for Inc rease d Bass Resp onse
Full Ran ge Stereo Soun d Repro duction
Indep endent Channel Volum e Controls
Audio Co nfigu ratio n: Echo, Bas s and Trebl e Controls
Telesco ping Ha ndle & Ca ster Whe els
35m m Speak er Stan d Mount
8'' Full R ange Sp eaker
LED I ndicator Light s
Wirele ss Microphone Incl uded
Exter nal 12V Powe r DC Input Connector
Per fect fo r Ka raoke, Pub lic Events , Crowd Co ntrol, etc .
Bluetooth Connectivity:
Bui lt-in B lueto oth for Wirel ess Music Streaming
Works wi th All of Your Favorite Devic es
(iP hone, A ndroi d, Smar tphone, iPad, Tablet, Co mpute r, etc .)
Blu etoot h Wire less Ne twork N ame: Pyle S peake r
Blu etoot h Vers ion: 3.0
Blu etoot h Wire less Rang e: 100 Ft .
PWMA230BT
OPPERATING INSTRUCTIO N S
Wireless Portable Bluet oot h PA Sp eak er Sy ste m,
Built-in Rechargeable Batt ery , Wir ele ss Mi cro pho ne, 4 00 Wa tt
Accessories Included:
Wirele ss Dynami c Micro phone
1/4 '' to Aux (3.5mm ) Audio Cable + Adapter
Bat tery Term inal Al ligator Clam p Cable s
RCA Connecti on Cabl e
Powe r Cable
Technical Specs:
Max Powe r Outpu t: 400 Watt
RMS Power Outpu t: 200 Watt
VHF B and Sig nal Sys tem Transmissi on
Wirele ss Mic Oper ation R ange: 100 f t.
System Battery Life: Approx. 10 H ours
Averag e Charging Time: 8 - 10 Hour s
Bat tery Type: Lead Ac id, 12V ( 4.5A)
Ope ratin g Frequenc y: 254 .6kH
Freque nc y Respons e: 35-2 0kHz
SPL : 94dB (1 W/M)
T.H.D.: <1%
Bat tery Powered Wireless Mic : Requires 2 x 'AA' Batteries
Powe r: 110/22 0 Volt age Swi tchab le
Dim ensio ns (L x W x H): 14.7 '' x 10.6 '' x 11.2 ''
www.pyleUSA.com
Page 2
GENERAL DESCRIPTIONS
1.It is consist of one set of of wireless and two wired microphone
input circuits, both of them has separated volume control.
2.The standard accessories are VHF high band wireless transmitter
and receiver.
3.It is equipped with built-in 4.5AH/12V rechargeable battery
which can be charge 6 hours continuously, also DC power can be
used directly.
4.One guitar input function and one audio input unit both are
supplied.
5.Treble and bass control are supplied.
6.Echo control is supplied.
7.With voltage selector switch for selecting a suitable one
according to different countries.
8.8＂full range driver
RE M A R K S
SYSTEM FUNCTION FIGURE
1.Wir eless Mic /MIC1 Volume C ontrol
2.MIC2 Volu me Contro l
3.Guit ar Volume Co nt rol
4.Audi o Volume Contr ol
5.Ipod /MP3 Volum e Control
6.Echo C ontrol
7.Tre ble Contr ol
8.Bass C ontrol
9. Metal C orner
10. blue tooth on/ off switch
11. blu etooth in dicator l ight
12. Audio O utput Jac k
13. Ipod /MP3 Inpu t Jack
1 2 3 5 6 7
4
14.Aud io Input Ja ck
15.Gui tar Input J ack
16. Vent Hole
17. Fixe d Stand For The U nit
18. Vent Hole
19. Woofer S peaker
20.MIC 2 Input Jac k
21.MIC 1 Input Jac k
22. Powe r Switch
23. Powe r Indicat or
24. Low Volta ge Indica tor
25. Charge I ndicato r
26. RF Ind icator Fo r Wir eless Mic
1.Correct power must be used, don't use any other power except
the specified one.
2.Don't drag the power cable when pull out the plugs, just hold
the plug to pull it out from socket.
3.Don't open chassis: it is very dangerous either open the chassis
or put your hand inside the chassis, don't do it. If the device is
not under normal working, pull out the plug at once and contact
your retailer or nearest distributor.
4.Don't take volatile solvent such as toluene, alcohol, gasoline to
clean the surface.
5.Please don't put it in a unventilated environment or at direct
sunlight in summer.
6.Avoid moisture or rain
1
26
25
24
23
22
21
20
19
18
17
10
11
12
13
14
15
16
8
9
PWMA 230BT
2
Page 3
SYSTEM FUNCTION FIGURE
27.Trailer Ha ndle
28.Heat ing Pane
29.Hand le
30.Audi o Out
31.Voltage Sele ctor Swit ch
32.AC Fus e/Bat te ry Fuse
33.Powe r line(~115V /230V)
34.Exte rnal DC Inp ut Jack
35.2PIN P ower So ck et
36.Rech argeable Ba ttery Cov er
37.Warning
38.4.5A H/12V Recha rg eable Bat tery
39.Truckle Of Trai ler
40.Mic H ead
41.RF In dicator O f Handh eld Mic
42.Pow er Swit ch O f Handh eld Mic
43.Bat tery Hous ing Of Ha ndheld Mi c
INSTRUCTIONS
1. Confirm the power
AC Power: Before operation, please confirm the voltage is
①
same as the specified one marked on the label. If not, the unit
will be damaged.
②
Built-in Rechargeable Battery: You needn't plug-in the AC
power when the voltage for rechargeable battery is enough
but use the battery directly.
③
When the Low Voltage Indicator comes yellow, it indicates
the battery voltage is not enough, please charge it in time.
④
When the Low Voltage Indicator comes out, it indicates the
voltage is standard now.
⑤
If the unit is not used for a long time, please charge the rec-
hargeable battery every 2 months, 8-10 hours for each time.
27
28
29
30
31
32
33
34
35
36
37
38
39
IMPORTANT！
To protect rec hargea ble batte ry l ife,
this unit is sh ipped w ithou t insta lling
battery fuse. Bef ore using th is u nit,
please in stall fus e(inc luded in the
accessrie s pac k). Charge the bat tery
fully befor e fir st use . Av iod tot al
dis c h ar g i ng o f t h e b a t t er y .
2. Operation Instructions:
Plug the power cable into the socket and connect it with this
①
amplifier system.
②
Switch on the amplifier, the Power Indicator comes red.
③
During charging, RECHARGE indicator comes red, when the
indicator flashing, that means battery is amost full while it is
ready all indicators will off.
④
During charging, you can play music at the same time, then
RECHARGE indicator will flashing with the current
40
41
42
43
comsuption indicating the speed of charge. Charge time is in
direct proportion to the volume of music. When the battery is
full, RECHARGE indicator will stop flashing and then off.
⑤
Put two AA 1.5V battery into handheld microphone (bodypack
transmitter), push the Power Switch to middle, the Power
Indicator will flash once, RF Indicator comes on green,
the speakers are quiet.
3 4
Page 4
INSTRUCTIONS
Push the Power Switch of handheld microphone(bodypack
⑥
transmitter) to ON position, your sound can be heard from
amplifier when speaking. Adjust the Volume Control/Echo
Control/Treble Control/Bass Control to proper position to
avoid feedback.
⑦
If the Power Indicator of microphone (bodypack transmitter)
comes on at all times, it indicates the battery lack of power,
please replace the battery.
Connect relative cable of guitar with Guitar Input Jack on this
⑧
system, you can play wonderful music.
3. Wired Microphone:
Two way wired microphone input jacks are supplied for two
①
people us simultaneously.
②
Plug Wired microphones into the jacks separately.
③
Adjust Echo Control to get better sound.
INSTRUCTIONS
4. BLUETOOTH playback
You can connect your Bluetooth p hone or other device to the PA
speaker.
1. Turn on the unit.
2.Press the ON/OFF swit ch on front panel, bluetooth will on.
3.When the indicator light i s on it means the bluetooth in ON.
4. Use your Bluetooth phone or other device to search for the PA speaker.
It will displayed as .
PYLE SPEAKER
5.Connnect your devices wi th PYLE SPEAKER,it will pair with unit
automatically.
6.You do not need code and get conne cted with unit.
7.Play music on your phone or dev ice, sound will come from the
speaker through the BLUETOOTH wireless connection.
8.You can use the VOLUME/BASS/TREBLE to adjust the sound level f or
BLUETOOTH, also you can adjust the Bluetooth music sound th rough
your own phone or other device .
NOTES: If there is no sound through the PA speaker during Bluetooth ,
Check the volume controlle r both on the unit and on your phone or
other device.
④
Adjust the volume of each microphone to make sure the
sound is satisfactory.
⑤
When you turn on the unit, be sure ECHO control set to
minimality, or there will cause sound distortion
5 6
71 8.535 .18 00 71 8.236 .24 00( fax)
16 00 63rd S tre et, B rookl yn NY 112 04
