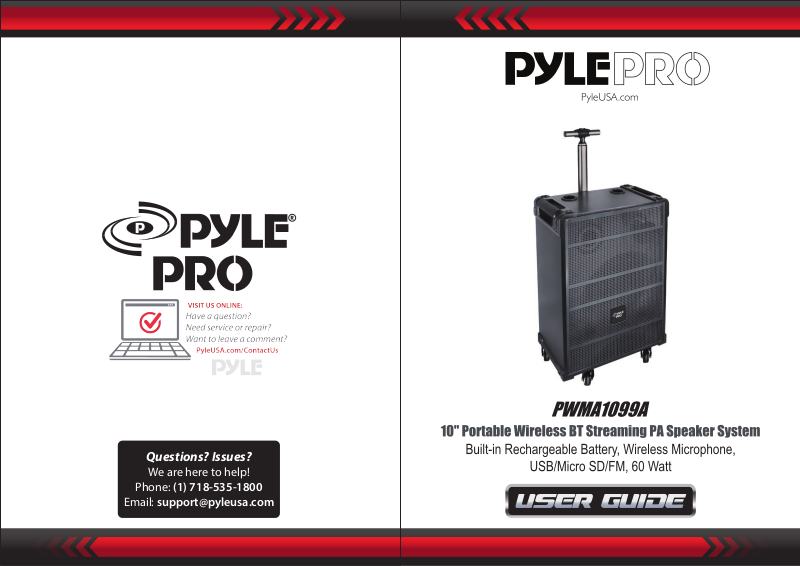

Page 1
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: support@pyleusa.com
Page 2
WARNING
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
IMPORTANT SAFETY MEASURES
Before using this machine, please read all the safety and operating instructions.
Meanwhile, please observe all the indications about safe operating.
Changes or modications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception
which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
NOTE: This device and its antenna(s) must not be co-located or operation in
conjunction with any other antenna or transmitter.
RF Exposure Statement
To maintain compliance with FCC’s RF Exposure guidelines. This equipment should
be installed and operated with minimum distance of 20cm the radiator your body.
This device and its antenna(s) must not be co-located or operation in conjunction
with any other antenna or transmitter.
1. Protection of electric power supply line: Be aware that the electric power supply
line is not tramped, pressed by heavy objects. Pay special attention to the plug of
power supply line and outlet on the machine. DO NOT lengthen the electric shock,
DO NOT pull or drag or the power supply line.
2. Ventilation: This set must be put in ventilated place. DO NOT put disk on it or cloth
to cover it. The distance away from the wall should not be less than 10 centimeters.
DO NOT put this set on the bed, sofa, carpet or other objects with similar surface
in case of good ventilation.
3. Casing Dismantling: DO NOT dismantle the casing. If one touches the inner
components, he will probably get serious electric shock.
4. Unusual smell: When you discover unusual smell and smoke, cut power supplies
immediately and pulls out the plus from the outlet on the wall.
Contact the sell shop or nearest repairing center.
PRODUCT FEATURES
Compact, Portable & Powerful PA Speaker System
•
• Karaoke Microphone Talk-Over Mode
• Wireless BT Audio Streaming
• Built-in Rechargeable Battery
• FM Radio with Digital LED Display
• USB Flash & Micro SD Memory Card Readers
• MP3 Digital Audio File Compatibility
• Audio Recording Function
• 1/4’’ Microphone Input
• Aux (3.5mm) Input Jack
• Connect & Stream Audio From External Devices
• Full Range Stereo Sound Reproduction
• Impressive Bass Response
• Echo, Bass, Volume Adjustment
• Convenient Carry Handle & Rolling Wheels
• *Optionally Powered via External Device, 12V Connectors
• Rugged & Heavy Duty Design
www.PyleUSA.com
2
www.PyleUSA.com
3
Page 3
REMOTE CONTROL FUNCTIONS
1. Power: Standby button.
2. MODE: Used to switch the BT, FM, AUX, USB, SD
3. MUTE: Mute button
4. REC: Recording, press once to start recording,
press again to play the current recording.
5. VOL +: Main volume increase
6. : Next song/Next channel
7. : Previous song/Previous channel
8. : Play/Stop Auto-search by press and hold
the FM button, press and hold the BT button to
turn on TWS
9. VOL -: Main volume decrease
10. REPEAT: Single repeat/repeat all
11. EQ: Choose from EQ1,EQ2,EQ3,EQ4...
12. Choose song number/channel directly.
GETTING STARTED
1. Ensure the Portable PA Speaker is turned o. Ensure all volume controls are turned
all the way down. Next, connect one side of the included power cable to the
Portable PA Speaker’s power inlet and the other to a grounded power outlet.
2. Ensure that the power supply complies with the power requirements listed on the
identication sticker located on the bottom of your product. Turn on the power to
the Portable PA Speaker using the power switch.
3. Slowly turn up the function keys until the desired level is reached.
WIRELESS BT CONNECTION
Switch the Portable PA Speaker to MODE, then switch to BT (BT MODE) pairing
mode and connect to a new BT device using BT Network Name: ‘PYLE PRO’.
R
Warning: To prevent the risk of re or electric shock, do not expose this appliance to
rain or moisture. To prevent electric shock do not remove the cover. No user serviceable
parts inside. Refer servicing to qualied service personnel.
UNIT DESCRIPTION
1. VOLUME
2. Micro SD/USB
3. LOW
4. TREBLE
5. BASS
6. MIC.VOL
7. ECHO
8. DELAY
9. MIC. IN 1/2
10. MODE
11.
12. /TWS
13.
14. M.PRI
15. REC
16. Display
17. AUX IN
18. DC 12V IN
19. POWER
20. AC INPUT
Safety: Prior to connecting mains, ensure that the supply voltage is correct and the
16
1
2
10 11
13
15
12
14
mains lead is in good condition. Avoid ingress of water or particles into the enclosure.
Placement: Keep the unit out of direct sunlight and away from heat sources.
Place the unit in an upright position during use and storage. Keep the unit away
3
4
5
6
7
9
8
17
18
19
20
from moisture or dusty environments.
Cleaning: Use a soft cloth with a neutral detergent to clean the cabinet, panel and
controls. To avoid damage, do not use solvents to clean this equipment.
WHAT’S IN THE BOX:
• Portable PA Speaker
• (2) Wireless Handheld Microphone
• Power Cable
• Remote Control
• User manual
• Warranty Card
www.PyleUSA.com
4
www.PyleUSA.com
5
