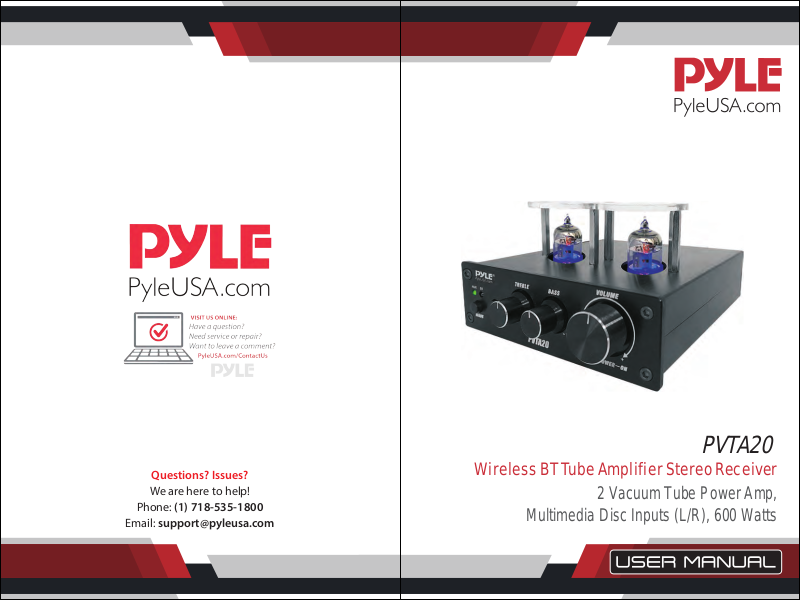

Pyle PVTA20 User guide

PVTA20

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [email protected]

Wireless BT Tube Amplifier Stereo Receiver

2 Vacuum Tube Power Amp,

Multimedia Disc Inputs (L/R), 600 Watts

Front and Back Panel

1. AUX Input Indicator

2. Wireless BT Indicator

3. Treble Volume Control

4. Bass Volume Control

5. Master Volume Control

and Power ON/OFF

6. Input select

7. MP3 Input

8. Microphone Input

9. Wireless BT Antenna

10. AUX Input (L/R)

11. Pure Copper Terminal Output

12. Power Adapter jack

(DC 19V/4A)

1 2 3 4 5

6 7

8 9 10 11 12

WIRELESS BT STREAMING OPERATION INSTRUCTION:

External devices which have a built-in Wireless BT feature can be connected
to this amplier wirelessly to play through the amplier's speakers. If your
amp is connected to speakers, you will hear audible tones which will help
for connecting.

1. The unit will auto enter Wireless BT mode within 30 seconds after power
on. lf no other device is connected to Wireless BT during this time, unit will
auto enter AUX mode.

2. When unit enter AUX mode, press "MODE" button on the front panel, the
unit is automatically ready to pair with your devices when you hear audible
tones.

3. Turn ON the Wireless BT of your external device.

4. Search for available BT devices and make sure to be within range of your

amp, and wait for your device to select "PYLEUSA" onthe pairing devices
lists of Wireless BT networks.

5. You can now play music on your external device through the amplier.

Features:

• 2 Vacuum Tube Power Amp

• BT Wireless Streaming Ability

• Double-sided Fiber Circuit Board

• CD/DVD Inputs (L/R)

• Aux/3.5mm Inputs Jack

• Pure Copper Terminal Output

• Treble, Bass, and Master Volume Controls

Wireless BT Connectivity:

• Receives Wireless Signal for Audio Streaming

• Simple & Hassle-Free Pairing Setup

• Integrated Antenna for Extended Wireless Range

• Works with All of Today’s Latest Devices

(Smartphones, Tablets, Laptops, Computers, etc.)

• Wireless BT Version: 5.0

• Wireless BT Network Name: 'PYLEUSA'

• Wireless Range: 40'+ Ft.

What's in the Box:

• (1) Wireless BT Tube Amplier

• (1) Power Adapter

Technical Specs:

• Power Output: 600 Watts Peak Power

• Power supply: AC 120V/240V, DC 19V 4A

• Construction Material: Aluminium

• Amplier Chip: TPA3116

• Rated output power: 2*50W /4Ω

• Audio input: RCA input + BT input

• Audio output: 1 set of Banana Speaker Jacks

• Signal to noise ratio:＞99dB

• Frequency: 20Hz-20KHz

• Product Dimension (L x W x H): 4.65'' x 6.3'' x 2.87'' -inches
