Pyle PTVDLED16 User Manual

POWER

+

P.MODE

S.MODE

TV MENU

ENTER

MTS EXIT

AUTO

DISPLAY

VOL

CCD

ZOOM SLEEP

FAV

FAV- FAV+ REPEAT

SLOW

GOTO ANGLE

STEP

SUB-T A-B PROG

DVD

TITLE

SETUP

MUTE

EPG

SOURCE

CH

DVD
MENU

SAFETY INFORMATION

IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY BEFORE USE.

Take note of the following safety information which appears on the back of the TV.

CAUTION TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE ANY COVER SCREWS, NO USER

SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that there are important operating maintenance instructions in
the literature accompanying this unit.

This symbol indicates that dangerous voltage constituting a risk of electric shock is
present within this unit.

KEEP THESE INSTRUCTIONS

• Do not use this TV near water.

• Clean only with a slightly damp cloth.

• Do not block any ventilation openings.

www.PyleUSA.com

• Install in accordance with the supplied Quick Start Guide and this User Guide.

• Protect the power chord from being walked on or pinched, particularly at plugs, and the point where it

exits from the TV.

• Do not allow the power chord to overhang the edge of a table.

• Unplug this TV during lightening storms or when unused for long periods of time.

WARNING! TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE

THIS TV TO RAIN OR MOISTURE.THE TV MUST NOT BE EXPOSED TO DRIPPING OR
SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS SHOULD BE PLACED ON THE TV.

NOTE: No naked ames such as candles should be placed on the TV.

3

SAFETY INFORMATION

This unit has been produced according to all current safety regulations. The following safety tips should

safeguard users against careless use and the dangers.

• Although this appliance has been carefully manufactured and rigorously checked prior leaving the factory,

as with all electrical appliances it is possible for problems to develop. If you notice smoke, an excessive

build up of heat or any other unexpected phenomena, you should disconnect the plug from the mains

power socket immediately.

• Ensure that the unit is sufficiently ventilated! Never place next to or underneath curtains!

• The mains plug or appliance coupler is used as the disconnect device, the disconnect device shall remain

readily operable.

• This set should only be connected to a mains power supply which matches that stated on the label on the

rear of the TV - do not attempt to connect it to any other type of supply.

• The socket -outlet must be installed near the equipment and easily accessible.

• To prevent overload, don't share the same mains supply socket with too many other items of equipment.

• Apparatus with Class 1 construction shall be connected to a mains socket outlet with

a protective earthing connection.

• Keep away from rodents. Rodents enjoy biting into electric exes.

• Always hold the plug when pulling out the plug from the mains supply socket. Do not pull on the ex, the

ex can become overloaded and cause short circuit.

• Set up the unit so that no one is able to trip over the ex.

• Do not place heavy items on the ex, which may damage it.

• Take note that the ex cannot be reached and pulled by young children, avoiding injury.

• Do not set up the unit near to heat sources. The casing and the ex could be damaged by the impact of

heat.

• The screen is made of plastic and can break if damage is done. Be careful when collecting sharp edged

plastic splinters to avoid injury.

• Avoid placing the unit on any surface that may be subject to vibrations or shocks.

• To protect the unit during a thunderstorm unplug the AC power cable and disconnect the aerial.

Caution: Do not touch the aerial (RF) connector.

• When you leave your home for a long period of time, unplug the AC power cable for safety reasons.

• The unit becomes warm when in operation. Do not place any covers or blankets on the unit in order to

prevent overheating. The ventilation holes are not to be blocked. Do not set up near radiators.

Do not place in direct sunshine. When placing on a shelf leave 5 cm (2") free space around the whole unit.

• Do not allow water or moisture to enter the TV. Do NOT use in wet or moist areas such as Bathrooms,

steamy kitchens or near swimming pools.

• Do not use this unit when moisture condensation may occur

• Any repairs must be carried out by qualied personnel only.

• Do not open this unit. A non - expert attempting to repair the unit could be dangerous and potentially

cause a re hazard.

• Liquids spilt into the unit can cause serious damage. Switch the set OFF and disconnect the mains power

supply, then consult a qualied service person before attempting to use the unit again.

• Do NOT remove the safety covers. There are no useable or serviceable parts inside.

You may invalidate the warranty. Qualied personnel must only service this apparatus.

• Do NOT tap or shake the screen, you may damage the internal circuits. Take good care of the remote

control, do not drop.

• Never place hot objects or open ame sources on or close to the TV.

• High temperatures can melt plastic and lead to res.

• To clean the TV use a soft dry cloth.Do NOT use solvents or petrol based uids. For stubborn stains, you

may use a damp cloth with dilute detergent.

HEADPHONE WARNING

Loud music can damage your hearing irreversibly, therefore do not set the volume to a high level when

listening through headphones, particularly for lengthy listening periods.

WHERE TO INSTALL

Locate the television away from direct sunlight and strong lights, soft indirect lighting is recommended for

comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen. Place the TV on

a sturdy platform of which the surface should be at and steady. This will prevent it from falling over.

Make sure the television is located in a position where it cannot be pushed or hit by objects, as pressure will

break or damage the screen, and so that small objects cannot be inserted into the ventilation slots or

openings in the cabinet.

SOURCE

/PAUSE

Connect to the mains adap tor.

POWER

S.MODE

+

P.MODE

MUTE

EPG

TV MENU

ENTER

MTS EXIT

AUTO

DISPLAY

VOL

CCD

ZOOM SLEEP

FAV

FAV- FAV+ REPEAT

GOTO ANGLE

SUB-T A-B PROG

TITLE

SLOW
STEP

DVD
SETUP

SOURCE

CH

DVD
MENU

STEP 1: Choosing your Picture mode
U row buttons to select Home Mode standard.
Press the ENTER button to complete the s tep.

se the ar

STEP 2:
Use the arrow but tons to select Menu Languag e.
Use the arrow buttons to sele ct English- Francais-Espanol.

Use the arrow buttons to sele ct AIr/Cable.
Select Cable, then p ress the button to sele ct Cable System. Then press the but ton to
select Auto-STD-IRC-HRC.

Press SOURCE button to display the input source list,

Press or SOURCE button to select the input source

Press ENTER button to enter the input source,

Press EXIT button to quit.

MAIN MENU

Press MENU to display the main menu or return to the previous menu or close the main menu
Press to highlight the desired menu icon, and press ENTER to select.

MAIN MENU OPERATION
Picture Menu

Press MENU to enter the main menu, Press button to select. Press ENTER / to enter.
Press MENU again to exit or back to parent menu.

Press button to select among Picture Mode/Brightness/Contrast/Color/Tint/Sharpness/Color Temp/Blue Screen.

Press ENTER / to enter.
Press button to adjust.
Press MENU again or back to parent menu.

【Picture Mode 】

Adjust picture mode to change picture appearance.
Press button to select (Standard / Dynamic / Mild / Energy Saving / User).

Note: The brightness, contrast, color, tint and sharpness are only available in User mode, you can adjust

as you like.

Standard: Produces a highly dened image in a normally lit room.
Dynamic: Produces a highly dened image in a brightly lit room.
Soft: Produces a highly dened image in a soft lit room.
User: Select to customize picture settings.

【Brightness 】

Adjust the visual perception output of the entire picture, it will effect the iuminousness of the picture.
Press button to adjust.

【Contrast 】

Adjust the highlight intensity of the picture, but the shadow of the picture is invariable.
Press button to adjust.

Color Temp

Medium

Blue Sc

press but ton to sele ct (o/on).

Auto Volume/SPDIF Type/Accessibility/TV Spea ker

reen

Sound Mode

Surround Sound/

Sport

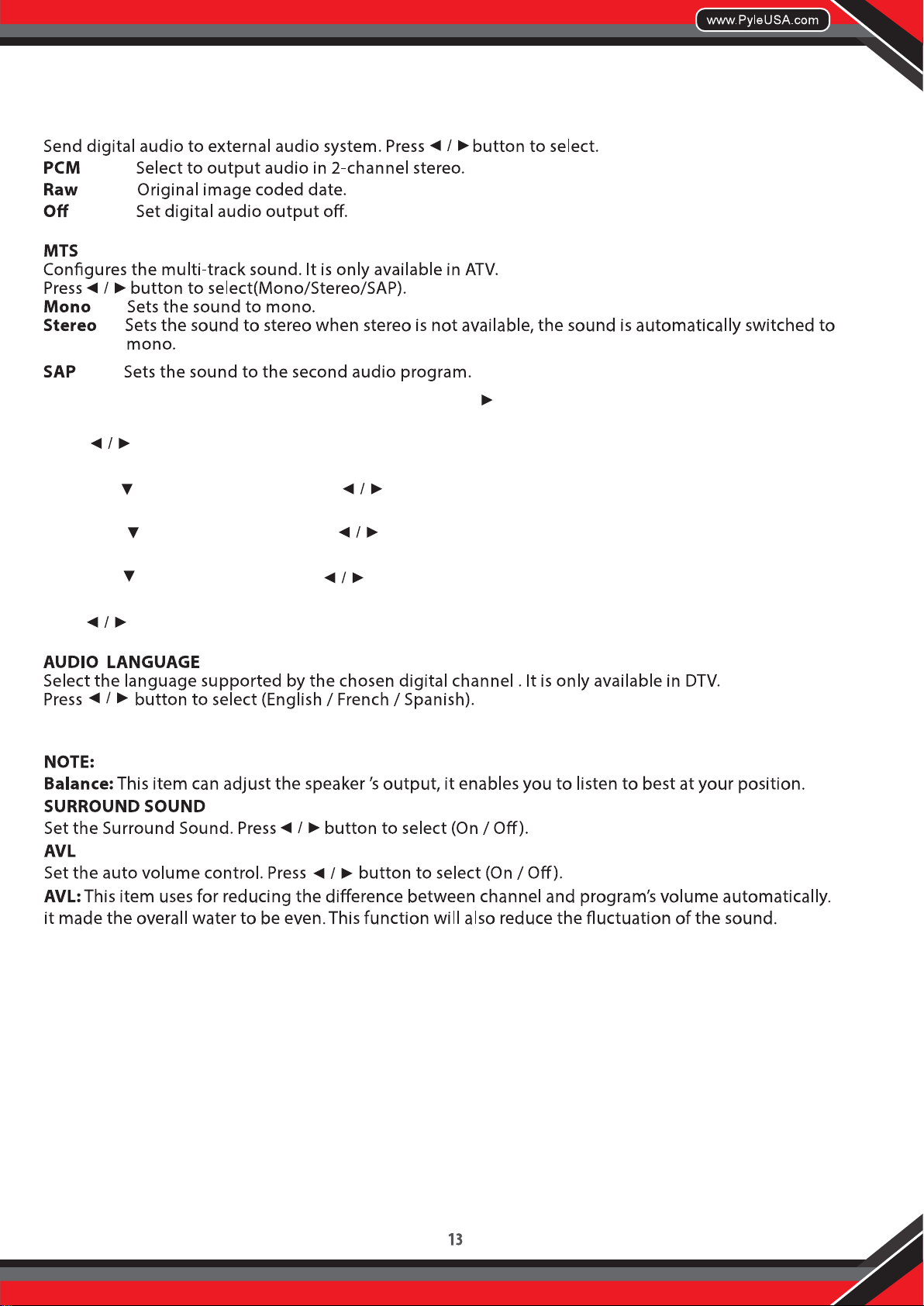

SPDIF Type:

Accessibility: Adjust Accessibili ty settings ress ENTER/ button to enter.
Voi ce Guide

Press button to select (o-on）

Volume

Press the button to Volume . Press button to select (Middle-Strong-weak)

Speed

Press the button to speed . Press button to select (Middle-Strong-weak).

Pitch

Press the button to Pitch . Press button to select (Middle-Strong-weak).

TV Spea ker:

Press button to select (o/on).

p

Zoom Mode/Noise Redu ction/

Advanced/Sou rce Label/Closed Caption/D LC/Setup Wiza rd/Overscan/HDMI CEC/Res tore Default/
OSD Timeout.

ON/OFF)

ZOOM MODE

Normal Automatically adjust Aspect Ratio based on TV size and TV program.
Wide Use to watch wide screen (16:9) content.
Zoom
Cinema Stretches image at edges but keeps a clear image in the center.

Noise Reduction
Set options to reduce video noise.
O Select to turn off video noise detection.
Low Detect and reduce low video noise.
Medium Detect and reduce moderate video noise.
High Detect and reduce enhanced video noise.

Advanced Adjust advanced video features to ne tune the picture. Press button to enter sub-menu.

Source Label Create labels for the devices connected to your TV. Press ENTER / button to enter.
Closed Caption Adjust Closed Captioning settings.Only available under TV and AV source.
CC MODE Turn Closed Captioning on/off. Press button to select (Of/On/CC On Mute).
Basic Selection Set Closed Captioning for standard(analog) program.

Press button to select (CC1 / CC2 / CC3 / CC4 / TEXT1 / TEXT2 / TEXT3 / TEXT4).
Advanced Set Closed Captioning for digital program. Press button to select (Of / Service1 / Service2 /
Service3 / Service4 / Service5 / Service6).

OPTION Adjust the digital Closed Captioning setting. Press button to enter.
MODE Set the look of digital Closed Captioning. Automatic uses broadcaster's style. Press button to select

(Default / Custom).
FONT STYLE Select from 8 font styles. Press button to select (Default / Font 0 / Font 1 / Font 2 / Font 3 /
Font 4 / Font 5 / Font 6 / Font 7).
FONT SIZE Adjust the size of the digital Closed Captioning font. Press button to select (Default /NormalI
Large / Small).
FONT EDGE STYLE Adjust the edge of the digital Closed Captioning box. Press button to select (Default /
None / Raised / Depressed / Uniform / Left Shadow / Right Shadow).
FONT EDGE COLOR Adjust the color of the digital Closed Captioning box. Press button to select (Default /
Black / White / Red / Green / Blue / Yellow / Magenta / Cyan).
FG COLOR Adjust the color of the digital Closed Captioning font. Press button to select (Default / White /
Red / Green / Blue / Yellow / Magenta / Cyan).
BG COLOR Adjust the digital Closed Captioning background color. Press button to select (Default / Black /
Red / Green / Blue / Yellow / Magenta / Cyan).
FG OPACITY Adjust the transparency of the digital Closed Captioning font. Press button to select (Default /
Solid / Flashing / Translucent / Transparency).
BG OPACITY Adjust the digital Closed Captioning background transparency. Press button to select
(Default / Solid / Flashing / Translucent / Transparency).

DLC Automatically adjust picture detail and brightness. Press button to select (Off/On).
Setup Wizard Set the rst time installation.
Overscan

Press button to select (On/Off).
It is only available to enter 1080i/720p/1080p in DTV/Component/HDMI. Default is On. It xed set to be On in
ATV/AV. It xed set to be Off in PC.

HDMI CEC Press the button to highlight CEC, then press the ENTER button to enter.
Restore Default Change power on options or reset TV to factory default. Press ENTER button to enter.
OSD TIME OUT

Adjust the duration of the OSD (on screen display) menu.
Press button to select (5 Sec.1, 5Sec.,30Sec.,45Sec.,60Sec.)

Auto Sleep

Adjust the time for automatic standby without signal display.
Select the ON mode: When there is no signal input, the TV will automatically enter the standby state after
about 15 minutes.
Select O mode: the TV will not automatically stand by when there is no signal input.

Reset RRT/Clear LOCK.

Set Password

Set Password/System Lock/Input Block/US/Canada/RRT Setting/

HDMI
PC

Favorite/Channel List

SOURC E

Advanced.

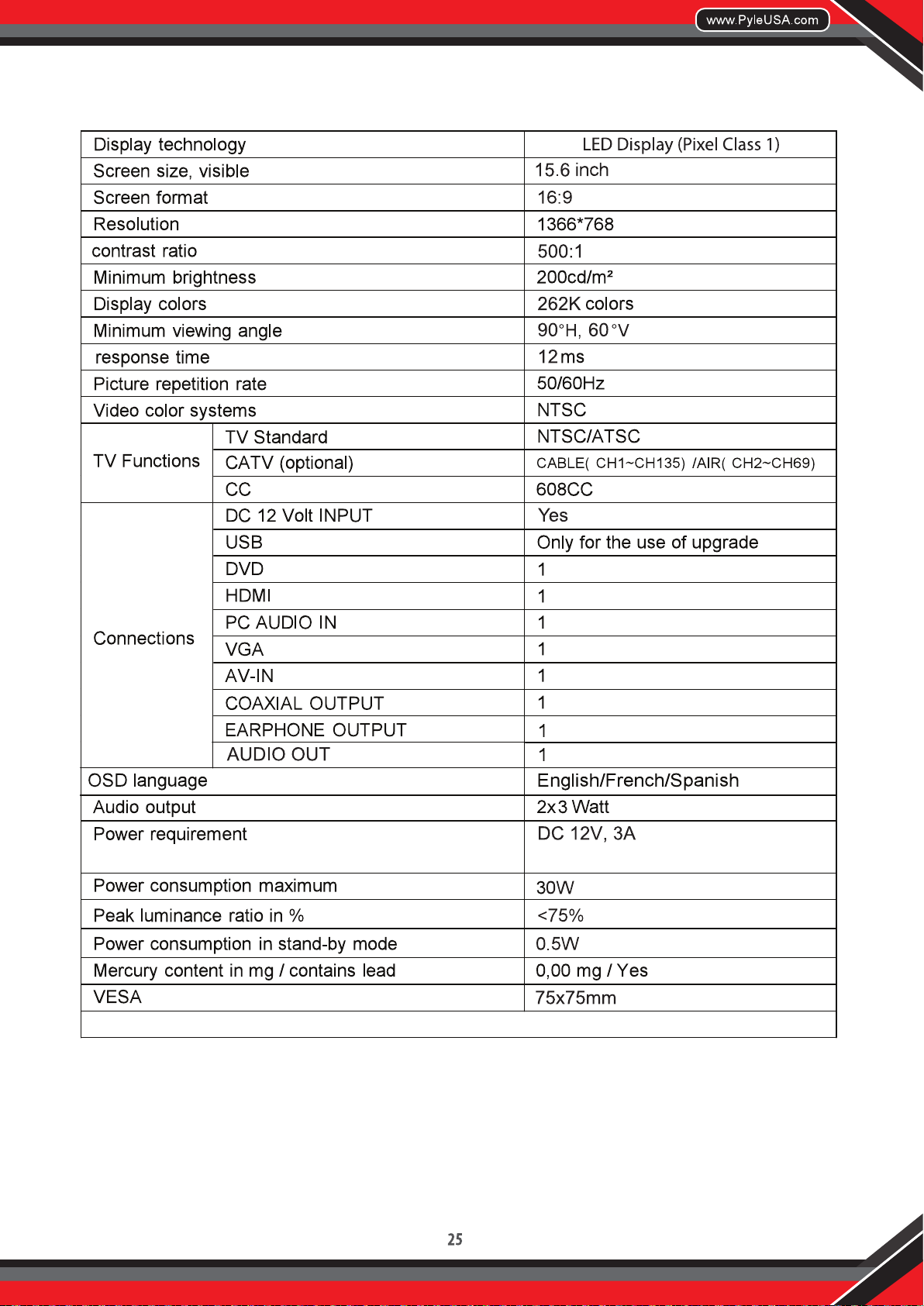

PTVDLED16 SPECIFICATION
