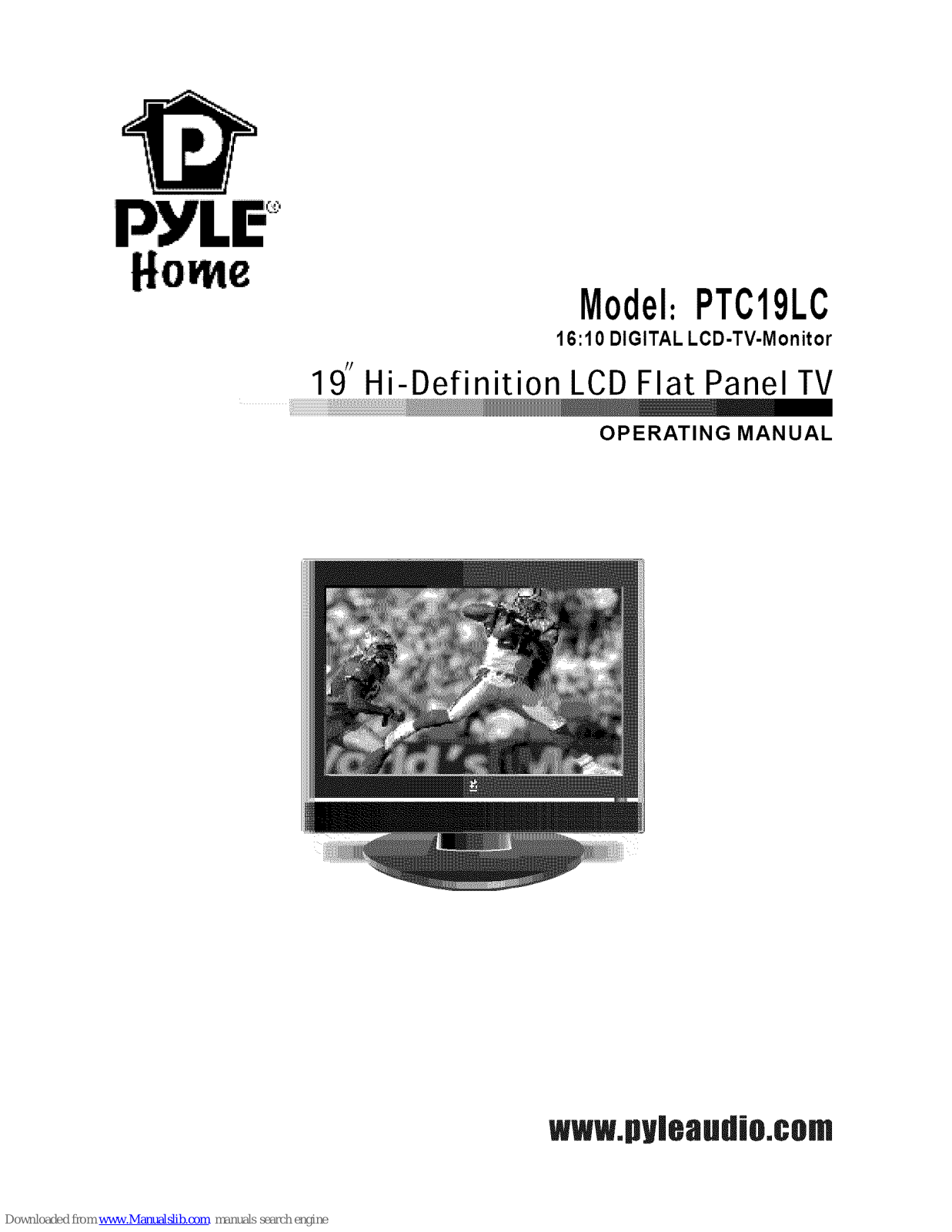

Pyle PTC19LC Operating Manual

e

Model=PTC19LC

16:10 DIGITAL LCD-TV-Monitor

19" Hi-Definition LCD Flat Panel TV

OPERATING MANUAL

www.py|eaudJo.com

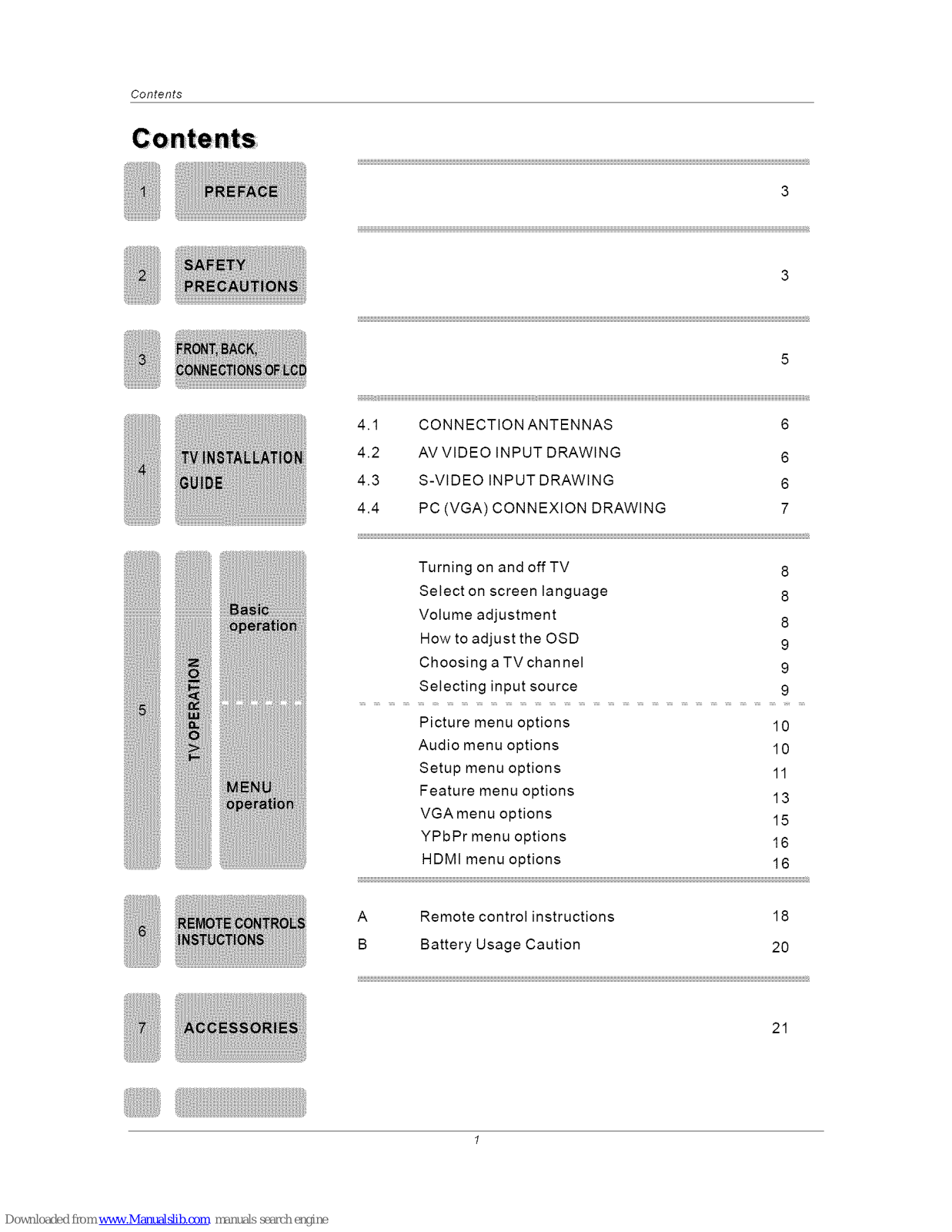

Contents

3

4.1 CONNECTION ANTENNAS 6

4.2 AV VIDEO INPUT DRAWING 6

4.3 S-VIDEO INPUT DRAWING 6

4.4 PC (VGA) CONNEXION DRAWING 7

Turning on and off TV
Select on screen language

Volume adjustment

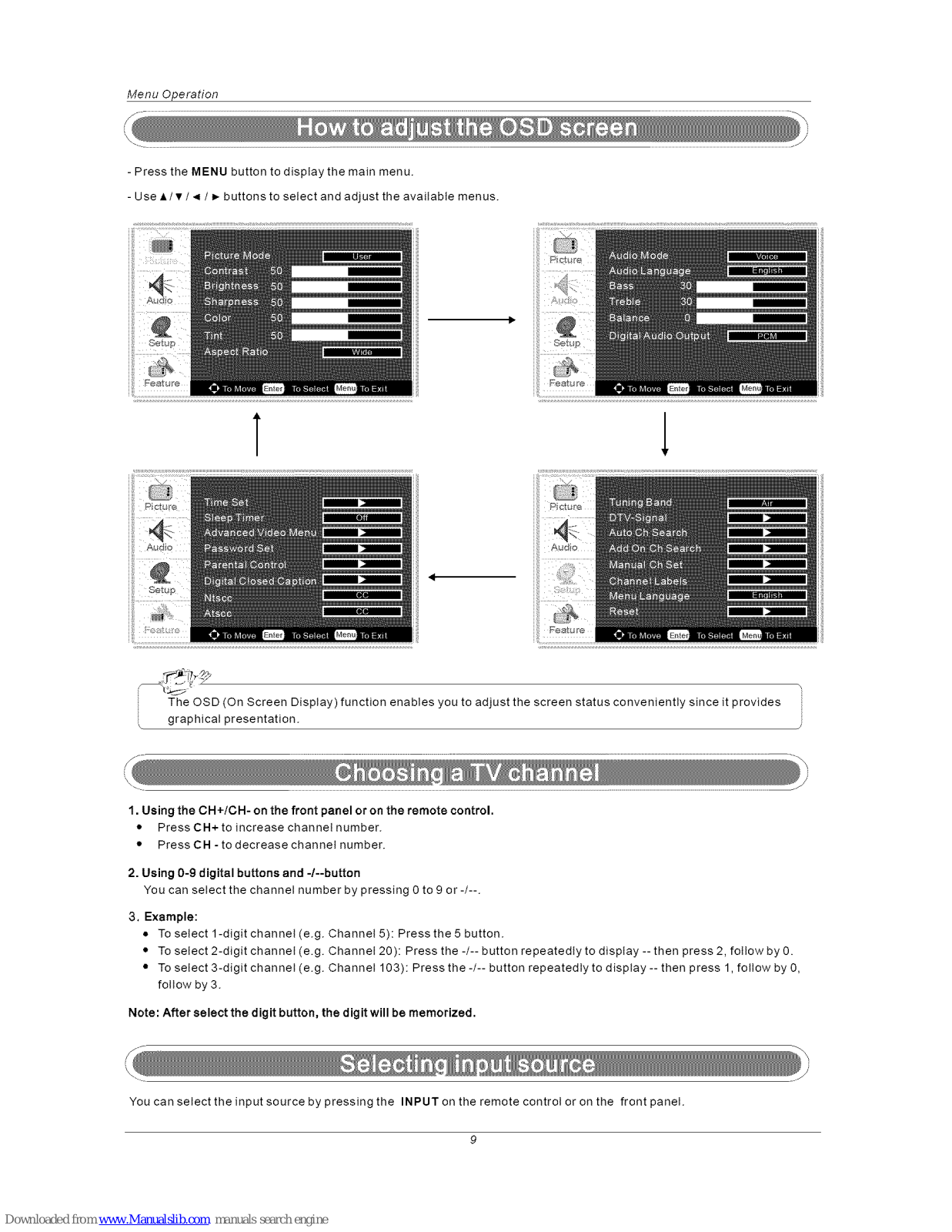

How to adjust the OSD

Choosing a TV channel
Selecting input source

8
8

8
9
9
9

Picture menu options 10

Audio menu options 10

Setup menu options 11
Feature menu options 13

VGA menu options 15

YPbPr menu options 16
HDMI menu options 16

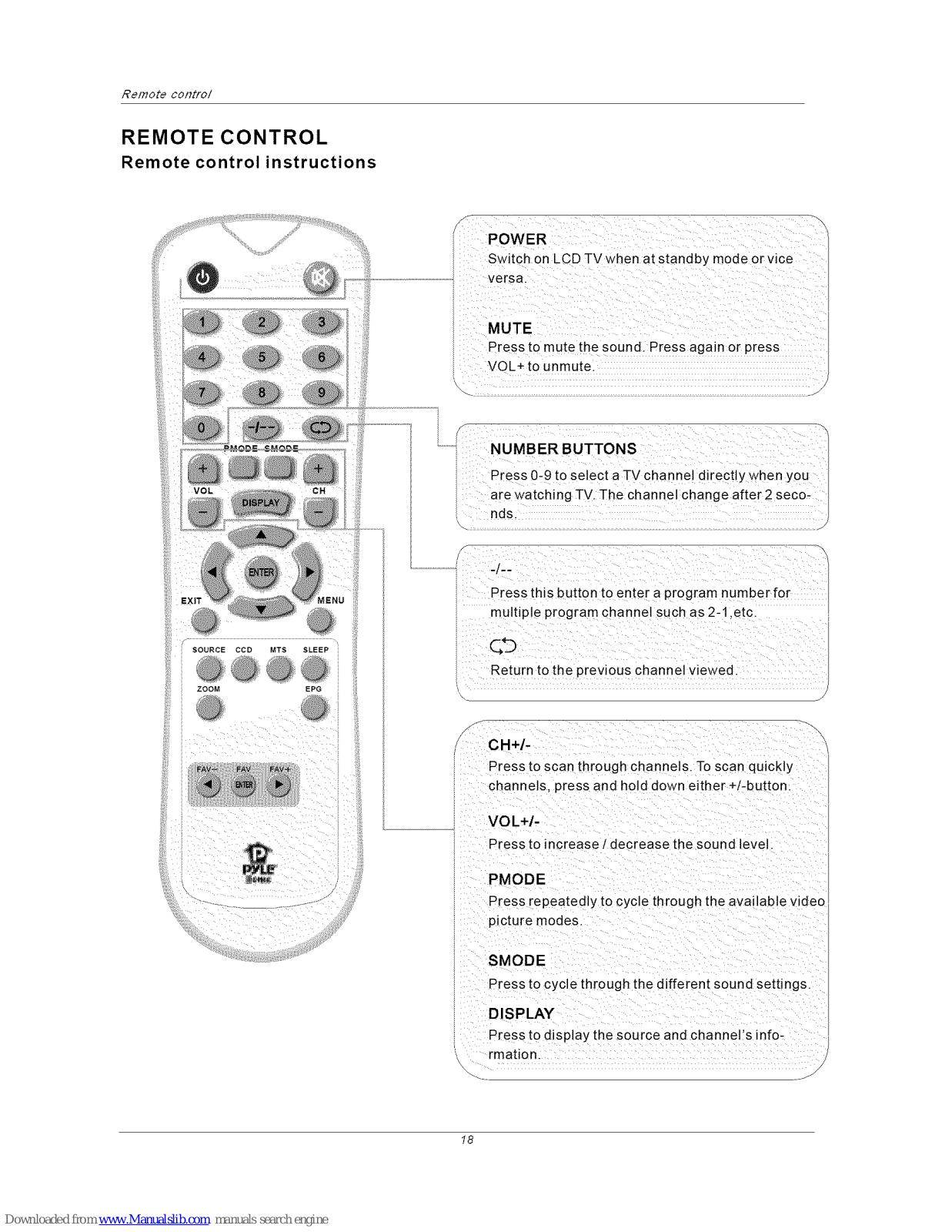

A Remote control instructions 18

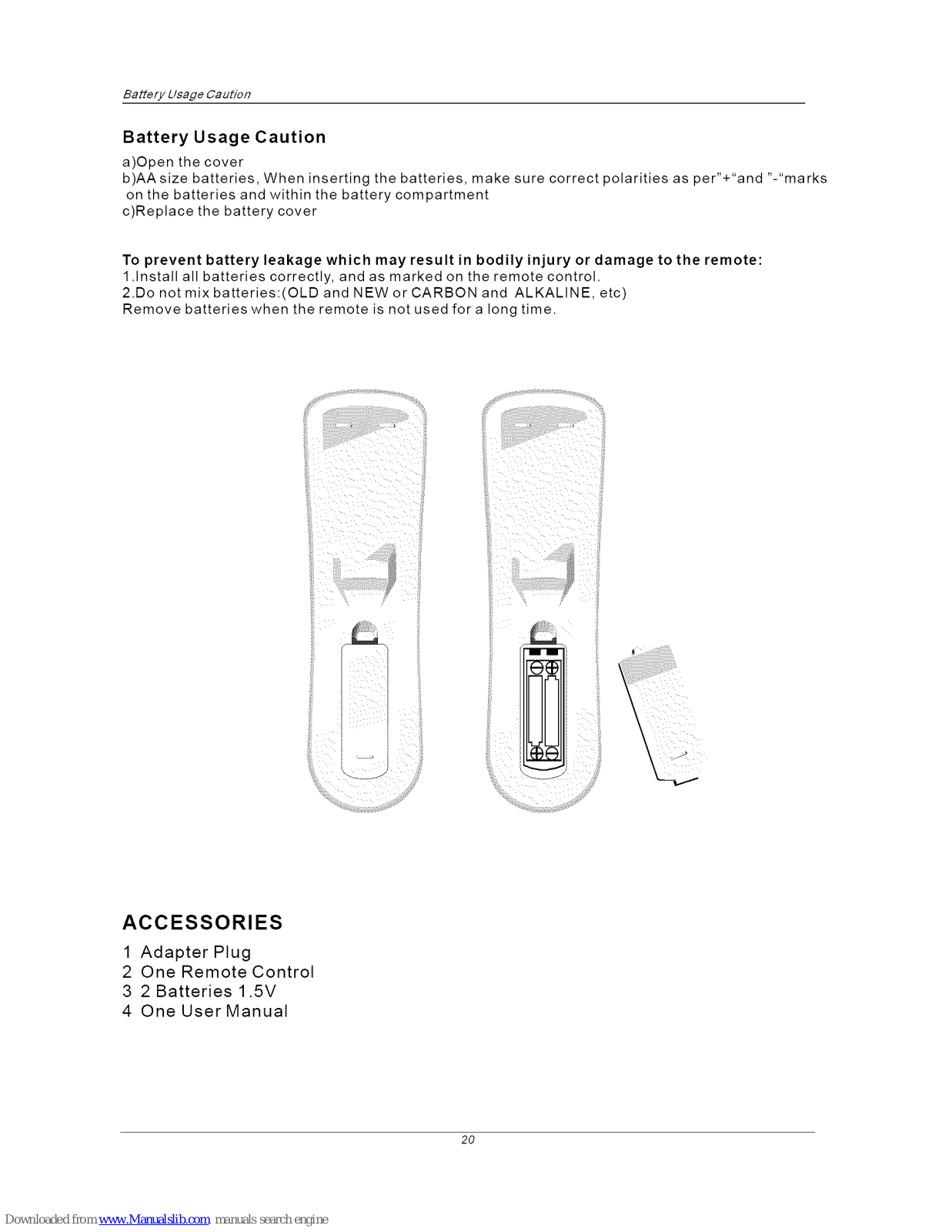

B Battery Usage Caution 20

21

iliiiiiii!ii iiiliii!iiiiii!iiii!!!!i!!i!!i!!i!!i!!i!!i!!i!

Contents

21

22

iliiiiiii!ii_iiiliii!iiiiii!iiii!!!!i!!i!!i!!i!!i!!i!!i!!i!_

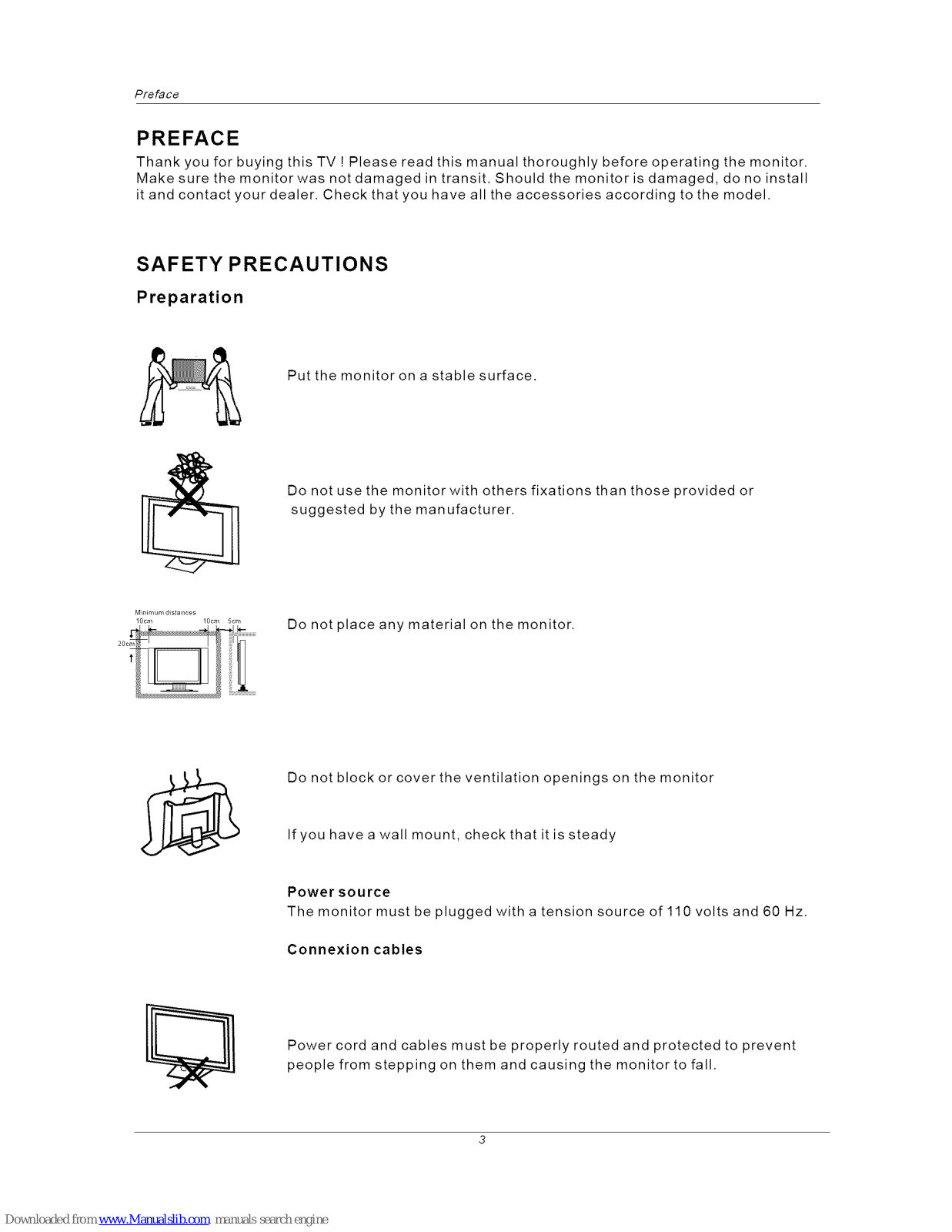

Pfeface

PREFACE

Thank you for buying this TV ! Please read this manual thoroughly before operating the monitor.
Make sure the monitor was not damaged in transit. Should the monitor is damaged, do no install
it and contact your dealer. Check that you have all the accessories according to the model.

SAFETY PRECAUTIONS

Preparation

Put the monitor on a stable surface.

Do not use the monitor with others fixations than those provided or

suggested by the manufacturer.

_0nin_umdi_t_l_e_10_m s_

2o° i_ ...........

!i.............

Do not place any material on the monitor.

Do not block or cover the ventilation openings on the monitor

If you have a wall mount, check that it is steady

Power source
The monitor must be plugged with a tension source of llO volts and GO Hz,

Connexion cables

Power cord and cables must be properly routed and protected to prevent
people from stepping on them and causing the monitor to fall.

Safe typreca udons

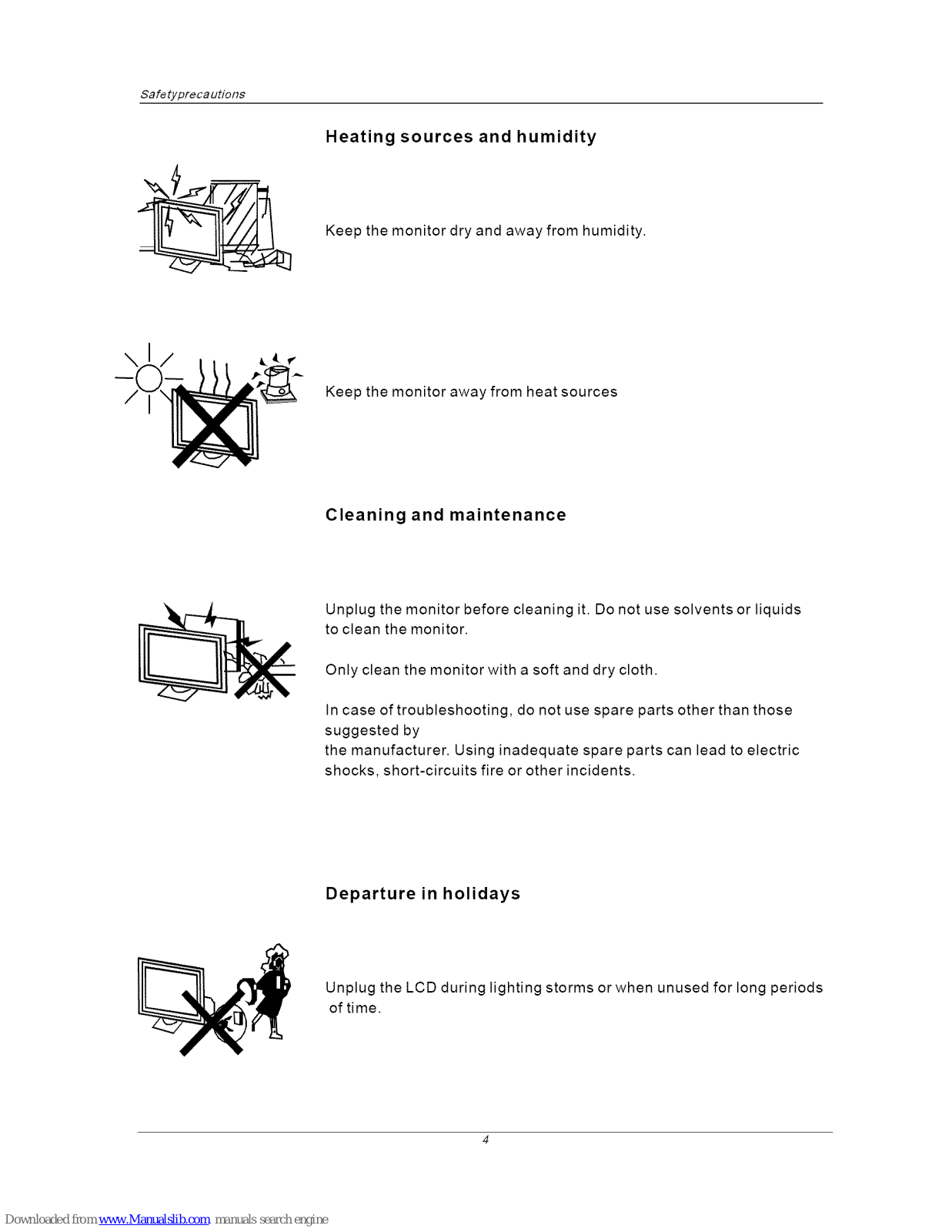

Heating sources and humidity

Keep the monitor dry and away from humidity.

Keep the monitor away from heat sources

Cleaning and maintenance

Unplug the monitor before cleaning it. Do not use solvents or liquids
to clean the monitor.

Only clean the monitor with a soft and dry cloth.

In case of troubleshooting, do not use spare parts other than those

suggested by
the manufacturer. Using inadequate spare parts can lead to electric

shocks, short-circuits fire or other incidents.

Departure in holidays

Unplug the LCD during lighting storms or when unused for long periods

of time.

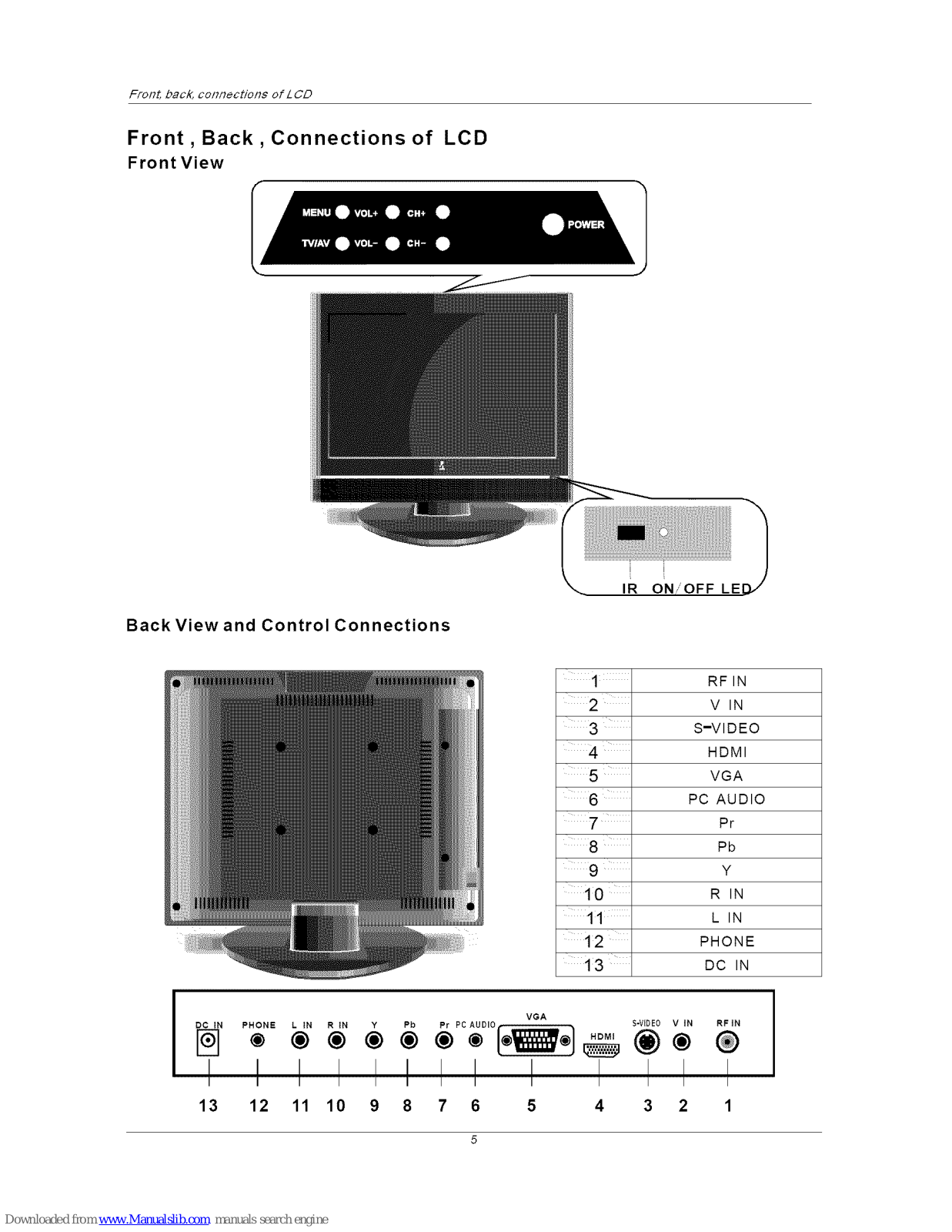

Front, back, co/Tnections of LOD

Front, Back, Connections of LCD

Front View

Back View and Control Connections

i

IR ON'OFF LEI

1 RF IN

2 v iN

S-VIDEO

4 HDMI
5 VGA
6 PC AUDIO

7 Pr
8 Pb

9 Y

10 R IN

11 L IN

12 PHONE
1 3 DC iN

VGA S-VID EO RF iN

I I I I I I

13 12 11 10 9 8 7 6 5 4 3 2 1

Tvin@alldondrawings

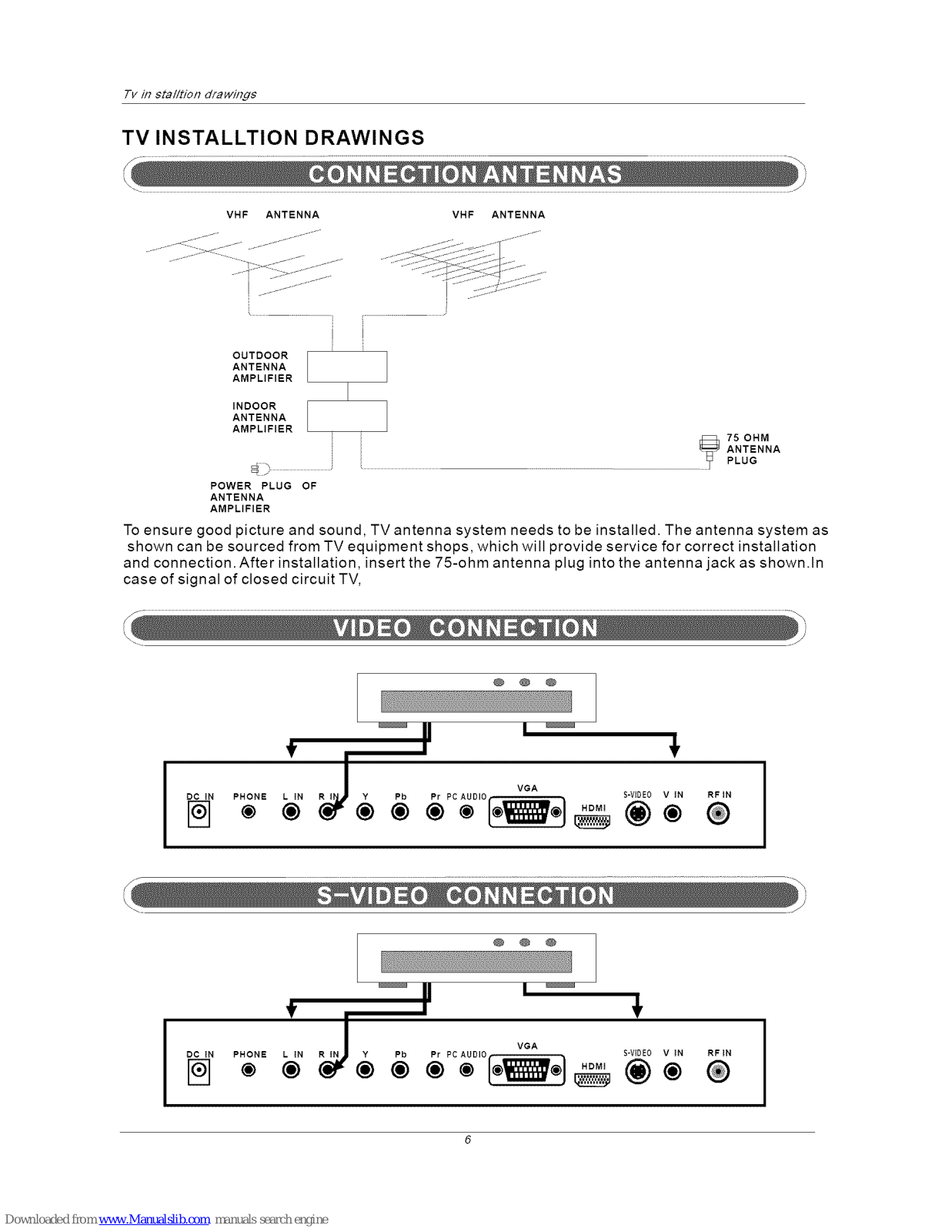

TV INSTALLTION DRAWINGS

VHF ANTENNA VHF ANTENNA

I I

OUTDOOR _

ANTENNA
AMPLIFIER

INDOOR

ANTENNA
AMPLIFIER

POWER PLUG OF
ANTENNA

AMPLIFIER

75 OHM

ANTENNA

PLUG

To ensure good picture and sound, TV antenna system needs to be installed. The antenna system as

shown can be sourced from TV equipment shops, which will provide service for correct installation
and connection. After installation, insert the 75-ohm antenna plug into the antenna jack as showmln
case of signal of closed circuit TV,

@ @ @

VGA S-VIDE0 V IN RF IN

@ @ @

t

II

|

VGA S-VIDE0 V iN RF iN

Tv in stalltiondrawings

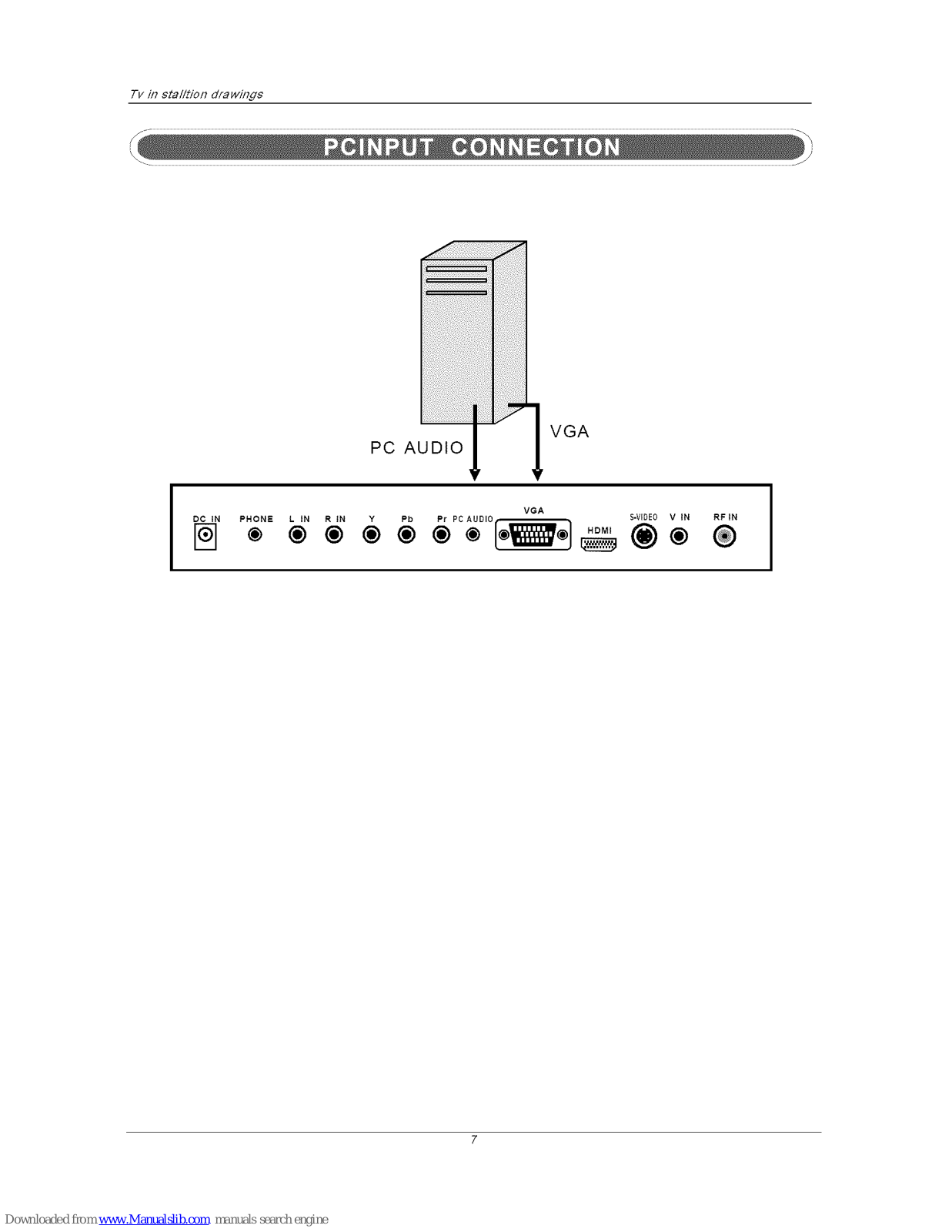

PC AUDIO

VGA

VGA

Men u Opera tion

Basic operatie_

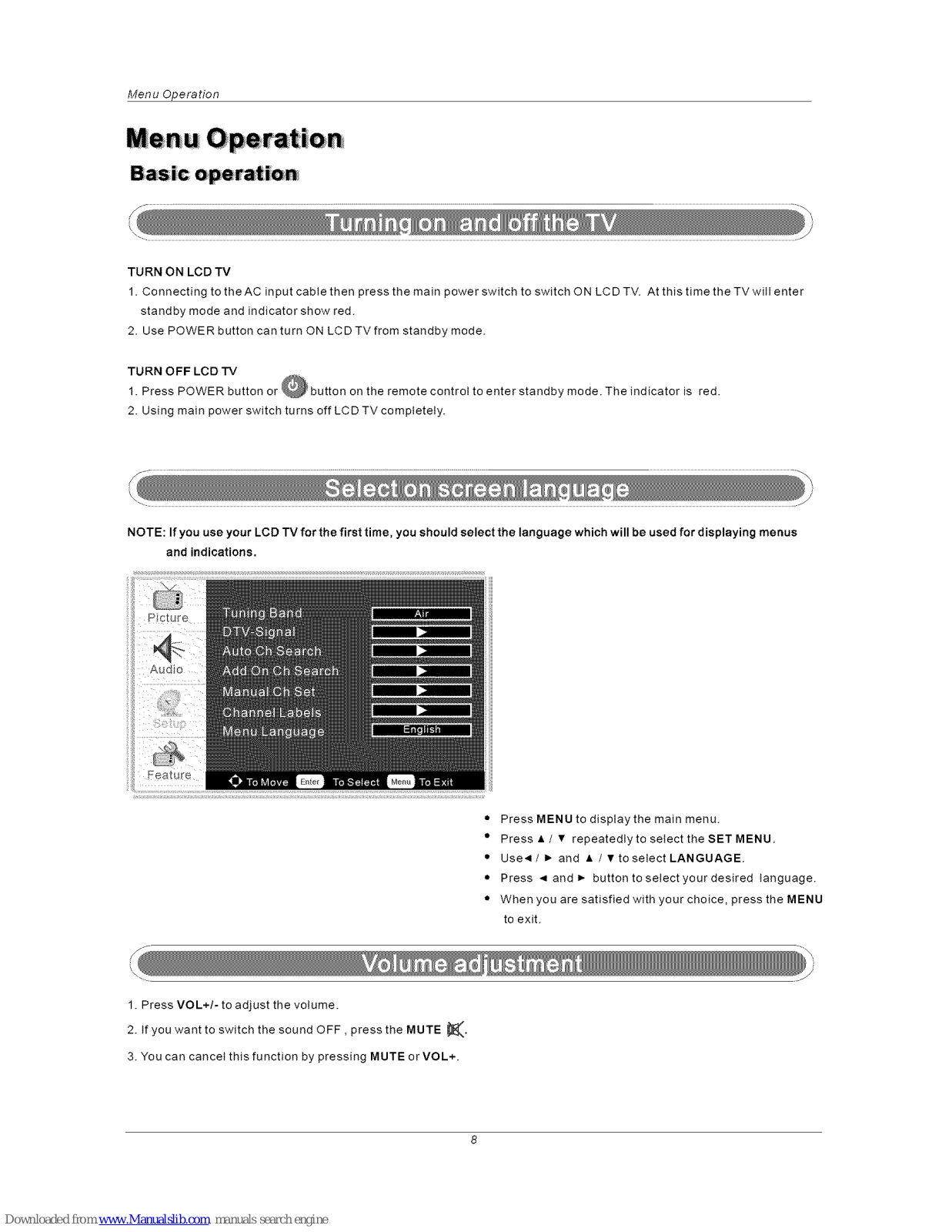

TURN ON LCD TV

1. Connecting to the AC input cable then press the main power switch to switch O N LC D TV. At this time the TV wilt enter
standby mode and indicator show red.

2. Use POWER button can turn ON LCD TV from standby mode.

TURN OFF LCD TV

1. Press POWER button or _ button on the remote control to enter standby mode. The indicator is red.

2. Usb_g main power switch turns off LCD TV completely.

NOTE: If you use your LCD TV for the first time, you should select the language which will be used for displaying menus

and indications.

• Press MENU to display the main menu.

• Press • / • repeatedly to select the SET MENU.

• Use4/ I_- and • / • toselect LANGUAGE.

• Press ,,I and P- buttontoselectyourdesired language.

• When you are satisfied with your choice, press the MENU
to exit.

1. Press VOL+/- to adjust the volume.

2. If you want to switch the sound OFF, press the MUTE _.

3. You can cancel this function by pressing MUTE or VOL+.

Menu Operation

- Press the MENU button to display the main menu.

- U se • / • / 4 / _-buttons to select and adjust the available menus.

1

The OSD (On Screen Display) function enables you to adjust the screen status conveniently since it provides
graphical presentation.

1. Using the CH+/CH- on the front panel or on the remote control.

• Press CN+ to increase channel number.

• Press CN - to decrease channel number.

2. Using 0-9 digital buttons and -/--button
You can select the channel number by pressing 0 to 9 or 4--.

3. Example:

• To select 1-digit channel (e.g. Channel 5): Press the 5 button.

• To select 2-digit channel (e.g. Channel 20): Press the -/-- button repeatedly to disptay -- then press 2, follow by 0.

• To select 3-digit channel (e.g. Channel 103): Press the 4-- button repeatedly to display -- then press 1, follow by 0,
follow by 3.

Note: After select the digit button, the digit will be memorized.

You can select the input source by pressing the INPUT on the remote control or on the front panel.

9

MenuOperation

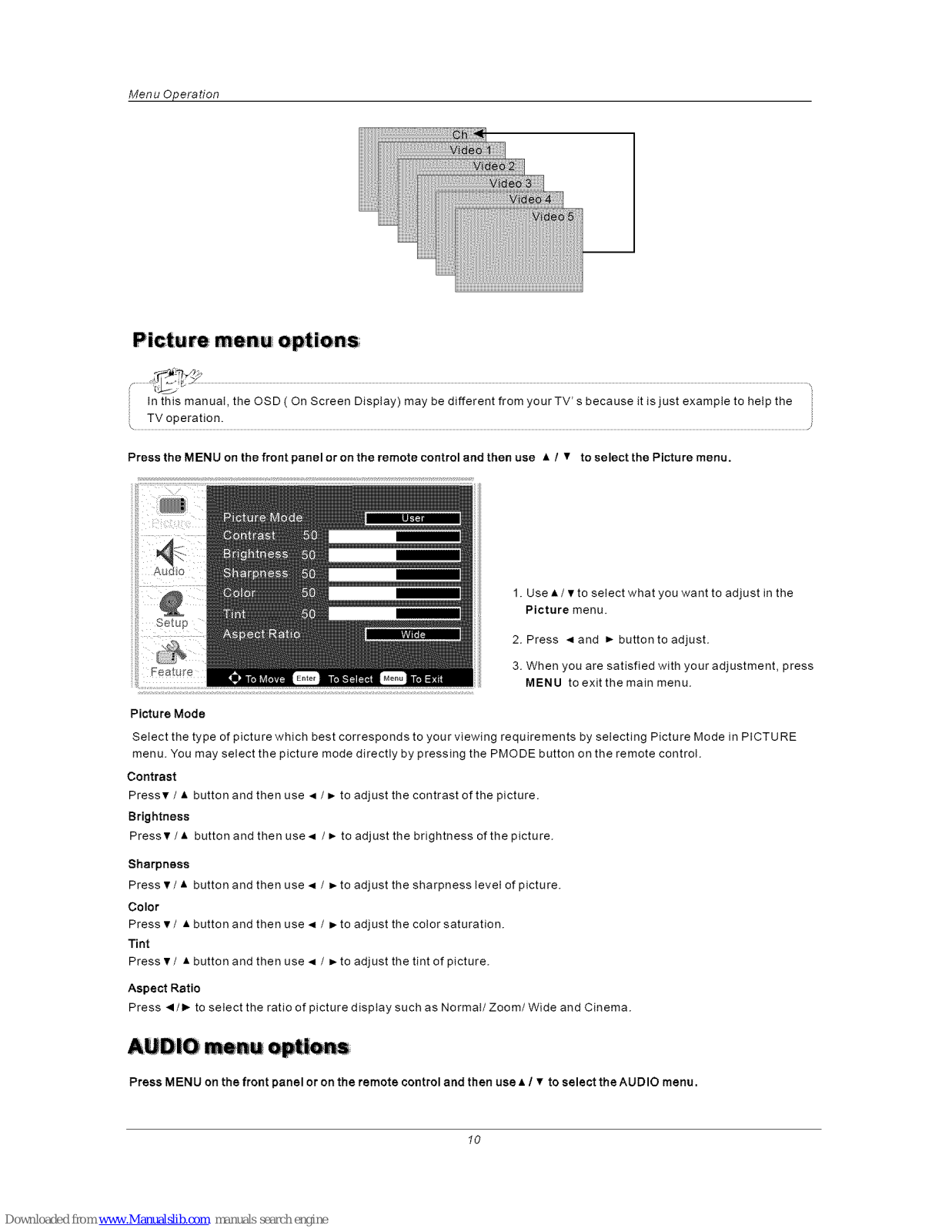

Picture mene options

Press the MENU on the front panel or on the remote control and then use • / • to select the Picture menu.

1. Use • / • to setect what you want to adjust in the
Picture menu.

2. Press -,I and 1,-buttonto adjust.

3. When you are satisfied with your adjustment, press
MENU to exit the main menu.

Picture Mode

Select the type of picture which best corresponds to your viewing requirements by selecting Picture Mode in PICTU RE

menu. You may select the picture mode directly by pressing the PMODE button on the remote control.
Contrast
Press• / • button and then use -4/ 1,,to adjust the contrast of the picture.

Brightness

Press • / • button and then use -_ / l,- to adjust the brightness of the picture.

Sharpness

Press • / • button and then use -_ / 1,-to adjust the sharpness tevet of picture.
Color

Press • / • button and then use -_ / _-to adjust the color saturation.
Tint
Press • / • button and then use -_ / 1,-to adjust the tint of picture.

Aspect Ratio
Press 41/1_,to setect the ratio of picture disptay such as Normat/Zoom/Wide and Cinema.

AUDIO mnu _[ons

Press M ENU on the front panel or on the remote control and then use • / • to select the AUDIO menu.

10

MenuOperation

1. Use • / • to select what you want to adjust in the
Audio menu.

2. Press 4 and _- battonto adjust.

3. When you are satisfied with your adjustment, press
MENU or EXIT to exit the main menu.

Audio Mode
You can select the type of sound which best corresponds to your listening requirements by selecting Sound in SO U ND

menu. You may select the sound mode directly by pressing the SMODE button on the remote control.
Audio Language

Press 41/ I=,,to select one of the audio language such as English/French and Spain, but the condition is that the program
system has included the language code.

Bass

Press• /• button and then use,4 /_- to increase or decrease the tevet of the tower-pitched sounds.

Treble

Press• /• button and thee use_ /_ to increase or decrease the tevet of the higher-pitched sounds.

Balance

Press• /• button and then use-_ /_- to adjust the audio output between teft and right speakers.

Digital Audio Output

Press 41/ I=,,to select the one of mode of the digitat audio output such as PCM and RAW.

Setup ran= o_ns

Press M ENU on the front panel or on the remote control and then use • / • to select the Setup menu.

1. Use • / •to select what you want to adjust in the
Setup menu.

2. Press -_and 1,-battonto adjust.

3. When you are satisfied with your adjustment, press
MENU to exit the main menu.

Tuning Band

Press Enter key to select Air, Cable, Cable HRC, Cable IRC or CabteAuto.

DTV-Signel

In DTV mode, you can tune maeuaIty and adjust the angle, orientation of the antenna etc

11

MenuOperation

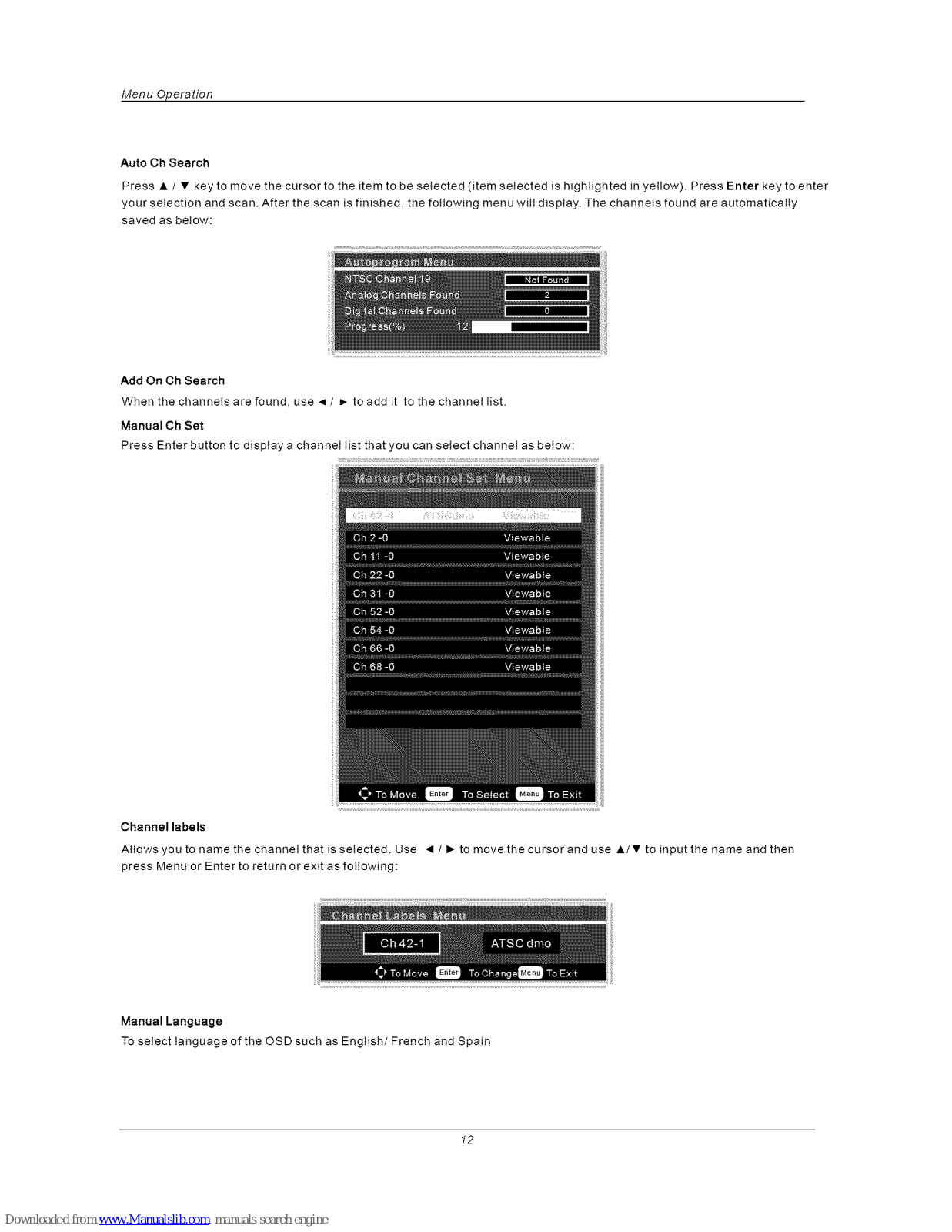

Auto Ch Search

Press • / • key to move the cursor to the item to be selected (item selected is highlighted in yellow). Press Enter key to enter
your selection and scan. After the scan is finished, the following menu will display. The channels found are automatically
saved as below:

Add On Oh Search

When the channels are found, use -_ / i,- to add it to the channel list.
Manual Oh Set
Press Enter button to display a channel list that you can select channel as below:

i f i i

Channel labels

Attowsyouto name the channel that is selected. Use 41/ ID,to move the cursor and use •/• to input the name and then
press Menu or Enter to return or exit as foliowing:

Manual Language

To select language of the OSD such as English/French and Spain

Men u Opera tion

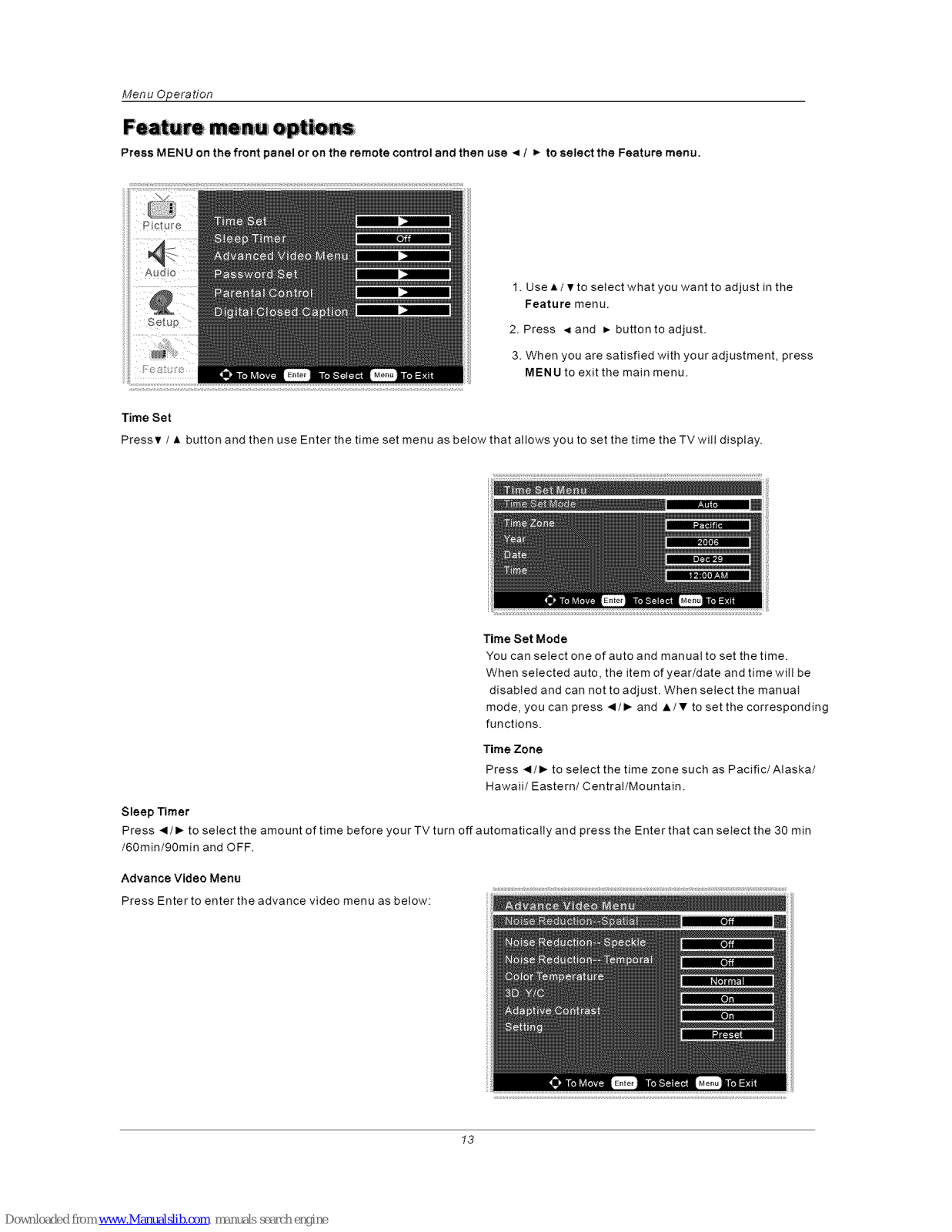

Feature mmnu _|ons

Press M ENU on the front panel or on the remote control and then use < / _ to select the Feature menu.

1. Use • / • to select what you want to adjust in the
Feature menu.

2. Press ,_ and i_-buttonto adjust.

3. When you are satisfied with your adjustment, press
MENU to exit the main menu.

Time Set
Press• / • button and then use Enter the time set menu as below that allows you to set the time the TV witt display.

Time Set Mode

You can select one of auto and manual to set the time.
When selected auto, the item of year/date and time witt be

disabled and can not to adjust. When select the manual

mode, you can press 41/1_,and Air to set the corresponding
functions.

Time Zone

Press 41/1_,to select the time zone such as Pacific/Alaska/
Hawaii/Eastern/Central/Mountain.

Sleep Timer

Press 41/1_,to select the amount of time before your TV turn off automatically and press the Enter that can select the 30 min
/60min/90min and OFF.

Advance Video Menu
Press Enter to enter the advance video menu as below:

13

MenuOperation

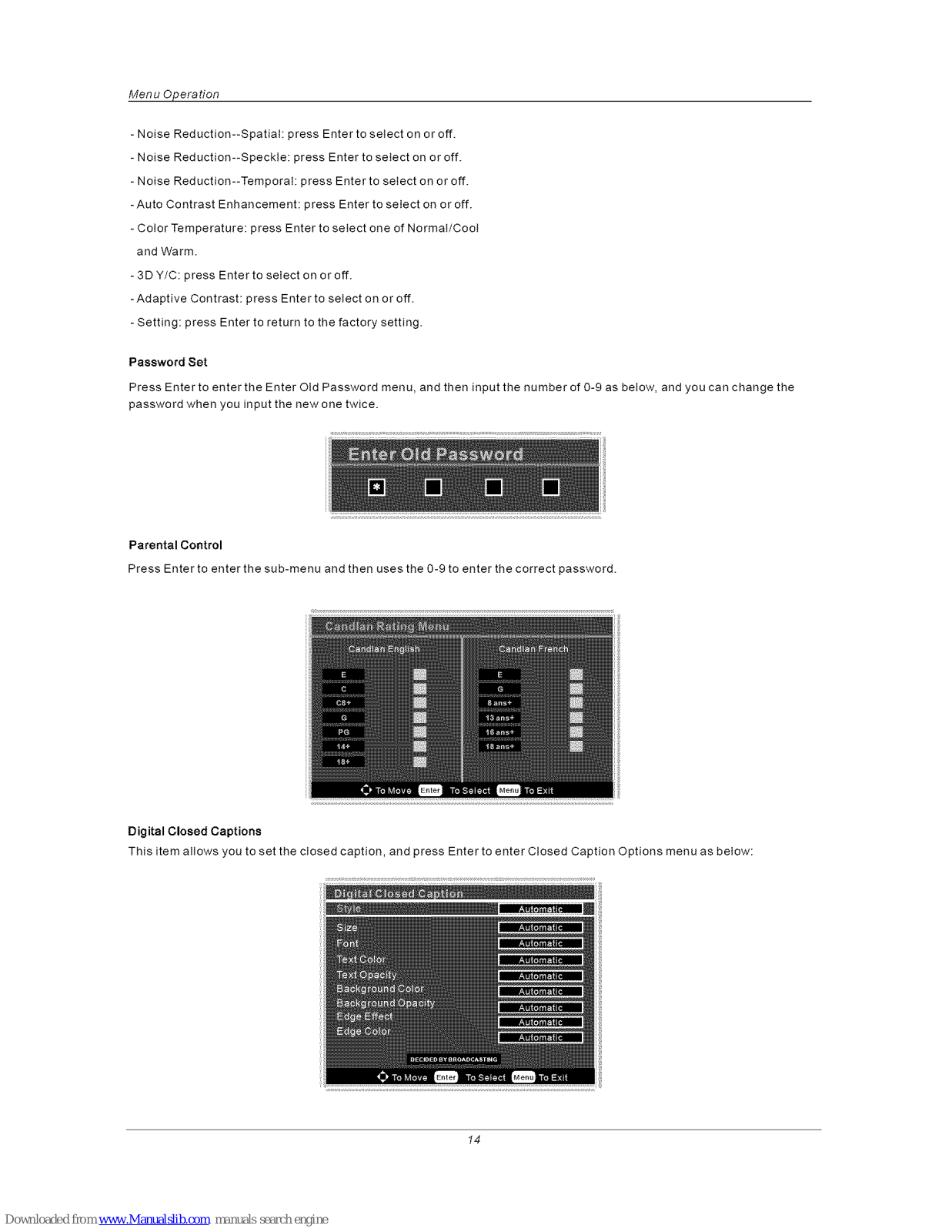

- Noise Reduction--SpatiaL press Enter to select on or off.

- Noise Reduction--Speckle: press Enter to select on or off.

- Noise Reduction--TemporaL press Enter to select on or off.

- Auto Contrast Enhancement: press Enter to select on or off.

- Color Temperature: press Enter to select one of Normal/Cool
and Warm.

- 3D Y/C: press Enter to select on or off.

- Adaptive Contrast: press Enter to select on or off.

- Setting: press Enter to return to the factory setting.

Password Set

Press Enter to enter the Enter Old Password menu, and then input the number of 0-9 as below, and you can change the

password when you input the new one twice.

Parental Control
Press Enter to enter the sub-menu and then uses the 0-9 to enter the correct password.

Digital Closed Captions

This item allows you to set the closed caption, and press Enter to enter Closed Caption Options menu as below:

14

Men u Opera tion

- Style: press Enter to select one of Automatic and Custom, when you select automatic, the others are disable and can not be
adjusted.

- Size: press Enter to select one of Normal/Large and Small.

- Font: press Enter to select one of Default and from Font1 to Font7.

- Text Color: press Enter to select one of RedlGreenlBtuelYeltow/MagentalCyan/Btack and White.

- Text Opacity: press Enter to select one of the SotidlFtashinglTransparentlTranstucent.

- Background Color: press Enter to select one of the BtacklWhitelRedlGreen/BtuelYettow/MagentalCyan.

- Background Opacity: press Enter to select one of the SotidlFtashinglTransparentlTranstucent.

- Edge Effect press Enter to select one of the None/Raised/Depressed/U niform/Left Shadow/Right Shadow.

- Edge Color press Enter to select one of the BtacklWhitelRedlGreen/Btue/Yettow/MagentalCyan.

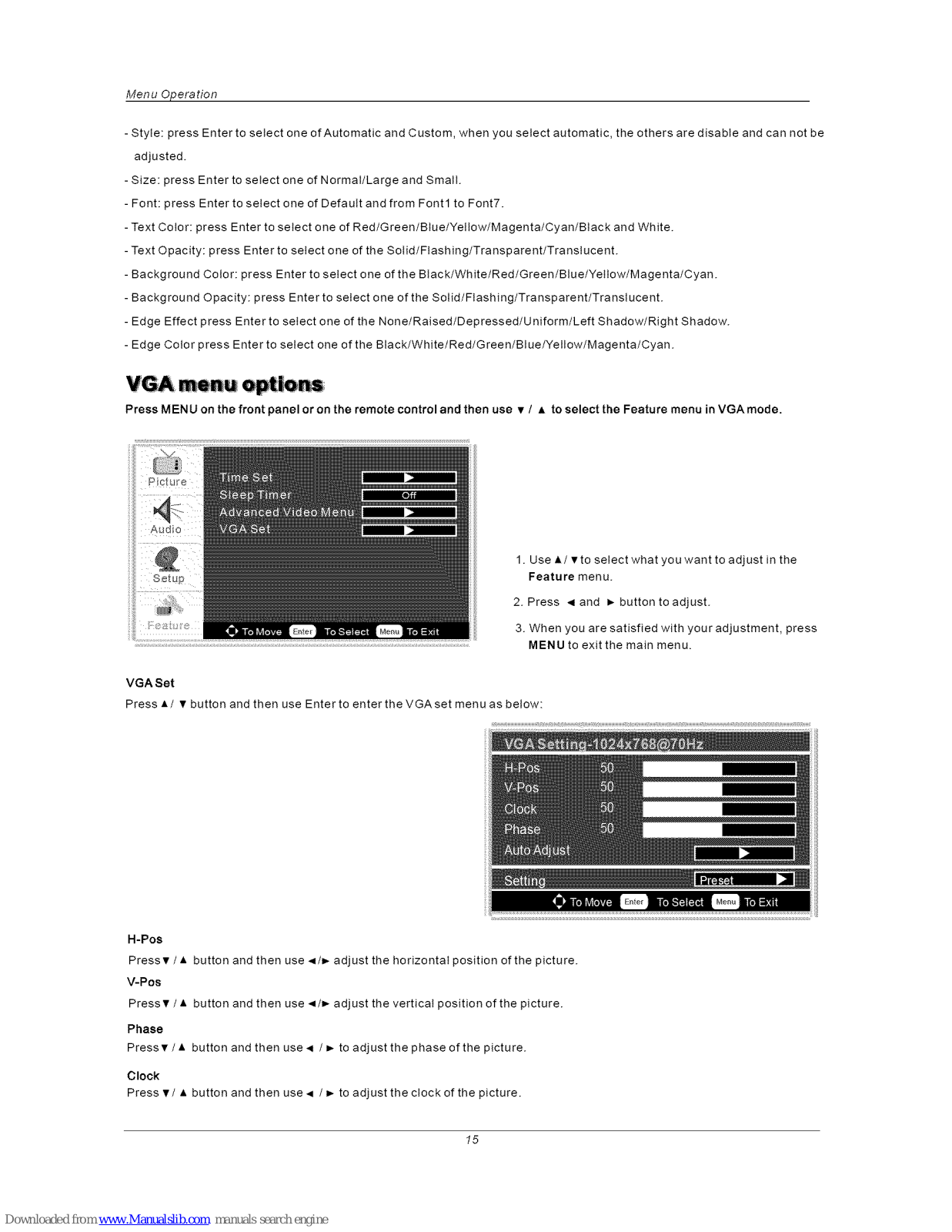

VGA mnu _t|o_

Press M EN U on the front panel or on the remote control and then use • / • to select the Feature menu in VGA mode.

1. Use •/• to select what you want to adjust in the
Feature menu.

2. Press ._ and _- button to adjust.

3. When you are satisfied with your adjustment, press
MENU to exit the main menu.

VGA Set
Press • / • button and then use Enter to enter the VGA set menu as below:

H-Poe
Press• / • button and then use -_/i,- adjust the horizontal position of the picture.

V-Poe
Press• / • button and then use ,,,/P- adjust the vertical position of the picture.

Phase
Press • / • button and then use _1/ _- to adjust the phase of the picture.

Clock
Press • / • button and then use ,, / _- to adjust the clock of the picture.

15

MenuOperation

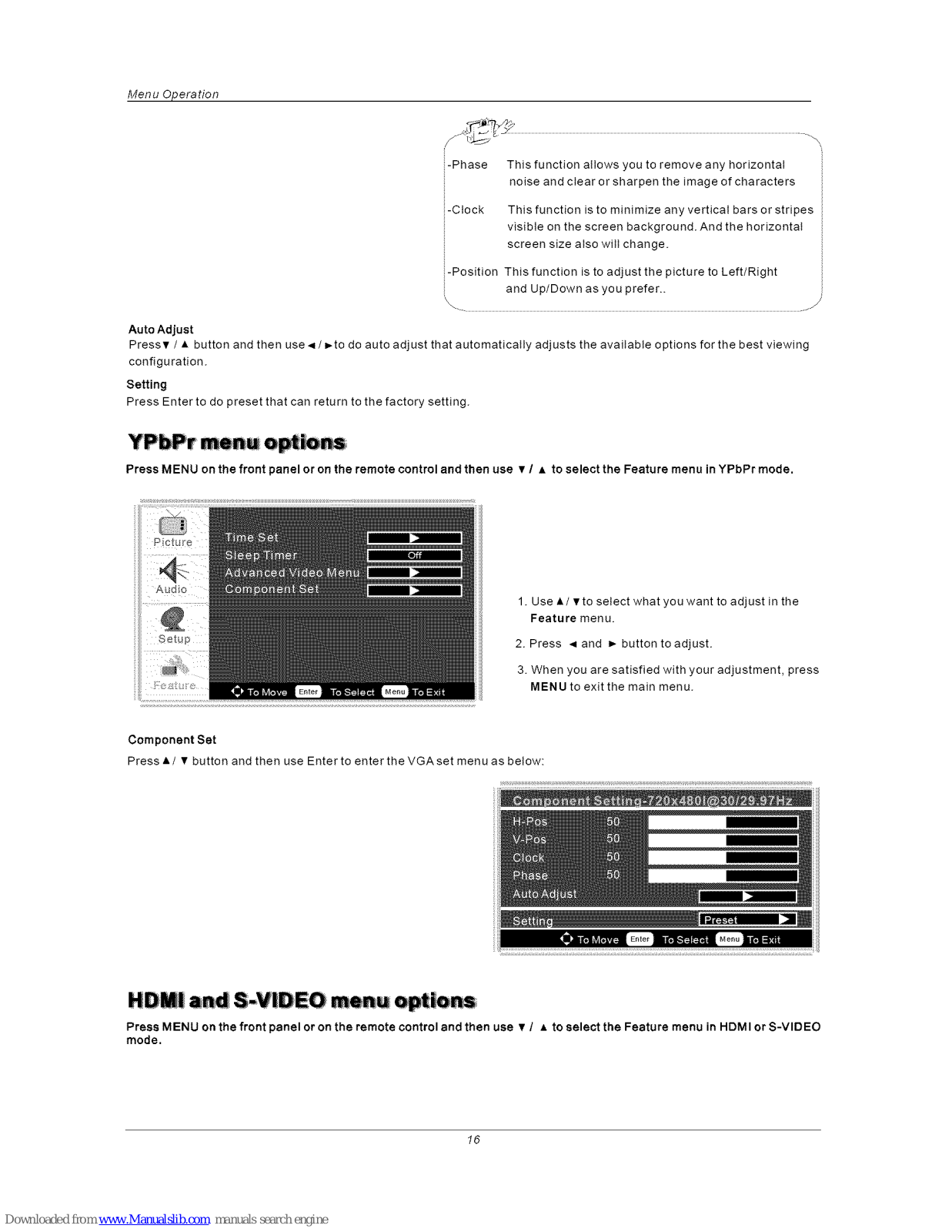

-Phase This function allows you to remove any horizontal
noise and clear or sharpen the image of characters

-Clock This function is to minimize any vertical bars or stripes

visible on the screen background. And the horizontal
screen size also witt change.

-Position This function is to adjust the picture to Left/Right
and Up/Down as you prefer..

-. jJ

Auto AdjueL

Press • / • button and then use ._/ _to do auto adjust that automatically adjusts the available options for the best viewing

configuration.

Setting

Press Enter to do preset that can return to the factory setting.

YP_r m_= o_ns

Press MENU on the front panel or on the remote control and then use • / • to select the Feature menu in YPbPr mode.

1. Use •/• to select what you want to adjust in the
Feature menu.

2. Press -_ and 1,- button to adjust.

3. When you are satisfied with your adjustment, press
MENU to exit the main menu.

Component Set

Press • / • button and then use Enter to enter the VGA set menu as below:

HDM _nd S V|OEO menu _t|ons

Press MENU on the front panel oron the remote control and then use • / • to select the Feature menu in HDMI orS-VIDEO

mode.

16

MenuOperation

Time Set
Press • / • button and then use Enter the time set menu as below that allows you to set the time the TV wilt display.

Sleep Timer
Press 41/1_,to select the amount of time before your TV turn off automatically and press the Enter that can select the 30 min
/60min/9Omin and OFF.

Advance Video Menu
Press Enter to enter the advance video menu.

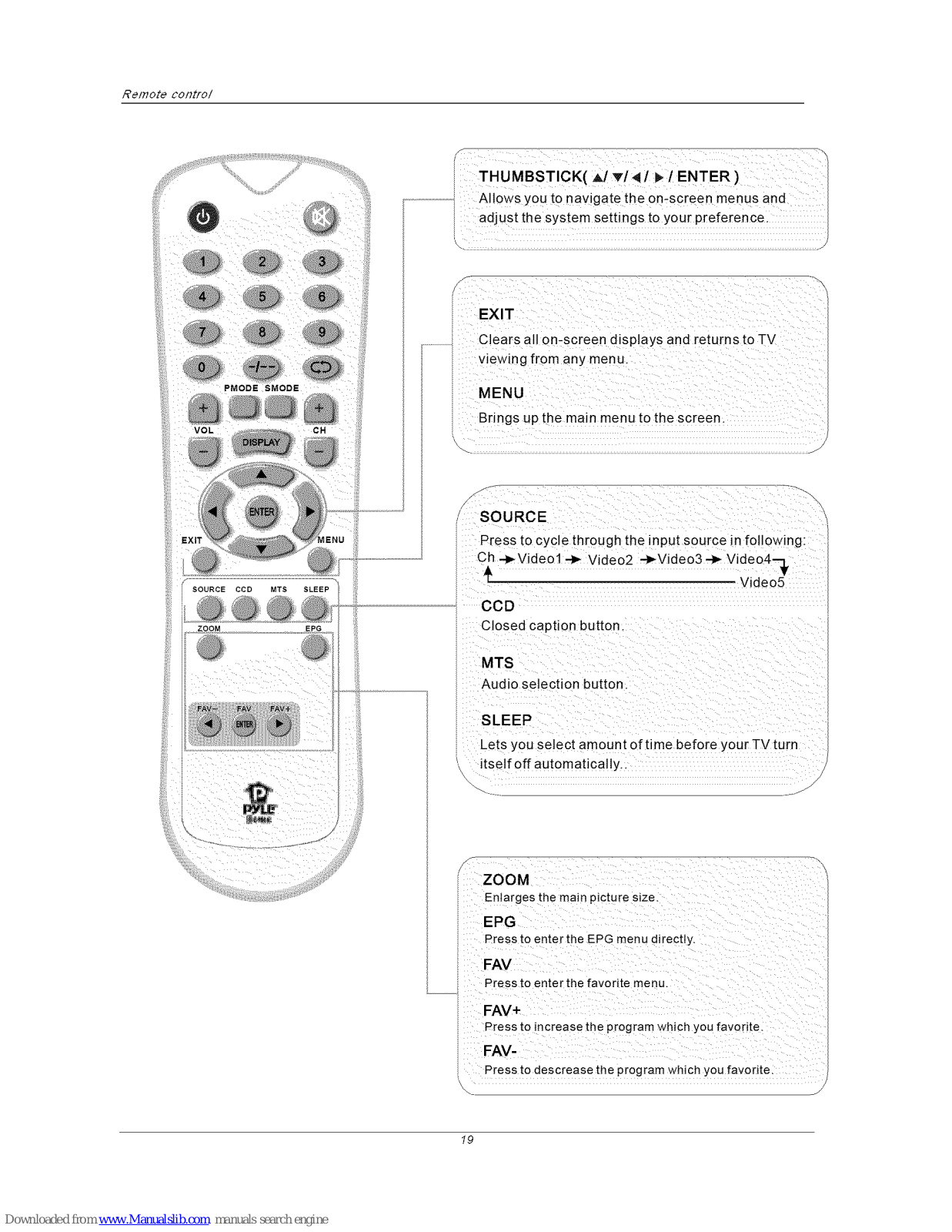

Rel_ote control

REMOTE CONTROL

Remote control instructions

POWER
Switch on LCD TV _ hen at stand by mode or vice

versa.

MUTE

Press to mute the sound. Press again or press
VOL+ to unmute.

NUMBER BUTTONS

Press 0-9 to select a TV channel directly when you

are watching TV. ]-he channel change after 2 seco-
nds.

-/.-

Press this button to enter a program number for

mulhple program channel such as 2-1 _tc

G'9

Return tothe previous channel viewed.

CH+/-

Press to scan through channels. To scan quickly

channels press and hold down either+/-bu[[on.

VO L+/-

Press to increase ! decrease the sound level.

PMODE

Press repeatedly to cycle through the available video

picture modes.

SMODE

Press to cycle through the different sound settings.

DISPLAY

Press to display the source and channel's info-

rmation_

J

Remotecentre/

i Brings UPthe main men u tOthe screem
i

'k

! SOURCE

Press to cycle through the input source in following:

Ch -_Video1,4_ Video2 --_Video3-_ Video4,m

Video5_

CCD
C osed caption button.

MTS

Aud o selection bu_on.

SLEEP
Lets you select amount of time before your TV turn

itself off automatically..

ZOOM

Enlarges the raampicture size.
EPG

Press to enter theEPG menu directly.
FAV

Press to enter thefavorite menu.
FAV 4-

Press to increase the orogram which you favorite.
FAV-

Press to descrease the program which you favorite.

Battery Usage Caution

Battery Usage Caution

a)Open the cover

b)AA size batteries, When inserting the batteries, make sure correct polarities as per"+"and "-"marks

on the batteries and within the battery compartment

c)Replace the battery cover

To prevent battery leakage which may result in bodily injury or damage to the remote:

1.Install all batteries correctly, and as marked on the remote control.

2.Donotmixbatteries:(OLDandNEWorCARBONand ALKALINE, etc)
Remove batteries when the remote is not used for a long time.

ACCESSORIES

1 Adapter Plug

2 One Remote Control

3 2 Batteries 1.5V

4 One User Manual

2O

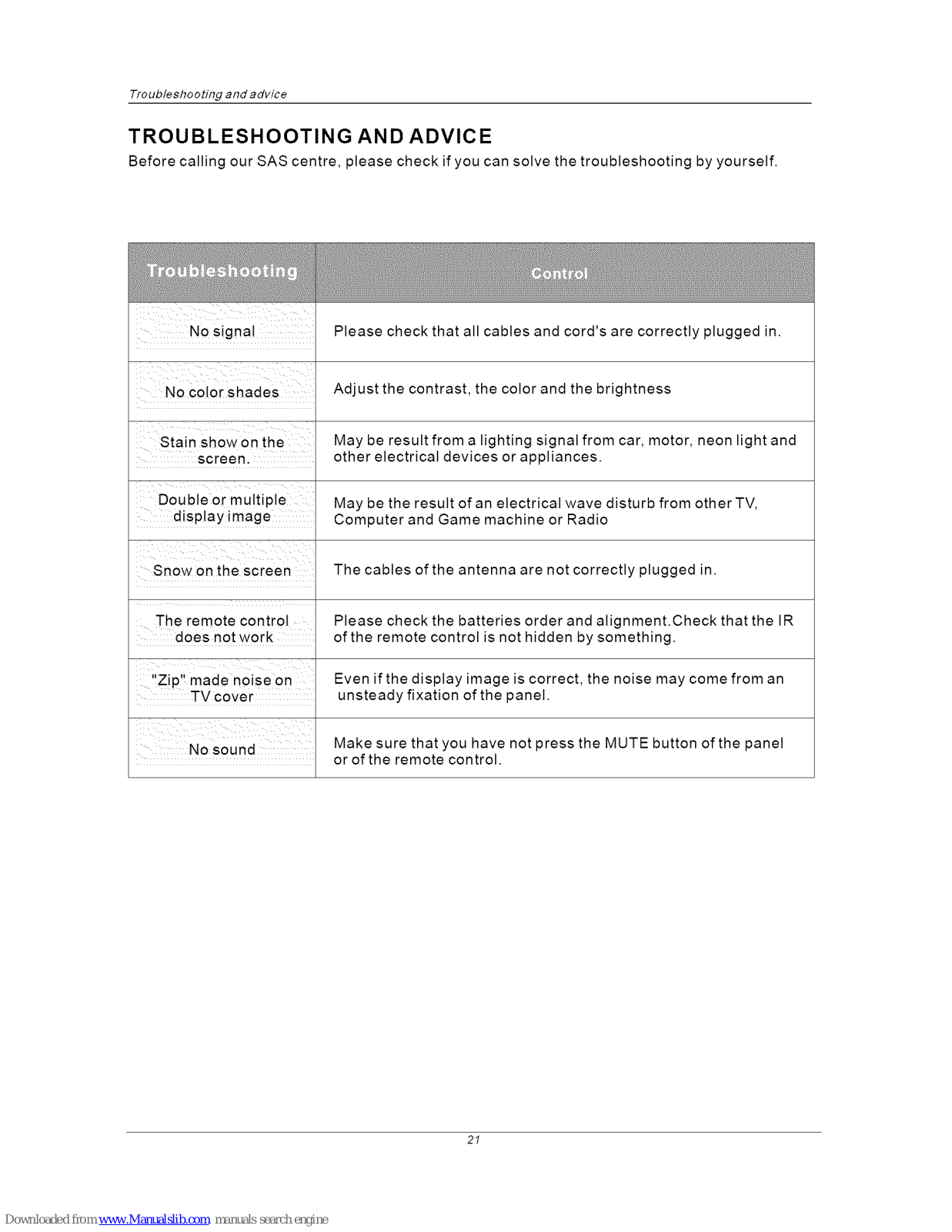

Troub/eshooting and advice

TROUBLESHOOTING AND ADVICE

Before calling our SAS centre, please check if you can solve the troubleshooting by yourself.

No signal Please check that all cables and cord's are correctly plugged in.

No coloi" shades Adjust the contrast, the color and the brightness

Stain show on the May be result from a lighting signal from car, motor, neon light and

screen, other electrical devices or appliances.

Double or multiple May be the result of an electrical wave disturb from other TV,

display image Computer and Game machine or Radio

Snow on the screen The cables of the antenna are not correctly plugged in.

The remote control Please check the batteries order and alignment.Check that the IR

does not work of the remote control is not hidden by something.

'!Zip'! made noise on Even if the display image is correct, the noise may come from an

TV cover unsteady fixation of the panel.

No sound Make sure that you have not press the MUTE button of the panel

or of the remote control.

21

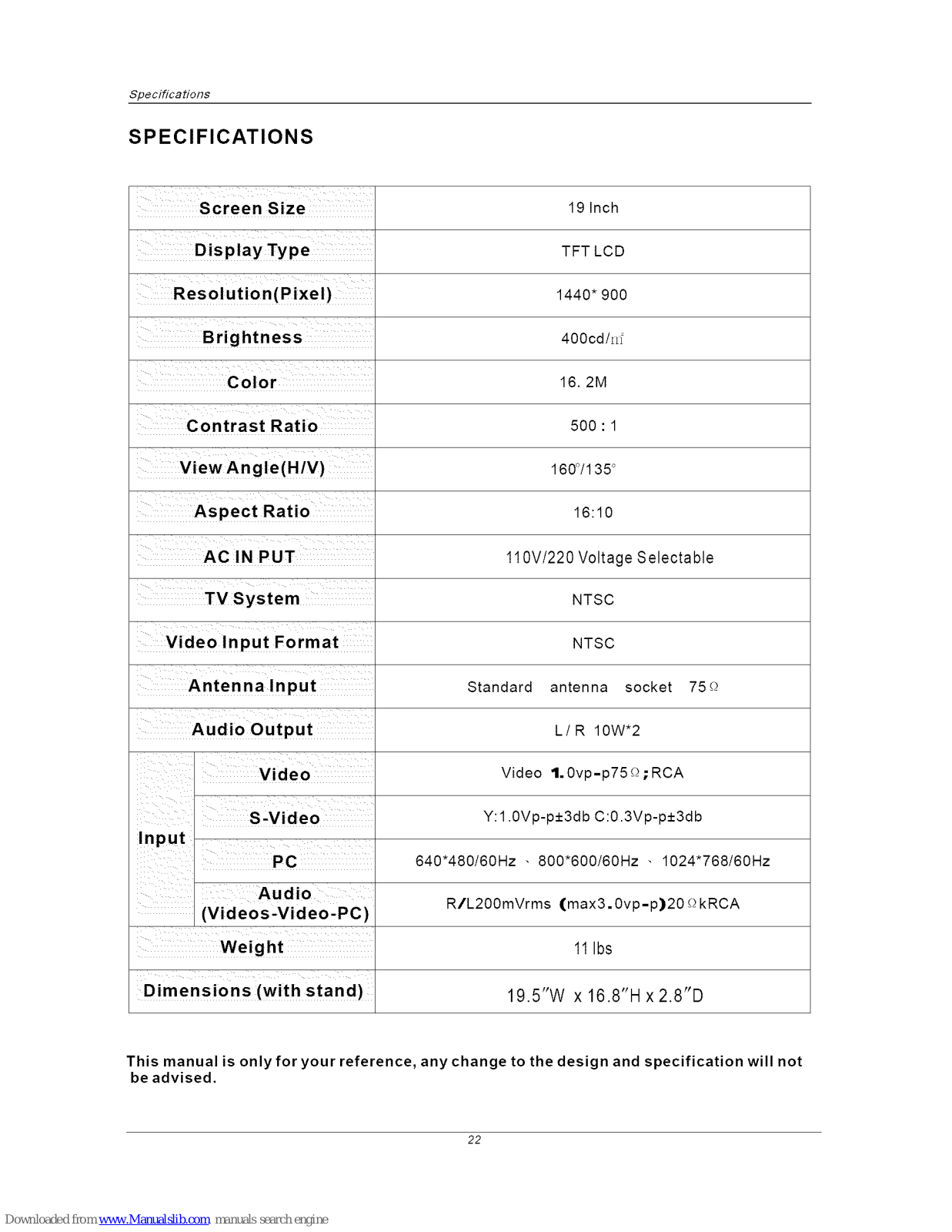

Specifications

SPECIFICATIONS

Screen Size

Resolution(Pixel)

Brightness

Color

Contrast Ratio

View Angle(H/V)

Aspect Ratio

AC IN PUT

TV System

Antenna Input

Audio Output

Video

S-Video

Input .....

PC

, Audio
(Videos-Video-PC)

Weight

Dimension s (with stand)

19 Inch

TFT LCD

1440" 900

400cd/_l_

16. 2M

500 : 1

16d/135 °

16:10

110V/220 Voltage Selectable

NTSC

NTSC

Standard antenna socket 75o

L/R 10W'2

Video 1.0vp-p75O;RCA

Y:1.0Vp-p+3db C:0.3Vp-p+3db

640"480/60Hz - 800"600/60Hz - 1024"768/60Hz

R/L200mVrms (max3.0vp-p)20 OkRCA

11Ibs

19.5"W x 16.8"H x 2.8"D

This manual is only for your reference, any change to the design and specification will not

be advised,

22
