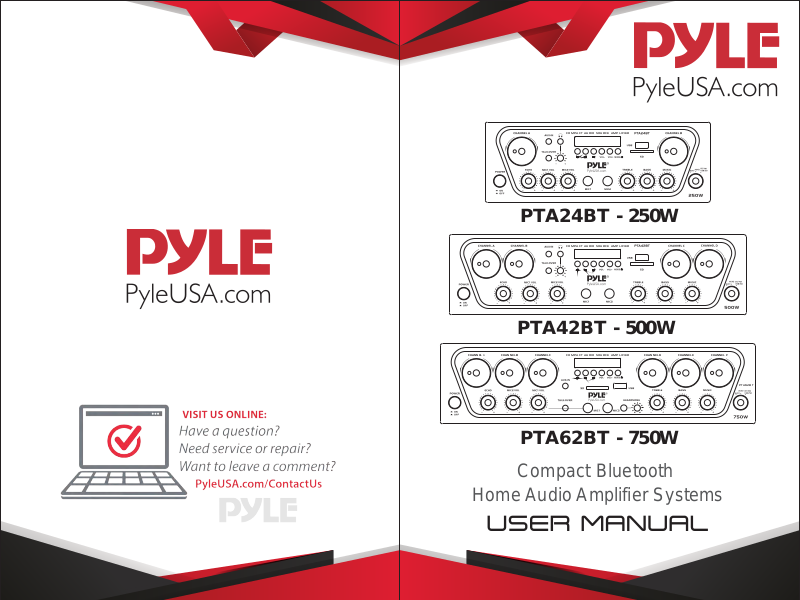

Page 1
COM PACT AUD IO SOUR CE AMPL IFIER
PTA24BT - 250W
COM PACT AUD IO SOUR CE AMPL IFIER
PTA42BT - 500W
CHANN EL A
CHANN EL B CHANN EL C CHANN EL D CHANN EL E CHANNEL F
COM PACT AUD IO SOUR CE AMPL IFIER
PTA62BT - 750W
Compact Bluetooth
Home Audio Amplifier Systems
PTA6 2BT
Page 2
FOREWORD
Your New Pyle Amplier gives you the power and versatility you need

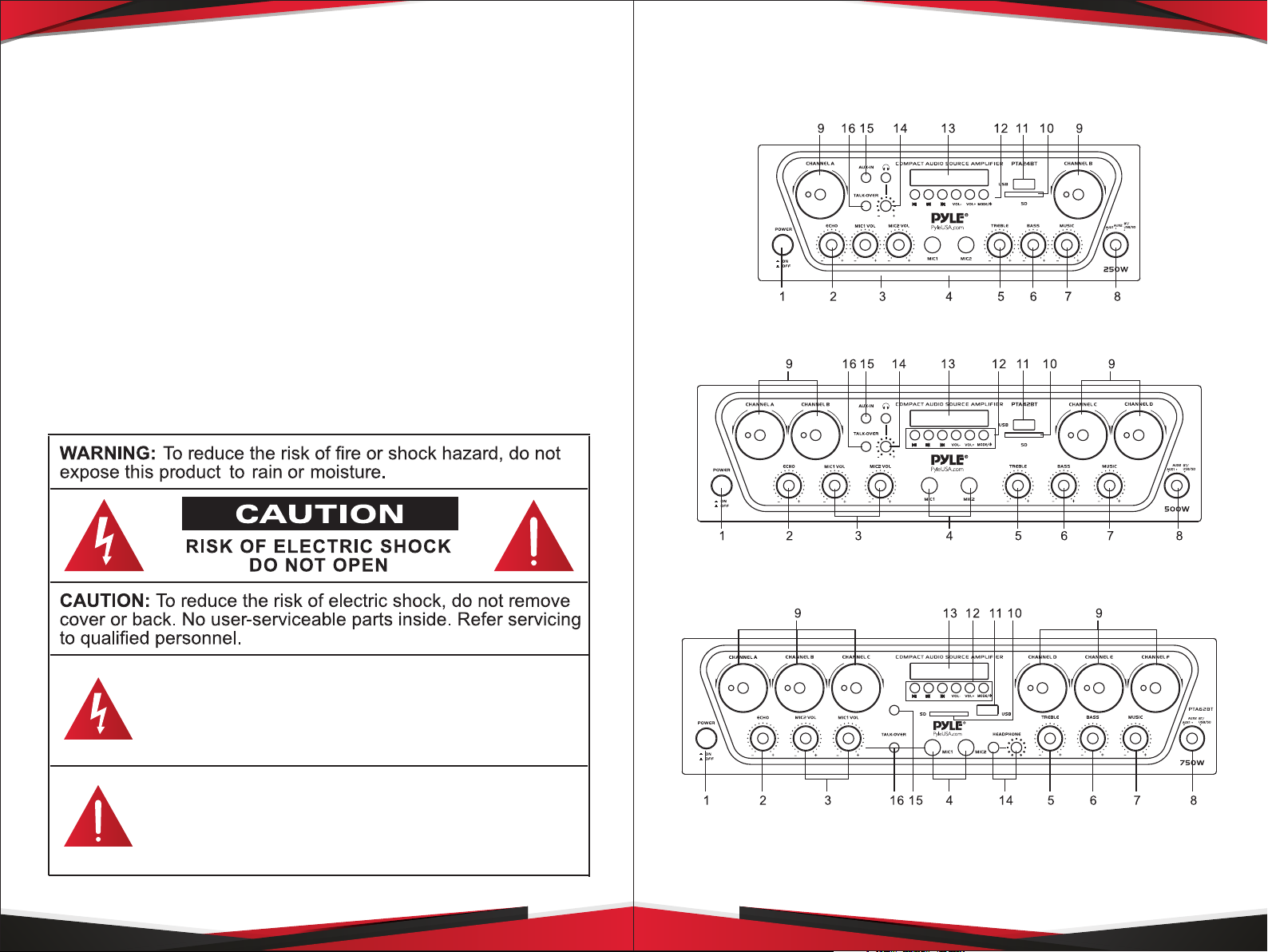

FEATURES AND CONTROLS
FRONT PANEL
in a professional sound system. The amplier's wide frequency
response makes it suitable for amplifying music or vocal program
material.It can be used in meeting halls, house, restaurant, schools,-
stores, or for paging systems.
Please read this manual thoroughly before you attempt to set up and
use the amplier. It contains a range of installation suggestions as well
as instructions to ensure safe usage.
Installed properly, you can expect years of trouble-free service from
this product.
PTA24BT
PTA42BT
PTA62BT
This symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the
product’s enclosure, it may have sucient magnitude
to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
1
www.PyleUSA.com www.PyleUSA.com
Page 3

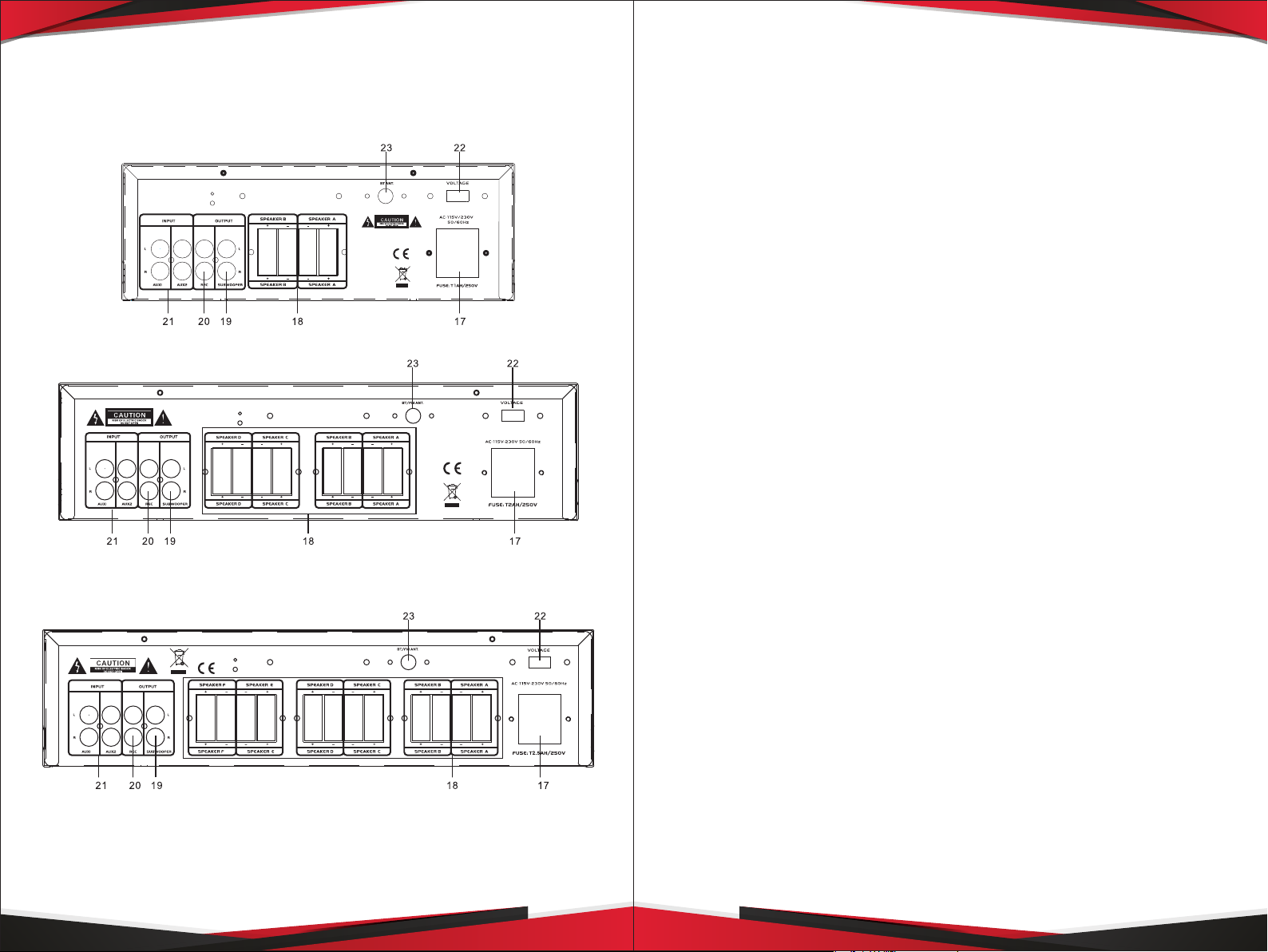

BACK PANEL
1. Main Power ON Switch
• Switch ON or OFF The amplier by using this switch.
PTA24BT
PTA42BT
PTA62BT
2. ECHO CONTROL
• Turn the knob to adjust the MIC echo level.
3. MIC 1 VOL & MIC 2 VOL
• Turn the knob clockwise to increase the MIC volume.
4. MIC 1 & MIC 2 Input Jack
• KARAOKE MIC connected to these jacks.
5/6. BASS AND TREBLE TONE CONTROL
• Lets you boost or attenuate bass and treble for the desired sound.
7. Master Volume
• Adjusts main audio system volume level.
8. Audio Source Switch
• Audio Source Switches between AUX1 input, AUX2 input,
BT/FM/USB/SD
9. Independent Channel Volume Controls
• Adjusts audio volume levels for connected input(s).
10. SD/MMC Socket for playing SD/MMC cards
11. USB Charge Port & USB Reader Function
• USB port for smartphone charging and USB reader function.
12. Buttons for Bluetooth/MP3 (USB and SD) Function Control
• MODE Button: For audio selection like BLUETOOTH/USB/SD/LINE IN
• PLAY/PAUSE BUTTON: Play and Pause control button
• PREV/NEXT: Quick backward or next song
2 3
www.PyleUSA.com www.PyleUSA.com
Page 4
13. Blue LED DIsplay WIndow for MP3/Bluetooth Function
REMOTE CONTROL FUNCTION
14. Headphone Control
• 3.5mm headphone input jack with independent rotary volume control.
15. Line Input AUX/CD IN
• Connect the MP3 Device (player) sources such as PC (CD ROM),
laptop, walkman, iPod and mobile phone
16. Microphone Talk-Over
• Switch-activated function allows for direct audio integration with
connected microphone (MIC1).
17. AC IN Power Cord
• Connect to AC 110V/60Hz or 220V/50Hz
18. Push Type Speaker L/R Terminals
• Connect the speaker wires directly to the amplier
19. Stereo Subwoofer Output
• Connect to subwoofer system from these terminals
20. Stereo Recording Function Output
21. RCA L/R LINE Input
• Connect to desired LINE input sources.
1
2
3
4
1. Power ON Button
2. Play/Pause Button
5
6
7
8
9
10
11
22. 110V/220V Switch
• According to power voltage, push this button to the 110V or 220V
correct station.
23. Bluetooth Antenna
• Bluetooth receiver
3. Equalizer Button
4. Repeat Song Button
5. MODE: Menu Control Button
Press to select BT/USB/SD/LINE IN etc audio input
6. MUTE Button
7. Previous Song Button
8. Next Song Button
9. Volume + and Volume - Buttons
10. USB/SD Switch Button
11. Number Buttons for Song Selection
4 5
www.PyleUSA.com www.PyleUSA.com
Page 5
BLUETOOTH OPERATION INSTRUCTION:
IMPORTANT
External devices which have a built-in Bluetooth feature can be
connected to this amplier wirelessly to play through the amplier's
speakers. If your amp is connected to speakers, you will hear audible
tones which will help for connecting.
1. At rst be sure that the amplier is powered on, and turn the
volume to low. Please remember to connect the Bluetooth Antenna
at the back panel for better receiving signal.
2. Press the BT/Line button switch in on the front panel, you will hear
the voice "POWER ON" and also "PAIRING", and then the unit is
automatically ready to pair with your external device.
3. Turn on the Bluetooth of your external device.
4. Search for available Bluetooth devices and make sure to be within
range of your amp, and wait for your device to select "BT-RY" on the
pairing devices lists of Bluetooth networks.
5. Once connected you will hear a voice say, "Your Device is Connected",
the Bluetooth pairing is successful and connected.
6. You can now play music on your external device through the
amplier.

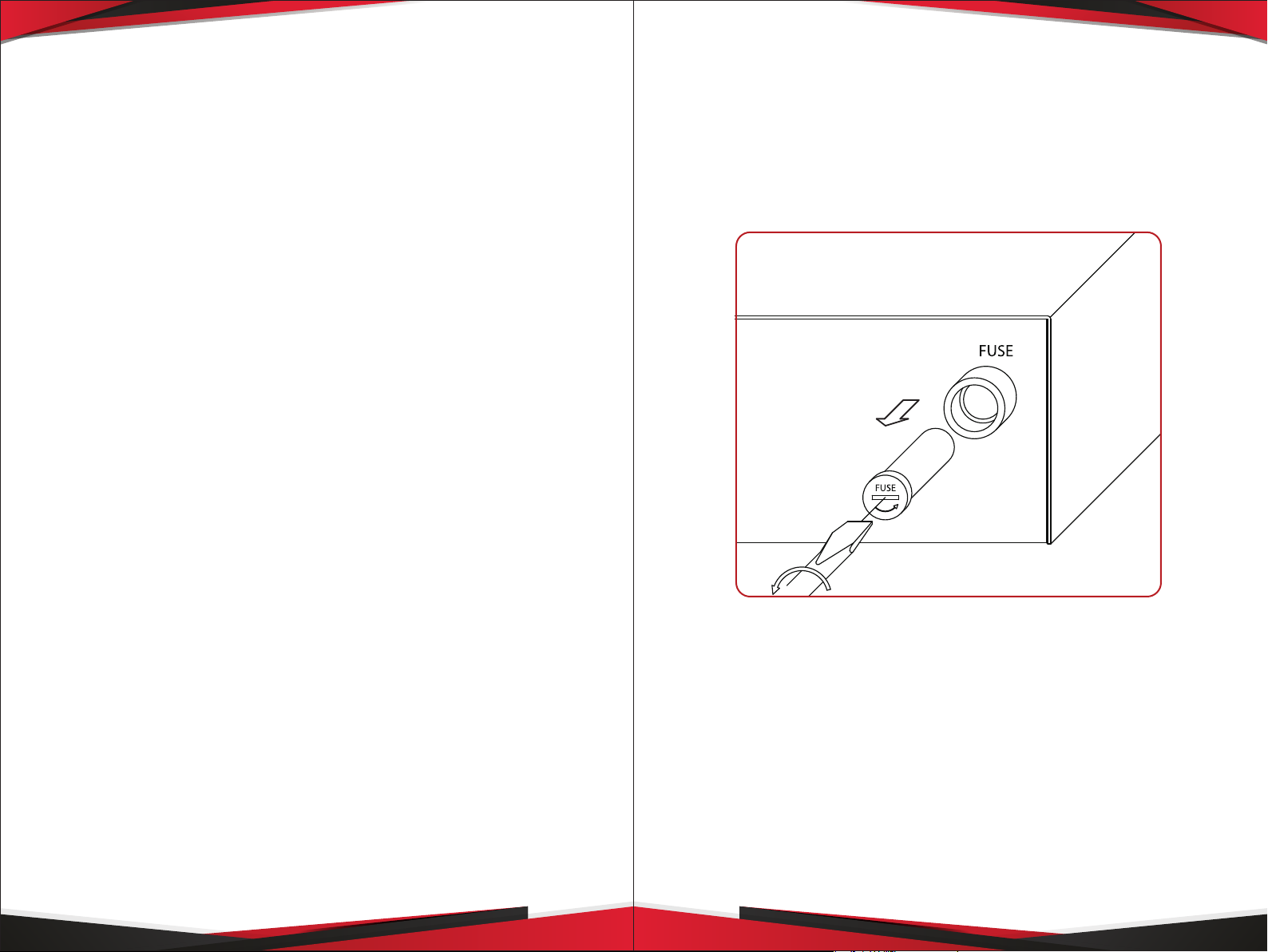

Replacing a fuse
This amplier requires fuse with the proper rating for protection from
power surges and short circuits. If the amplier suddenly turns o or
would not turn on, the fuse is properly blown.
CARING FOR YOUR PYLE AMPLIFIER
Your Pyle Amplier is an example of superior design and
craftsmanship.The following suggestions will help you care for your
amplier so you can enjoy years of use:
• Keep the amplier dry. If it gets wet, wipe immediately.
• Use the amplier only in well-ventilated installations.
• Handle the amplier away from dust and dirt.
• Wipe occasionally with a damp cloth to keep it looking new.
• Let the amplier cool down and see if it starts again before you
assume a fuse needs to be replaced.
• Unplug the amplier from the AC outlet.
• Turn the fuse holder cap and pull out the cap.
• Remove the old fuse and replace it with an identical one.
CAUTION: Never use a fuse with a higher rating
Do not use harsh chemical, solvents or detergents!
6 7
www.PyleUSA.com www.PyleUSA.com
Page 6
SPECIFICATIONSTROUBLESHOOTING:
NO POWER
NO SOUND
Feedback
The fuse might be blown
Sound source or speakers
may not be connected
properly
Master volume control
may be set to a minimum
The speaker's wire
might have the wrong
impedance
The amplier is shutting
down or powering o
Microphone and speakers
are to close together
Check the amplier's fuse
and replace it if necessary.
Check all connections
Adjust the volume control
to a higher setting
Make sure that the speakers
that you have connected to
the amp are matching in
impedance
Turn the amplier o and let it
cool, make sure that the
amplier is properly ventilated,
and then tum it back on
Reposition the microphone
and speakers
MODEL PTA24BT PTA42BT PTA62BT
Power Output:
Total Harmonic
Distortion
1 KHz Rated
Power
250W 500W 750W
0.3% 0.3% 0.3%
Input Sensitivity 1 KHz, 4-ohm Rated Power
AUX 1
AUX 2
AUX IN
MIC
180mV
180mV
200mV
6mV
180mV
180mV
200mV
6mV
180mV
180mV
220mV
6.8mV
Signal to Noise Ratio,1 KHz,4-ohm Rated Power
AUX 1
AUX 2
AUX IN
MIC
BASS 100Hz
81dB
81dB
81dB
68dB
84dB
84dB
84dB
68dB
82dB
82dB
82dB
68dB
±10dB ±10dB ±10dB
TREBLE 10KHz ±10dB ±10dB ±10dB
Frequency
Response,
1KHz 1W,
20Hz-20KHz 20Hz-20KHz 20Hz-20KHz
+/-3dB (8-0HM)
Power
Requirement
8 9
www.PyleUSA.com www.PyleUSA.com
120VAC60Hz
or
230V AC 50Hz
120VAC60Hz
or
230V AC 50Hz
120VAC60Hz
or
230V AC 50Hz
