Pyle PTA1000BT User guide

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]

SAFETY INSTRUCTIONS

Intended to alert the user to the presence of uninsulated
"Dangerous Voltage" within the product's enclosure that may
be strong enough to create a risk electric shock to a person.

Intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.

CAUTION: To reduce the risk of electric shock, DO NOT ATTEMPT TO OPEN
THE AMPLIFIER OR REMOVE THE COVER. There are no user serviceable parts

inside. Please use a qualied technician for all servicing.

WARNING: To prevent electricalshock or re hazard, this amplier should not
be exposed to rain or moisture. Do not place objects lled with liquid, such as
vases,on the amplier.

9. Unplug the amplier during lightning storms or when unused for long
periods of time.

10. Refer all servicing to qualied service personnel. Servicing is required when
the amplier has been damaged in any way. Some examples when the
power cord or plug is damaged, liquid has been spilled, objects have fallen
into the amplier, the amplier has been exposed to rain or moisture, it
does not operate normally, or has been dropped.

11. Never break o the ground pin and connect only to a proper power supply
type, indicated on the unit. For more information, write for our free booklet
"Shock Hazard and grounding.

12. If this product is to be mounted on an equipment rack, rear support should
be provided.

13. Exposure to extreme high noise levels may cause permanent hearing loss.
Individuals vary considerably in regards to noise-induced hearing loss, but
nearly everyone will experience some damage if exposed to intense noise
for an extended period of time.

When using electrical products, caution should always be used.
Please read and keep these safety instructions.

1. Do not use this apparatus near water.

2. Clean only with a dry cloth.

3. Do not block any of the ventilation openings. Install the amplier in
accordance with all manufacture's instructions.

4. Do not install near any heat source, such as a radiator, heat register, stove or
other apparatus (including ampliers).

5. Do not alter a polarized plug (two blades with one wider than the other) or
grounding-type plug (two blades with a third prong), as they provide
protection. If the provided plug does not t into your outlet consult an
electrician for replacement of the obsolete outlet.

6. Protect the power cord from being damaged, particularly near the plugs,
convenience receptacles and the point where they connect to the amplier.

7. Only use attachments/accessories provided by the manufacture.

8. Use only with a cart, stand tripod, bracket, or table specied by the
manufacturer, or sold with the amplier. When a cart is used, use caution
when moving to avoid injury from tipping over.

The US Government's Occupationaland Health Administration (OSHA) has
specied the following permissible noise level exposures:

SOUND LEVEL dBA, SLOW RESPONSE DURATION PER DAY IN HOURS

8
6
4
3
2

1 1/2

1

1/2

1/4 or less

90
92
95

97
100
102
105
110
115

According to OSHA, any exposure in excess of the above permissible limits
could result in some hearing loss. Ear plugs or protectors to the ear canals must
be worn when operating this amplication system, in order to prevent
permanent hearing loss, if exposure is in excess of the limits as set forth above.
To ensure against potentially dangerous exposure to high sound pressure
levels, it is recommended that all persons exposed to equipment capable of
producing high sound pressure levels such as this amplication system be
protected by hearing protectors while this unit is in operation.

www.PyleUSA.com

2 3

www.PyleUSA.com

OPERATION

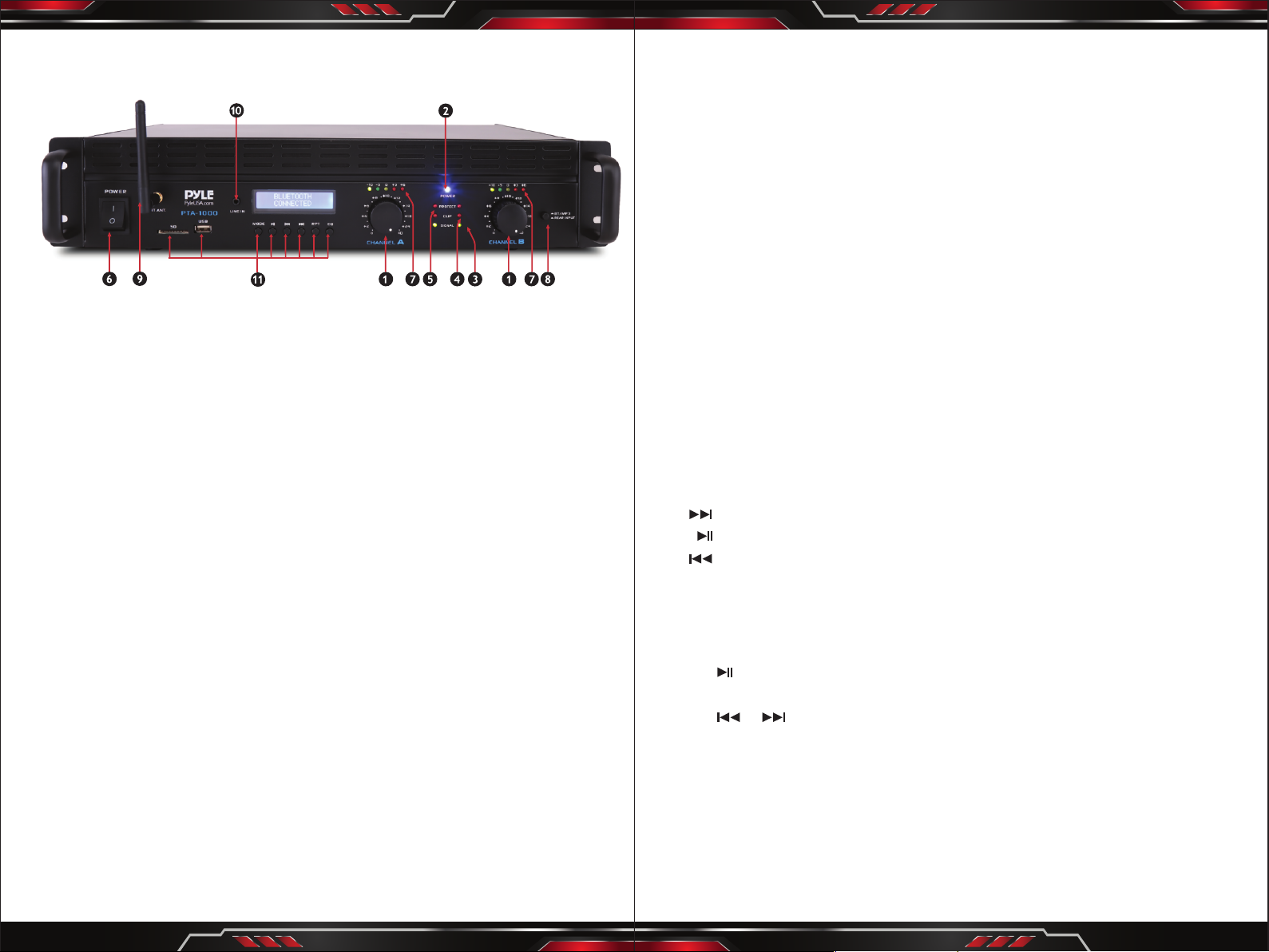

Front Panel

1. INPUT GAIN (dB)

These controls are used to adjust the input gain of each channel.
They determine how loud each channel of the power amplier will sound for
a given input signal level. The maximum input gain is achieved by turning the
control completely clockwise - this setting yields the maximum mixer/system
headroom. Turning the controlback counter-clockwise will yield lower system
noise at the expense of mixer/system headroom. Turning the control fully
counter clockwise turns this setting OFF. It is always a good idea to power up
any new installing at this setting to protect the system loud speakers.

2. POWER LED (POWER)

These indicators illuminate when the AC main power is being supplied to the
amp and both channels are operational. If either channel experiences faulty
conditions, exceeds safe operating temperature limits, or if the main circuit
breaker trips, then both channel power LED will be dark, indicating shutdown.
If the BRIDGE mode is selected, the PWR indicator on channel B will remain
dark as a positive indication of this mode selection.

3. SIGNAL ACTIVITY LEDS (SIGNAL)

These indicators illuminate when the associated channel output signal level
exceeds 1 Volt RMS.

4. OVERLOAD LEDS (CLIP)

These indicators illuminate when the associated channel has been over
loaded.

5. FAULT LEDS (FAULT)

These indicators illuminate when the amplier has just been turned ON or if
the amplier has detected a problem, such as overheating or circuit problems.

6. POWER SWITCH

This heavy-duty, rocker-type switch turns on the power to the amplier.
When the unit is turned on, there is a three-second delay, which reduces
/eliminates the turn-on transients assodated with the system equipment
connected to the amplier and protects loudspeakers.

7. LEVEL INDICATOR

Channel A and Channel B level LED indicator.

8. BT/AUX IN BUTTON SWITCH

Press to switch Wireless BT mode. Unpress for AUX mode.

9. Wireless BT ANTENNA: Wireless BT receiver antenna for better signal.

10. AUX INPUT JACKS: Connect AUX input to these jacks.

11. DIGITAL MP3 PLAYER

• Support USB SD Card

• Music format: Mp3, WMA , WAV

• Connect via Wireless BT, Compatible Wireless BT: version 5.0

• With LCD dispIay, shows ID3 format.

• FM: 87.0 - 108MHz

• 6 Preset digital EQ eect.

USB, SD, Wireless BT/FM mode

Forward/Next channels
Play/Pause/Scan
Reverse/Previous channels
RPT: SD/USB repeat Play

FM Radio

• Press MODE key to select FM radio mode.

• Press key once, then it will begin to scan the FM frequency range and set

P1 to P30 stations.

• Press or key to select the desired stations or use the track select key in

1 to 30 get the desired stations.

Wireless BT Audio Playback Operation

• Press MODE key to select Wireless BT mode.

• Enable the Wireless BT function of your external gadget and search the

Wireless BT ID of the product then connect. Once connected, you can play the
audio les in your gadget and listen your favorite music with high power
audio output of the product.

www.PyleUSA.com

4 5

www.PyleUSA.com

Back Panel

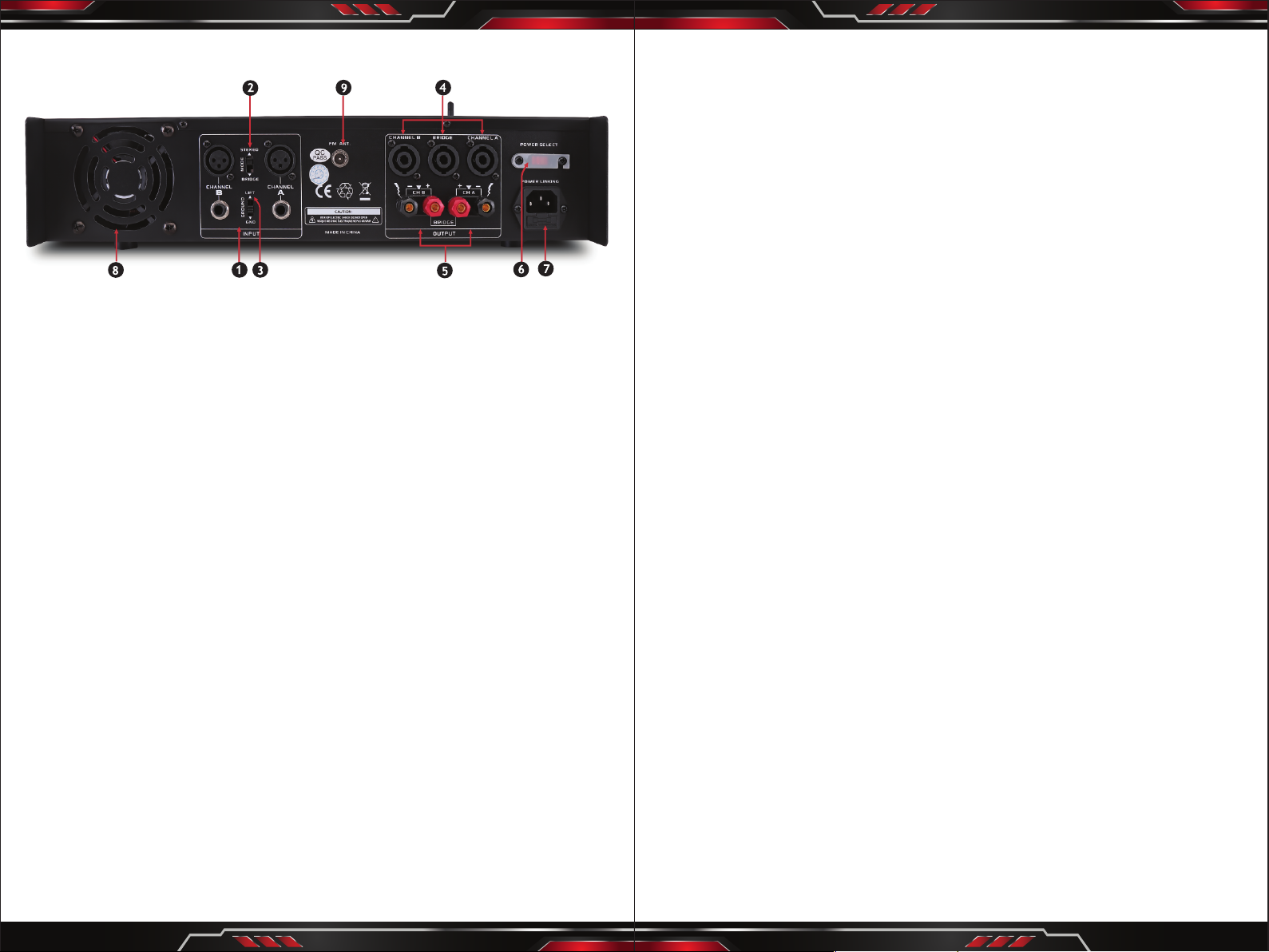

1. INPUT

Cannon and input jack connector provide balance or unbalance input mode.

2. MODE SWITCH

This switch is used to select STEREO or BRIDGE mode operation.

3. GROUND LIFT SWITCH

4. BINDING POST OUTPUTS

Shockproof binding posts are provided. For each channel, the outputs are in

parallel and the speaker connection cables can be terminated with banana

plugs or stripped wires.

5. SPEAKER OUTPUT

The amplier provides (3) four conductor speaker connectors, one for each

channel and one for bridge mode.

6. POWER SELECT

Switch to choose 110V-120V or 220V-240V power supply.

7. POWER INPUT

This is a standard IEC power connector. An AC main cord, which has the

appropriate AC plug and rating for the intended operating voltage, is included

in the carton.

8. FAN GRILL

(Two) 2 speed DC fans supply cool air to the amplier. The fans switch to high

speed automatically when the unit requires additional cooling.

9. FM ANTENNA: Connect for tuner antenna.

Instruction

Pyle's PTA1000BT Wireless BT Pro Audio Power Amplier is the perfect solution
for all of your audio needs. Using the latest sound amplication technology and
an impressive 1000 Wall power output, this receiver is designed to deliver pure
stereo sounds from a wide range of connected music sources. Built-in Wireless
BT audio receiver ability allows you to stream your music wirelessly and it works
with all of your favorite devices (like Smartphones, Tablets, laptops, Computers,
etc.) Enjoy full range stereo sound reproduction when streaming audio with a
wireless range of up to 30' feet. Additional system features include USB Flash
Drive Reader, SD Card Reader, Push Type Speaker Terminal connectors, RCA
Stereo Inputs, RCA Subwoofer Output, and along with an Aux (3.5mm) jack to
connect even more external devices. Take control of your sound with the Pyle

PTA1000BT Wireless BT Pro Audio Power Amplier.

Wireless BT Operation Instruction:

External devices which have a built-in Wireless BT feature can be connected
to this amplier wirelessly to play through the amplier's speakers.

1. At rst be sure that the amplie is powered ON, and turn the volume to the
MINI position and it's better to pull the Wireless BT Antenna on at the back
panel for better receiving.

2. Press the BT/line button switch in on the front panel, you will hear the voice
"POWER ON" and also "PAIRING", and then the unit is automatically ready to
pair with your external device.

3. Turn ON the Wireless BT of your external devices like Smartphone, Computer,
and others, etc.

4. Search for available Wireless BT devices within range of your external device
and wait for your device to select "PYLE PRO" on the pairing devices lists.

5. And seconds later when you heard a voice "Your Device is Connected", then
the Wireless BT pairing is successful.

6. You can now play music on your external device through the amplier.

www.PyleUSA.com

6 7

www.PyleUSA.com

connected,

loose or

malfunctioning.

Help & Troubleshooting

If you experience any of the following diculties while using the unit, use this
troubleshooting guide to help you remedy the problem, should any problem
persist, consult your nearest dealer.

Problem

No

Power

No

Sound

Microphone

No

Sound

"Ensure
*Plug a

verify that the

*The wrong input was

*Music master volume control is set to

•

Fuse

*Speakers

*The

*The

functioning

*The

minimum

*The

the power cord is

dierent

defective

microphone

microphone

microphone

microphone

device into the

outlet

and

speaker

is

selected

is not turned on

cable is either loose or

volume for that

is not

securely connected.

working

cables are either

functioning

electrical

correctly

on the

amplier

minimum

channel

correctly

outlet

not

not

is

set

to

to

Features:

• 2-Channel Pro Audio Amplier

• Bridge able Amp: Bridge Mode Ability

• Built-in Wireless BT Streaming

• (2) 1/4" TRS Input Connector Jacks

• (2) XLR Input Connector Jacks

• (3) SpeakOn Output Connectors (AlB/Bridged)

• (2) Pair Speaker Terminal Binding Post Connectors

• Power, Protect, Clip, Signal LED Indicators

• Left and Right Channel Level Signal Indicators

• Built-in Ventilation Cooling Fans

• Front Panel Control Center

• Rack-Mountable System

Wireless BT Connectivity:

• Simple & Hassle-Free Pairing

• Instant Wireless Audio Streaming Ability

• Works with All of Today's Latest Wireless BT Devices

• Wireless BT Network Name: 'PYLE PRO'

• Wireless BT Version: 5.0

• Wireless Range: Up to 30'+ ft.

What's in the Box:

*Ensure all cables and

connected

*Connect

buzzing persists.

Severe Hum or

Noise

www.PyleUSA.com

8 9

This products can expose you to a chemical or group of chemicals, which
may include ”Lead (Pb)” which is known in the state of California to cause
cancer, birth defects, or other reproductive harm. For more info, go to
https://www.p65warnings.ca.gov/.

with the

• Connect
amplier

•

The volume is set too high and the

distort

a

dierent

original device.

your

device

wires

are

securely

source device to see if

If does not, the

to a

problem may

dierent

input to

loudspeakers

the

the

• Pro Audio Amplier • Power Cable • BT and FM Antenna

be

Technical Specs:

• Power Output: 2000 Watt MAX

• Amplier Type: 2-Channel

• 2x 1000 Watt @ 4 0hm

• 2x 500 Watt @ 8 0hm

• Distortion: <1.0%

• Input Level: + 4dB

• Signal/Noise Ratio: 102dB

• Frequency Response: 20Hz - 20kHz, +/- 0.2dB

• Power Supply: 120/220V, Switchable

• Dimensions (L x W x H): 19.09" x 9.84" x 3.54" -inches

www.PyleUSA.com
