PT8050CH - PT12050CH
Audio Karaoke Wireless BT Amplifier
Stage & Studio Sound Mixer Receiver System
with Microphone Talk-Over, MP3/USB/SD/AUX, Rack Mount
Page 2
Pyle's Wireless BT 8/12CH Amplier is the perfect solution for all of your audio
needs. Using the latest sound amplication technology and an impressive 8000
/12000 Watt power output, this receiver is designed to deliver pure 8/12CH
sounds from a wide range of connected music sources. Built-in Wireless BT audio
receiver ability allows you to stream your music wirelessly and it works with all of
your favorite devices (like Smartphones, Tablets, Laptops, Computers, etc.) Enjoy
full range 8/12CH sound reproduction when streaming audio with a wireless
range of up to 30’ feet. Additional system features include FM Radio with LED
display, USB Flash Drive Reader, SD Card Reader, (2) 1/4" Microphone Inputs,
Binding Post Speaker Terminal connectors, (3) RCA Stereo Inputs, Line Stereo
RCA Output, and along with an Aux (3.5mm) jack to connect even more external
devices. Take control of your sound with the Pyle PT8050CH & PT12050CH
Wireless BT Stereo Amp Receiver.
Available For Wall/Ceiling Speakers
Large cone areas pivoting drivers, ease of installation and exceptional sound
quality make PYLE Audio's line of in-wall and in-ceiling speakers an excellent
choice for those who don't want to give up precious oor or shelf space.
PYLE Audio oers models with varying features, materials, and cone sizes to t
any application and budget.
Available For Outdoor Speakers
Make your next backyard BBQ or swim party special by installing an outdoor
speaker system. PYLE Audio oers a huge selection of aordable models, from
weather-resistant patio speakers to heavy-duty rock speakers that blend into
any landscape. PYLE Audio outdoor speakers are built tough and tested under
extreme weather conditions to ensure a long and happy life.
High Performance Features:
PT8050CH & PT12050CH is a power amplier to deliver clean power to your
speakers. PT8050CH & PT12050CH with best design and best components can
give you a profoundly positive eect on sound quality for your home theater,
media room, or whole-house audio system. Design and customize a home theater
that ts seamlessly into your home usuage, and Multi-channel amps like the
PT8050CH & PT12050CH incorporate high-eciency, space-saving digital
technology. Or go big with complete, whole-house audio solutions. Whether you
want to maximize your home theater experience or transform your living space,
PYLE Audio has total solutions to help you get the most out of your movies and
music from clean power ampliers to in-wall and outdoor speakers, subwoofers,
custom controls, and more. Rated at 50 watts per channel RMS at 8 ohms, the
PT8050CH & PT12050CH from PYLE Audio is driving complex audio systems
and will distribute sound to 6 dierent locations without the risk of overload.
Equipped with rack-mountable high current amp includes 8/12 channels
(speakers), so owning this amp is like having three Stereo channel amps in one
ecient location.
Make PYLE Audio as a Part of Your Total Audio Solution
PYLE Audio oers everything you need to design and build a complete home
theater solution, customized to your home. In-wall speakers, ampliers, custom
control products, and more are all available to give you the perfect home audio
experience, indoors or outdoors.
Available For Audio Control
A whole-house audio system lets you enjoy great sound in every room of your
house. Pyle Audio has everything you need for a whole-house system, including
volume controls, speaker selectors and IR repeater systems that let you hide your
electronics neatly inside a cabinet.
So choose the PYLE Audio Amplier that's right for you.
Wireless BT Streaming Operation Instruction
External devices which have a built-in Wireless BT feature can be connected to
this amplier wirelessly to play through the amplier’s speakers.
1. At rst be sure that the amplier is powered ON, and turn the volume to the
MINI position. And it’s better to pull the Wireless BT Antenna on at the back
panel for better receiving.
2. Press the BT/Line button switch in ON the front panel, you will hear the voice
“POWER ON” and also “PAIRING”, and then the unit is automatically ready to
pair with your external device.
3. Turn ON the Wireless BT of your external devices like Smartphone, Computer,
and others, etc.
4. Search for available Wireless BT devices within range of your external device
and wait for your device to select “BT-RY” on the pairing devices lists.
5. And seconds later when you heard a voice “ Your Device is Connected”, then
the Wireless BT pairing is success.
6. You can now play music on your external device through the amplier.
www.PyleUSA.com
1
www.PyleUSA.com
2
Page 3

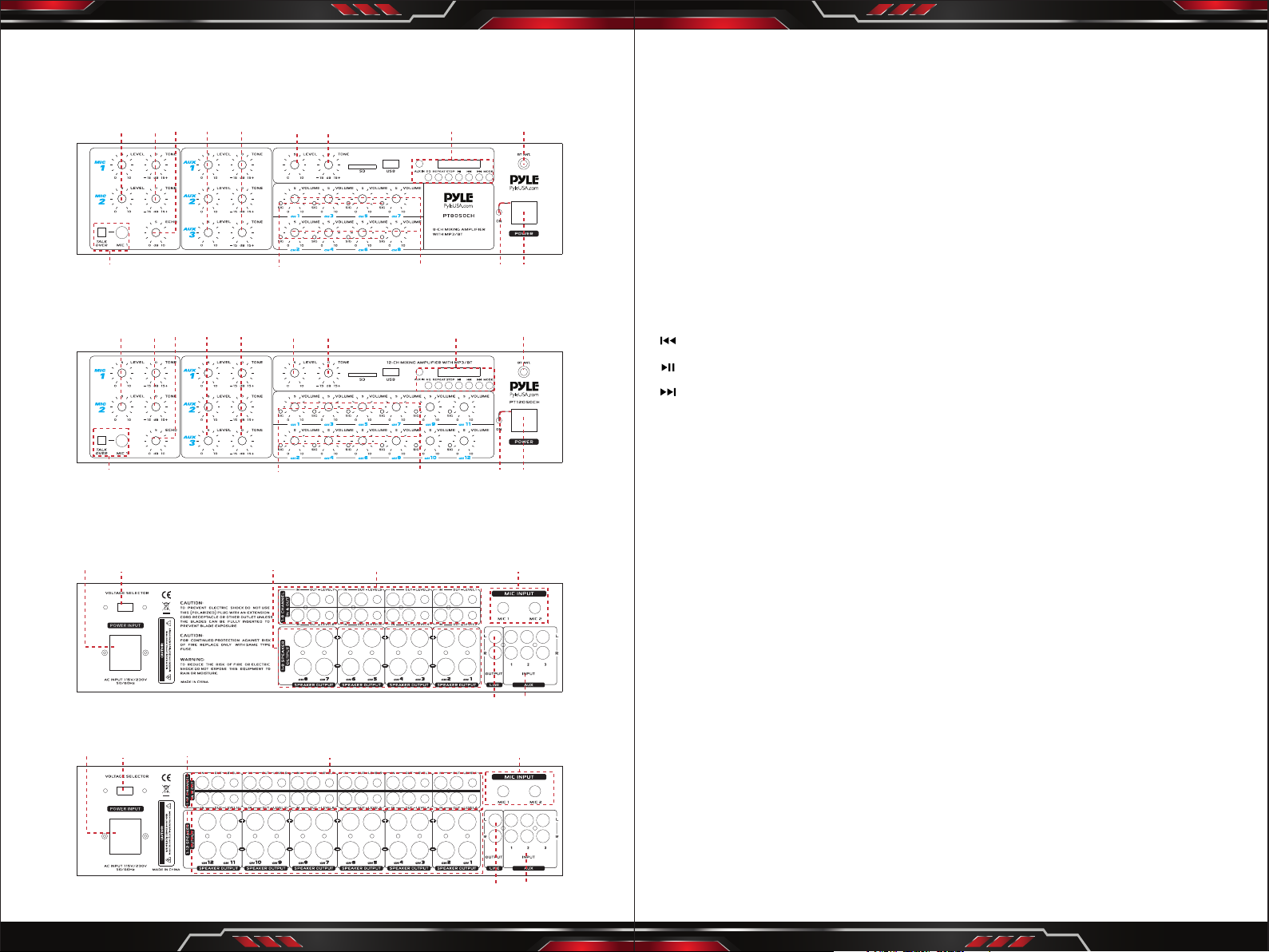

Features and Controls:
FRONT PANEL
PT8050CH
1 2 3 4
PT12050CH
1 2 3 4
14
BACK PANEL
PT8050CH
15 16 17 18 19
PT12050CH
15 16 17 18 19
Front Panel & Back Panel
1. Separate MIC 1 and MIC2 Volume Control
5
5
6
7
6 7 8
8 9
21
21
1011121314
9
10111213
20
20
2. Separate MIC 1 and MIC2 Tone Control
3. Microphone Voice Priority Level Control
4. Separate AUX 1, AUX2, and AUX3 Input Level Control
5. Separate AUX 1, AUX2, and AUX3 Tone Control
6. AUX/MP3 (USB & SD) Input Level Control
7. AUX/MP3 (USB & SD) Input Tone Control
8. BT/USB/SD/AUX Function Control USB/SD Ports
AUX IN: 3.5mm AUX Input
MODE: BT/USB/SD/AUX/FM Switch
: Button Doubles as Previous Song
: Button Doubles as Play/Pause
: Button Doubles as Next Song
VOL+/VOL- : Button for Volume + and Volume -
9. BT Antenna
10. Power ON/OFF Switch
11. Power On/O LED
12. Separate Channel 1-8 or 1-12 Channel Output Volume Control
13. Separate Channel 1-8 or 1-12 Channel Output LED Signal
The Indicator Lights when the Output is working.
14. MIC 1 INPUT JACK & MIC1 Priority Function On/O Button
Allows you to connect up to 6.35 type microphone, and can be used as the
normal dynamic MIC input.
15. Power Input
16. Power Selector (110V/60Hz or 230V/50Hz)
17. Speaker Stereo Output Binding Posts
18. (8) Separate RCA Audio Inputs with Separate Level Control
(8) Separate RCA Audio Output with Separate Level Control
19. Separate MIC1 & MIC2 TRS Inputs
20. Separate Stereo AUX 1, AUX2, & AUX 3 RCA Inputs
21. Line Stereo RCA Outputs
www.PyleUSA.com
3
www.PyleUSA.com
4
Page 4
Help & Troubleshooting
If you experience any of the following diculties while using the unit, use this
troubleshooting guide to help you remedy the problem, should any problem
persist, consult your nearest dealer.
Problem Possible Cause & Solution
*Ensure the power cord is securely connected.
No Power
*Plug a dierent device into the electrical outlet to verify
that the outlet is working correctly
*The wrong input was selected on the amplier
*Music master volume control is set to minimum
No Sound
* Fuse defective
*Speakers and speaker cables are either not connected,
loose or malfunctioning.
*The microphone is not turned on
Microphone
No Sound
*The microphone cable is either loose or not functioning
*The microphone volume for that channel is set to minimum
*The microphone is not functioning correctly
*Ensure all cables and wires are securely connected
*Connect a dierent source device to see if the buzzing
Severe Hum
or Noise
persists. If does not, the problem may be with the original
device.
* Connect your device to a dierent input to the amplier
* The volume is set too high and the loudspeakers distort
Wireless BT Connectivity:
• Works with All of Today’s Latest Devices
• Smartphones, Tablets, Laptops, Computers, etc.
• Wireless BT Version: 2.1
• Wireless BT Network Name: ‘BT-AUDIO’
• Wireless BT Network Password: ‘0000’ (4 Zeroes)
• Wireless Range: Up to 30’+ ft.
What’s in the Box:
• Amplier Mixer System
• Wireless BT Antenna
• Detachable Rack Mount Brackets
• Power Cable
PT8050CH PT12050CH
Features:
• High-Powered Audio Amplier
• Multi-Zone Audio Source Mixing Receiver
• Home Theater Pro Audio Sound Control
• Lab Tested Stage & Studio Performance
• Built-in BT for Wireless Audio Streaming Ability
• Microphone Talk-Over / Voice Priority Function
• Digital LCD Display Screen
• Front Panel Button & Rotary Control Center
• Audio Input Mode Selectable (BT/USB/SD/AUX)
• Independent Channel & Microphone Audio Conguration
• Connect & Stream Audio from External Devices
• MP3 Digital Audio File Support
• USB Flash & SD Memory Card Readers
• USB Port Doubles as Device Charge Port
• Aux (3.5mm) Audio Jack
• (3) 1/4'' Microphone Jacks (2 Rear, 1 Front)
• RCA (L/R) Audio Input / Output Jacks
• Speaker Binding Post Output Connectors
• Power ON/OFF Switch
• LED Audio Signal Indicator Lights
• Universal Rack Mount Compatible
• Built-in Safety, Overload and Short Circuit Protection
• Used for Stage, Studio, Home, Oce & Business Audio Applications
Technical Specs:
• Frequency Response: 20Hz-20kHz
• Signal to Noise Ratio: >81dB
• T.H.D.: <0.1%
• Digital File-Type Compatibility: MP3, WMA, WAV, FLAC
• Maximum USB/SD Flash Support: 64GB
• Battery Operated Remote, Requires (1) x ‘CR-2032’, Included
• Power Cable Length: 4.9 ft.
• USB Power: 5V/1A
• Power Supply: 115/230V, Switchable
• Dimensions (L x W x H): 16.9’’ x 11.0’’ x 3.9’’ - inches
Amplier Type
Power Output
MAX Power
RMS Power
www.PyleUSA.com
5
8-Channel
4000 Watt MAX
8-CH x 500 Watt @ 4 Ohm
8-CH x 250 Watt @ 8 Ohm
12-Channel
6000 Watt MAX
12-CH x 500 Watt @ 4 Ohm
12-CH x 250 Watt @ 8 Ohm
www.PyleUSA.com
6
