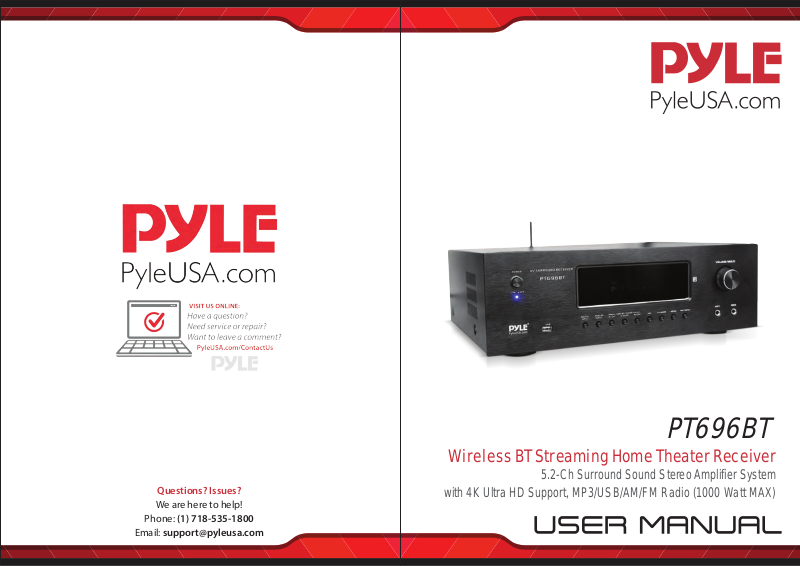

PT696BT

Wireless BT Streaming Home Theater Receiver

5.2-Ch Surround Sound Stereo Amplifier System

with 4K Ultra HD Support, MP3/USB/AM/FM Radio (1000 Watt MAX)

Safety Precautions

A. Avoid opening the cover or back panel. Do not open the cover, x or touch the inner parts. No user-serviceable parts inside, refer servicing to qualied service personnel. B. Protect voltage line. Avoid high pressure and to be stomped on, do not pull, push excessively. C. Please put on this unit in the windy place, avoid direct sunshine and nearing heater. Place the unit in a location with adequate air circulation. D. Do not interfere with its proper ventilation; this will cause the internal temperature to rise and may result in a failure. E. Avoid metals dropping in, like needle, hairpin, coin, otherwise the unit will get short and out of work. F. Be sure to set the line voltage AC230V/50Hz if you are not sure of the type of power supply, consult your appliance dealer or local power company.

For MAINS powered apparatus and for apparatus producing internal voltages greater than 35V (peak) a.c. or d.c., having no protection against splashing water according to annex A, the instructions for use shall state that the apparatus shall not be exposed to dripping or splashing and that no obiects lled with liquids, such as vases, shall be placed on the apparatus

1. Power Switch

2. USB Input jack

3. DIGITAL INPUT KEY

Press DIGITAL INPUT key to

select COAXIAL/OPTICAL/

HDMI 1/HDMI 2 digital input.

4. ANALOG INPUT KEY

Press ANALOG INPUT key to select

USB/BT/AUX/DVD/CD/ FM and AM

analog input.

5/6/7. /CH- / /AUTO/ /CH+

Use these three keys to operate USB/BT

and Tuner functions.

a. In USB or Wireless BT channel, press

these three keys to nish previous/

play/pause and next functions.

b. In FM/AM channel, press AUTO key

for broadcast stations auto-memory.

8. HD (ARC)

9. CH. MODE Press CH.MODE key to select dierent channel mode. 2.1 or 5.1 channel

10. MENU Press MENU key and rotate VOLUME/ MULTI knob to adjust main channel BALANCE/main channel TREBLE/ main channel BASS/surround channel VOLUME/center channel VOLUME and subwoofer channel VOLUME.

11. MIC MENU When inserting the microphone, press OK MENU key and rotate VOLUME/MULTI knob to adjust MIC VOLUME/MIC TREBLE/MIC BASS/ECHO and DELAY.

12. MIC1/MIC2 Microphone input jacks.

13. VOLUME/MULTI

14. VFD display

Front Panel

www.PyleUSA.com

14 13

2 3 4 5 6 7 8 9 10 11 12

Rear Panel

2133 4 5 6 7 8 9 10 11

12 14 15 16 17 18

www.PyleUSA.com

1. TUNER ANTENNA

2. AUX AUDIO INPUT

3. DVD/CD AUDIO INPUT

4. ACTIVE SUBWOOFER OUTPUT

5. SURROUND RIGHT CHANNEL OUTPUT

6. SURROUND LEFT CHANNEL OUTPUT

7. CENTER CHANNEL OUTPUT

8. PASSIVE SUBWOOFER OUTPUT

9. FRONT RIGHT CHANNEL OUTPUT

10. FRONT LEFT CHANNEL OUTPUT

11. POWER SOCKET

12. COAXIAL INPUT

13. OPTICAL INPUT

14. HD 1 INPUT

15. HD 2 INPUT

16. HDMI OUTPUT (WITH ARC)

17. WIRELESS BT ANTENNA

18. VOLTAGE SELECTOR

Remote Control Function Introduction

System Connection

1. Tuner

2. HD (HDMI)

3. AUX

4. DVD/CD

5. ARC

6. 2.1/5.1 CH

7. COAX/OPTI

8. USB/BT

9. SL. Volume -/+

10. SR. Volume -/+

11. CEN. Volume -/+

12. SW. Volume -/+

13. Treble -

14. Treble +

15. Volume +

16. Volume -

17. Left

18. Right

19. Mute

21. Bass +

22. Auto

23. AM

24. FM

25. Display +

26. Memory

27. Tuner -

28. Tuner +

29. Display -

30. ST/MO

31. Next Track

32. Play/Pause

33. Previous Track

34. Mic Volume -/+

35. Delay -/+

36. DSP -/+

37. Echo -/+

38. Mic Treble -/+

www.PyleUSA.com

20. Bass -

39. Mic Bass -/+

www.PyleUSA.com

Operating Instructions

Preparation before operation

• This product must be placed on a at, solid object to ensure that it has suﬃcient

capacity to support the product without falling.

• Please use this product according to the safety requirements in front of this

manual and connect with other products (TV, speaker, DVD player or player) as required.

• Open the audio source device connected to this product

• Press the power switch button on the panel to turn ON the power.

Operation

Channel Selection

The product has 11 pairs channels input, digital channel input and analog channel input: Select HDMI 1-2, OPTICAL, COAXIAL and USB digital input by pressing digital input button on the panel or remote control.

Select AUX, BT, DVD/CD and FM by pressing the 'analog input' button on the panel or remote control.

Channel Mode Press "channel mode", select2.1 or 5.1 channels on the panel or remote control

Volume Adjustment

Total volume adjustment:

Rotate the "VOLUME/MULTI" VOLUME/multi-function adjusting knob on the panel, or press the 'total VOLUME +/-' button on the remote control to adjust the VOLUME.

Center, surround, heavy bass channel volume adjustment:

Press "main menu" on the panel, adjust the screen to show "CV xx", ''the SRV xx'', ''xx'' and ''SWVxx SLV'', then rotate the MULTI VOLUME/multifunctional adjustment button on the panel, adjust the Volume of center channel, right surround channel, left surround channel and the heavy bass channel.

Press the ''Center volume +/-'' surround volume +/-'' and ''heavy bass +/-'' button on the remote control , adjust the volume of Center, surround and heavy bass. Channel.

MAIN CHANNEL TONE AND BALANCE

Press the 'MENU' on the control panel of the receiver system. Adjust the display 'TRExx' 'BASSxx' and 'L-- //--R'. ' VOLUME/MULTI' is volume/Multi-function knob. This knob can adjust main channel bass/Treble volume level and Left/Right channel volume balance.

USB OPERATION

Press the 'Input' button on the remote control or on the control panel of the receiver system. Select 'USB'mode. Then insert USB ash disk. This unit can automatically play the USB ash disk le. Then press , , button to operate the corresponding function. Supports WMA/MP3/APE/PLAC les

Note:

1. Because video les continuously updates, this product can't play all format les.

2. If USB ash disk doesn’t work on USB mode. The operation is invalid

MIC

• Insert MIC. The display will show 'OK ON'

• Press the 'OK MENU' on the control panel of the receiver system. Rotate 'VOLUME

/MULTI' knob. Adjust MIC volume. Press the 'MIC VOL+/-"MIC ECHO+/-"MIC DELAY +/-" on the remote control. Adjust the microphone Master/echo/delay volume level.

HIFI

• In ANALOG INPUT mode, press the 'HIFI' button on the remote control. Output is 2.0ch stereo audio mode.

HDMI

1. Connect audio equipment (Blu-ray DVD player, Set Top Box ) with HDMI output by using HDMI cable.

2. Press the 'Digital input' on the remote control or on the control panel of the receiver system. Select the appropriate channel.

3. Press the 'CH. MODE' on the remote control to change the channel of the broadcast program.

4. HDMI with ARC function. Set the TV audio in 'External speaker' or 'Audio system', press 'ARC ON' on remote control,. The display will show 'ARC on', This amplier can play the TV audio. Press 'ARC o', The amplier goes back to default channel.

Note: HDMI Version 1.4B. Support 3D 4K Make sure the TV has ARC function and set the TV in ARC ON state.

www.PyleUSA.com

Wireless BT Function

1. The receiver connects to your Bluetooth-enabled device, allowing the system to receive your wireless bluetooth signal and stream audio to any connected speaker system.

2. Press the 'ANALOG INPUT' on the remote control or on the control panel of the receiver system, then enter to 'BT' mode--as indicated on the display screen.

3. Ensure Bluetooth is activated on your device and search for bluetooth Network Named: PYLEUSA

4. No password is required for connecting.

ARC (Audio Return Channel) Function

The ARC (Audio Return Channel) function makes it easy for the PT696BT to play audio from any TV with a single HDMI cable. It can be adjusted either on the front control panel or via the included remote control.

Enable your TV to send audio signal upstream to a connected speaker system or AV receiver while eliminating additional cable connections and clutter from an optical audio cable (S/PDIF). ARC audio transmission links your speaker output to your television controls, meaning you do not need an external / additional remote or interface to congure audio levels. Enjoy an optimal multimedia home theater experience by connecting your television and Hi-Fi equipment into one, seamless entertainment system.

FM RADIO

Press 'AUTO " TUNE+/-" CH+/-' button on the remote control. Operate automatic search and save station, manually save and select the stored station function.

DSP Sound Field Control

Press 'DSP' or 'CH MODE' on the remote control. 7 dierent sound eld eects can be selected. (LIVE/HALL/DISCO/CHURCH/ROCK/JAZZ/CLASS) NOTE: Pressing those button on the digital input channel is invalid

LOUD

Press 'LOUD ON' on the remote contnol. The low frequency of this unit can be increased appropriately at low volume. Then press 'LOUND OFF' to cancel this function.

DISPLAY

Press 'DISPLAY' button on the remote conlrol to adjust dierent display mode.

RESET

Press 'RESET' button on the remote control to restore to the factory setting state.

MUTE

Press 'MUTE' button on the remote control to turn ON or OFF MUTE function.

STANDBY

Press 'STANDBY' button on the remote control to turn ON standby state. Press again to cancel standby mode.

Troubleshooting

Problem Probable Cause Solution

No display

There’s display but no sound output

Remote control doesn’t work

Out of control

sound distortion Main volume adjustment is too much Turn down the main volume

The channel sound is wrong

Music les in USB can’t be played for long period of time

The phone cannot transmit audio to the amplier via bluetooth.

The power socket is in poor contact or without electricity

1. The speaker wiring is wrong.

2. The playback source doesn’t corresponds to the selected signal state

3. The volume level is in lowest output state.

4. MUTE is activated

1. The remote transmitter window is not aimed at the local receiving window.

2. There are obstacles between the unit and the remote control

3. Drained remote control batteries

Being disturbed or improperly operated

Channel sound mode is not correct

The USB les is not supported Delete unsupported les

1. Tha bluetooth function of mobile phone is not opened.

2. No music is played on the phone.

3. Amplier Bluetooth is not paired with mobile phone bluetooth.

4. Incorrect amplier input channel

5. Bluetooth can't connect.

If you are still experiencing issues, please contact your authorised local dealer or contact us on www.PyleUSA.com.

Check the power supply and plug of the socket.

1. Connect the speaker line according to the wiring diagram

2. Select the input state which is playing

3. Turn the main volume & adjust the knob clockwise.

4. Disactivate MUTE

1. Aim at the host receiving window.

2. Remove obstacles

3. Replace new battery

Turn it OFF and than turn it ON

Press 'CH. MODE' on the panel or remote control

1. Turn ON bluetooth

2. Open the phone and play music

3. Rematch Bluetooth connection

4. Switch the amplier input into 'BT' channel.

5. Turn o other bluetooth devices

www.PyleUSA.com

PT696BT

Wireless BT Streaming Home Theater Receiver

5.2-Ch Surround Sound Stereo Amplier System with 4K Ultra HD Support,

MP3/USB/AM/FM Radio (1000 Watt MAX)

Wireless BT Connectivity:

• Simple & Hassle-Free Pairing

• Instantly Receives Wireless Music Streaming

• Works with all of Today’s Latest Devices

Features:

• 5.2 Channel Receiver System

• AV (Audio/Video) Stereo Amplier

• Hi-Fi Home Theater Surround Sound

• Built-in Bluetooth Wireless Audio Streaming

• Next-Gen Audio DSP Sound Processing Technology

• 4K Ultra HD TV Pass-Through Support

• 3D Video & Blu-Ray Video Pass-Through Support

• Digital Dynamic, VFD Display with AM/FM Radio

• Connect & Stream Audio from External Devices

• MP3 Digital Audio Support

• USB Flash Drive Reader

• Connection Interface: (2) IN, (1) OUT x HD, Speaker Binding Posts, Optical/COAX

Digital Audio

• HDMI Output + Dedicated RCA Subwoofer Output

• (2) 1/4’’ -inch Microphone Inputs

• Independent Input Source Selection

• Digital Graphic Audio Output Level Display

• Mic Echo, Bass, Treble, Volume Control Adjustment

• Over Current, Short Circuit, and Over Voltage Protection

Smartphones, Tablets, Laptops, Computers, etc.)

• Wireless BT Version: 5.0

• Wireless BT Network Name: ‘PYLE PRO’

• Wireless Range: 30’+ ft.

Technical Specs:

• Power Output: 1000 Watt MAX

• Amplier Receiver Type: 5.2-Channel

• Speaker Impedance: 4-16 Ohm

• S/N Ratio: >80dB

• T.H.D.: <0.05%

• Frequency Response: 20Hz-20kHz

• Radio Station Memory: 30 Presets

• Digital Audio File Support: MP3 / WMA / APE / FLAC

• Maximum USB Flash Support: Up to 1 TB

• Battery Operated Remote Control, Requires (2) x ‘AAA’ Batteries, Not Included

• Power Cable Length: 3.9’ ft.

• Power Supply: 115V/230V, switchable

What’s in the Box:

• AV Receiver

• Remote Control

• Power Cable

www.PyleUSA.com

• Total Unit Dimensions (L x W x H): 16.9’’ x 13.8’’ x 5.5 ’’ -inches

This product can expose you to a chemical or group of checmicals, which may include

“Nickel Carbonate” which is known in the state of California to cause cancer, birth defects,

or other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.
