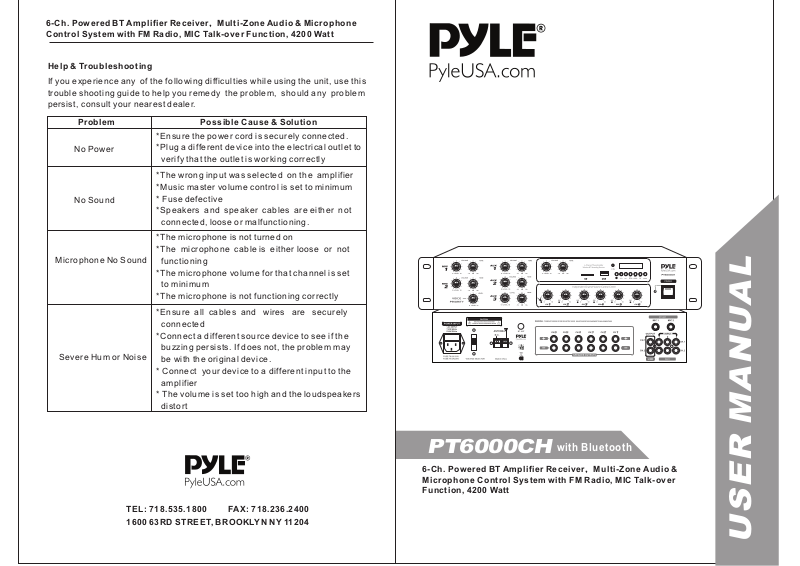

Page 1
6-Ch. Powere d BT Ampli fier Receiver，Mul ti-Zone Audio & Microphon e
Control Syst em with FM Rad io, MIC Talk- over Funct ion, 4200 Watt
Help & Troubles hooting
If you experie nce any of the follow ing difficulties whi le using the u nit, use this
trouble shoo ting guide to help yo u remedy the p roblem, should an y problem
persist, con sult your nearest d ealer.
Problem Possible Cause & S olution
*Ensure the po wer cord is securel y connecte d.
No Power
No Sound
Microphone N o Sound
*Ensure all ca bles and wir es are securely
connected
*Connect a differ ent source device t o see if the
Severe Hum or No ise
buzzing pers ists. If doe s not, the problem ma y
be with the orig inal devic e.
* Connect your d evice to a different inp ut to the
amplifier
* The volume is set too h igh and the loudspe akers
distort
*Plug a different d evice into the elec trical outlet to
verify that th e outlet is wo rking correctly
*The wrong inp ut was selected on th e amplifie r
*Music maste r volume control is s et to minimu m
* Fuse defecti ve
*Speakers an d speaker cables ar e either not
connected, l oose or malfuncti oning.
*The microph one is not turned on
*The microph one cable is either l oose or not
functionin g
*The microph one volume for that c hannel is se t
to minimum
*The microph one is not function ing correc tly
TEL: 718.535 .1800 FAX: 71 8.236.2400
1600 63RD STRE ET, BROOKLYN NY 11204
PT6000CH
6-Ch. Powere d BT Ampli fier Receiver，Mul ti-Zone Audio &
Microphone C ontrol Sys tem with FM Radio, MI C Talk -over
Function, 42 00 Watt
with Bluetooth
USER MANUAL
Page 2
6-Ch. Powere d BT Ampli fier Receiver，Mul ti-Zone Audio & Microphon e
Control Syst em with FM Rad io, MIC Talk- over Funct ion, 4200 Watt
6-Ch. Powere d BT Ampli fier Receiver，Mul ti-Zone Audio & Microphon e
Control Syst em with FM Rad io, MIC Talk- over Funct ion, 4200 Watt
Instruction
Pyle's Bluetooth 6CH Amplifier is the per fect solu tion for all of your audio
needs. Using the latest sound amplific ation tec hnology and an impressive
600 Watt power output, this receiv er is desig ned to deliver pure 6CH
sounds from a wide range of connected musi c sources . Built-in Bluetooth
audio receiver ability allows you to str eam your music wirelessly and it
works with all of your favorite devices (l ike Smart phones, Tablets, Laptops,
Computers, etc. ) Enjoy full r an ge 6CH soun d reproduction when
streaming audio with a wireless range of u p to 30’ feet. Additional system
features include FM Radio with LED displ ay, USB Fl ash Drive Reader, SD
Card Reader, (2) 1/4" Microphone Inputs , Binding P ost Speaker Terminal
connectors, (3)RCA Stereo Inputs, Lin e Stereo RC A Ou tput, and along with
an Aux (3.5mm) jack to connect even more exte rnal devi ces. Take control
of your sound with the Pyle PT6000CH Bluet ooth Ster eo Amp Receiver.
High Performance Features :
The job of PT6000CH is a power amplifier to de liver cle an power to your
speakers. PT6000CH with best design an d best comp onents can give
you a profoundly positive effect on so und quali ty for your home theater,
media room, or whole-house audio syste m.Desig n and customize a home
theater that fits seamlessl y into your h ome decor, and Multi-channel amps
like the PT6000CH incorporate high-e ffici ency, space-saving digital
technology. Or go big with complete, wh ole-hou se audio solutions.
Whether you want to maximize your home the ater expe rience or transform
your living space, PYLE Audio has total solu tions to help you get the most
out of your movies and music from c lean powe r amplifiers to in-wall and
outdoor speakers, subwoofers, cust om contro ls, and more.
Rated at 50 watts per channel RMS at 8 ohms, the P T6000CH from PYLE
Audio is driving complex audio systems a nd will distribute sound to 6
different locations without the ri sk of overload. Equipped with rack-
mountable high current amp includes 6 ch annels (s peakers), so owning
this amp is like having three Stereo chann el amps in on e efficient location.
Make PYLE Audio as a Part of Your Tota l Aud io Solution
PYLE Audio offers everything you need t o design an d build a complete
home theater solution, cust omized to y our home. In-wall speakers,
amplifiers, custom contro l product s, and more are all available to give
you the perfect home audio experience, i ndoors or o utdoors.
Available For Wall/Ceili ng Speake rs
Large cone areas, pivoting drivers, ea se of installation and exceptional
sound quality make PYLE Audio's line of in-w all and in- ceiling speakers
an excellent choice for those w ho don't wa nt to give up precious floor or
shelf space. PYLE Audio offers models w ith varyi ng features, materials,
and cone sizes to fit any application and bu dget.
Available For Outdoor Speakers
Make your next backyard BBQ or sw im party sp ecial by installing an
outdoor speaker system. PYLE Audio offers a huge s election of
affordable models, from weather- resista nt patio speakers to heavy-duty
rock speakers that blend into a ny landsc ape. PYLE Audio outdoor
speakers are built tough and tested unde r extreme w eather conditions to
ensure a long and happy life.
Available For Audio Control
A whole-house audio system lets you enjoy g reat soun d in every room of
your house. Pyle Audio has everyt hing you ne ed for a whole-house
system, including volume controls, s peaker selectors and IR repeater
systems that let you hide your el ectroni cs neatly inside a cabinet.
So Choose the PYLE Audio Amplifier That's Ri ght for You
01 02
Page 3
6-Ch. Powere d BT Ampli fier Receiver，Mul ti-Zone Audio & Microphon e
Control Syst em with FM Rad io, MIC Talk- over Funct ion, 4200 Watt
6-Ch. Powere d BT Ampli fier Receiver，Mul ti-Zone Audio & Microphon e
Control Syst em with FM Rad io, MIC Talk- over Funct ion, 4200 Watt
Bluetooth Operation Instr uction:
External devices which have a built-in Bluetooth feature can be
connected to this amplifier wireless ly to play th rough the amplifier’s
speakers.
1.At first be sure that the amplifier is powe red on, and t urn the
volume to the MINI position. And it’s better to pul l the Bluet ooth
Antenna on at the back panel for better rece iving.
2.Press the BT/Line button switch in on the front panel, you will
hear the voice “POWER ON” and also “PAIRIN G”, and the n the
unit is automatically ready to pair with y our exter nal device.
3.Turn on the Bluetooth of your external devic es like Sma rtphone,
Computer, and others, etc.
4.Search for available Bluetooth devi ces withi n range of your
external device and wait for your device t o select “BT -RY” on
the pairing devices lists.
5.And seconds later when you heard a voice “ Your Device is
Connected”, then the Bluetooth pairi ng is succe ss.
6.You can now play music on your external device th rough the
amplifier.
Features and Controls:
BACK PANEL
13 14 15 16 17 18
Front Panel Back Panel
&
1.Separate MIC 1 and MIC2 Volume Control
2.Separate MIC 1 and MIC2 Tone Control
3.Microphone Voice Priority Level Cont rol
4.Separate AUX 1, AUX2, and AUX3 Input Level Con trol
5.Separate AUX 1, AUX2, and AUX3 Tone Control
6.AUX/MP3 (USB & SD) Input Level C ontrol
7.AUX/MP3 (USB & SD) Input Tone Control
1920
1 2 3 4
FRONT PANEL
5
6 7 8
03 04
8.BT/ USB/ SD /FM/AUX Function Control
USB/ SD Ports and USB Port Doubles as Device Charge Port(5V/1 A)
AUX: 3. 5mm AUX Input
MODE: BT/USB/SD/ AUX/ FM Switch
: Button Doubles as Previous So ng and FM Fre quency Down
: Button Doubles as Play/Pause and FM Scan
9101112
: Button Doubles as Next Song and F M Frequen cy Up
VOL+/VOL-:Button for Volum e + and Volume -
Page 4
6-Ch. Powere d BT Ampli fier Receiver，Mul ti-Zone Audio & Microphon e
Control Syst em with FM Rad io, MIC Talk- over Funct ion, 4200 Watt
6-Ch. Powere d BT Ampli fier Receiver，Mul ti-Zone Audio & Microphon e
Control Syst em with FM Rad io, MIC Talk- over Funct ion, 4200 Watt
9.Power On/Off Switch
10.Power On/ Off LED
11.Separate Channel 1/2/3/4/5/6 Ou tput Volum e Control
12.Separate Channel 1/2/3/4/5/6 Out put LED Sig nal
The Indicator Lights when the Output is wo rking.
13.Power Input
14.Power Selector (110V/ 60Hz o r 230V/50Hz
15.FM Antenna
16.BT Antenna
17.Speaker Stereo Output Binding Post s
18.Separate MIC1 & MIC2 TRS Inputs
19.Separate Stereo AUX 1, AUX2, & AUX 3 RCA In puts
20.Line Stereo RCA Outputs
Features:
•6-Channel Powered Amplifier Receiv er
•Multi-Zone Audio Control System
•Built-in BT for Wireless Audio Stream ing Ability
•
Microphone Talk-Over / Voice Priority Fu nction
•
Front Panel Control Center with Digita l LED Displ ay
•
Aux (3.5mm) Audio Input Connector
•
Connect & Stream Audio from Exter nal Devic es
•
USB Flash Drive Reader for Digital Audio Fil e Playbac k
•
USB Port Doubles as Device Charge Port
•
(2) 1/4'' TRS Microphone Input Jacks
•
(3) Pair RCA (L/R) Aux Audio Input Connectors
•
(6) Pair Speaker Binding Post Output Con nectors
•
RCA (L/R) Audio Line Output Connectors
•Microphone Talk-Over / Voice Priority Level Con trol
•Independent Channel / Aux Input / Microp hone Audio C ontrols
•Audio Input Mode Selectable (BT/USB /SD/FM/AUX)
•Built in Short Circuit and Over Voltage Pr otectio n
•Power ON/OFF Switch
•LED Indicator Lights
•For Home, Office or Business Use
Wireles s BT Connectivity:
•Works with All of Today’s Latest Devices
•(Smartphones, Tablets, Laptops, Co mputers , etc.)
•BT Network Name: ‘BT-RY’
•BT Network Password: Not Required
•BT Version: 4.0
•Wireless Range up to 30’+ ft.
Technical Specs:
•4200 Watt Maximum Power Output
•MAX Power Output: 6-CH x 700 Watt @ 4 Ohm
•RMS Power Output: 6-CH x 350 Watt @ 8 Ohm
•Frequency Response: 20Hz - 20KHz
•Signal to Noise Ratio: ≥81dB
•T.H.D.: <0.1%
•Radio Station Memory: 30 Station Pres ets
•Digital File-type Compatibility : MP3, WMA
•Maximum USB/SD Flash Support: 64GB
•Power Supply: 110/240V
•Dimensions (L x W x H): 16.9’’ x 11.5’’ x 3.4’’
•Unit Weight: 18.07 lbs.
05 06
