Please read these operating instructions carefully before use.
They will acquaint you fully with its features.
This product adopts highly advanced digital techniques, high powered,
two -channel outputs to be the media center of your living room.
It includes an FM tuner, MP3/USB/Wireless BT input headphone jack.
This Pyle Pro hybrid amplier also has sub-out for a variety of applications.
BLUETOOTH WIRELESS STREAMING
• Built-in Bluetooth for Wireless Music Streaming
• Simple & Hassle-Free Pairing
• Works with All of Today’s Latest Devices
(Smartphones, Tablets, Laptops, Computers, etc.)
• Bluetooth Version: 5.3
• Wireless Range: Up to 32’ ft
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK. DON'T EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK AND ANNOYING INTERFERENCE, USE
THE RECOMMENDED ACCESSORIES ONLY.
THIS DEVISE IS INTENDED FOR CONTINUOUS
OPERATION!
*Designs and specications are subject to change without notice.
FEATURES
•
Home Theater Amplier Receiver System
• Ability to Connect External Devices & Speakers
• Built-in BT for Wireless Music Streaming
• MP3 Digital Audio File Support
• USB Flash Card Readers
• FM Radio with LED Display
• (2) 1/4’’ Microphone Inputs
• RCA (L/R) Audio Input/Output
• Banana Binding Post Speaker Output Jacks
• Front Panel Button Control Center
• Echo, Bass, Treble, Sub, Mic Volume Adjustable
• Mic Volume & Master Volume Knob Surrounding with LED Lights
• Lights Changing Volume
1. Before you can use a Wireless BT device, it must be paired and connected.
Make sure that Wireless BT is activated on your device before you begin the
pairing process.
2. Search for Wireless BT Network Name: PT30UBT/PT90UBT.
PRECAUTIONS
1. Power Source: The unit should be connected to a power supply AC-115/60Hz,
AC-230V/50Hz.
2. Ventilation: The unit should be situated so that its location or position does
not interfere with its proper ventilation. Place the unit at least 10cm away from
the walls.
3. Water and Moisture: The unit should not be used near water-for example,
near a swimming pool, in a wet basement, etc.
4. Electric Shock: If a metal objects, such as a hair pin or a needle, comes into
contact with the inside of this appliance, a dangerous electric shock may result.
For families with children, never permit children to put anything, especially
metal, inside this unit.
5. Enclosure Removal: Do not open the unit as this might result in damage to
the circuitry or electrical shock. If a foreign object should get into the unit,
contact your dealer or service company.
6. Abnormal Smell: If an abnormal smell or smoke is detected, immediately turn
the power OFF and pullout the power cord. Contact your dealer or nearest
service station.
How to replace the preset radio stations?
NOTE: The preset radio stations can’t be deleted, BUT CAN BE REPLACED.
In FM mode,Press and hold "Scan" button for more than 3 Seconds,
unit will auto search and store stations.
www.PyleUSA.com
2
www.PyleUSA.com
3
Page 3
OPERATION
1. POWER
Use this button to turn ON or OFF the speakers.
Caution: Make sure that all connections are properly connected and the main
volume is set to minimum level before turning ON the unit.
2. INPUT SELECT
Select the input source: CD/DVD, USB, Radio, Wireless BT Streaming
3. MICROPHONE VOLUME: MIC VOL
Adujst "MIC VOL" knob to increase or decrease the karaoke volume
4. ECHO
Adjust "ECHO" to get a satiable echo eect.
5. TREBLE/BASS
Turn TREBLE/BASS knob to adjust treble/bass tone master channel.
6. MASTER VOLUME
You can adjust MASTER VOLUME from turn right volume up, turn left volume
down.
CONTROLS & FUNCTIONS

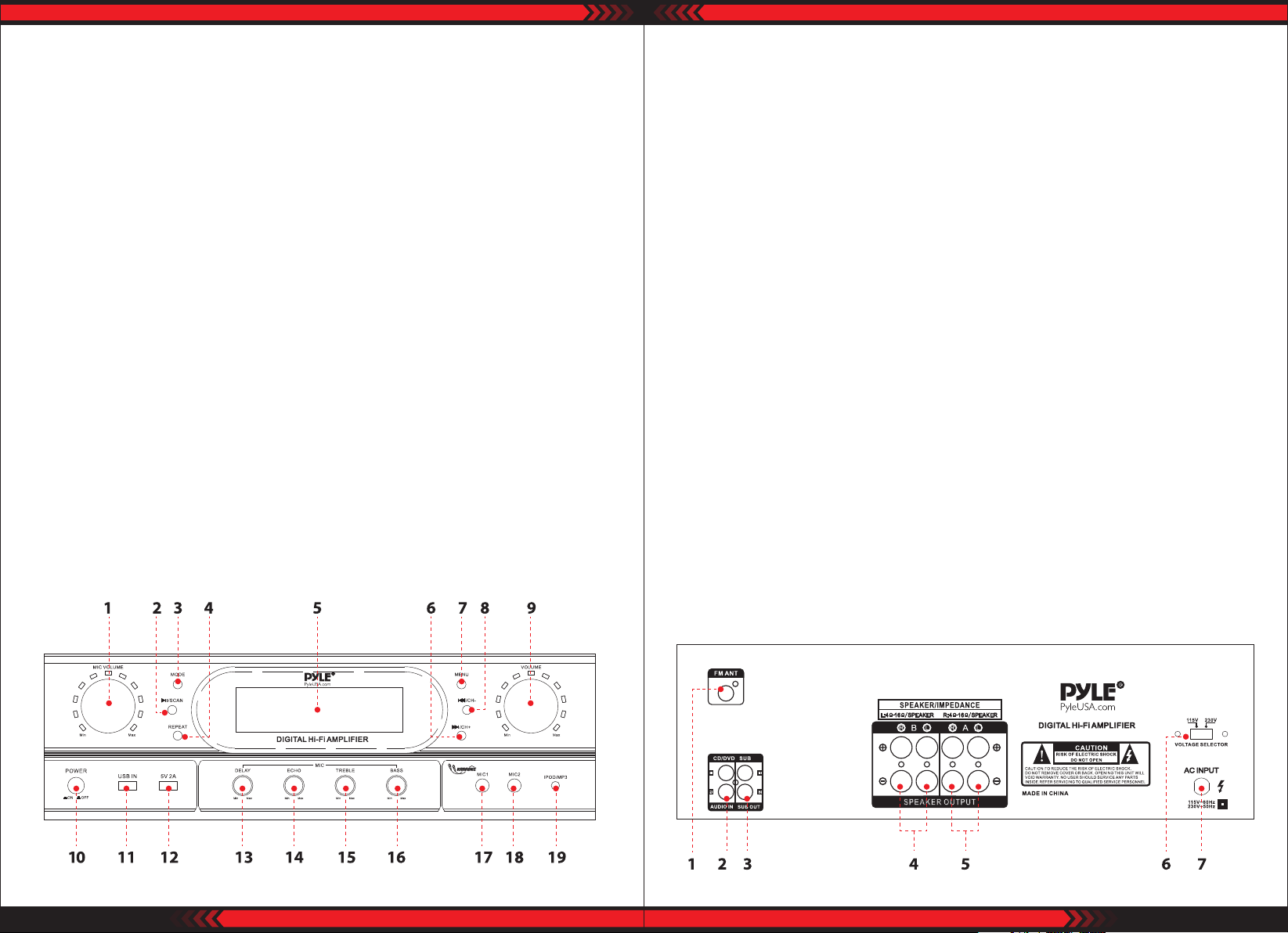

FRONT PANEL
1. MIC. VOLUME CONTROL
2. Scan: In FM mode, press and hold this button for more than 3 seconds, unit will
auto search and store stations
3. Mode-Input select key
4. REPEAT FUNCTION
5. LED display
6. NEXT/CH+
In USB/MP3 Mode: Move forward through tracks
In FM Mode: Press to select next saved station
7. MENU: Used to adjust Treble/Bass volume and Balance
8. PREVIOUS/CH-
USB/MP3 Mode: Move back through tracks
In FM Mode: Press to select previous saved station
9. Master Volume Control
10. Power Switch: Press to power unit ON/OFF
11. USB READER
12. 5V/2A Charging port
13. Delay function
14. Echo
15. Treble
16. Bass
17. Mic 1 Input
18. Mic 2 Input
19. IPOD/MP3 Input
www.PyleUSA.com
4
BACK PANEL
www.PyleUSA.com
5
Page 4
1. TUNER ANT: Connect for AM and FM antennas.
2. AUDIO INPUT JACKS:
Connect the audio ouput jacks of DVD/CD AUX to these jacks.
3. A SPEAKER OUTPUT TERMINALS:
Connect your speaker system to these terminals.
4. B SPEAKER OUTPUT TERMINALS:
Connect other speaker system(s) to these terminals.
5. COOLING FAN
6. VOLTAGE SELECTOR SWITCH: Slide to select correct voltage 115V or 230V.
7. POWER CORD: Connect to AC 115V/60Hz and 230V/50Hz outlet.

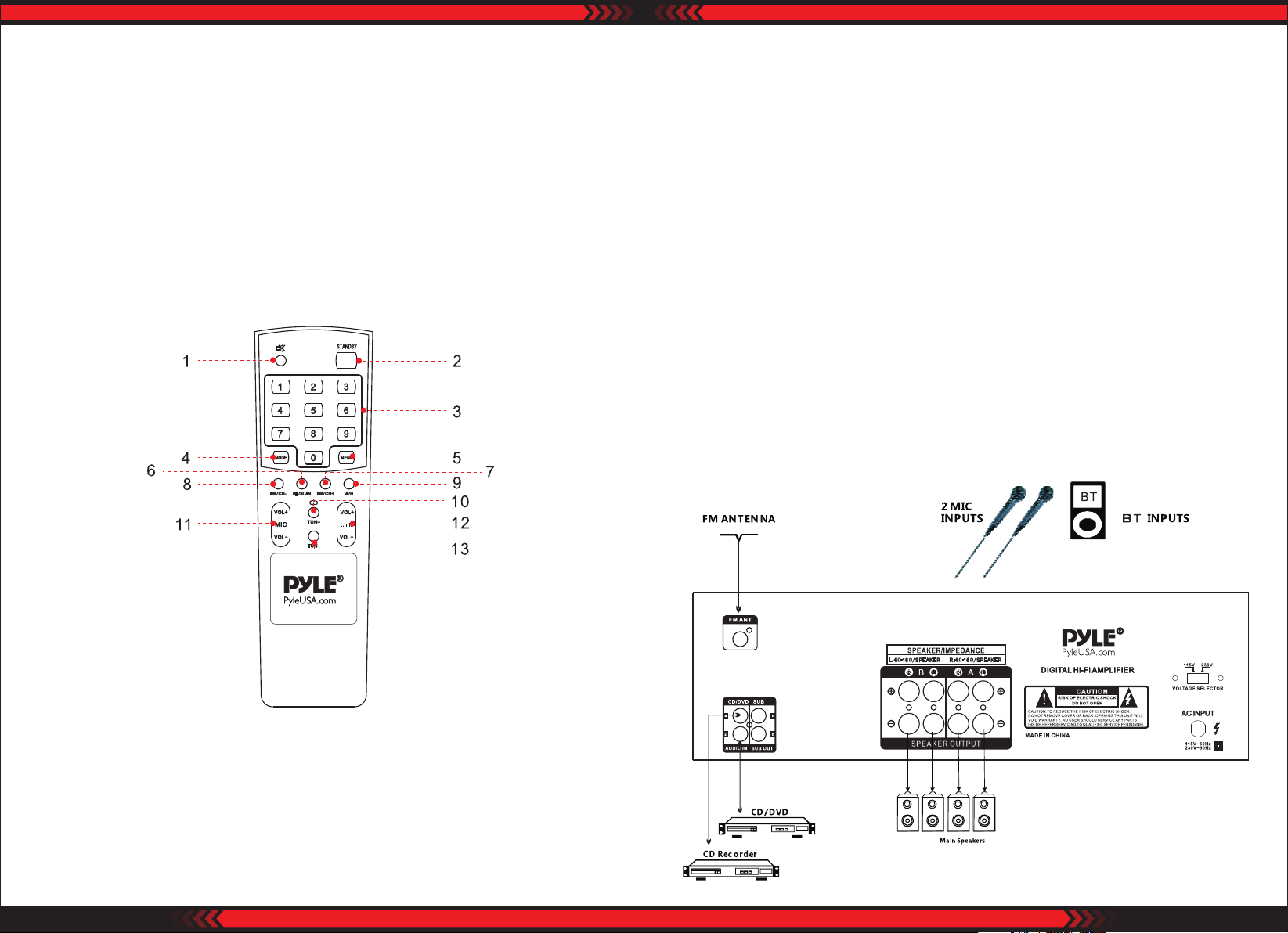

REMOTE CONTROL
7. NEXT/CH+
In USB/MP3 Mode: Move forward through tracks
In FM Mode: Press to select next saved station
8. PREVIOUS/CH USB/MP3 Mode: Move back through tracks
In FM Mode: Press to select previous saved station
9. A/B channel selector
10/13. Tuning +/-
These keys allow the user to move through the stations in single increments.
11. Mic Volume adjustment keys
12. Master Volume adjustment keys
Remote Controller Operation
1. Remote controller should be operated within 6 meter and the scope of 30° in
front of receiver.
2. Make sure that there is no big obstacle between remote controller and machine.
3. Remote sensor should be far away from the light, high amounts of light can
aect its performance.
1. Mute
2. Standby
3. Number pad
4. Mode: Input select key
5. Menu: Used to adjust Treble/Bass volume and Balance
6. Scan
In FM mode, press and hold this button for more than 3 seconds, unit will auto
scan and store stations.
www.PyleUSA.com
6
www.PyleUSA.com
7
Page 5
SAFETY INSTRUCTIONS
1. Make sure that all connections are properly connected and the main volume is
set to minimum level before turning ON the unit.
2. When more than one pair of speakers are used, (specially the main speaker
output) make sure that the speakers used are of the same wattage and
impedance, otherwise the unit maybe damaged under high power or long
term operation.
3. To avoid humming sounds and unwanted noise, make sure that all the wires are
properly inserted.
4. For speaker cords, strip o the vinyl coating and twist the wire tip. Push down
the pink jack or loosen the screw terminal, before inserting the wire tip, then
fasten it and tighten the screw. Be careful not to let the wires stick out of the
terminal otherwise this may cause short circuit when wires of dierent terminal
contact each other.
5. After the unit is turned ON, adjust the main volume to the desired level same
with bass and treble volume, etc.
What's in the Box
• Home Theater Wireless BT Streaming Receiver Amplier
PT30UBT
Home Theater Wireless BT Streaming Receiver Amplier
2x30 Watts Home Audio Power Amplier MP3/USB Readers and FM Radio,
Dual Channel Wireless Sound Audio Stereo Receiver System
Technical Specs:
• Power Output: 2x30Watts
• Amplier Receiver Type: Dual Channel
• Speaker Impedance: 4-16 Ohm
• S/N Ratio: >80dB
• T.H.D.: 0.08%
• Frequency Response: 20Hz-20kHz
• Radio Station Memory: Automatic Save Stations, No Presets
• Digital Audio File Support: MP3 / WMA
• Maximum USB Flash Support: Up to 128GB
• Power Cable Length: 4.9’ ft.
• Power Supply: 115V/230V, with Voltage Selector Switch
• Remote Control Battery Operated, Requires (2) x 'AAA' Batteries (Not Included)
• Total Unit Dimensions (L x W x H): 16.93" x 12.68" x 5.43" -inches
PT90UBT
Home Theater Wireless BT Streaming Receiver Amplier
2x90 Watts Home Audio Power Amplier MP3/USB Readers and FM Radio,
Dual Channel Wireless Sound Audio Stereo Receiver System
• Remote Control
• Power Cable
• FM Antenna
www.PyleUSA.com
8
Technical Specs:
• Power Output: 2x30Watts
• Amplier Receiver Type: Dual Channel
• Speaker Impedance: 4-16 Ohm
• S/N Ratio: >80dB
• T.H.D.: 0.08%
• Frequency Response: 20Hz-20kHz
• Radio Station Memory: Automatic Save Stations, No Presets
• Digital Audio File Support: MP3 / WMA
• Maximum USB Flash Support: Up to 128GB
• Power Cable Length: 4.9’ ft.
• Power Supply: 115V/230V, with Voltage Selector Switch
• Remote Control Battery Operated, Requires (2) x 'AAA' Batteries (Not Included)
• Total Unit Dimensions (L x W x H): 16.93" x 12.68" x 5.43" -inches
