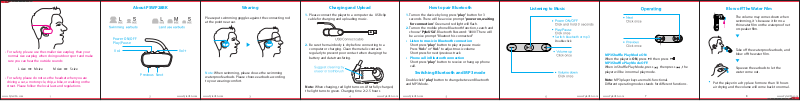

Page 1
About PSWP28BK Wearing
Please put swimming goggles against the connecting rod
at the point near ear.
Power ON/OFF
Play/Pause
• For safety, please use the smaller size earplug than your
normal size earplug when doing outdoor sport and make
sure you can hear the outside sounds:
L size M size M size S size
• For safety, please do not use the headset when you are
driving a car, a motorcycle, ship, a bike, or walking on the
street. Please follow the local laws and regulations.
www.PyleUSA.com www.PyleUSA.com www.PyleUSA.com www.PyleUSA.com www.PyleUSA.com www.PyleUSA.com www.PyleUSA.com www.PyleUSA.com
Vol-
Previous Next
Vol+
Note: When swimming, please do use the swimming
waterproof earbuds. Please choose earbuds according
to your wearing comfort.
1. Please connect the player to a computer via USB clip
cable for charging and uploading music.
2. Be sure the main body is dry before connecting to a
computer or charging. Clean the metalic contacts
regularly to prevent poor contact when charging the
battery and data transfering.
Note: When charging, red light turns on. After fully charged,
the light turns to green. Charging time 2~2.5 hours
Charging and Upload
How to pair Bluetooth
1. Turn on the device by long press “play" button for 3
seconds. There will be a voice prompt "power on, waiting
for connection”. Green and red light will ash.
2. Turn on the mobile phone Bluetooth function, search and
choose “PyleUSA". Bluetooth Password: '0000'. There will
be a voice prompt "Bluetooth is connected"
• Listen to music in Bluetooth connection
Short press “play" button to play or pause music
Press ‘Vol+" or “Vol-" to adjust music volume
Short press for next/previous track
• Phone call in Bluetooth connection
Short press “play" button to receive or hang up phone
call.
Switching Bluetooth and MP3 mode
Double click ”play” button to change between Bluetooth
and MP3 Mode.
Listening to Music Blow o The Water Film
Switch bluetooth or mp3
Double click
MP3 Shue Play Mode ON:
When the player is ON, press then press
MP3 Shuffle Play Mode OFF:
When in Shue Play Mode, press then press , the
player will be in normal play mode.
Note: MP3 player keys are multi-functional.
Dierent operating modes stands for dierent functions.
7 8
Put the player in a dry place for more than 10 hours
air drying and the volume will come back to normal.
The volume may comes down when
swimming, it’ s because it forms a
thin water lm on the waterproof net
or speaker lm.
Take o the waterproof earbuds, and
blow o the water lm.
Squeeze the earbuds to let the
water come out.
Page 2
PSWP28BK
Precautions
• Do not use the player in an extreme environment, the
player may not work on temperature over 104°F or below
23°F or in a very dry environment.
• Do not disconnect the player when it is formatting,
uploading, or downloading otherwise it would cause
“program error” or “computer dis-recognization”.
• Do not repair, dismantle or rebuild the player without
permission with the manufacturer.
• Turn down the volume to avoid damaging your hearing.
• We are not responsible for any personal data loss or other
indirect losses caused by improper operation, software,
hardware, product maintenance or other incident.
• Charge the battery atleast once a month even if the device
is not been used which can protect and extend the battery
life. Please do not leave the device 10 months without
charging.
www.PyleUSA.com www.PyleUSA.com www.PyleUSA.com www.PyleUSA.com www.PyleUSA.com www.PyleUSA.com www.PyleUSA.com
9
Problem
Will not turn ON
Lights ON, but
no sound
Resolutions
MP3 has no power, please recharge.
Check the volume level
Make sure it is WMA and MP3 file.
Wrong or damaged MP3 files may
cause some noise and failure in
playing music. Format the mp3 by a
computer. Reset the mp3 by 10-20
seconds by long pressing the
play/pause button.
Dry it naturaly for 1~2days and
recharge. (Afler swimming, put
device at ventilated place).
10 11 12 14
Problem Resolutions
Can not be read
by computer
Or disconnected
in few minutes
Check if the USB cable is broken or USB
clip is not well connected and stable.
Check if the USB driver is installed in the
computer. Try other USB ports (back side
of the PC) or other computer.
Check if the MP3 gold pin is dirty. You
can use cotton swabs dipped in alcohol
or toothbrush and clean water.
Problem Resolutions
Crashing: all the
buttons is not
working,
can not turn on or
turn o
Lights on, but can
not charge or turn
on
Earphone sound,
one side has
low volume or no
sound
Low volume under
water
Reset the MP3 Player by long pressing
the Play/Pause button 10-20 seconds.
Discharge the MP3 and recharge again.
Dry it naturaly for 1-2 days and
recharge. (Put the device in a
ventilated place after swimming)
Return to dealer
Dry it naturaly for 1~2days and
recharge.(Put the device in a ventilated
place after swimming)
• Marine Grade IPX8 Waterproof Rating
• Dimensions (L x W x H): 5.51’’ x 1.69’’ x 4.33’’ -inches
• Weight: 0.057 lbs.
• USB 2.0 High-Speed Data Transfer
• Lithium Battery: 200mAh
• 8 GB Integrated Flash Memory
• Digital Audio File Support: MP3, WMA, APE, FLAC, WMV
• File Format: FAT16, FAT32
• MP3 bite rate: 8Kbps 〜 320Kbps
• Earphone output power: 5mW + 5mW
• Frequency Response: 20Hz - 20kHz
• S/N Ratio: >70dB
• Signal Distortion: <0.3%
• Operating environment: 32°F - 104°F
• Operating time: 10hours
MP3 SPECIFICATIONS
13
BLUETOOTH SPECIFICATIONS
• Bluetooth Supports: Bluetooth V4.2, HFP V1.7, HFP V1.2,
A2DP V1.3, AVRCP V1.6
• Multipoint support for HFP connection to 2 handsets for
voice.
• Multipoint support for A2DP connection to 2 A2DP sources
for music playback
• Support voice guide
• Standby time: 150 hours
• Talking time: 8 hours
• Playing music time: 10 hours
(Playing time depends on dierent volume and songs)
• Bluetooth Wireless Range: 30'+ Ft.
• Certication: BQB; CE; FCC; ROHS; Reach
Sport IPX8 Waterproof bluetooth
and MP3 earphone
Flextreme Waterproof MP3 Player
with Headphones
