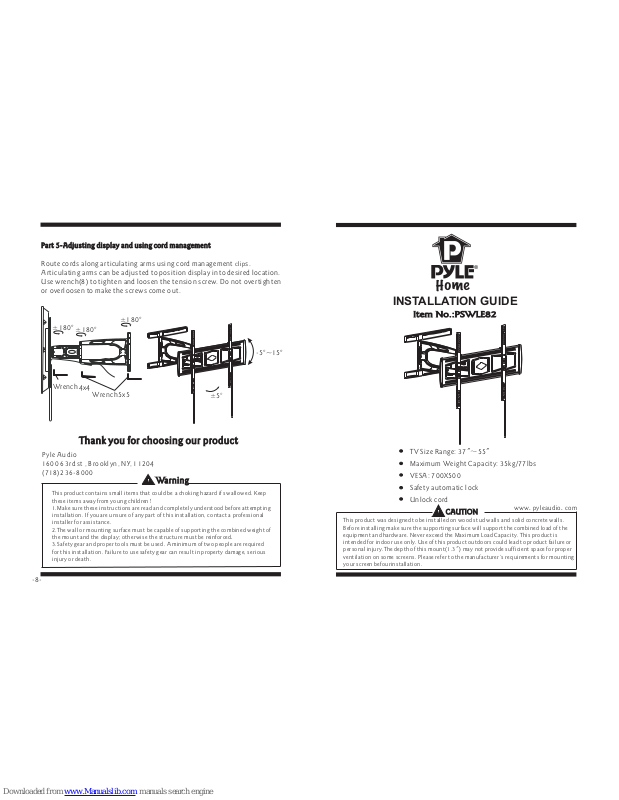

Pyle PSWLE82 Installation Manual

Page 1
TV Size Range: 37 55
Maximum Weight Capacity: 35kg/77lbs
VESA: 700X500
Safety automatic lock
Unlock cord
"~ "
This product wasdesigned to beinstalled on woodstud walls andsolid concrete walls. Before installing make sure the supporting surfacewill support thecombined load ofthe equipment andhardware. Never exceed the Maximum LoadCapacity. This product is intended forindoor use only. Use of this product outdoorscould lead toproduct failure or personal injury.The depth of this mount(1.3 ) maynot provide sufficient space for proper ventilation onsome screens. Please refer to themanufacturer ’s requirements for mounting your screen befourinstallation.
"
CAUTION
-8-
This product containssmall items thatcould be achoking hazard if swallowed. Keep these itemsaway from young children
1.Make sure these instructions areread and completely understood before attempting installation. Ifyou are unsure of any partof this installation,contact a professional installer forassistance.
2.The wallor mounting surfacemust be capableof supporting thecombined weight of the mountand the display; otherwise the structure must be reinforced
3.Safety gearand proper tools must be used. A minimumof two peopleare required for thisinstallation. Failure to use safety gear can result inproperty damage, serious injury or death.
!
.
Warning
-5 15°~ °
±5°
±180°
±180°
±180°
Part 5-Adjusting display and using cord management
Route cords along articulating arms using cord management s. Articulating arms can be adjusted to position display into desired location. Use wrench(8) to tighten and loosen the tension screw. Do not overtighten or overloosen to make the screws come out.
clip
Part 5-Adjusting display and using cord management
5x5
4x4
Wrench
Wrench
Thank you for choosing our productThank you for choosing our product
www pyleaudio com..
Pyle Audio 1600 63rd st , Brooklyn,NY,11204 (718)236-8000
Item No.:
PSWLE82
Item No.:
PSWLE82
INSTALLATION GUIDE
Page 2
-2-
Hardware Kit:
Hardware Kit:
-7-
ID Description
1 2
6
3
B
1
2
2
4
Screw
M5 mm×16 bolt
Qty
Description
Square washer
Long bolt Wallanchor
Long bolt washer
M8×16mm bolt
M6× mm16 bolt
4
2
ID
Qty
4 4
F G
H
4
D
4 4
E
C
4
Ribbon
Wallplate Bracket
5
1
TV plate
1
2
3
4
Part 4-Mounting the flat panel screen
NOTE:
Hook the top of brackets onto the center of wall plate(1). Then swing the screen down. Fixed slide block(7) into wall plate by screw(6).
(2)
Always use an assistant or mechanical lifting equipment to safely lift
and position heavy equipment.
Part 4-Mounting the flat panel screen
NOTE:
2
5
2
Plastic cover
Magnetic removable bubble level
A-D
H
E
G
F
6
7
7
2
Slide block(Position lock)
A
4
M4 mm×16 bolt
6
7
8
8
2
Wrench(4x4,5x5)
Use the box wrench to loose the screw if there's too tight to tilt
Before installation, please attach these two decorative end caps to the two sides of TV plate.(FIG.A)
FIG.A
Page 3
-3-
-6-
.
Part 3-Attaching brackets to screen
Center brackets vertically on back of screen. Select the
Attach brackets to screen using four selected
screws and four square washers(E) at the top and bottom of each bracket.
small(A),medium
(B or C) or large(D) screws.
Tighten screws firmly. Do not overtighten
Part 3-Attaching brackets to screen
A-D
E
Square washer(E)
Small holefor M4 screws
Medium holefor M5andM6screws
Large hole for M8 screws
Wood stud
Stud finder
2 50mm)”(
Φ3/16 (5mm)
Part 1a-Wood Stud Mounting
.
Usewallplate(1)asatemplate,makesureitislevel,andmarkfourmounting holes along the center lines of the wood studs. Drill four 3/16
)) ..
””(5mm)dia
holes 2 (50mm) deep. Level wall plate(1) and attach to wall with four long bolts(G and four washers(F . Tighten screws firmly Do not overtighten
Part 1a-Wood Stud Mounting
G
F
Magnetic removable bubble level
Page 4
5
Part 2-Attaching plastic covers to wall plate
Secure plastic covers over wall plate by pushing them toward each other until they lock in place.
Part 2-Attaching plastic covers to wall plate
-4-
-5-
.
If you think the ribbon is too long, You can hide it at the back of the televesion,once you want to uninstall the TV, it can help you to take out the brackets
3
2 (50mm)
Φ3/8 (10mm)
Part 1b-Concrete Wall Mounting
.
Level wall plate(1) and use wall as a template to mark four holes. Drill four 3/8 (10mm) dia. holes 2 (50mm) deep. Insert four anchors(H) into holes and secure wall plate with four long bolts(G) and four washers(F).Tighten screws firmly. Do not overtighten
””
Part 1b-Concrete Wal l Mounting
G
F
Magnetic removable bubble level
Concrete Wall
H
