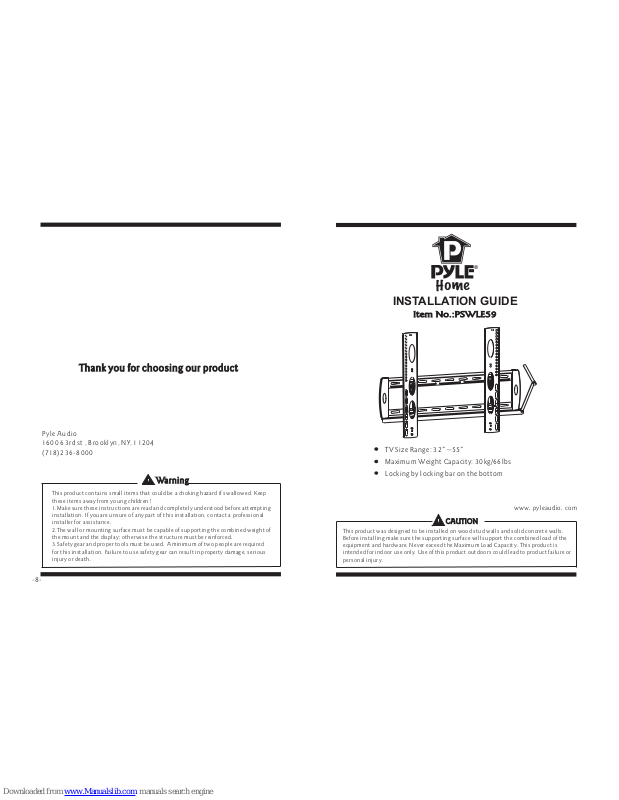

Page 1
TV Size Range: 32 ~55
Maximum Weight Capacity: 30kg/66lbs
Locking by locking bar on the bottom
""
This product wasdesigned to beinstalled on woodstud walls andsolid concrete walls.
Before installing make sure the supporting surfacewill support thecombined load ofthe
equipment andhardware. Never exceed the Maximum LoadCapacity. This product is
intended forindoor use only. Use of this product outdoorscould lead toproduct failure or
personal injury.
CAUTION
-8-
Thank you for choosing our productThank you for choosing our product
This product containssmall items thatcould be achoking hazard if swallowed. Keep
these itemsaway from young children
1.Make sure these instructions areread and completely understood before attempting
installation. Ifyou are unsure of any partof this installation,contact a professional
installer forassistance.
2.The wallor mounting surfacemust be capableof supporting thecombined weight of
the mountand the display; otherwise the structure must be reinforced
3.Safety gearand proper tools must be used. A minimumof two peopleare required
for thisinstallation. Failure to use safety gear can result inproperty damage, serious
injury or death.
!
.
Warning
Item No.:
PSWLE59
Item No.:
PSWLE59
INSTALLATION GUIDE
www pyleaudio com..
Pyle Audio
1600 63rd st , Brooklyn,NY,11204
(718)236-8000
Page 2
-2-
-7-
Hardware Kit:Hardware Kit:
4
4
4
F
G
H
I
Square washer
Long bolt
Wallanchor
Long bolt washer
C
4
M5× mm16 bolt
M6× mm16 bolt
M8×16mm bolt
D
4
4
4
E
ID
Description
Qty
A-E
I
F
H
G
1
4
2
3
5
014°°-
Wal l
Wal l
TV
TV
ID Description
1
2
A
4
B
1
1
4
1
4
Wallplate
Left bracket
M4 mm×12 bolt
M4 mm×16 bolt
Qty
Locking bar
5
1
Rotating rod
31
Right bracket
Page 3
-6-
-3-
Part 1a-Wood Stud Mounting
.
Usewallplate(1)asatemplate,makesureitislevel,andmarkfourmounting
holes along the center lines of the wood studs. Drill four 3/16
)) . .
””(5mm)dia
holes 2 (50mm) deep. Level wall plate(1) and attach to wall with four long
bolts(G and four washers(I . Tighten screws firmly Do not overtighten
Part 1a-Wood Stud Mounting
Part 3-Mounting the flat panel screen
NOTE:
Hook the top of brackets onto the top flange
of wall plate(1). Then swing the screen down.
(2,3)
Always use an assistant or mechanical
lifting equipment to safely lift and position
heavy equipment.
Part 3-Mounting the flat panel screen
NOTE:
Use the Locking bar(4) toprevent the TV from beingremoved or
accidentally knocked off of the wall plate.Whenthe locking barhalf
insertes into thewall plate ,you can use the rotating rod(5) to makeit
fully inserted.
Stud finder
2 (50mm)”
Φ3/16 (5mm)”
5
4
Wood stud
G
I
2,3
1
Page 4
-4-
-5-
Part 1b-Concrete Wall Mounting
.
Level wall plate(1) and use wall as a template to mark four holes. Drill four 3/8
(10mm) dia. holes 2 (50mm) deep. Insert four anchors(H) into holes and
secure wall plate with four long bolts(G) and four washers(I).Tighten screws
firmly. Do not overtighten
”
”
Part 1b-Concrete Wal l Mounting
2(” 50mm)
Φ3/8 (10mm)”
Square washer(F)
Small holefor
M4 screws
Medium holefor
M5andM6screws
Large hole for
M8 screws
.
Part 2a-Attaching Brackets To Screen With Flat Back
Center brackets vertically on back of screen. Select the small(A or B),
medium(C or D) or large(E) screws. Attach brackets toscreen using four
selected screws and four square washers(F) at the top and bottom of each
bracket. Tighten screws firmly. Do not overtighten
Part 2a-Attaching Brackets To Screen With Flat Back
F
A-E
Concrete Wall
G
I
H
