Page 1
TV Size Range: 23
Maximum Weight Capacity: 30kg/66lbs
Locked by safety bolt on the bottom
"～ "46
Balance adjust system is included
This product wasdesigned to beinstalled on woodstud walls andsolid concrete walls.
Before installing make sure the supporting surfacewill support thecombined load ofthe
equipment andhardware. Never exceed the Maximum LoadCapacity. This product is
intended forindoor use only. Use of this product outdoorscould lead toproduct failure or
personal injury.
CAUTION
-8-
Thank you for choosing our productThank you for choosing our product
This product containssmall items thatcould be achoking hazard if swallowed. Keep
these itemsaway from young children
1.Make sure these instructions areread and completely understood before attempting
installation. Ifyou are unsure of any partof this installation,contact a professional
installer forassistance.
2.The wallor mounting surfacemust be capableof supporting thecombined weight of
the mountand the display; otherwise the structure must be reinforced
3.Safety gearand proper tools must be used. A minimumof two peopleare required
for thisinstallation. Failure to use safety gear can result inproperty damage, serious
injury or death.
!
.
Warning
Item No.:
PSWLE56
Item No.:
PSWLE56

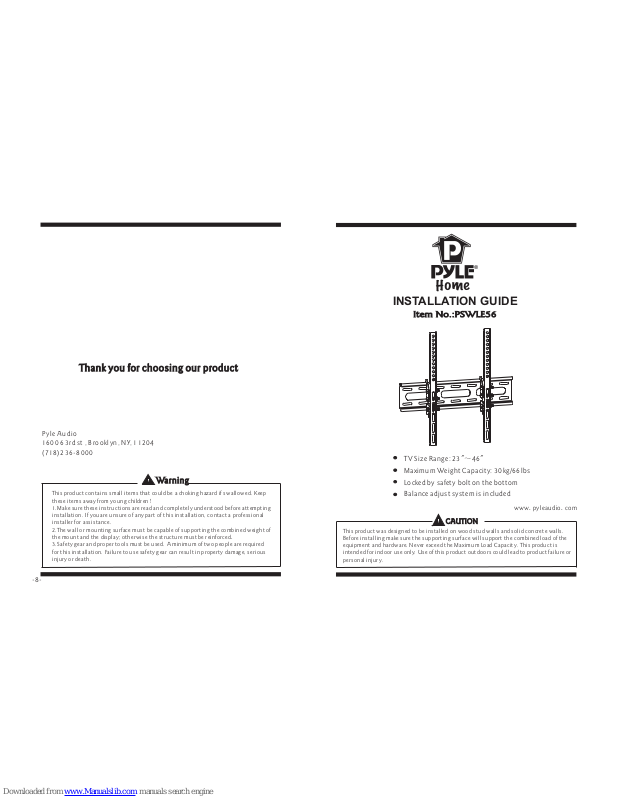

INSTALLATION GUIDE
www pyleaudio com..
Pyle Audio
1600 63rd st , Brooklyn,NY,11204
(718)236-8000
Page 2
-2-
-7-
2
ID Description
1
2
3
1
1
Left bracket
Bubble level
Safety bolt
Qty
521
4
1
Hardware Kit:Hardware Kit:
A-H
LI
K
JM
3
1
Wallplate
1
2,3
Wal l
Wal l
6
6
6
4
I
J
K
L
M
Square washer
Long bolt
Wallanchor
Long bolt washer
Spacer
B
C
44M4 mm×16 bolt
M5× mm16 bolt
M6× mm16 bolt
M ×36mm5 bolt
M6×36mm bolt
M ×36mm8 bolt
D
4
4
4
4
4
F
G
H
ID
Description
Qty
M8×16mm bolt
4
E
A
4
M4 mm×12 bolt
Right bracket
4
NOTE: Always use an assistant or mechanical lifting equipment to safely lift
and position heavy equipment.
NOTE:
Part 3-Mounting the flat panel screen
Hook the top of brackets onto the top flange of wall plate(1). Then
swing the screen down. Tighten the safety screw on each bracket to lock
the screen into place.
(2,3)
(4)
Part 3-Mounting the flat panel screen
5
4
Page 3
-6-
I
M
F-H
Part 2b-Attaching brackets to screen with recessed back
Center brackets vertically on back of screen. Select the medium(F or G) or
large(H) screws. Attach brackets to screen using four selected screws,four
square washers(I) and four spacers(M) at the top and bottom of each bracket.
Tighten screws firmly. Do not overtighten.
Part 2b-Attaching brackets to screen with recessed back
Square washer(I)
Medium holefor
M5andM6screws
Large hole for
M8 screws
-3-
Part 1a-Wood Stud Mounting
.
Use wall plate as a template, make sure it is level, and mark mounting holes
along the center lines of the wood studs. Drill 3/16
)
)..
””(5mm)dia holes 2
(50mm) deep. Level wall plate and attach to wall with long bolts(J and
washers(L . Tighten screws firmly Do not overtighten
Part 1a-Wood Stud Mounting
Wood stud
J
L
Bubble level
2 50mm)”(
Φ3/16 (5mm)”
Page 4
-5-
.
Part 2a-Attaching Brackets To Screen With Flat Back
Center brackets vertically on back of screen. Select the small(A or B),medium
(C or D) or large(E) screws. Attach brackets toscreen using four selected
screws and four square washers(I) at the top and bottomof each bracket.
Tighten screws firmly. Do not overtighten
Part 2a-Attaching Brackets To Screen With Flat Back
A-E
I
Square washer(I)
Small holefor
M4 screws
Medium holefor
M5 andM6 screws
Large hole for
M8 screws
-4-
Part 1b-Concrete Wall Mounting
.
Level wall plate and use it as a template to mark holes. Drill 3/8 (10mm) dia.
holes 2 (50mm) deep. Insert anchors(K) into holes and secure wall plate
with long bolts(J) and washers(L). Tighten screws firmly. Do not overtighten
”
”
Part 1b-Concrete Wal l Mounting
Concrete Wall
2(” 50mm)
Φ3/8 (10mm)”
Bubble level
K
J
L
