Pyle PSWLE07 Installation Manual

Page 1
TV Size Range: 23 ~46
Maximum Weight Capacity: 40kg/88lbs
VESA: 100x100-400x400
""
-4-
Thank you for choosing our productThank you for choosing our product
This product containssmall items thatcould be achoking hazard if swallowed. Keep these itemsaway from young children
1.Make sure these instructions are read andcompletely understood before attempting installation. Ifyou are unsure of any partof this installation,contact a professional installer forassistance.
2.The wallor mounting surfacemust be capableof supporting thecombined weight of the mountand the display; otherwise the structure must be reinforced
3.Safety gearand proper tools must be used. A minimum of two people are required for thisinstallation. Failure to use safety gear can result inproperty damage, serious injury or death.
!
.
Warning
This product wasdesigned to beinstalled on woodstud walls andsolid concrete walls. Before installing make sure the supporting surface will support thecombined load ofthe equipment andhardware. Never exceed the Maximum Load Capacity.This product is intended forindoor use only. Use of this product outdoorscould lead toproduct failure or personal injury.
CAUTION
Part 3-
NOTE:

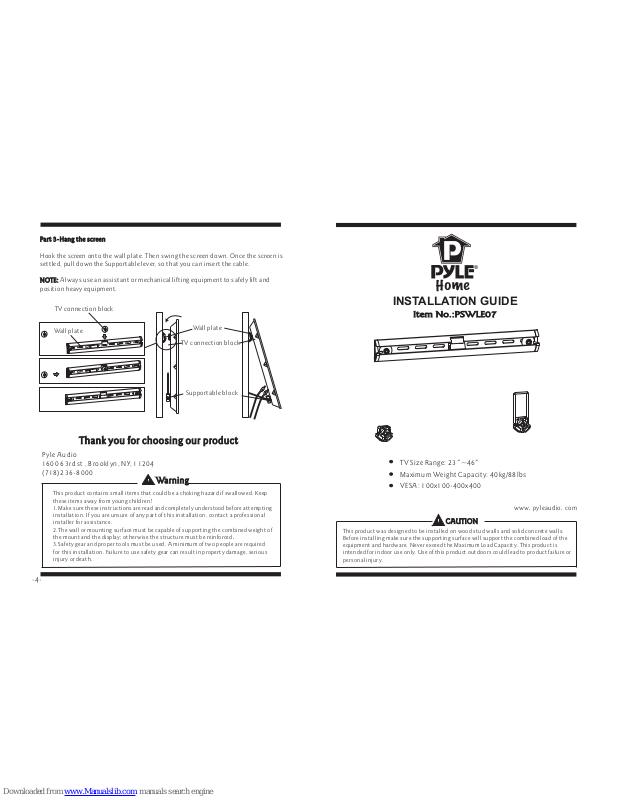

Hang the screen
Hook the screen onto the wall plate. Then swingthe screen down. Once the screen is settled, pull down the Supportable lever, so that you can insert the cable.
Always use an assistant or mechanical lifting equipment to safely liftand
position heavy equipment.
Part 3-
NOTE:
Hang the screen
Supportable block
TV connection block
Wallplate
TV connection block
Wallplate
Item No.:
PSWLE07
Item No.:
PSWLE07
INSTALLATION GUIDE
www pyleaudio com..
Pyle Audio 1600 63rd st , Brooklyn,NY,11204 (718)236-8000
Page 2
-3-
-2-
Hardware Kit:
Hardware Kit:
Wood stud
Part 1a-Wood Stud Mounting
.
Use wall plate as a template, make sure it is level, and mark two mounting holes along the center lines of the wood studs. Drill two 3/16
)
)..
””(5mm)dia holes 2 (50mm) deep. Level wall plate and attach to wall withtwo long bolts(1 and two washers (2 by box wrench(4). Tighten screws firmly Do not overtighten
Part 1a-Wood Stud Mounting
Φ3/16 (5mm)
2 50mm)
”(
2 (50mm)
Φ3/8 (10mm)
Part 2-Attaching To ScreenSupportable block and TV connection block
First, select the small(A,B), medium(C,D,E,F) or large(G,H) screws. To attach supportable block by using selected screws(A,C,E,G) and washers(I), andthen attach TV connection block to screen by using selected screws(B,D,F,H) and washers (J). Tighten screws firmly but do not overtighten. WARING screws(A,B,C,D)need washer, screws(E,F,G,H) don’t need washer.
Part 2-Attaching ToScreenSupportable block and TV connection block
Part 1b-Concrete wall mounting
.
Level wall plate and use wall as a templateto mark two holes. Drill two 3/10 (8mm) dia. holes 2 (50mm) deep. Insert two anchors(3) into holes andsecure wall plate with two long bolts(1) and two washers(2) by boxwrench(4).Tighten screws firmly. Do not overtighten
Part
1b-Concrete wall
mounting
2
1
3
4
A,C,E,G
IJ
B,D,F,H
M6× mm15 bolt
M6×16mm bolt
M8 mm×16 bolt
M8× mm20 bolt
2 2 2
F G H
I
A B
C
2 2
D
2 2 2
E
ID
Description
Qty
M5 taper washer M5 washer
2
J
2
M5 mm×15 bolt M5× mm16 bolt
M4× mm15 bolt M4×16mm bolt
1 2
3
2 2
4
2 1
Long bolt
Wallanchor
Long bolt washer
Box wrench
E,G
F, H
I
A,C
B,D
J
I
J
TV connection block
Wallplate
Supportable block
Supportable lever
Bubble level
406mm(16 )
"
2
1
4
2
406mm(16 )"
1
3
4
