Page 1
-8-
Thank you for choosing our productThank you for choosing our product
This product wasdesigned to beinstalled on woodstud walls andsolid concrete walls.
Before installing make sure thesupporting surface willsupport the combinedload of the
equipment andhardware. Never exceed the MaximumLoad Capacity. This product is
intended forindoor use only. Use of this product outdoors could lead toproduct failure or
personal injury.
CAUTION

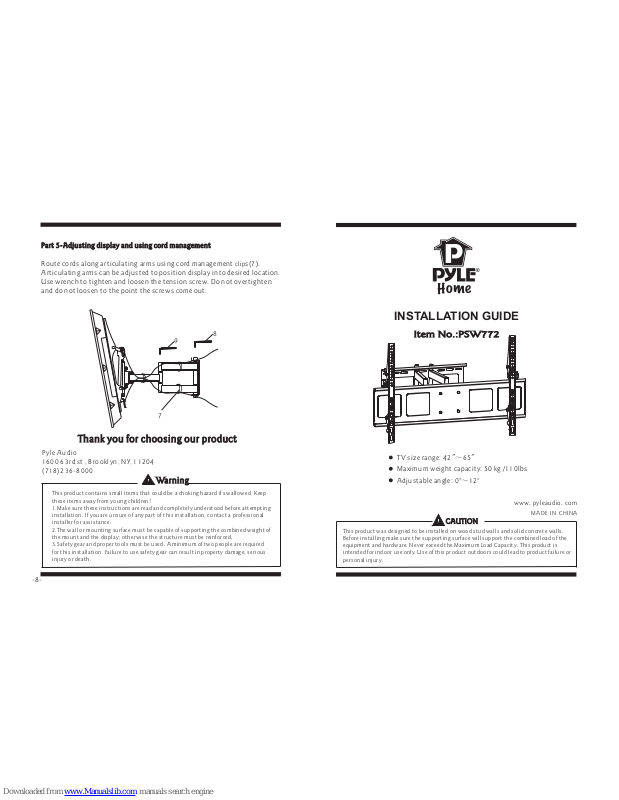

INSTALLATION GUIDE
This product containssmall items thatcould be achoking hazard if swallowed.Keep
these itemsaway from young children
1.Make sure these instructionsare read and completely understoodbefore attempting
installation. Ifyou are unsure of anypart of thisinstallation, contact aprofessional
installer forassistance.
2.The wallor mounting surfacemust be capableof supporting thecombined weight of
the mountand the display; otherwise the structure must be reinforced
3.Safety gearand proper tools mustbe used. Aminimum of twopeople are required
for thisinstallation. Failure to use safety gearcan result in property damage,serious
injury or death.
!
.
Warning
Item No.:PSW772Item No.:PSW772
TV size range: 42 65
Maximum weight capacity: 50 kg /110lbs
Adjustable angle: 0 12～～
""
°°
Part 5-Adjusting display and using cord management
Route cords along articulating arms using cord management s(7).
Articulating arms can be adjusted to position display into desired location.
Use wrench to tighten and loosen the tension screw. Do not overtighten
and do not loosen to the point the screws come out.
clip
Part 5-Adjusting display and using cord management
8
9
7
www pyleaudio com..
MADE IN CHINA
Pyle Audio
1600 63rd st , Brooklyn, NY,11204
(718)236-8000
Page 2
-2-
-7-
Hardware Kit:
Hardware Kit:
1
3
2
4
Warning: Some TV require two peopleto lift, as we are not responsible
for any personal injury or product damage due to mishandling.
Warning:
Part 3- Hanging display
Firstly lift the bracket mounted display over the mount. And then hook
the brackets over the top of the mount. Rotate the display let the
bottom of the brackets hook over the bottom of mount. Then put safety
bolts into the bottom of the brackets and lock it.
Part 3- Hanging display
2,3
1
5
6
7
8
9
4
4
4
4
I
J
K
L
M
Square washer
Long bolt
Wallanchor
Long bolt washer
Spacer
ID Description
1
2
A
3
4
B
C
Wallplate
M4 mm×12 bolt
M4 mm×16 bolt
M5× mm16 bolt
M6× mm16 bolt
M8×16mm bolt
M ×36mm5 bolt
M6×36mm bolt
M ×36mm8 bolt
D
4
4
4
4
4
E
F
G
H
ID
Description
Qty
A-H
LI
K
JM
5
6
1
1
1
4
4
4
Qty
4
1
1
2
Safety bolt
Left Bracket
Right Bracket
Cantilever Arm
TV plate
7
3
Cord management wrap
6x6 Wrench
5x5 Wrench
8
1
9
1
Page 3
-6-
-3-
2 50mm)”(
3/16 (5mm)
”
Stud finder
Wood stud
I
F-H
M
Square washer(I)
Medium holefor
M5andM6screws
Large hole for
M8 screws
Part 2b-Attaching brackets to screen with recessed back
Center brackets vertically on back of screen. Select the medium(F or G) or
large(H) screws. Attach brackets to screen using four selected screws,four
square washers(I) and four spacers(M) at the top and bottom of each bracket.
Tighten screws firmly. Do not overtighten.
Part 2b-Attaching brackets to screen with recessed back
Part 1a-Wood Stud Mounting
.
Usewallplate(1)asatemplate,makesureitislevel,andmark mounting
holes along the center lines of the wood studs. Drill six3/16
)) . .
six
(5mm)dia
holes 2 (50mm) deep. Level wall plate(1) and attach to wall with six long
bolts(J and six washers(L . Tighten screws firmly Do not overtighten
”
”
Part 1a-Wood Stud Mounting
J
L
Page 4
-5-
-4-
Part 1b-Concrete Wall Mounting
.
Level wall plate and use wall as a template to mark six holes. Drill six 3/8
(10mm) dia. holes 2 (50mm) deep. Insert six anchors(K) into holes
and secure wall plate with six long bolts(J) and six washers(L). Tighten
bolts firmly. Do not overtighten
”
”
Part 1b-Concrete Wal l Mounting
2(” 50mm)
Φ3/8 (10mm)”
Concrete Wall
K
L
I
A-E
J
Square washer(I)
Small holefor
M4 screws
Medium holefor
M5andM6screws
Large hole for
M8 screws
.
Part 2a-Attaching Brackets To Screen With Flat Back
Center brackets vertically on back of screen. Select the small(A or B),
medium(C or D) or large(E) screws. Attach brackets to screen using four
selected screws and four square washers(I) at the top and bottom of each
bracket. Tighten screws firmly. Do notovertighten
Part 2a-Attaching Brackets To Screen With Flat Back
