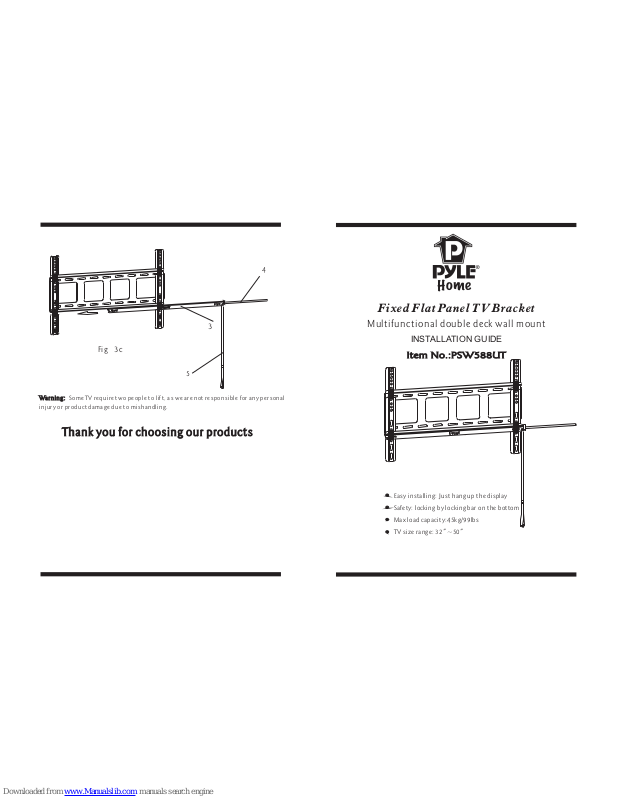

Multifunctional double deck wall mount
Fixed Flat Panel TV Bracket
Easy installing:Just hangup thedisplay
Safety: locking by locking bar on the bottom
Max loadcapacity:45kg/99lbs
TV sizerange: 32 ~50""
INSTALLATION GUIDE
Item No.:PSW588UTItem No.:PSW588UT
Warning: Some TV requiretwo peopleto lift, aswe arenot responsiblefor any personal
injury or productdamage dueto mishandling.
Warning:
Fig 3c
3
4
UP
UP
5
UP
UP
Page 2
Hardware List: Actual parts appearanceand thequantity may different
with illustrated.
Hardware List:
1
3
2
2
UP
UP
Fig 3b
4
3
UP
Step 3: Hangingdisplay
Firstly lift the bracket mounted displayover thewall
mount. And thenhook thebrackets over the top of the
wall mount. Rotate the display let thebottom of the
brackets hook over the bottom ofwall mount, as shown
in Fig.3a. Then use the Lockingbar(3) toprevent the
display from being removed or accidentallyknocked off
of the wallplate.When thelocking bar half insertes into
the wall plate, youcan use therotating rod(4)to make
it fully inserted. (4)
Step 3: Hangingdisplay
Fig 3a
2
1
.
.
screw out the locking rod ,then the
TV is settled, if you think
the ribbon is too long,You could hideit at the back of
thetelevesion,onceyouwanttouninstalltheTV,itcouldhelpyoutotakeoutthe
locking bar
AsshowninFig.3bandFig3c
(5)
(3)
5
5
A-H
LI
K
J
M
ID Description
1
2
A
3
B
1
2
4
1
4
Wallplate
Bracket
Locking bar
M4 mm×12 bolt
M4 mm×16 bolt
Qty
41
Rotating rod
51
Ribbon
4
4
4
F
G
H
I
Square washer
Long bolt
Wallanchor
Long bolt washer
C
4
M5× mm16 bolt
M6× mm16 bolt
M8×16mm bolt
D
4
4
4
E
ID
Description
Qty
J
K
L
M
4
4
4
4
M5×3 mm6 bolt
M6×3 mm6 bolt
M8×36mm bolt
Square
Page 3
WARNING
We are not responsible forany personal injury or product damage due to mishandling,
incorrect mounting, incorrect assembly or incorrect useof this product.
The suppliedwall mounting hardware is not for use on steel stud walls orcold
cinder blockwalls. If youare uncertain about the nature of your wall, please consulta
qualified contractor. If the hardware you required is not included please contactyour
local hardware store.
Note:
Caution:
This Product LCD /Plasma Wall Mount Bracket is intended foruse only
with themaximum weights indicated.See apparatus instructions.Use with products
heavier thanthe maximum weightsindicated may result in instability causing possible
injury .
Caution:
Step 1: Attachbracket toTV
CheckyourTVmanualtoconfirmthediameterofbolttobeusedorchoosean
appropriate bolt accordingto size, height and positionof the holes on yourTV.See
pages 4 ofthese instructionsfor examples.
For correct installing, make surethat hookof everybracket must facing down. Use
selected bolts andwashers forinstalling bracket at the back of display. Adjust two
brackets to equal heights and level. Once aligned,tightly securethe bolts.
As shown inFig.1a.
Don't force the bolt into thehole, which will cause adamage of
equipments and injure of person. Don't useelectric drill to fasten anybolts.
Note:
the UP side on thetop"" .
IMPORTANT:
Step 1: Attachbracket toTV
IMPORTANT
Note:
Fig.1a
UP
UP
After determining theheight ofstand, follow theinstallation instructionsin below
to install wallmount todifferent kinds of wall -wooden, brick, concreteand stone.
Using a awlor nail to make where thenails arelocated, asshown as fig.2b. Pre-drill
these holes witha 5mmdrill bit to at least 40mmin deep hole. Please makesure
these holes are level and located atcenter. Use wallmount as a template tomark the
location of other holes and drillthe sameholes. Fix the wall mount to thewall
with long bolts(J)and washers(L).
Woodenwall:
three
4
Woodenwall:
Fig 2b Fig 2c
Brick, Concrete and Stone wall:
Using the wallmount astemplate to mark4 holeslocation on thewall. Two holesare
located at thetop rowof the slots and twomore arelocated atthe bottom row. Please
make sure these holesare level. Pre-drill theseholes witha 10mm drill bit toat least
50mm deep hole.Insert wallanchors(K) into eachof theseholes. Attach thewall
mount to thewall using4 long bolts(J)and washers(L).as shown asfig.2c.
Brick, Concrete and Stone wall:
L
1
J
Page 4
Following examples showshow to use bolts andsquare washers.
Install the bracket directlyto the backof displayby using bolts and squarewashers
provided. As shown in Fig.1b.
Fig 1b
b
15 degree
viewing angle
eyelevel
a
Fig 2a
Step 2: mount to wall
First, determine the height of stand
The best height of stand is parallelto eyelevel of a personwho sitting on a couch.
Normally,the horizontaldistance of eyelevel is about4’ fromground level.
The following twoconditions arefor determining the perfect heightof stand:
1) the distance between walland couch(Fig2a).
2) the distance of eyelevelfrom groundlevel plusthe distance measured from
eyelevel of aperson sittingon couch withviewing angleof 15 (Fig 2a).
For example:
1) the distance of ‘a’is 5’-7’,the distance of‘b’ isabout 1’
2) the distance of ‘a’is 8’-13’,the distance of‘b’ isabout 3’
3) the distance of ‘a’is 14’-17’,the distance of‘b’ isabout 4’
The perfect heightof standcentre will be anywherewithin b, where you feel
comfortable for viewing.
°
AttachStep 2: Attachmount towall
A,B
2
C,F
2
D,G
2
E,H
I
I
I
I
2
M4Fig bit
M5Fig bit
M6Fig bit
M8Fig bit
