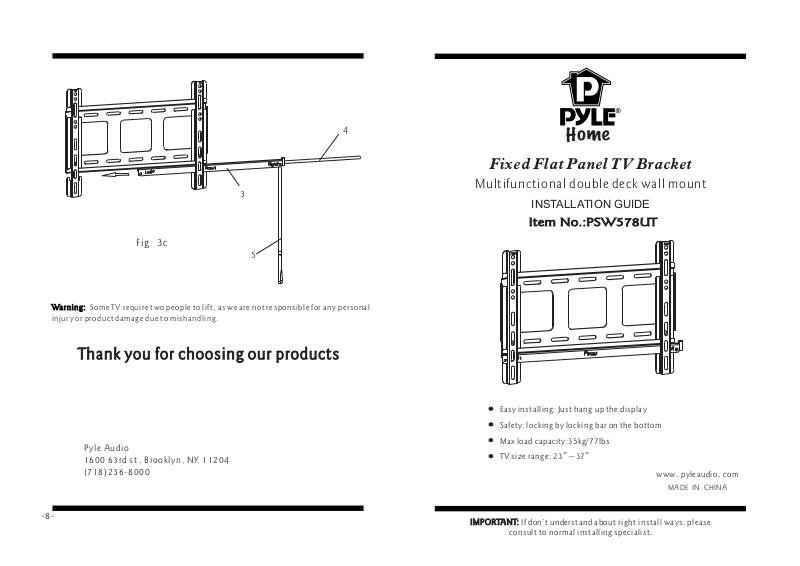

Page 1
UP
UP
4
Fixed Flat Panel TV Bracket
3
Fig 3c
5
Warning: Some TV require two people to lift, as we are not responsible for any personal
Warning:
injury or product damage due to mishandling.
Thank you for choosing our products
Pyle Audio
1600 63rd st , Brooklyn, NY, 11204
(718)236-8000
Multifunctional double deck wall mount
INSTALLATION GUIDE
Item No.:PSW578UT
UP
UP
Easy installing: Just hang up the display
Safety: locking by locking bar on the bottom
Max load capacity:35kg/77lbs
TV size range: 23 ~37""
www pyleaudio com..
MADE IN CHINA
-8-
IMPORTANT: If don’t understand about right install ways, please
IMPORTANT:
consult to normal installing specialist.
Page 2
Hardware List: Actual parts appearance and the quantity may different
Hardware List:
with illustrated.
2
UP
2
1
UP
4
3
5
Step 3: Hanging display
Step 3: Hanging display
Firstly lift the bracket mounted display over the wall
mount. And then hook the brackets over the top of the
wall mount. Rotate the display let the bottom of the
brackets hook over the bottom of wall mount, as shown
in F ig .3 a. Then use the Loc ki ng b ar (3 ) to prevent t h e
display from being removed or accidentally knocked off
of the wall plate.When the locking bar half insertes into
the wall plate , you can use the rotating rod(4) to make
it fully inserted. (4)
TV is settled, if you think
the ribbon is too long,You could hide it at the back of
the televesion,once you want to uninstall the TV, it could help you to take out the
locking bar
UP
screw out the locking rod ,then the
As s h o w n i n Fig.3b and Fi g 3 c
(5)
.
(3)
UP
.
2
1
Fig 3a
-2-
A-F
ID Description
1
2
3
41
51
A
B
C
G
Qty
1
2
1
4
4
4
Wall plate
Bracket
Locking bar
Rotating rod
Ribbon
M4 mm×12 bolt
M4 mm×16 bolt
M5× mm16 bolt
IH
J
K
3
Fig 3b
ID
Qty
4
D
4
E
4
F
4
G
4
H
4
I
4
J
K
4
Description
M6×16mm bolt
M5×36mm bolt
M6×36mm bolt
Square washer
Long bolt
Wall anchor
Long bolt washer
Spacer
5
-7-
Page 3
After determining the height of stand, follow the installation instructions in below
to install wall mount to different kinds of wall -wooden, brick, concrete and stone.
WARNING
Wooden wall:
Wooden wall:
Using a awl or nail to make where the nails are located, as shown as fig.2b. Pre-drill
these holes with a 5mm drill bit to at least 40mm in deep hole. Please make sure
th e s e h o l e s a re level and lo c a t e d a t c e n ter. Use wall moun t a s a t e m p l a t e to mark the
location of other holes and drill the same holes.Fix the wall mount to the wall
with 4 long bolts(H) and washers(J).
Brick, Concrete and Stone wall:
Brick, Concrete and Stone wall:
Using the wall mount as template to mark 4 holes location on the wall.Two holes are
located at the top row of the slots and two more are located at the bottom row. Please
make sure these holes are level. Pre-drill these holes with a 10mm drill bit to at least
50mm deep hole. Insert wall anchors(I) into each of these holes. Attach the wall
mount to the wall using 4 long bolts(H) and washers(J).
three
1
J
H
Fig 2b Fig 2c
We are not responsible for any personal injury or product damage due to mishandling,
incorrect mounting, incorrect assembly or incorrect use of this product.
Note:
The supplied wall mounting hardware is not for use on steel stud walls or cold
cinder block walls. If you are uncertain about the nature of your wall, please consult a
qualified contractor. If the hardware you required is not included please contact your
local hardware store.
Caution:This Product LCD /Plasma Wall Mount Bracket is intended for use only
Caution:
with the maximum weights indicated .See apparatus instructions .Use with products
heavier than the maximum weights indicated may result in instability causing possible
injury .
Step 1: Attach bracket to TV
Step 1: Attach bracket to TV
Ch e c k y o u r T V m a nual to confirm th e d i a m e t e r o f bolt to be used or cho o s e a n
appropriate bolt according to size, height and position of the holes on your TV. See
pages 4 of these instructions for examples.
For correct installing,make sure that hook of everybracket mustfacing down. Use
selected bolts and washers for installing bracket at the back of display.
Adjust two brackets to equal heights and level. Once aligned, tightly secure the
bolts. As shown in Fig.1a.
Note: the UP side on the top"" .
Note:
IMPORTANT:
IMPORTANT
equipments and injure of person. Don't use electric drill to fasten any bolts.
Don't force the bolt into the hole, which will cause a damage of
-6-
UP
UP
Fig.1a
-3-
Page 4
Following examples shows how to use bolts and square washers.
Step 2: mount to wall
AttachStep 2: Attach mount to wall
Install the bracket directly to the back of display by using bolts and square washers
provided. As shown in Fig.1b.
M4 Fig bit
M5 Fig bit
2
G
A,B
G
2
C,E
First, determine the height of stand
The best height of stand is parallel to eyelevel of a person who sitting on a couch.
Normally, the horizontal distance of eyelevel is about 4’ from ground level.
The following two conditions are for determining the perfect height of stand:
1) the distance between wall and couch(Fig 2a).
2) the distance of eyelevel from ground level plus the distance measured from
eyelevel of a person sitting on couch with viewing angle of 15 (Fig 2a).
For example:
1) the distance of ‘a’ is 5’-7’, the distance of ‘b’is about 1’
2) the distance of ‘a’ is 8’-13’, the distance of ‘b’is about 3’
3) the distance of ‘a’ is 14’-17’, the distance of ‘b’is about 4’
The perfect height of stand centre will be anywhere within b, where you feel
comfortable for viewing.
15 degree
viewing angle
°
b
eyelevel
-4-
2
M6 Fig bit
Fig 1b
a
G
Fig 2a
D,F
-5-
