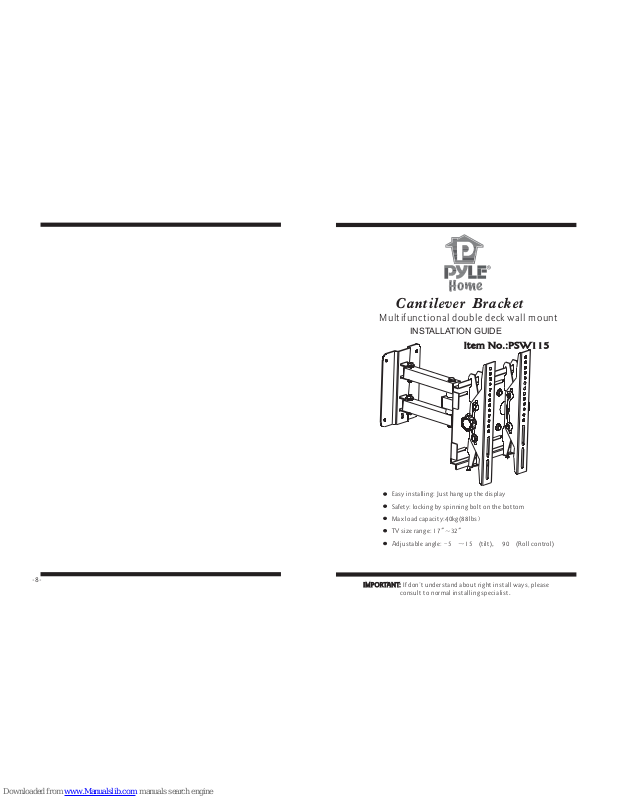

Pyle PSW115 Installation Manual

Page 1
Item No.:PSW115Item No.:PSW115
Multifunctional double deck wall mount
Cantilever Bracket
Easy installing:Just hangup thedisplay
Safety: locking by spinning bolt on the bottom
Max loadcapacity:40kg(88lbs
TV sizerange: 17 ~32
""
-~ ,
INSTALLATION GUIDE
IMPORTANT: If don’t understand about right install ways, please
consult to normal installing specialist.
IMPORTANT:
-8-
Page 2
-2-
-7-
A-G
K
H
J
I
L
Hardware List:
Hardware List:
4
I J K L
4
4
4
Square washer Long bolt Wallanchor
Long bolt washer 9/16 Spacer"
ID Description
1 2
A
3
B
C
1 1
4
1
4
4
Wallmount Left bracket
Right bracket
M4 mm×12 bolt Mmm5×12 bolt
M× mm6 12 bolt M× mm4 25 bolt M× mm5 25 bolt M6× mm25 bolt
Qty
D
4 4 4 4 4
E F G H
42
Safe bolt
1/4 -20×5/8 bolt""
ID
Description
Qty
1
2
3
4
Warning: Some TVrequire two people to lift, aswe arenot responsible for any personal injury orproduct damagedue to mishandling.
Warning:
Fig 3a
Fig 3b
Step 3: Hangingdisplay Firstly lift the bracket mounted display overthe wallmount. And thenhook the brackets over the top ofthe wallmount. Rotate the display let the bottomof the brackets hook over the bottomof wallmount, as shownin Fig.3a.Then put safe bolts into thebottom ofthe brackets and lock it, as shownin Fig.3b.
Step 3: Hangingdisplay
Fig 2b
Fig 2c
Brick, Concrete and Stone wall:
Using the wallmount astemplate to mark4 holeslocation on thewall. Pre-drill these holes witha 10mmdrill bit toat least80mm deep hole.Insert wallanchors(J) into each ofthese holes.Attach the wallmount tothe wall using4 longbolts(I) and washers(K).
Brick, Concrete and Stone wall:
K
I
1
2,3
4
Page 3
-6-
-3-
WARNING
We are not responsible forany personal injury or product damage due to mishandling, incorrect mounting, incorrect assembly or incorrect useof this product.
The suppliedwall mounting hardware is not for use on steel stud walls orcold cinder blockwalls. If youare uncertain about the nature of your wall, please consulta qualified contractor. If the hardware you required is not included please contactyour local hardware store.
Note:
Step 1: Attachbracket toTV CheckyourTVmanualtoconfirmthediameterofbolttobeusedorchoosea appropriate bolts according to size, height andposition ofthe holes onyour TV. See pages 4-5 ofthese instructionsfor examples.
For correct installing, make surethat hookof everybracket must facing down. Use selectedbolt, spacers and washer for installing bracketat the back of display.
Adjust two bracketsto equal heights and level. Once aligned,tighten up the
bolts securely.
Don't force the bolt intothe hole,which will causea damageof
equipments and injure of person. Don't useelectric drill to fasten anybolts.
IMPORTANT:
Step 1: Attachbracket toTV
IMPORTANT:
b
15 degree viewing angle
eyelevel
a
After determining theheight ofstand, follow theinstallation instructionsin below to install wallmount todifferent kinds of wall -wooden, brick, concreteand stone.
Using a awlor nail to make where thenails arelocated, as shown as fig.2b. Pre-drill these holes witha 5mmdrill bit to at least 80mmin deep hole. Please makesure these holes are level and locatedat center. Usewall mountas a templateto markthe location of other three holes and drill thesame holes. Fix the wallmount tothe wall with 4 long bolts(I) and washers(K).
Woodenwall(Fig 2b):
Woodenwall(Fig 2b):
Fig 2a
Step 2: mount to wall
First, determine the height of stand The best height of stand is parallel to eyelevelof a person who sittingon a couch. Normally,the horizontaldistance of eyelevel is about4’ fromground level. The following twoconditions arefor determining the perfect heightof stand:
1) the distance between walland couch(Fig2a).
2) the distance of eyelevelfrom groundlevel plusthe distance measured from eyelevel of aperson sittingon couch withviewing angleof 15 (Fig2a).
For example:
1) the distance of ‘a’is 5’-7’,the distance of‘b’ isabout 1’
2) the distance of ‘a’is 8’-13’,the distance of‘b’ isabout 3’
3) the distance of ‘a’is 14’-17’,the distance of‘b’ isabout 4’ The perfect heightof standcentre will be anywherewithin b, where you feel comfortable for viewing.
°
AttachStep 2: Attachmount towall
Page 4
Fig 1a
1/4 -20 5/8 Fig bit""
M4 Fig bit M5 Fig bit
M6Fig bit
Fig 1b
2. Some displayshave curved backs with recessed mounting lands(Fig.a). It will require the use ofspacer.For thisdisplay, install a 9/16”spacer(L) betweendisplay and thebracket.AsshowninFig1b.
Fig a
-4-
-5-
M5 Fig bitM4 Fig bit
M6 Fig bit
A
3
H
G
C
3
2
H
H
2
B
H
D
3
H
L
2
E
H
L
F
H
3
L
Following examples showshow to use bolts, spacersand squarewashers.
1.Somedisplays have vertical backs. Nospacer is required. Install the bracketdirectly to the backof displayby using boltsand squarewashers provided.As shown in Fig.1a.
