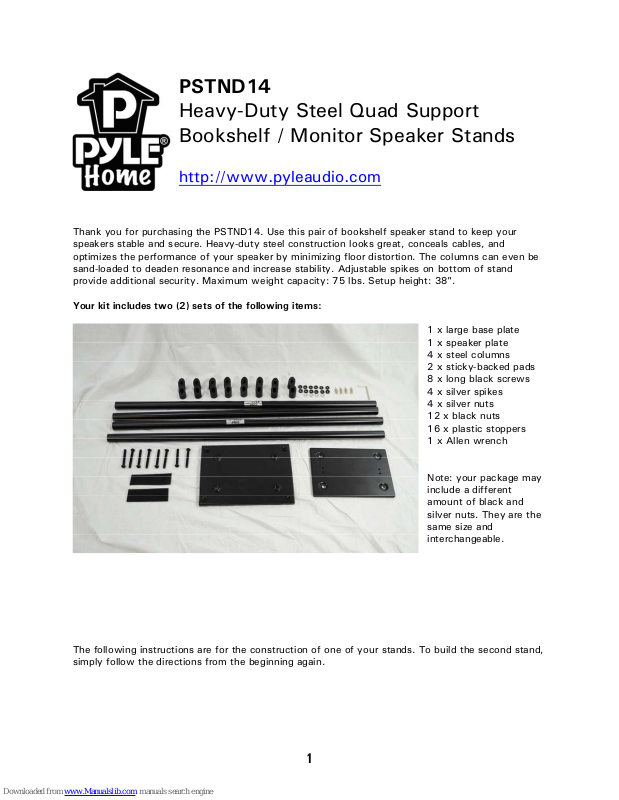

PSTND14
Heavy-Duty Steel Quad Support
Bookshelf / Monitor Speaker Stands
http://www.pyleaudio.com
Thank you for purchasing the PSTND14. Use this pair of bookshelf speaker stand to keep your
speakers stable and secure. Heavy-duty steel construction looks great, conceals cables, and
optimizes the performance of your speaker by minimizing floor distortion. The columns can even be
sand-loaded to deaden resonance and increase stability. Adjustable spikes on bottom of stand
provide additional security. Maximum weight capacity: 75 lbs. Setup height: 38".
Your kit includes two (2) sets of the following items:
1 x large base plate
1 x speaker plate
4 x steel columns
2 x sticky-backed pads
8 x long black screws
4 x silver spikes
4 x silver nuts
12 x black nuts
16 x plastic stoppers
1 x Allen wrench
Note: your package may
include a different
amount of black and
silver nuts. They are the
same size and
interchangeable.
The following instructions are for the construction of one of your stands. To build the second stand,
simply follow the directions from the beginning again.
1
Page 2
1. Begin with the larger base plate. Insert four
(4) black screws through the underside of the
plate.
3. Place a nut in the hex-holed plastic stopper
and screw this whole structure each black
screw with the nut facing up, or away from the
plate. For now, keep the nuts loose -- the two
plastic stoppers should not be tight yet. You
should be able to line them up as in step 2.
2. Prepare the plastic stoppers. For each screw,
you’ll need one of each kind. They look like
this:
Notice one has a round hole and the other has a
hex hole. You can put them together like this:
2
Page 3
4. Now, fit the four (4) steel columns onto each
pole.
7. Repeat the stopper procedure for this plate;
line up two rubber stoppers with the hex side
up, slide on the plastic stopper combo, and then
loosely screw on a nut to hold into place.
5. Now, tighten all the screws to secure the
stand. Tightening the screws causes the
stoppers to expand, holding the steel poles in
place.
6. Set the bottom plate aside for now. Next,
get the smaller top plate and insert the four
screws from the top. When upside-down, the
plate should look like this:
8. Take the complete top plate and fit it onto
the bottom plate:
3
Page 4
9. Again, tighten all the screws to secure the
stand.
11. From the bottom, screw each spike into the
four remaining holes.
Note: Steps 10 and 11 are
optional. The pads will help
prevent your stand from
resonating, and the spikes will
isolate your stand from the desk
or carpet. They are not necessary,
but may improve the sound of
your speakers.
10. Peel the protective paper off the back of
the pads and stick them on the top of your
stand. This will protect your speaker and help
isolate sound from resonating in the stand.
Congratulations! Your stand is complete. To
build the other stand in your pair, simply repeat
these instructions from step 1.
Be sure to fill out your warranty card or submit
your product registration online at
www.pyleaudio.com.
Product Specifications
One Pair of Speaker Stand For A Large
Bookshelf Speaker
Perfect For Home, Project Or Professional
Recording Studios
Steel, Attractive Design Incorporating Cable
Management
Vertical Columns May Be Sand Loaded To
Deaden Sound And Increase Stability
Heavy-Duty Steel Construction With Black
Finish
Conceals Cables For A Great Looking Setup
Quad-Support Provides Security And
Strength With Style
Adjustable Spikes On Bottom For Additional
Stability
Maximum Weight Capacity: 75lbs.
Setup Height: 38''
Product Weight: 8.90 Lbs.
Base Plate Size: 8.3'' × 11.3''
Top Plate Dimensions: 7'' X 9.5''
Tube Diameter: 4 Pcs X 1.2'' × 36.0''
Dimensions: 3.1'' X 9.8'' X 36.2''
