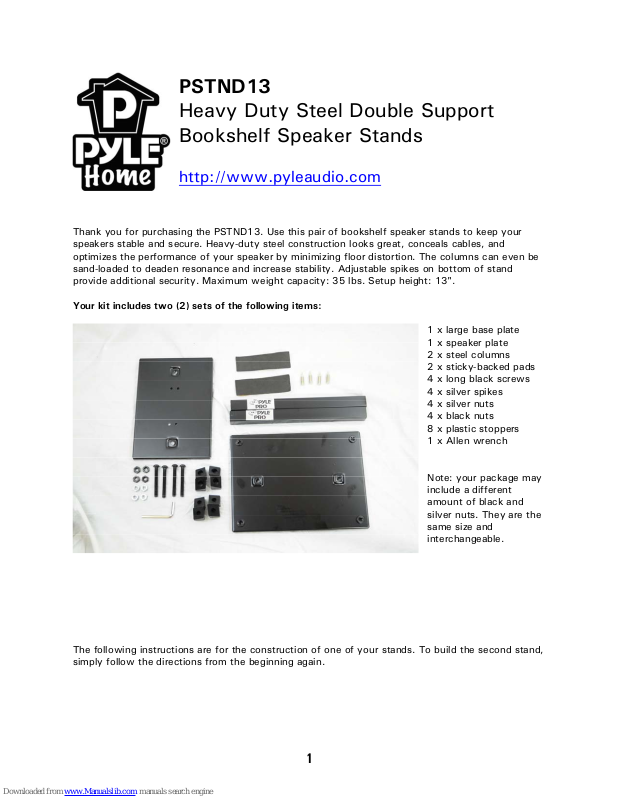

Page 1
PSTND13
Heavy Duty Steel Double Support
Bookshelf Speaker Stands
http://www.pyleaudio.com
Thank you for purchasing the PSTND13. Use this pair of bookshelf speaker stands to keep your
speakers stable and secure. Heavy-duty steel construction looks great, conceals cables, and
optimizes the performance of your speaker by minimizing floor distortion. The columns can even be
sand-loaded to deaden resonance and increase stability. Adjustable spikes on bottom of stand
provide additional security. Maximum weight capacity: 35 lbs. Setup height: 13".
Your kit includes two (2) sets of the following items:
1 x large base plate
1 x speaker plate
2 x steel columns
2 x sticky-backed pads
4 x long black screws
4 x silver spikes
4 x silver nuts
4 x black nuts
8 x plastic stoppers
1 x Allen wrench
Note: your package may
include a different
amount of black and
silver nuts. They are the
same size and
interchangeable.
The following instructions are for the construction of one of your stands. To build the second stand,
simply follow the directions from the beginning again.
1
Page 2
1. Begin with the larger base plate. Insert two
(2) black screws through the underside of the
plate.
3. Place a nut in the hex-holed plastic stopper
and screw this whole structure each black
screw with the nut facing up, or away from the
plate. For now, keep the nuts loose -- the two
plastic stoppers should not be tight yet. You
should be able to line them up as in step 2.
2. Prepare the plastic stoppers. For each screw,
you’ll need one of each kind. They look like
this:
Notice one has a round hole and the other has a
hex hole. You can put them together like this:
2
Page 3
4. Now, fit the two steel columns onto each
N
pole. You may need pliers to adjust the fit.
7. Take the complete top plate and fit it onto
the bottom plate. Again, you may need to
adjust the fit with pliers.
5. Set the bottom plate aside for now. Next,
get the smaller top plate and insert the screws
from the top. When upside-down, the plate
should look like this:
6. Repeat the stopper procedure for this plate;
line up two rubber stoppers with the hex side
up, slide on the plastic stopper combo, and then
loosely screw on a nut to hold into place.
8. Now, tighten all the screws to secure the
stand. Tightening the screws causes the
stoppers to expand, holding the steel poles in
place.
ote: Steps 9 and 10 are
optional. The pads will help
prevent your stand from
resonating, and the spikes will
isolate your stand from the desk
or carpet. They are not necessary,
but may improve the sound of
your speakers.
3
Page 4
9. Peel the protective paper off the back of the
pads and stick them on the top of your stand.
This will protect your speaker and help isolate
sound from resonating in the stand.
Product Specifications
One Pair of Speaker Stand For A Bookshelf /
Monitor / Speaker Stand
Perfect For Home, Project Or Professional
Recording Studios
All-Steel, Attractive Design Incorporating
Cable Management
Vertical Columns May Be Sand Loaded To
Deaden Sound And Increase Stability
Heavy-Duty Steel Construction With Black
10. From the bottom, screw each spike into the
four remaining holes.
Congratulations! Your stand is
complete. To build the other stand
in your pair, simply repeat these
instructions from step 1.
Finish
Conceals Cables For A Great Looking Setup
Double-Support Provides Security And
Strength With Style
Adjustable Spikes On Bottom For Additional
Stability
Maximum Weight Capacity: 35.0Lbs.
Setup Height: 13''
Product Weight: 5.6Lbs
Tube Diameter: 2 Pcs X 1.2'' × 12.0''
Base Plate Size: 8.30'' × 11.30''
Be sure to fill out your warranty
card or submit your product
registration online at
www.pyleaudio.com.
