Page 1
Multi-Function Steam Cleaner
User Manual
www.PyleAudio.com
Page 2
Please read this user manual before using this steam cleaner, and collection it after reading in order for future needed.
Importance Safety Instruction: Please carefully read the safety instruction as below:
● Please use the correct supply voltage: 120V, 60 Hz.
● Please do not use this appliance with an extension cord.
● To prevent damage or injury, please use this appliance with the instructions listed in this manual.
● Please do not immerse the appliance, Rotating Head or other accessories (power cord) into water.
● The brush wand, sleeve and brushes are washable/cleanable and can be used repeatedly after cleaning.
● Please turn off the steam cleaner when not in use and do not leave unattended when powered on.
● Do not allow ANY cleaner or chemicals into the water tank.
● Before adding water to the tank, please turn off the power to the unit and pull the plug from the outlet.
● Please keep the power cord away from any hot surfaces.
● In order to avoid scalding, injury or burns, do not touch the end of the steamer where steam is being emitted from while
operating.
● When in use, pay close attention to prevent steam spray from burning or damaging anyone or any materials/clothing.
● In order to avoid injury/damage, do not let children operate this appliance.
● The water tank capacity is 1 liter; tighten the lid carefully to avoid water leakage after adding water.
● Please store this machine in-doors, in a safe and dry area. Do not expose this unit to excess moisture or extreme
temperatures.
● Do not place any hot items directly on the surface of the machine, accessories or power cord.
● Do not use another power cord or extension cable to lengthen the power cord of the appliance, in order to avoid fire or
electrical damage.
● If the power cord is damage, please consult the assistance of a trained professional or contact customer support: Visit
www.pyleaudio.com.
● Do not attempt to repair or disassemble the appliance, if you encounter a problem with the unit, please contact technical
support or the service center: Visit www.pyleaudio.com.
● The appliance must be unplugged after use and/or before cleaning or maintenance of the appliance.
● Do not use this unit in water, around swimming pools, or other areas with excess moisture.
● Liquid or steam must not be directed towards equipment containing electrical components.
● This appliance should not be used by children or persons with reduced physical, sensory or mental capabilities or persons
with lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children should not play or use this appliance. Operate safely!
● Keep the unit out of reach of children and pets
Page 3
Attention: To switch between any accessories, please make sure the unit is shut off and no steam is coming from the
unit. Also, let the machine cool for 15 minutes before you attempt to do so in order to prevent burns.
PSTM65
Pure Clean Multi-Function Steam Cleaner, Rotating Scrubber & Cleaning Accessory Kit
Produces Steam
Naturally Cleans with Hot Steam Vapor
Easy Carrying Shoulder Strap Design
Rotating Steam-Powered Cleaning Ability
Scrubber Heads and Deep Cleaning Jet Nozzle
Comes with (10) Piece Attachment / Accessory Kit
Uses Tap Water - No Chemicals or Cleaning Solutions Required
Deodorizes and Sanitizes While you Clean
Quickly Disinfects - Removes Dirt & Grime
Lightweight, Portable and Easy to Use
Tested to Kill 99.9% of Germs and Bacteria
Simple Operation Single-Touch Steam Activation
Adjustable Steam Power Control
Built-in 1200 Watt Heating Element
Perfect for Your Home, Car or Boat
Water Tank Capacity: 4.5 Cups
Steam Run-Time Per Tank: 33-66 Minutes
Steam Hose Length: Over 3' Feet
Power Cord Length: Over 15' Feet
Power: 120V AC Compatible 1200 W
Unit Weight: 3.3 lbs.
What's in the Box:
Flexible / Bendable Steam Wand & Cloth Duster Cover
Jet Nozzle Attachment
Window Squeegee
Carpet Stain Cleaner Attachment
Rotating Motor Connector Attachment
Small and Large Rotating Scrubbers
Mile Bottle Brush
Copper / Metal Scrubber
Shoulder Strap
Page 4

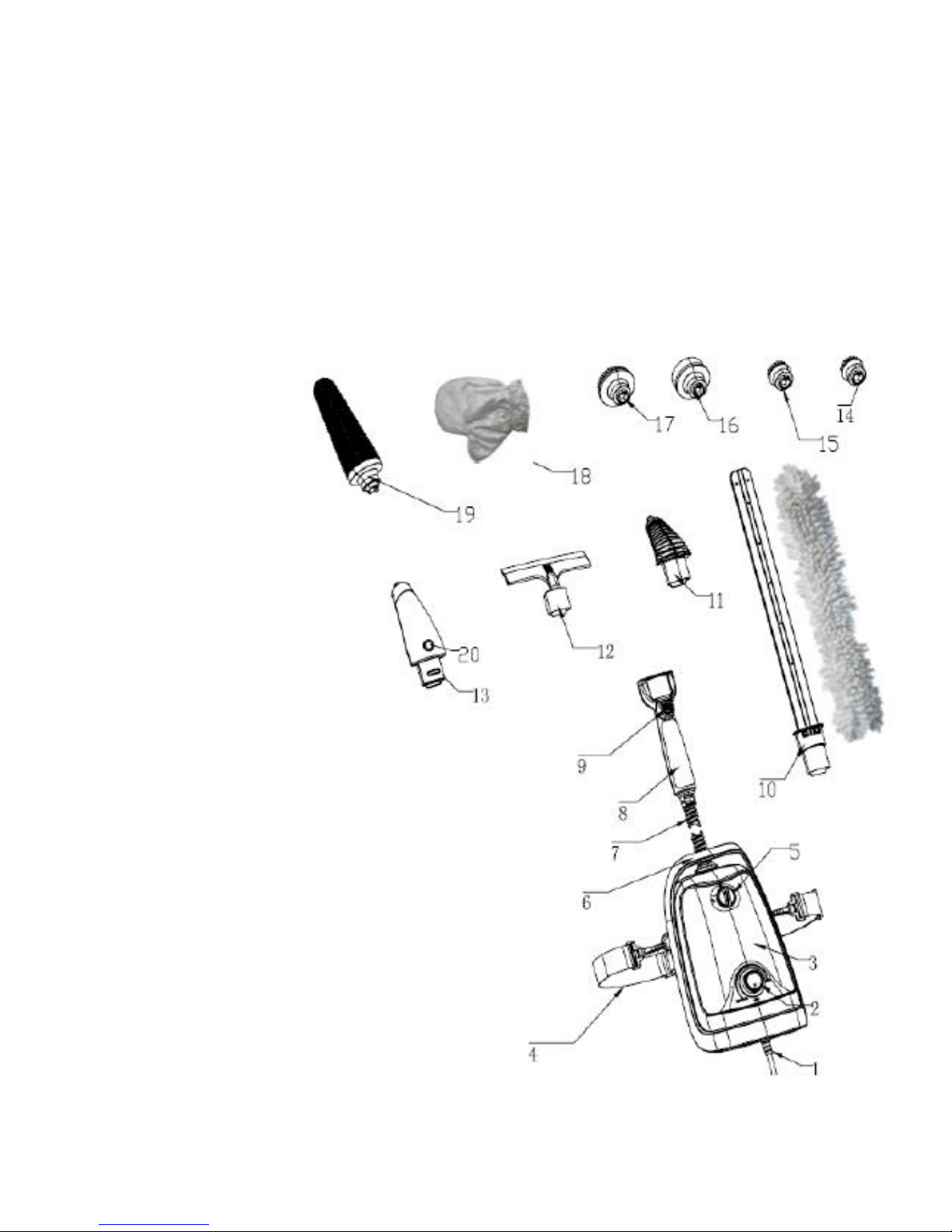

1. What's Included
Part Name:
1. ¸Power Cord
2. Stem Mounted Control
3. Water Tank
4. Straps
5. Water Tank Cover
6. Handle of Main Body
7. Snake Hose
8. Hand Shank
9. Steam Switch
10. Magic Brush(Magic Stick & Cloth Cover)
11. Steam Nozzle
12. Squeegee
13. Rotating Head
14. Small Round Brush
15. Small Copper Brush
16. Scrub
17. Big Round Brush
18. Glove
19. Bottle Brush
20. Motor Switch
Page 5
4. Product Use Range
● Suitable for cloths, mops, floors, carpets, sofas, bed covers, curtains, children's toys, dish cloth, mining board, tableware,
glass, bottle, shoes, car, wheel, kitchen dead Angle, toilet dead Angle, sitting room corner and pet Waterloo and so on besides
dirt, remove odor and kill fine effect such as bitter.
5. Performances and Features:
The steam switch is located conveniently on the handle for easy use.

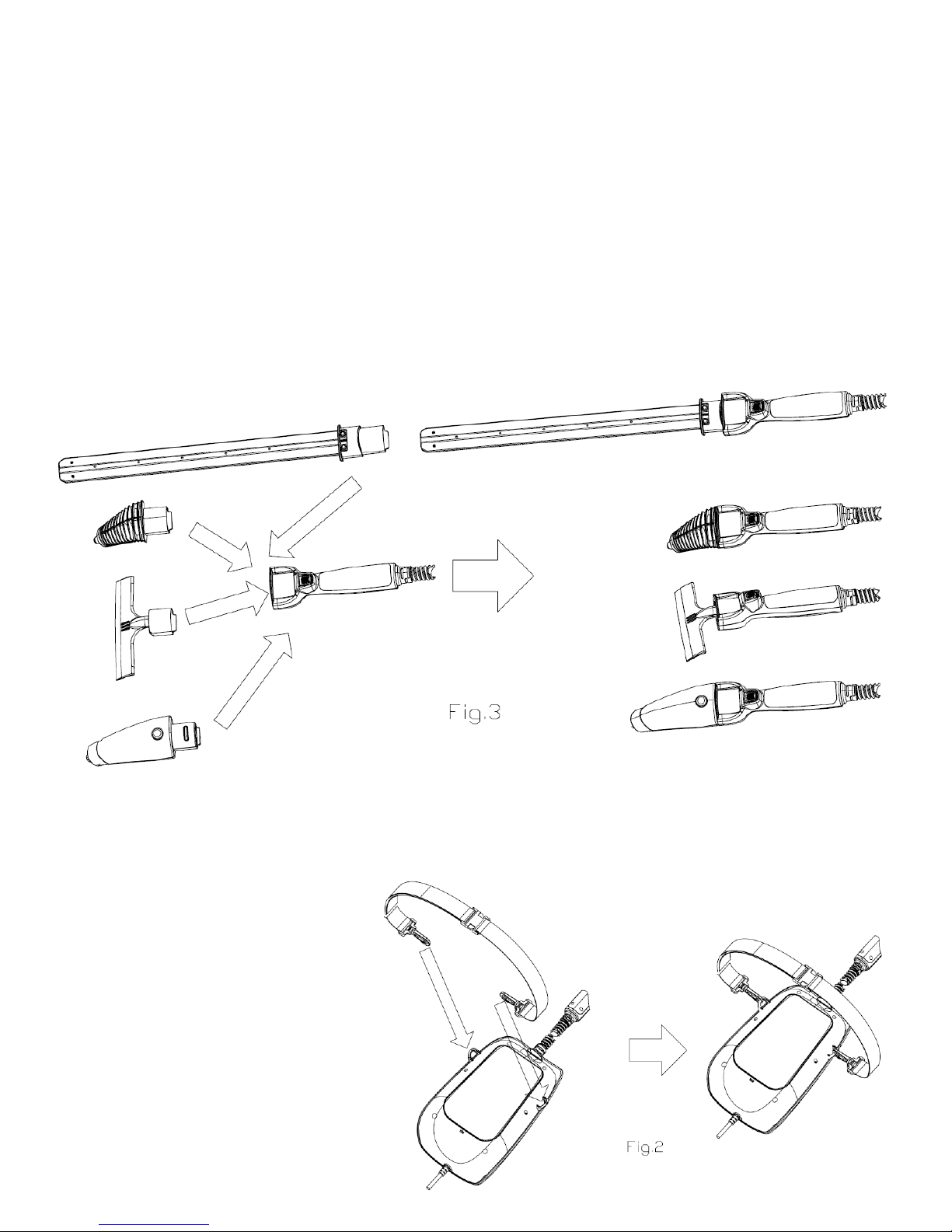

Refer to Fig. 3 below and choose the appropriate accessories for use.
Install one of the appliances (Steam nozzle, squeeze, magic brush and rotating head) on the handle before using.
6. Instruction & Setup:
● Put all the parts out from the package.
● Refer the Fig. 2, fix the belt strap on the two
buttons into the receiving slots on the
underside of the steam unit.
Page 6

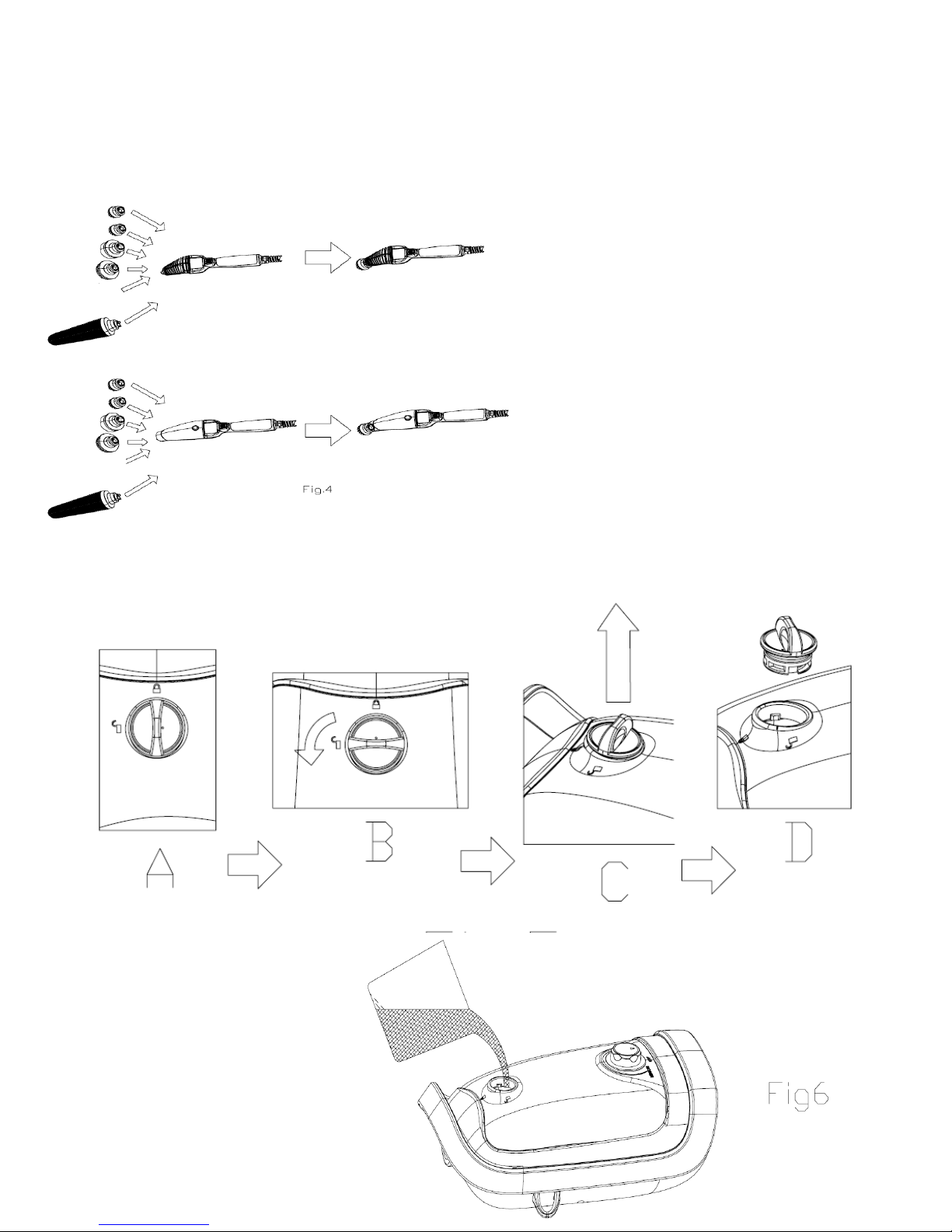

● Refer to Fig. 4, to attach a different brush
accessory on the steam nozzle.
Adding Water:
● Unplug the steam cleaner, place the cleaner on
the horizontal plane and open the water tank lid,
switch the cover from locked to unlock and pull
open. Then the lid of the water tank will be
opened, like shown in Fig. 5 below.
Adding Water:
● Add water to the tank, refer the Fig. 6
Page 7
Attention:
1. Unplug the power cord before filling with water.
2. Please use pure or tap water; this tank is forbidden to filling any chemical detergent or cleaner.
3. Don’t filling water exceeding the Max scale line indicated on the water tank.
● Securely tighten the cap of the water tank after filled with water.
Steaming
● Firstly, confirm socket voltage and machine power ratings match and are of the same rated voltage.

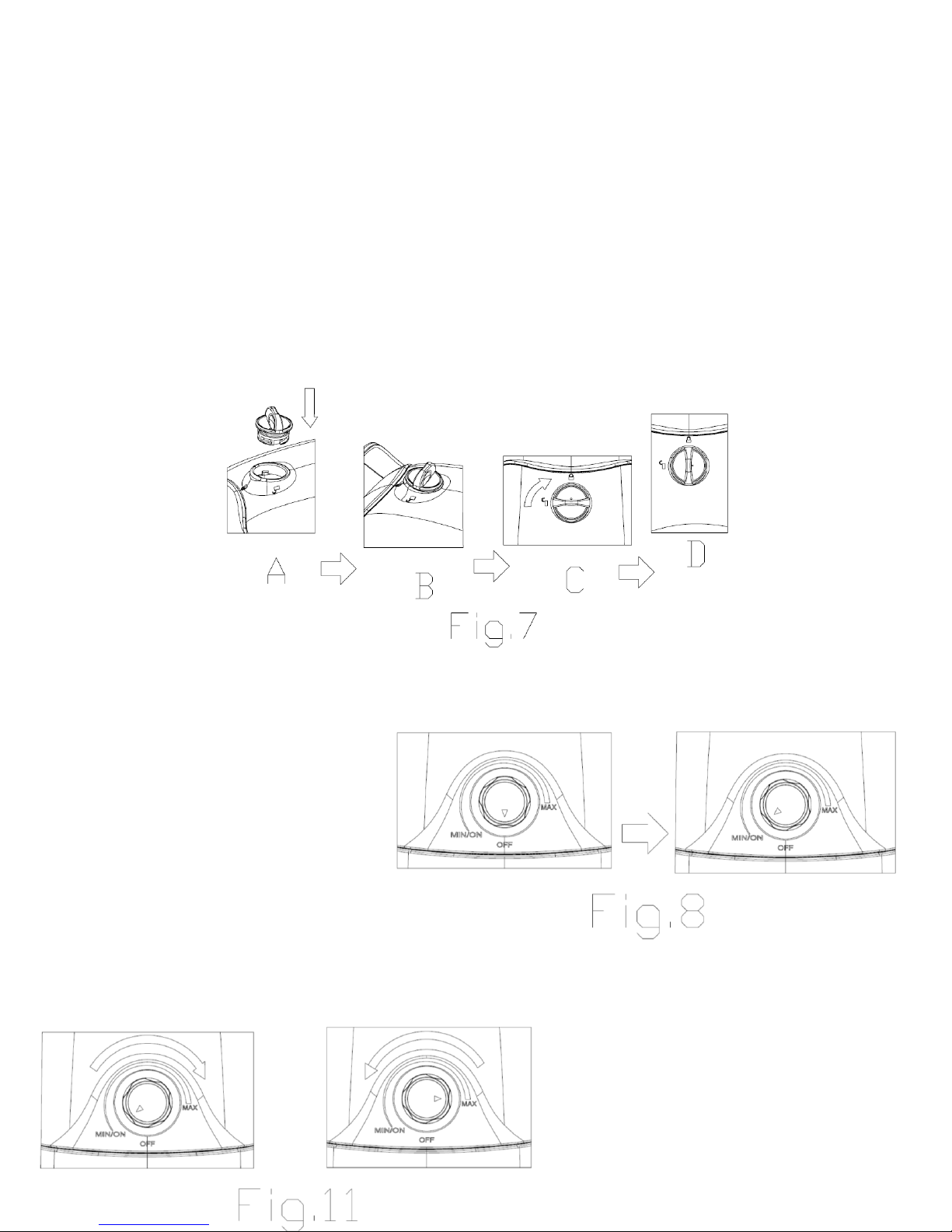

● Turn the Steam Mounted Control ON, a blue
light will begin to flicker indicating the heating
unit of the machine is beginning to work.
Please note the MIN indicates a minimum
temperature setting and the unit will not be
powered OFF until the rotary dial is turned to the
OFF position. Fig. 8.
● When the blinking light is fully lit, the machine
is ready to produce steam.
● According to the different cleaning requirements and needs, you can adjust the control panel topspin twist to the desired
steam power.
Attention:
Page 8
When using this machine, please avoid spraying steam on delicate materials, pets, plants, at or near any electrical
appliances, in order to avoid any injuries or damage.
● Please be sure to operate the unit with water inside, as operation without water in the reservoir may result in damage
and/or less than optimal performance.
Attention: Make sure to have water in the water tank reservoir at all times when in use or powered on!
Cleaning the brush
● After long periods of time using the steam brush wand, the wand brush sleeve will become soaking wet and/or dirty and
needs to be replaced or cleaned, remember to power off the unit before removing or attempting to clean.
● Please pay attention when changing the brush cloth cover and do not touch the steam nozzle in order to avoid burns.
● The brush cloth cover is machine washable.
Attention: Before removing, cleaning or replacing any accessory or attachment pieces, be sure to power off the unit and
allow at least 15 minutes to cool down.
Washing, Cleaning Method
● Do not immerse the steam cleaner or rotating head into water or other liquid directly for cleaning. Wipe the unit clean, with
a non chemical cleaner and place in a ventilated area to dry.
Frequently Asked Questions
● Machine does not heat:
1. Check whether the switch is on or not
2. Check whether there is power coming out of the electric socket.
● No steam:
1. Check the water tank (if there is an adequate amount inside).
2. Check whether the filter is in the correct position; make sure the filter joint is tightened.
9. Important
● The use on all materials should be carefully monitored and observed. Please test the unit's performance on any material
before attempting to steam or clean the material fully. We reserve the final right to interpret, update and change the contents
of the product and manual.
● Products are constantly updated and improved. Our company will revise new specifications without prior notice. Please
refer to www.PyleAudio.com for up-to-date information, specifications and support.
