PSPADLK18
Full motion Anti-Theft Tablet Bracket
USER GUIDE
Page 2
About PyleUSA
CONTENTS
Pyle, founded in the 1960s, has evolved into a renowned manufacturer
of high-quality advanced woofers. Our journey started with the iconic
Pyle Driver, becoming a household name in original speakers. In the late
20th century, we expanded into replacement speakers, car audio, home
audio, marine audio, and professional audio & musical instruments with
our Pyle Pro line.
Pyle Car:
Transform your car into a perfect listening environment with our competitively priced speakers, ampliers, and head units. Upgrade from
factory speakers to enhance your music experience. Explore accessories
like navigation systems, DVD players, iPod interfaces, and safety-focused
cameras.
Pyle Home:
Discover a range of home entertainment products, including projectors,
TVs, mounts, stands, and HD technology. Pyle Home oers bass-expanding mini speakers, headphones, vintage turntables, power ampliers,
horn speakers, and more for an enriched media experience at home and
on the go.
Pyle Pro:
As the leading source of audio equipment worldwide, Pyle Pro caters to
musicians, studio engineers, and amateurs. Our PA Systems, featuring
wireless microphones, rechargeable batteries, and iPod/iPhone docks,
are ideal for various events. Explore our emerging guitar line, eects
pedals, and USB-to-analog converters without compromising on quality.
FEATURES AND TECHNICAL SPECS
PARTS LIST
INSTALLATION
REGISTER PRODUCT
READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT.
RETAIN THIS OWNER’S MANUAL FOR FUTURE REFERENCE.
California Prop 65 Warning
WARNING:
This product can expose you to chemicals, which is known to
the state of California to cause cancer birth defects and other
reproductive harm. Do not ingest.
For more info go to: www.P65warnings.ca.gov
4
5
6
13
www.PyleUSA.com
2
www.PyleUSA.com
3
Page 3
Features:
90 Degrees Rotation Allows for Easy Set-Up of Portrait and Landscape Tablet
•
Orientation
Parts List
PART NO.
DESCRIPTION
QTY
PART NO.
DESCRIPTION
QTY
• Adjustable Bumper Guards Ensure a Perfect Fit
• Anti-theft Lock and Key Mechanism
• Smooth and Eortless 75 Degrees Tilt
• Choose to Either Allow or Block Access to Home Button
• Feed the Cable through the Stand for an Organized Look
• Keeps Tablet Safe and Allows Quick Removal
• Tamper-proof iPad Enclosure
• Fully Secured Case with Restricted Pin-Hole
• Compatible with iPad,iPad Air,iPad Pro, Samsung Galaxy Tab A (2019)
• Works with all iPads
• Front Facing Camera Accessible
• Interchangeable Base Plate
• Adjustable Padding for Compatibility
• Portable Stand with Cable Management for Any Counter Top
What’s in the Box:
A
B
C
D
E
Enclosure
Column
Base 1
Rubber pad 4
Decorative
cover
F
1
G
1
H Key 1
I M5x6 4
J
K
1
L
ST6.3x55 2
Expansion
anchor
M8x20 4
4mm Allen
key
5mm Allen
key
2
1
1
Anti-Theft Tablet Bracket
•
Technical Specs:
Construction Materials: Aluminum, Steel, and Engineered ABS
•
• Compatibility: iPad, iPad Air, iPad Pro, Samsung Galaxy Tab A (2019)
• Pole Height: 9 inches
• Dimensions Tablet Holder: 8.66’’ x 12.71’’ -inches
• Dimensions of Base: 11.81’’ x 7.87’’ -inches
www.PyleUSA.com
4
INSTALLATION
1
www.PyleUSA.com
5
Page 4

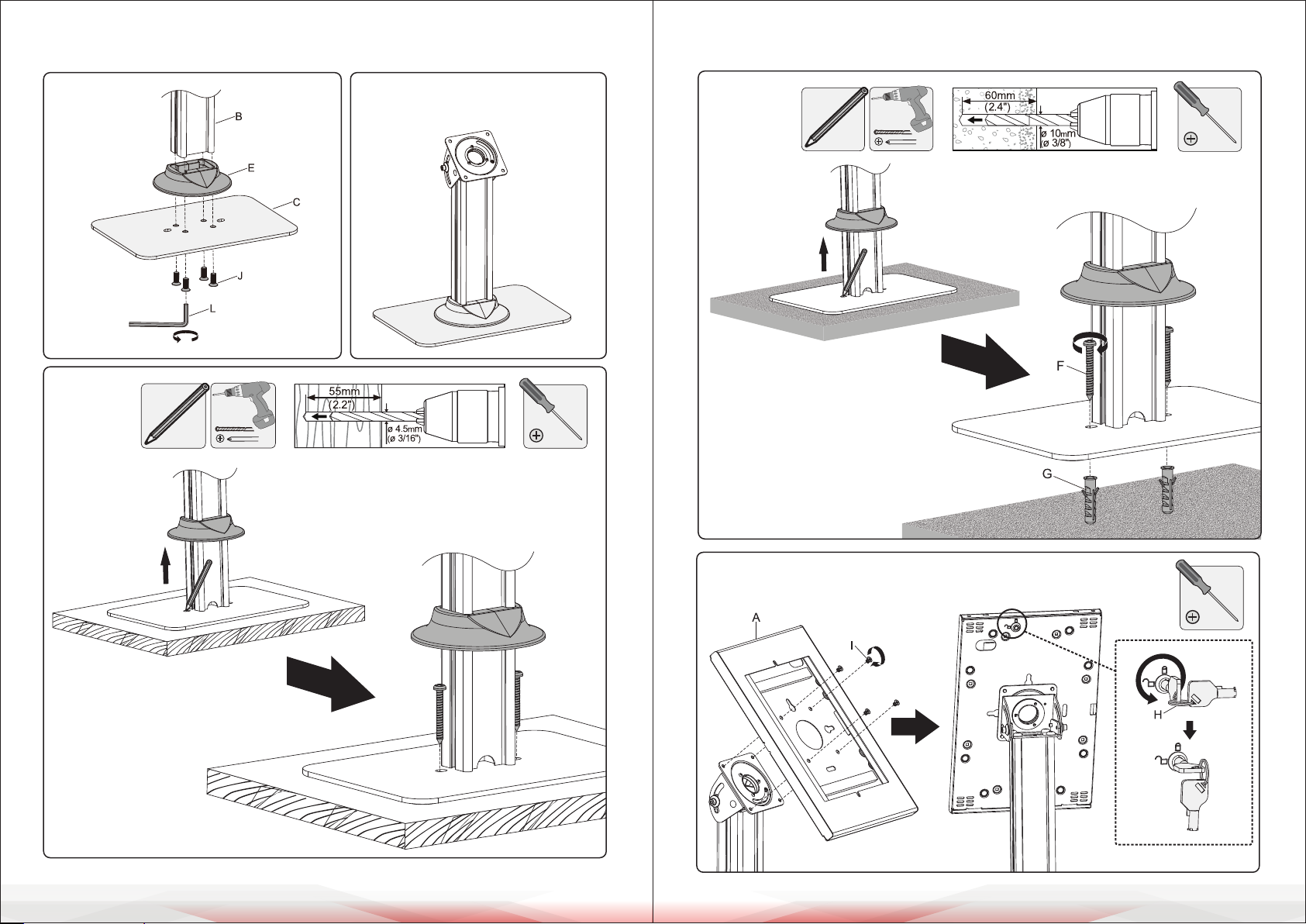

INSTALLATION INSTALLATION
2 3a
3b
Put the mount directly
on the countertop.
3c
For the concrete or solid
masonry installation
For the wooden
countertop installation
www.PyleUSA.com
6
4
www.PyleUSA.com
7
Page 5
INSTALLATION INSTALLATION
For 10.1” Samsung Galaxy Tab A (2019)
5a
10.1" Samsung
Galaxy Tab A (2019)
5b
For 10.2" iPad 7/819
& 10.5" iPad Air (Gen 3)
& 10.5" iPad Pro
www.PyleUSA.com
8
Before locking the enclosure,
conrm the camera is visible
through the slot as shown.
Before locking the enclosure, conrm the
camera is visible through the slot as shown
www.PyleUSA.com
9
Page 6
INSTALLATION INSTALLATION
5c
For iPad 5/6 & 9.7 iPad Pro (1st)
Move the spacers to the positions marked by
the arrows as shown.
Before locking the enclosure, conrm the
camera is visible through the slot as shown.
www.PyleUSA.com
10
iPad 5/6 & 9.7 iPad Pro (1st)
www.PyleUSA.com
11
Page 7
INSTALLATION INSTALLATION

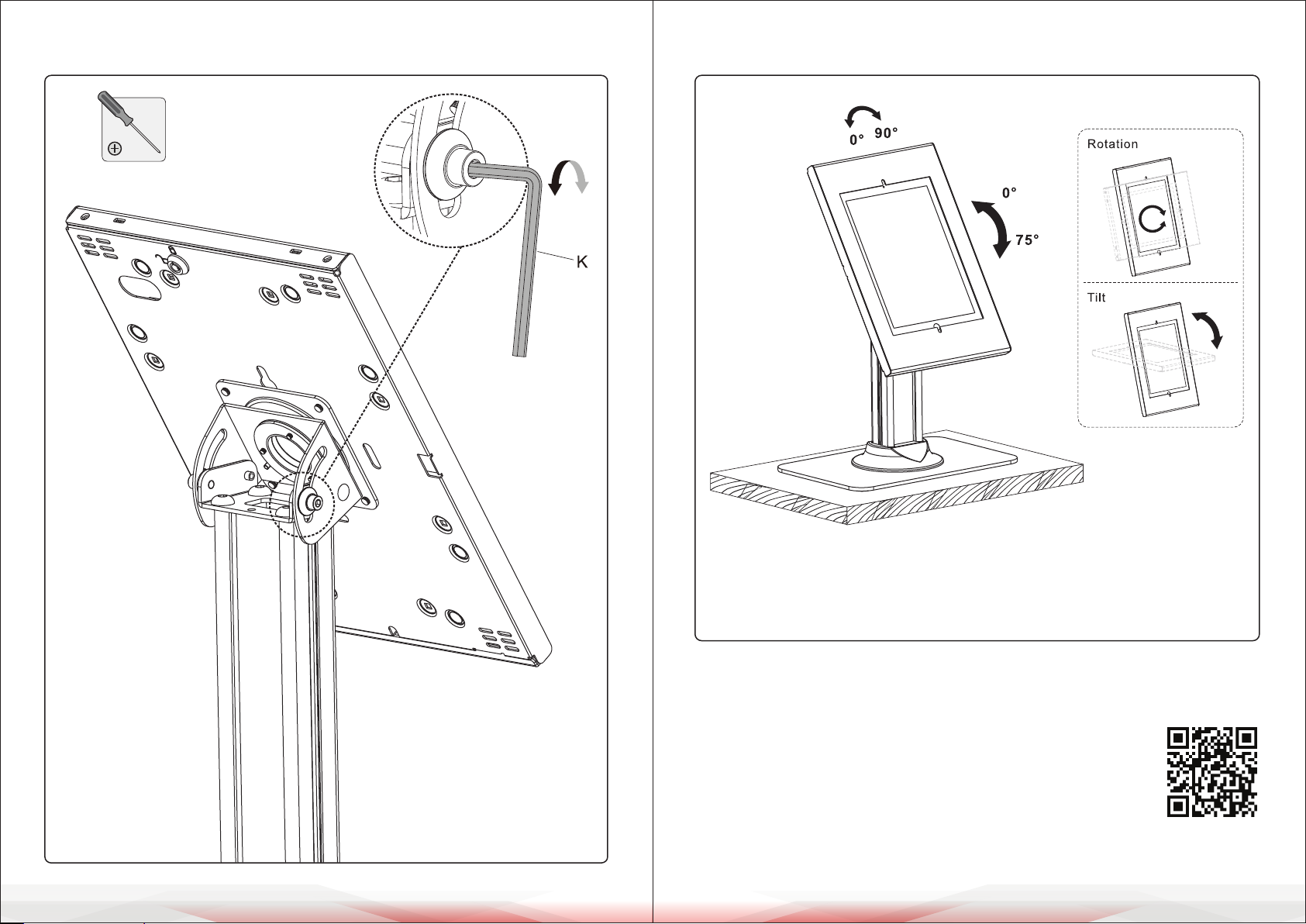

6
7
www.PyleUSA.com
12
Pictures of iPad/iPad Pro/iPad Air/Samsung Galaxy Tab A (2019) are for
illustration purpose only.
The iPad/iPad Pro/iPad Air/Samsung Galaxy Tab A (2019) are not included.
Register Product
Thank you for choosing PyleUSA. By registering your product, you
ensure that you receive the full benets of our exclusive warranty
and personalized customer support.
Complete the form to access expert support and to keep your
PyleUSA purchase in perfect condition.
Start Here
PyleUSA.com/pages/register
www.PyleUSA.com
Model Number:
PSPADLK18
