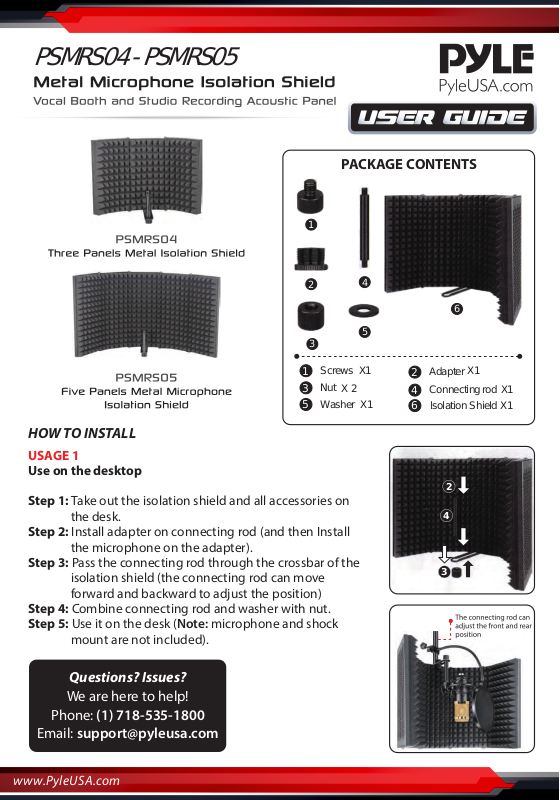

Pyle PSMRS04 User guide

PSMRS04 - PSMRS05

2

4

3

PACKAGE CONTENTS

1

2

3

Screws X1

1

Nut

3

X 2

Washer X1

5

HOW TO INSTALL

USAGE 1

Use on the desktop

Step 1: Take out the isolation shield and all accessories on

the desk.
Step 2: Install adapter on connecting rod (and then Install
the microphone on the adapter).
Step 3: Pass the connecting rod through the crossbar of the
isolation shield (the connecting rod can move
forward and backward to adjust the position)

Step 4: Combine connecting rod and washer with nut.
Step 5: Use it on the desk (Note: microphone and shock

mount are not included).

4

6

5

X1

Adapter

2

Connecting rod

4

lsolation Shield

6

X1
X1

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]

www.PyleUSA.com

USAGE 2

Use with oor stand (5/8 interface)

Step 1: Take out the isolation shield and all accessories on the desk.
Step 2: Take out the oor stand.

(Note: The oor stand, microphone, shock mount and pop lter is not included in
the product and the customer needs to prepare it himself).
Step 3: Combine the nut, connecting rod and adapter (the connecting rod can move
forward and backward to adjust the position).

Step 4: Install washer, screws and nut on the crossbar of the isolation shield
Step 5: Fix the lsolation Shield on the oor stand (as the picture shows)

3

Combine screw,

5

1

washer and nut

Product Display

Floor stand with
5/8 interface
(not included)

Note: The oor stand, microphone
and pop lter is not included in the
product and the customer needs
to prepare it himself.

USAGE 3

Use with oor stand (3/8 interface)

Step 1: Take out the isolation shield

and all accessories on the desk.
Step 2: Take out the oor stand.
(Note: The oor stand,
microphone, shock mount
and pop lter is not included
in the product and the
customer needs to prepare it
himself).
Step 3: Combine the nut, washer,
connectiong rod and adapter
(the connecting rod can move
forward and backward to
adjust the position).
Step 4: Fix the sound enclosure to
the oor stand with nuts and
washers.

After passing the oor stand
through the crossbar and
washer of the soundproof

3

5

cover, tighten it with a nut

the connecting rod can move
forward and backward to
adjust the position

Floor stand with 3/8
interface (not included)
