Pyle PSMIUSBIB57 User guide

PSMIUSBIB57

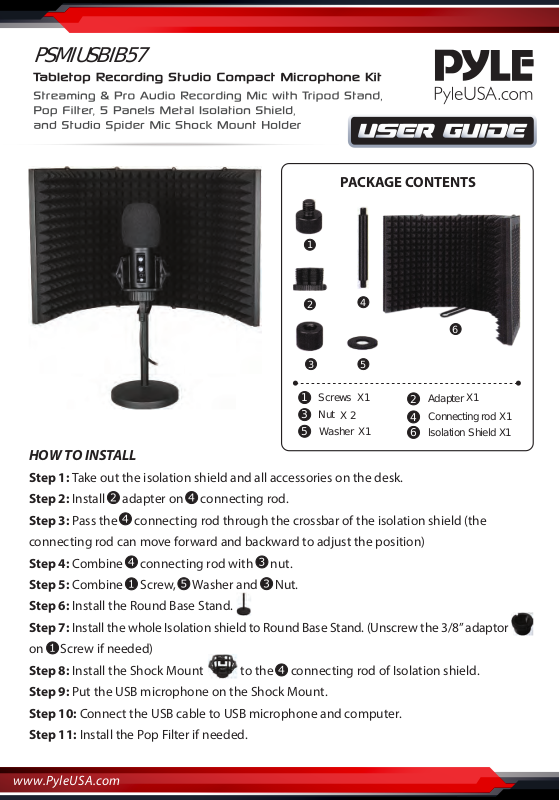

PACKAGE CONTENTS

1

X 2

4

6

X1

Adapter

2

Connecting rod

4

lsolation Shield

6

2

3 5

Screws X1

1

Nut

3

Washer X1

5

HOW TO INSTALL

Step 1: Take out the isolation shield and all accessories on the desk.

Step 2: Install adapter on connecting rod.

Step 3: Pass the connecting rod through the crossbar of the isolation shield (the

connecting rod can move forward and backward to adjust the position)

Step 4: Combine connecting rod with nut.

Step 5: Combine Screw, Washer and Nut.

Step 6: Install the Round Base Stand.

Step 7: Install the whole Isolation shield to Round Base Stand. (Unscrew the 3/8” adaptor

on Screw if needed)

Step 8: Install the Shock Mount to the connecting rod of Isolation shield.

Step 9: Put the USB microphone on the Shock Mount.

Step 10: Connect the USB cable to USB microphone and computer.

Step 11: Install the Pop Filter if needed.

X1
X1

www.PyleUSA.com

SIMPLE USE OF STANDS

2

4

3

Small Tripod stand

Combine screw,
washer and nut

Round base stand

Round Base Microphone Stand

with Shock Mount.

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [email protected]

www.PyleUSA.com

INSTRUCTIONS

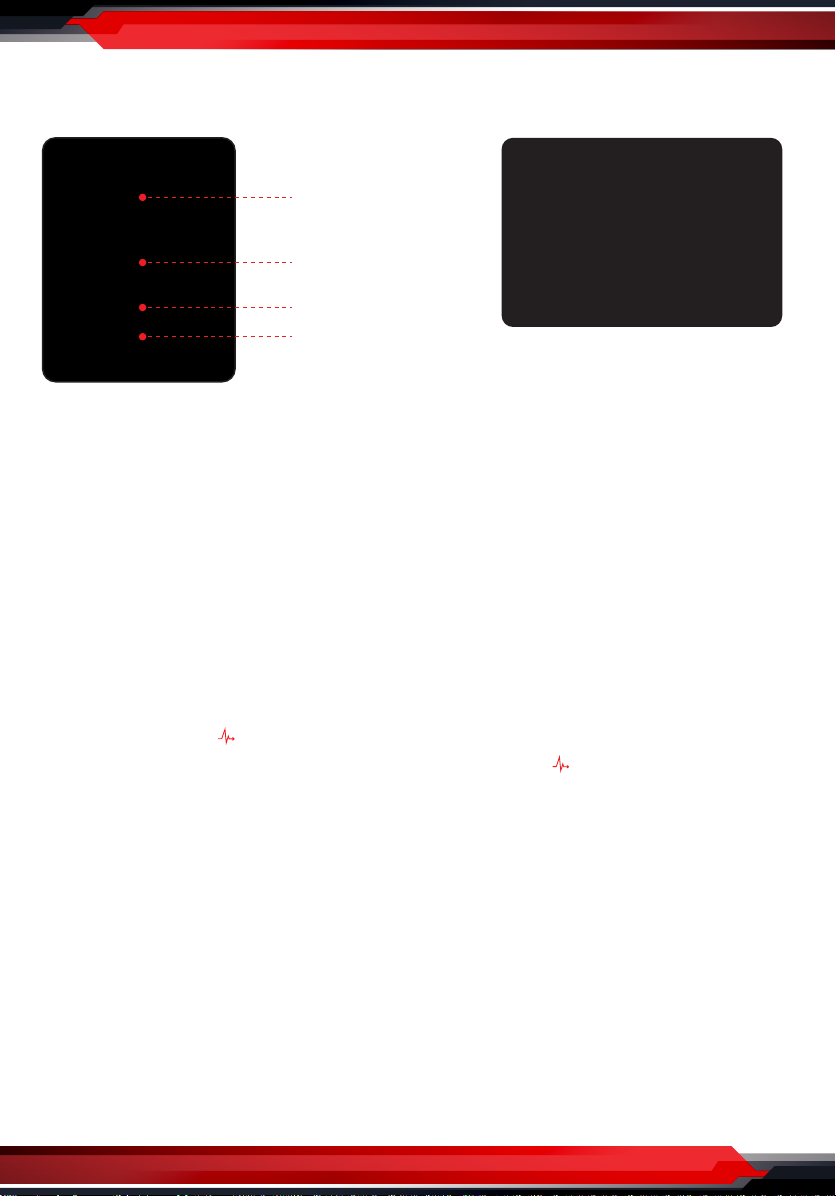

Functional Diagram:

Computer Settings

ECHO CONTROL

VOLUME CONTROL

MONITOR

Please connect the USB mic to
computer with provided cable,
the driver will be installed
automatically.
No need to install other driver.

MUTE BUTTON
Noise Reduction

KNOBS INTRODUCTION

ECHO Knob

Use this knob to control the Echo volume. To produce various eects to meet the needs of
dierent customers.

Volume Knob

Use this knob to control the microphone volume. To avoid excessive ambient noise, please
do not rotate it to the maximum.

Noise Reduction/MUTE button

Press the button to turn on the noise reduction or MUTE function, short press to turn on
“MUTE”, the red light blinks continuously.
Press and hold to turn on the “Noise Reduction”, the red light is lit.

Monitor Jack

Headphones and audio output monitor jack.

Isolation Shield Technical Specs:

• Acoustic foam thickness: 1.6” (4cm)

• Number of Panels: 5 Panels

• Microphone Connector Type: Standard, 5/8’’ Adapter Construction

• Construction Materials: Reinforced Steel, Acoustic Foam

• Adjustable Microphone Depth Distance: 0.4” to 2” -inches

• Folded Dimensions (W x H x D): 6.5” x 11.4” x 6.3” -in.

• Open Dimensions (W x H): 22.83” x 11” -in.

www.PyleUSA.com

Condenser Microphone Features:

• Pro Audio Broadcasting Desktop Microphone

• Simple USB ‘Plug-and-Play’ Operation

• Used for Podcasts Gaming Streaming
Recording Audio

• Editing Lab Tested for Stage & Studio-Quality

Performance Crisp Vocal Pickup

• High-Precision Audio Clarity

• Convenient Mic Mute/Noise Reduction

Button

• Noise Reduction function

• LED light indicator

• Headphone Jack 3.5mm

• Adjustable Echo Control

• Adjustable Mic Volume & Headphone

Volume Control

• Freestanding Mic Placement on Any
Desktop Counter Table

• Detachable USB Cable

• Detachable Metal Tripod Mic Stand

• Universal Computer Compatibility Works

with PC, Mac, and Linux

• For Home Office & Business Use

• Universal USB Computer Microphone

• Computer Desktop Microphone - Streaming
& Pro Audio Recording Mic with Tripod Stand

• Easy USB Plug-and-Play
(for Podcast Recording Streaming Gaming)

What’s in the Box:

• (1) USB Microphone

• (1) Mic Clip Holder

• (1) Steel Tripod Stand

• (1) USB Cable

• (1) Shock Mount

• (1) Iron Round Base Mic Stand

• (1) Pop Filter

• (1) Panels Isolation Shield

Isolation Shield Features:

• Sound Isolation for Microphone Recording

• Enhance Vocals & Singing for Studio Quality

• Ready to Record: Quick & Easy Setup

• 5 Folding Soundproong Acoustic Panels

• Adjustable Microphone Depth with

Removable Shock Mount

• Protects from Unwanted Outside Audio

Interference

• High-Density Deection, Noise-Absorbing

Foam

• Universal Standard 5/8'' Microphone

Threading

• Studio Spider Mic Shock Mount Holder

• Iron Round Base Microphone Stand

• Pop Filter

Microphone Technical Specs:

• Pickup/Polar Pattern: Cardioid

• Microphone Type: Back Electret Condenser

• Connection Interface USB 2.0

• Sensitivity: -40dB±2dB

• Max SPL 110dB

• Frequency Response: 50-20kHz

• Bit Depth 16 bit

• Sampling Rate Up to 48kHz

• Output Impedance: ≥16Ω

• Computer Operating System Support:
Windows XP Vista 7 8 10 Mac OS X Linux

• Mic Stand Construction Material:
Engineered Metal Alloy

• USB Cable Length: 6.7’ ft

• Microphone Dimensions:

1.77’’ x 1.77’’ x 6.3’’ – in.
