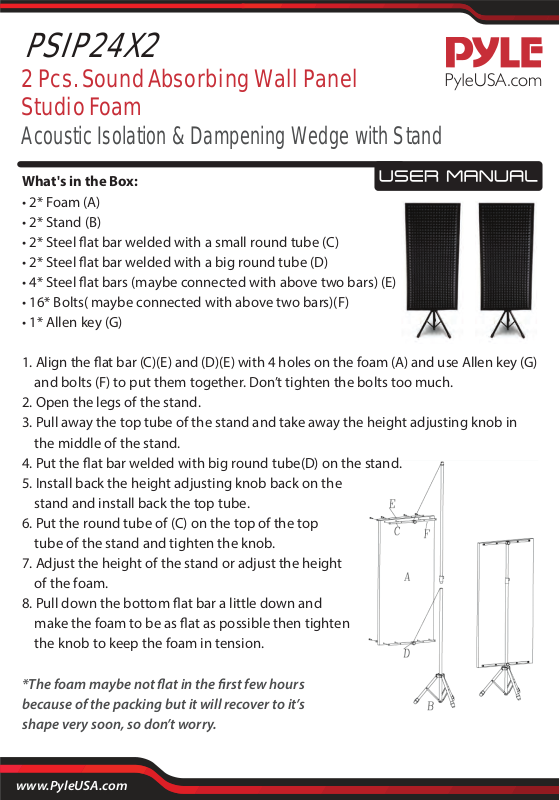

Pyle PSIP24X2 User guide

PSIP24X2

2 Pcs. Sound Absorbing Wall Panel
Studio Foam

Acoustic Isolation & Dampening Wedge with Stand

What's in the Box:

• 2* Foam (A)

• 2* Stand (B)

• 2* Steel at bar welded with a small round tube (C)

• 2* Steel at bar welded with a big round tube (D)

• 4* Steel at bars (maybe connected with above two bars) (E)

• 16* Bolts( maybe connected with above two bars)(F)

• 1* Allen key (G)

1. Align the at bar (C)(E) and (D)(E) with 4 holes on the foam (A) and use Allen key (G)
and bolts (F) to put them together. Don’t tighten the bolts too much.

2. Open the legs of the stand.

3. Pull away the top tube of the stand and take away the height adjusting knob in
the middle of the stand.

4. Put the at bar welded with big round tube(D) on the stand.

5. Install back the height adjusting knob back on the
stand and install back the top tube.

6. Put the round tube of (C) on the top of the top
tube of the stand and tighten the knob.

7. Adjust the height of the stand or adjust the height
of the foam.

8. Pull down the bottom at bar a little down and
make the foam to be as at as possible then tighten
the knob to keep the foam in tension.

*The foam maybe not at in the rst few hours
because of the packing but it will recover to it’s
shape very soon, so don’t worry.

www.PyleUSA.com

Features:

• Quick and Easy Sound Isolation Setup

• Lightweight & Portable Acoustical Sound Panel

• Wedgie Wall-Pad Style Studio Sound Absorption

• Assists in Achieving Optimal Audio Performance

• Helps Promote the Flow of 'Clean' Sound Projection

• Tested to Reduce Unwanted Noise & Sound Reection

• Reduces Vibration & Unwanted Audio Resonance

• Stabilizes and Isolates Sound When Recording

• Effective Noise-Reducing and Sound Dampening

• Tripod Mounted Absorber Shield for Added Stability

• 2'' -inch Thick Engineered Noise-Reducing Foam

• Extra Large Machined Pyramid-Style Wedge Panel

• Greater Surface Area for Open Exposure to Sound Waves

• Suitable for All Recording Environments and In-Studio Use

• Includes Base Stand Mount and Acoustic Panel

• For Beginner and Professional Applications

• Perfect for Vocal Booths, Recoding Rooms, Studios, Podcasts, etc.

• Used by Musicians, Instrument Players, Performers, Sound Engineers, DJ, MC, etc.

Technical Specs:

• Construction Material: Steel and Polyurethane

• Foam Panel: 23.7'' x 47.2'' x 2.0'' -inches

• Height Adjustable: 55.0'' x 87.0'' -inches

• Adjustable Height of Foam to Floor: 7.8” x 39.4'' -inches

• Product Dimension (L x W x H): 20.5'' x 23.7'' x 64.5'' -inches
