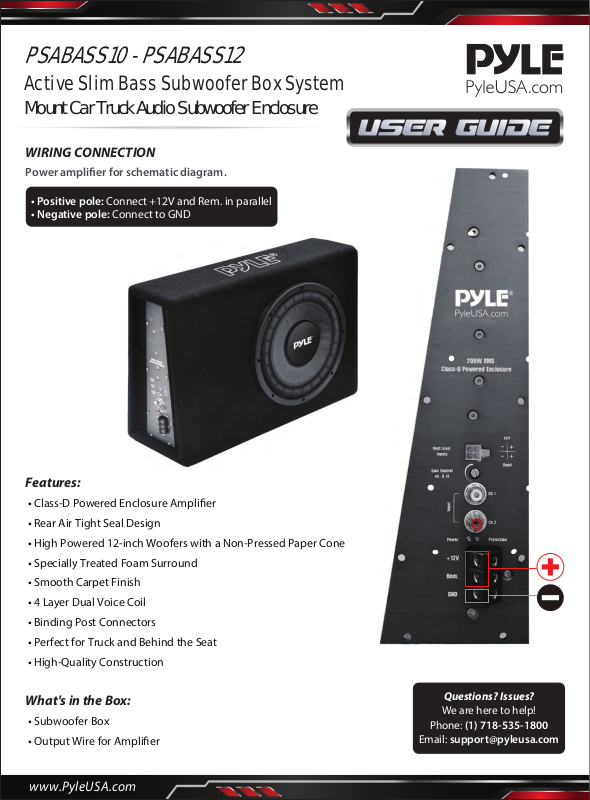

Pyle PSABASS12 User guide

PSABASS10 - PSABASS12

Active Slim Bass Subwoofer Box System

Mount Car Truck Audio Subwoofer Enclosure

WIRING CONNECTION

Power amplier for schematic diagram.

• Positive pole: Connect +12V and Rem. in parallel

• Negative pole: Connect to GND

Features:

• Class-D Powered Enclosure Amplier

• Rear Air Tight Seal Design

• High Powered 12-inch Woofers with a Non-Pressed Paper Cone

• Specially Treated Foam Surround

• Smooth Carpet Finish

• 4 Layer Dual Voice Coil

• Binding Post Connectors

• Perfect for Truck and Behind the Seat

• High-Quality Construction

What's in the Box:

• Subwoofer Box

• Output Wire for Amplier

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]

www.PyleUSA.com

PSABASS10

10'' 500 Watts Powered Slim Bass Subwoofer Box System

Mount Car Truck Audio Subwoofer Enclosure

Technical Specs:

• Construction Materials: 15mm Particle Board + Multilayer Board

• Power Rating: 500 Watts Max Power

• Voice Coil: 2.0''

• Impedance: 4 Ohms

• Magnet: 40 Oz

• Sensitivity: 90 dB

• Frequency Response: 35-300Hz

• Product Dimensions (L x W x H): 19.7'' x 6.0'' x 13.6'' -inches

PSABASS12

12'' 600 Watts Powered Slim Bass Subwoofer Box System

Mount Car Truck Audio Subwoofer Enclosure

Technical Specs:

• Construction Materials: 15mm Particle Board + Multilayer Board

• Power Rating: 600 Watts Max Power

• Voice Coil: 2.5''

• Impedance: 4 Ohms

• Magnet: 50 Oz

• Sensitivity: 91 dB

• Frequency Response: 28-200Hz

• Product Dimensions (L x W x H): 19.7'' x 7.1'' x 15.0'' -inches
