MULTI-CURRENCY DETECTOR
User Manual
PRMDC40
3

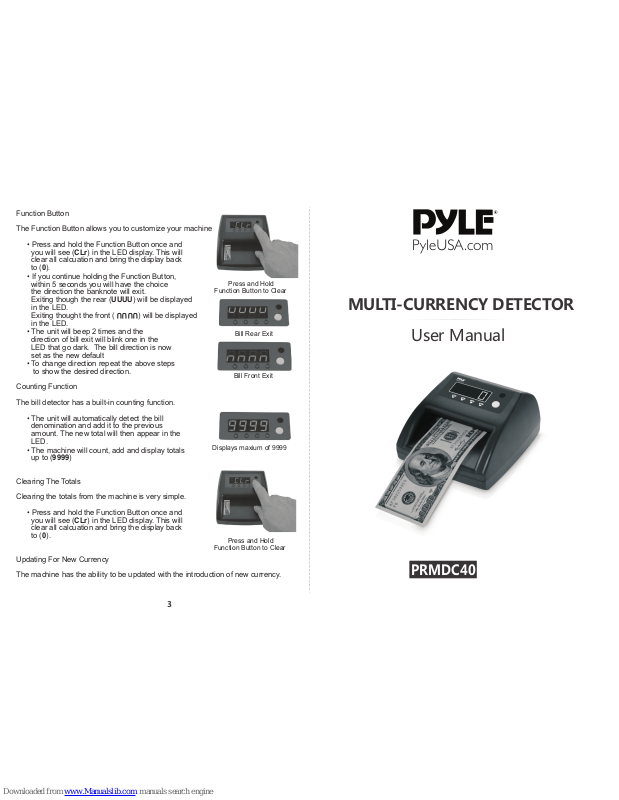

Function Button
The Function Button allows you to customize your machine
• Press and hold the Function Button once and
you will see (CLr) in the LED display. This will
clear all calcuation and bring the display back
to (0).
• If you continue holding the Function Button,
within 5 seconds you will have the choice
the direction the banknote will exit.
Exiting though the rear (UUUU) will be displayed
in the LED.
Exiting thought the front ( ) will be displayed
in the LED.
• The unit will beep 2 times and the
direction of bill exit will blink one in the
LED that go dark. The bill direction is now
set as the new default
• To change direction repeat the above steps
to show the desired direction.
Counting Function
The bill detector has a built-in counting function.
• The unit will automatically detect the bill
denomination and add it to the previous
amount. The new total will then appear in the
LED.
• The machine will count, add and display totals
up to (9999)
Clearing The Totals
Clearing the totals from the machine is very simple.
• Press and hold the Function Button once and
you will see (CLr) in the LED display. This will
clear all calcuation and bring the display back
to (0).
Updating For New Currency
The machine has the ability to be updated with the introduction of new currency.
Press and Hold
Function Button to Clear
Press and Hold
Function Button to Clear
Bill Rear Exit
Bill Front Exit
Displays maxium of 9999
UUUU
Page 2

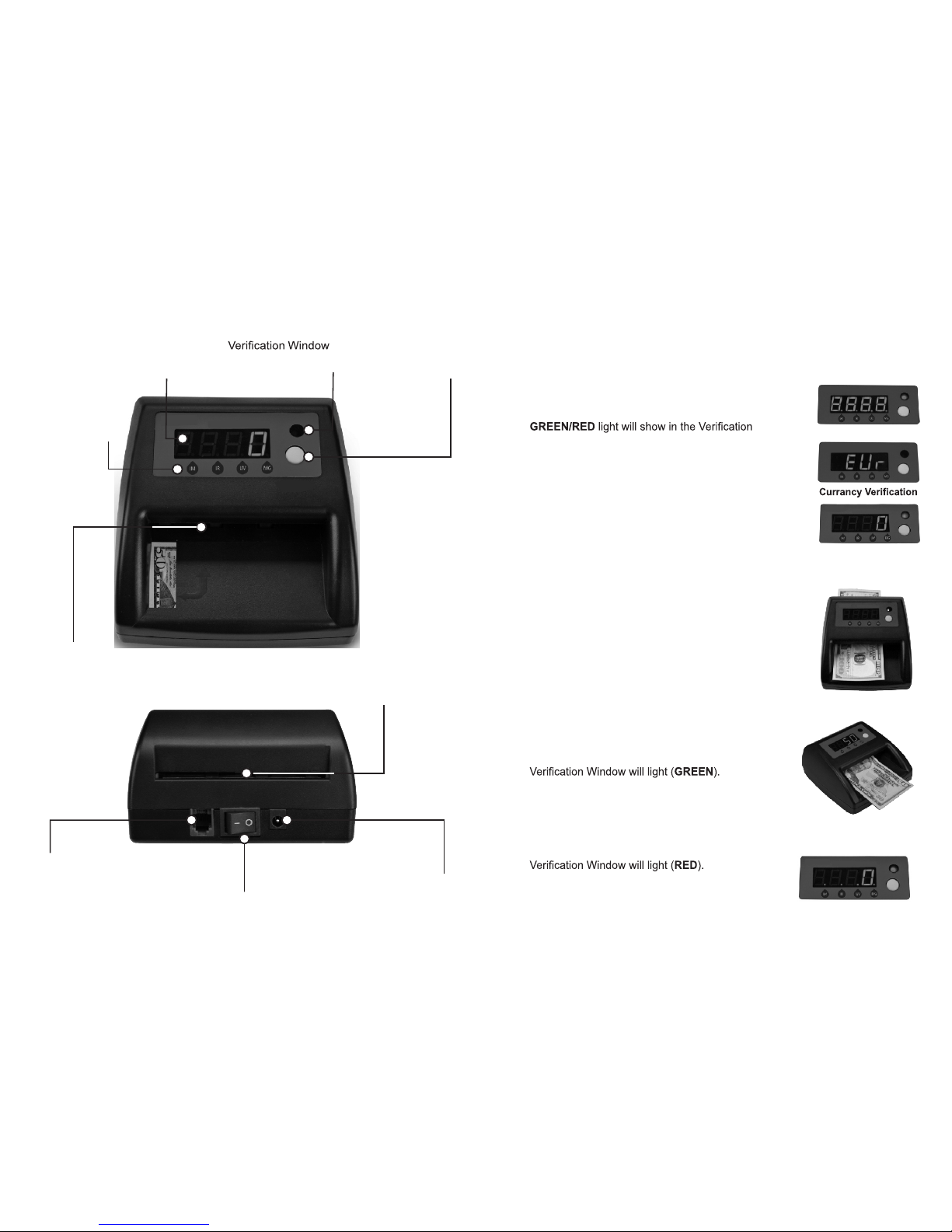

Bill Exit
Power On/Off Switch
AC Power Input
USB Software
Upgrade Input
4 Digit LED Display
Red / Fail
Green / Pass
Bill Entrance/Exit
Status Indicators
Function Button
Introduction:
Counterfeit Bill Detector
Counterfeit Bill Detector
Operating Instructions:
Starting up
Plug the power cord into the AC power input and plug the AC adapter into any
standard AC 110 volt or 220 volt outlet. Switch the machine onto the ON position.
The machine will then go though a calibration setup.
• The unit will display (8.8.8.8.).
• The unit will then sound two (2) beeps and a
Window.
• The machine will then verify the default currancy.
(EUr) Euro will show in the LED display.
• (UUUU) or ( ) will then be displayed.
This indicates the direction the bill will exit
after it is scanned. (See Function Button)
• The motor will then cycle twice.
• Once a (0) is displayed in the LED, the unit
is now ready use.
Getting Started
Once the (0) is displayed in the LED, the machine is ready to use.
• Place a bill along the left edge of the entrance
with the top of the head on the bill to the right.
• Gently push the bill into the entrance throat.
• The machine will pull the bill into the unit. It will
scan the bill for (IM) correct direction of bill
being fed (IR) Infrared characteristics, (UV)
Ultraviolet characteristics and (MG) Magnetic
strip detection.
• The machine will discharge the bill either through
the front of rear of the unit.
If The Banknote Passes Inspection
• If the bill passes inspection, the light in the
• The unit will sound a beep.
• The denomiation of the bill will be displayed
by the LED.
If The Banknote Fails Inspection
• If the bill fails inspection, the light in the
• The Unit will sound with (3) beeps.
• The LED will display the same amount
before the last bill was inserted.
• Failure Lights will display for feature or
Ready to Use
Place Bill Along Left Edge
Passes with GREEN Light
and Bill Denomination Displayed
Failed with RED Light
Failure LED Indicators Light
UUUU
Calibration Display
features which did not pass.(Status Indicator)
