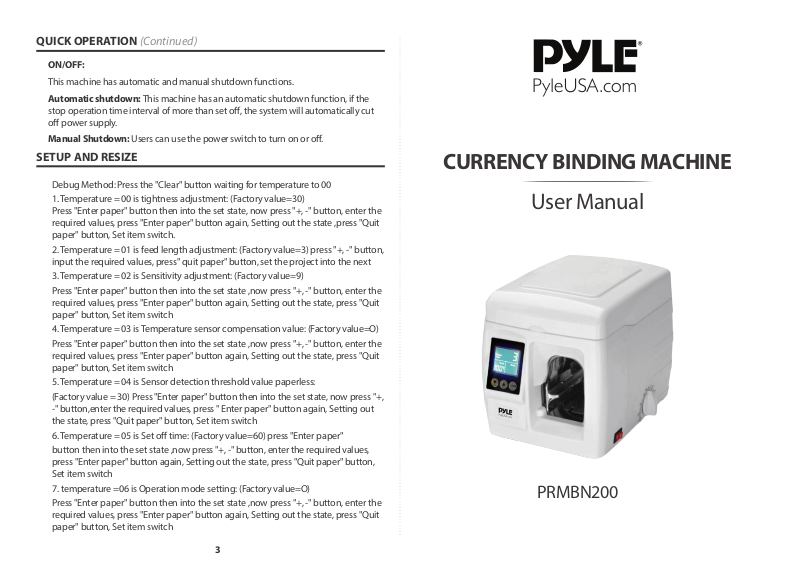

Page 1
QUICK OPERATION (Continued)
ON/OFF:
This machine has automatic and manual shutdown functions.
Automatic shutdown: This machine has an automatic shutdown function, if the
stop operation time interval of more than set o, the system will automatically cut
o power supply.
Manual Shutdown: Users can use the power switch to turn on or o.
SETUP AND RESIZE
Debug Method: Press the "Clear" button waiting for temperature to 00
1. Temperature = 00 is tightness adjustment: (Factory value=30)
Press "Enter paper" button then into the set state, now press "+, -" button, enter the
required values, press "Enter paper" button again, Setting out the state ,press "Quit
paper" button, Set item switch.
2. Temperature = 01 is feed length adjustment: (Factory value=3) press "+, -" button,
input the required values, press" quit paper" button, set the project into the next
3. Temperature = 02 is Sensitivity adjustment: (Factory value=9)
Press "Enter paper" button then into the set state ,now press "+, -" button, enter the
required values, press "Enter paper" button again, Setting out the state, press "Quit
paper" button, Set item switch
4. Temperature = 03 is Temperature sensor compensation value: (Factory value=O)
Press "Enter paper" button then into the set state ,now press "+, -" button, enter the
required values, press "Enter paper" button again, Setting out the state, press "Quit
paper" button, Set item switch
5. Temperature = 04 is Sensor detection threshold value paperless:
(Factory value = 30) Press "Enter paper" button then into the set state, now press "+,
-" button,enter the required values, press " Enter paper" button again, Setting out
the state, press "Quit paper" button, Set item switch
6. Temperature = 05 is Set o time: (Factory value=60) press "Enter paper"
button then into the set state ,now press "+, -" button, enter the required values,
press "Enter paper" button again, Setting out the state, press "Quit paper" button,
Set item switch
7. temperature =06 is Operation mode setting: (Factory value=O)
Press "Enter paper" button then into the set state ,now press "+, -" button, enter the
required values, press "Enter paper" button again, Setting out the state, press "Quit
paper" button, Set item switch
CURRENCY BINDING MACHINE
User Manual
PRMBN200
3
Page 2
DIAGRAM PRODUCT SPECIFICATIONS
Bundle note range: RMB notes and national bank notes can be applied
Binding speed: ≤ 1. 5 seconds /once
Power: AC 1 OOV-240V /47-63Hz
Standby power: ≤10W, Max power: ≤ 60W
Noise: : ≤ 70DB
Weight: 6kg
Paper width: 20mm
Dimensions: 240*200*220mm
DISPLAY
QUICK OPERATION
Glue should face up
PRODUCT FEATURES
Instant heat: No warm-up needed; once opened, you can immediately start using.
Easy to operate: Simply place the notes vertically into the entrance, then the
operation will automatically start and complete.
Function: Chinese or English display for global accessibility, see failures at a glance,
users can exclude their operation, reduce the probability of repair, improve user
productivity.
Easy setup: Demand on the heating temperature can be set.
Safe and convenient: Automatic timing function, Note in the stop bar after 2 hour
automatic shutdown, if an error is encountered, automatic fault shutdown initiates.
General Supplies: Users can adjust by setting the temperature of hot pressing to
meet the dierent needs of various paper tapes.
1
Install paper note: With the top of the machine open, set binding tape as shown in
column 3 of the lateral direction, leads to take the lead, this time pay attention to the
direction with the installation disk to aligh with case cited above diagram.
Power: Access to power, and press the Power switch to “ON” position, the machine
will automatically enter the working state.
Covertape: Will take the lead through the guide wheel A, without paper detection
sensor, by passing the lateral guide rollers B, C and loaded by the guide rollers into
the band mouth, pressing the enter key then automatically completes the actions.
Bind: The notes will be counted into a working position, then closely aligns with
the left side of the pressure plate notes, notes contact with the front bae with the
limit, photoelectric switch sensor to the notes already in place, the control system
automatically starts binding action.
Complete: When the band heard the collection, Adjacency voice prompt action to
complete, remove the tie a good note, the end of a bundle.
2
