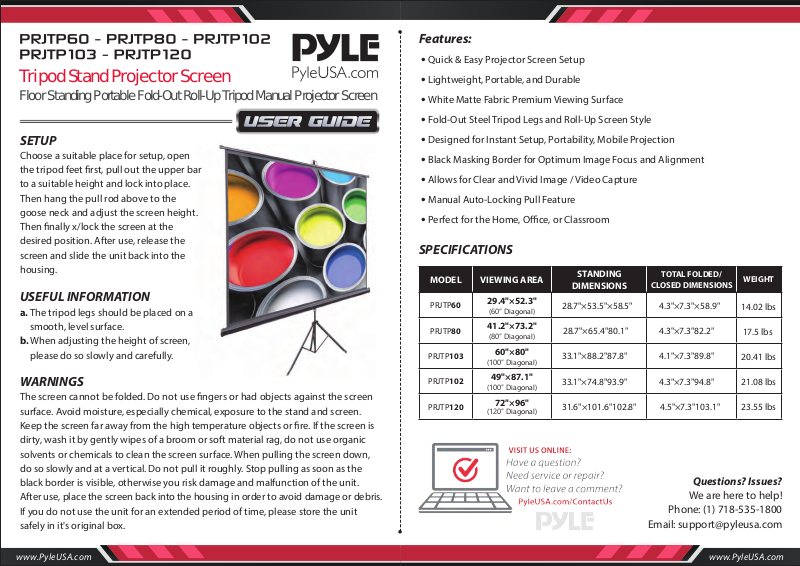

Pyle PRJTP103 User guide

Features:

• Quick & Easy Projector Screen Setup

Tripod Stand Projector Screen

Floor Standing Portable Fold-Out Roll-Up Tripod Manual Projector Screen

SETUP

Choose a suitable place for setup, open
the tripod feet rst, pull out the upper bar
to a suitable height and lock into place.
Then hang the pull rod above to the
goose neck and adjust the screen height.
Then nally x/lock the screen at the
desired position. After use, release the
screen and slide the unit back into the
housing.

USEFUL INFORMATION

a. The tripod legs should be placed on a
smooth, level surface.
b. When adjusting the height of screen,
please do so slowly and carefully.

WARNINGS

The screen cannot be folded. Do not use ngers or had objects against the screen
surface. Avoid moisture, especially chemical, exposure to the stand and screen.
Keep the screen far away from the high temperature objects or re. If the screen is
dirty, wash it by gently wipes of a broom or soft material rag, do not use organic
solvents or chemicals to clean the screen surface. When pulling the screen down,
do so slowly and at a vertical. Do not pull it roughly. Stop pulling as soon as the
black border is visible, otherwise you risk damage and malfunction of the unit.
After use, place the screen back into the housing in order to avoid damage or debris.
If you do not use the unit for an extended period of time, please store the unit
safely in it's original box.

• Lightweight, Portable, and Durable

• White Matte Fabric Premium Viewing Surface

• Fold-Out Steel Tripod Legs and Roll-Up Screen Style

• Designed for Instant Setup, Portability, Mobile Projection

• Black Masking Border for Optimum Image Focus and Alignment

• Allows for Clear and Vivid Image / Video Capture

• Manual Auto-Locking Pull Feature

• Perfect for the Home, Oce, or Classroom

SPECIFICATIONS

PRJTP60

PRJTP80

PRJTP103

PRJTP102

PRJTP120

VIEWING AREAMODEL

29.4"×52.3"

(60” Diagonal)

41.2"×73.2"

(80” Diagonal)

60"×80"

(100” Diagonal)

49"×87.1"

(100” Diagonal)

72"×96"

(120” Diagonal)

STANDING

DIMENSIONS

TOTAL FOLDED/

CLOSED DIMENSIONS

4.3"×7.3"×58.9"28.7"×53.5"×58.5"

4.3"×7.3"82.2" 28.7"×65.4"80.1"

4.1"×7.3"89.8"33.1"×88.2"87.8"

4.3"×7.3"94.8"33.1"×74.8"93.9"

4.5"×7.3"103.1"31.6"×101.6"102.8"

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]

WEIGHT

14.02 lbs

17.5 lbs

20.41 lbs

21.08 lbs

23.55 lbs
