Page 1
Read the manual carefully,before use the projector
ALL-IN-ONE LCD PROJECTOR
MODEL NO.:PRJSD188
USER'S MANUAL
~
TV
AMPLIFIER
VIDEO
Page 2
Accessory and purchasable parts
In order to use the projector well ,when you open the
carton of projector ,please check the full accessories
Accessory list:
Purchasable accessory
1, projector screen
2, projector ceiling mount
3, spare lamps
Projector--------------------------1unit
remote control--------------------1pcs
power cable-----------------------1pcs
AV signal cable-------------------1pcs
HDMI signal cable---------------1pcs
VGA signal cable-----------------1pcs
warranty card---------------------1pcs
manual----------------------------1pcs
spare fuse-------------------------1pcs
clear paper------------------------1pcs
reflecting mirror-----------------1unit
27
CONTENTS
Warning
Safety precautions
Caution
Installation of projector
Full setting
Standard setting(front projector)
Installation method
Interface instruction

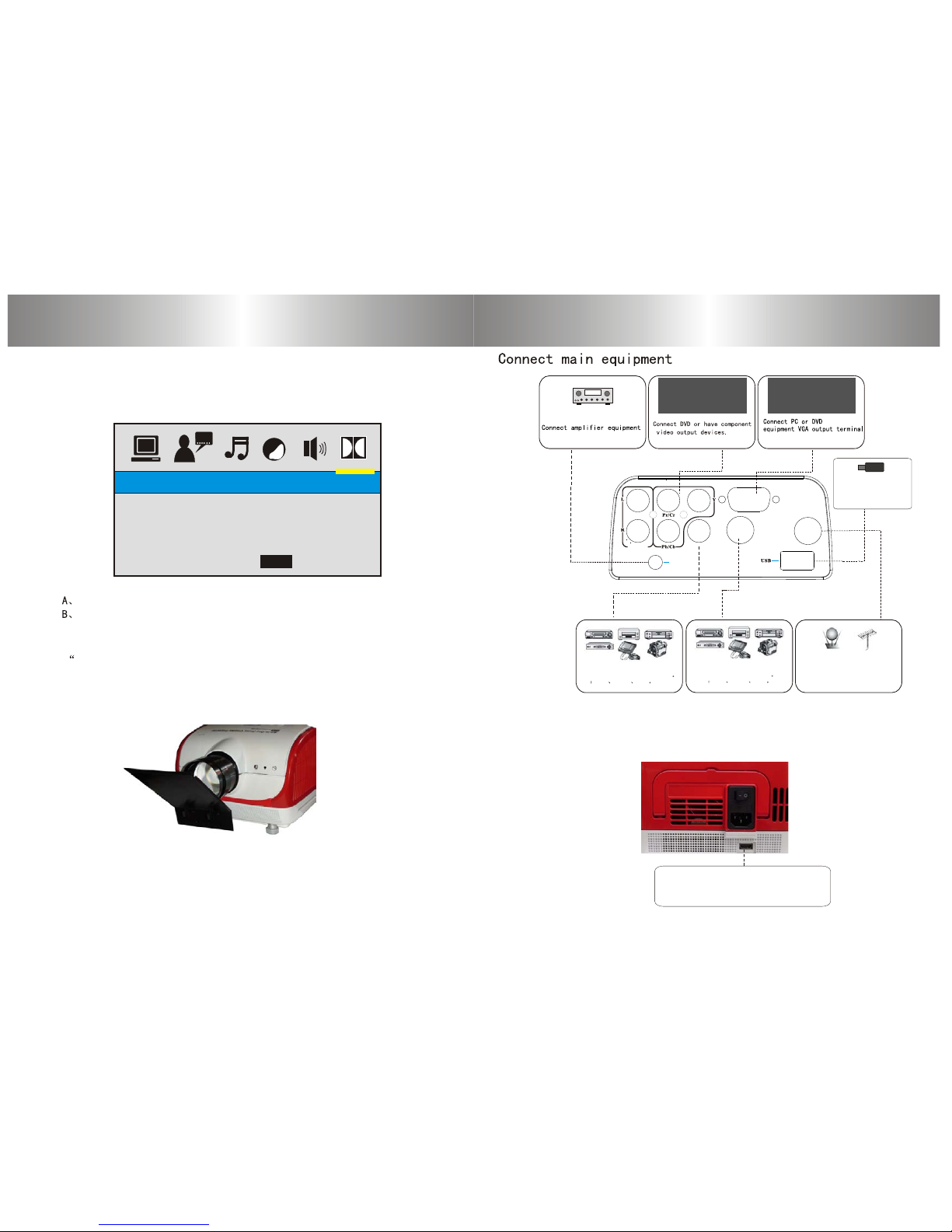

Signal connection map

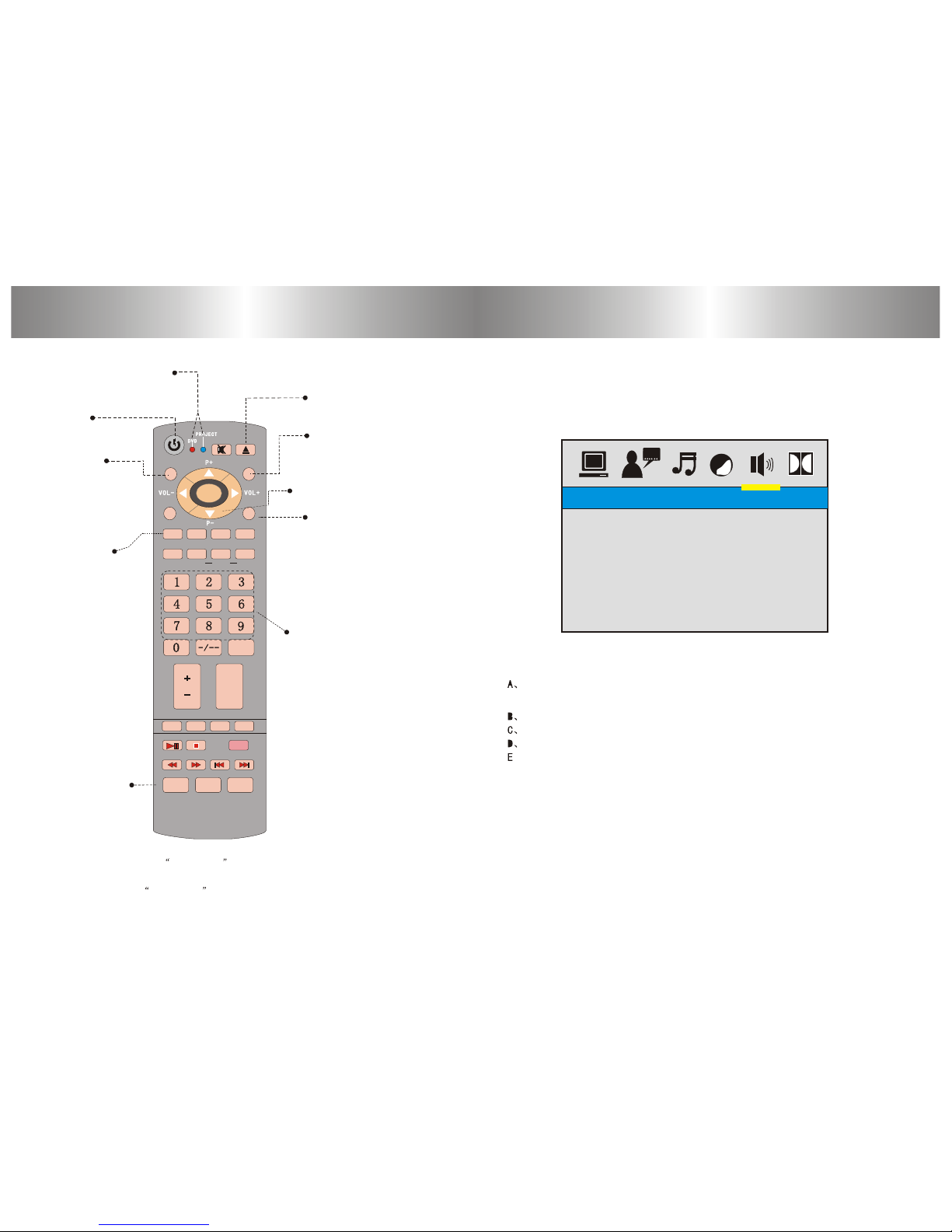

Remote control instruction
Panel keystoke instruction

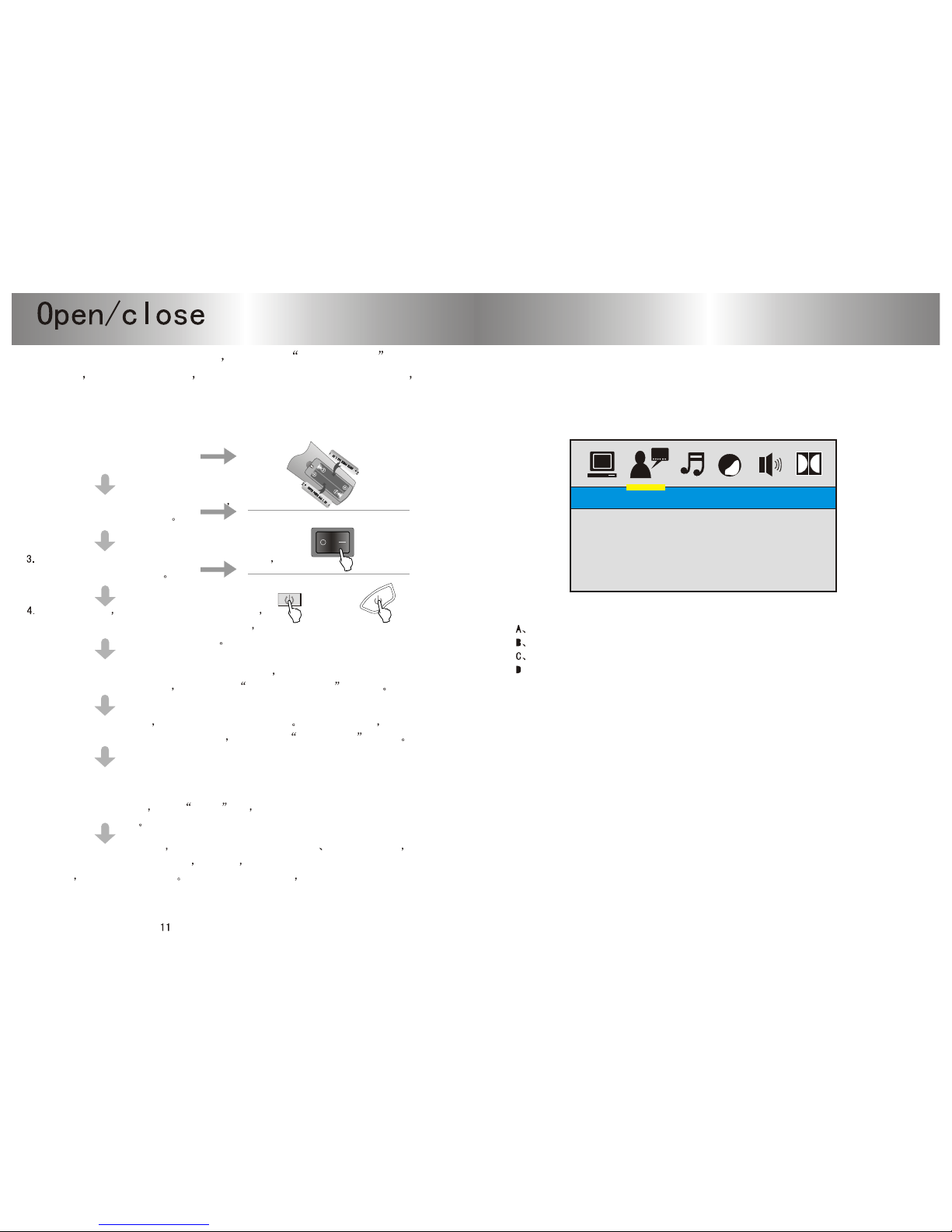

open/close
Open operation
Close operation
Image trapezoid adjustment
Focus adjustment
Trapezoid adjustment
Image trapezoid adjustment

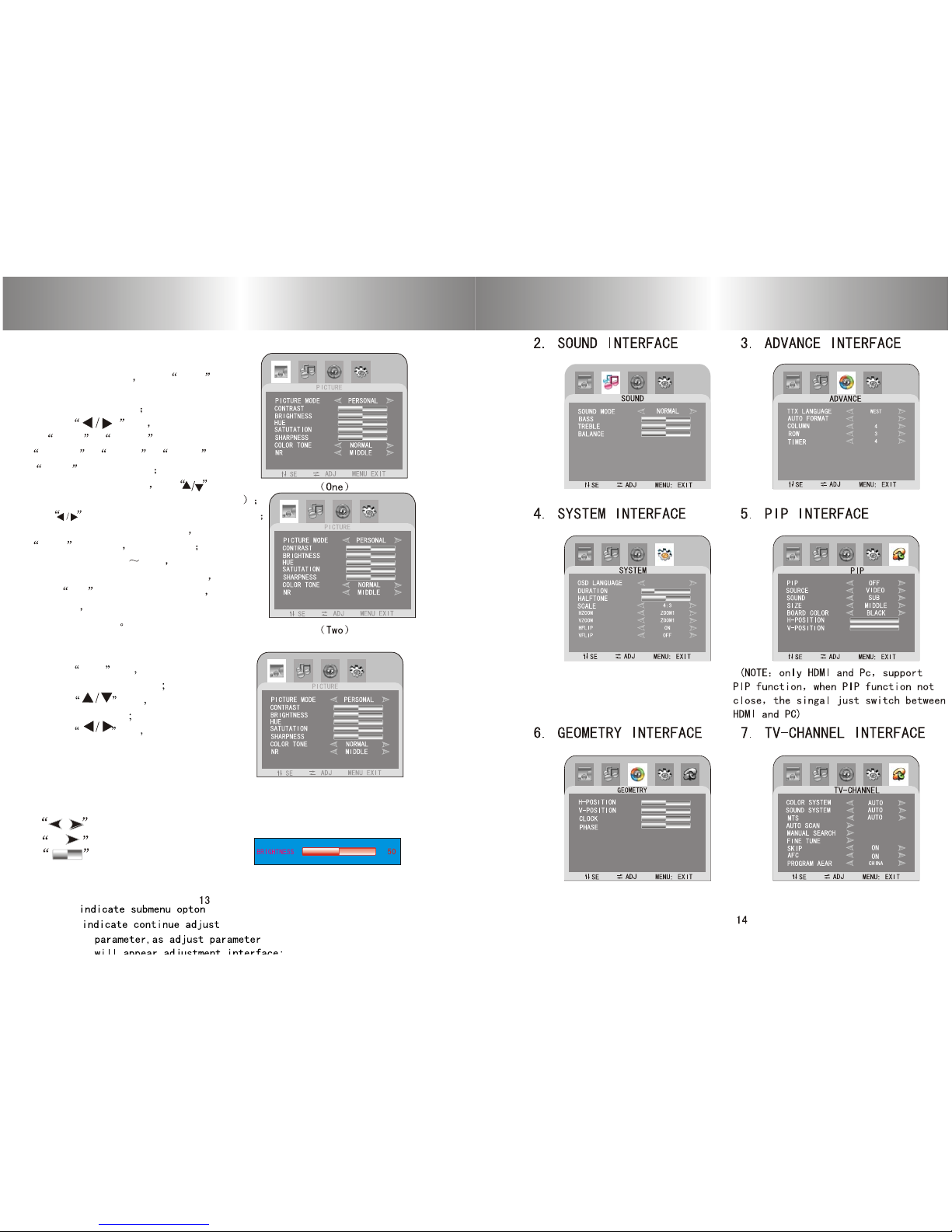

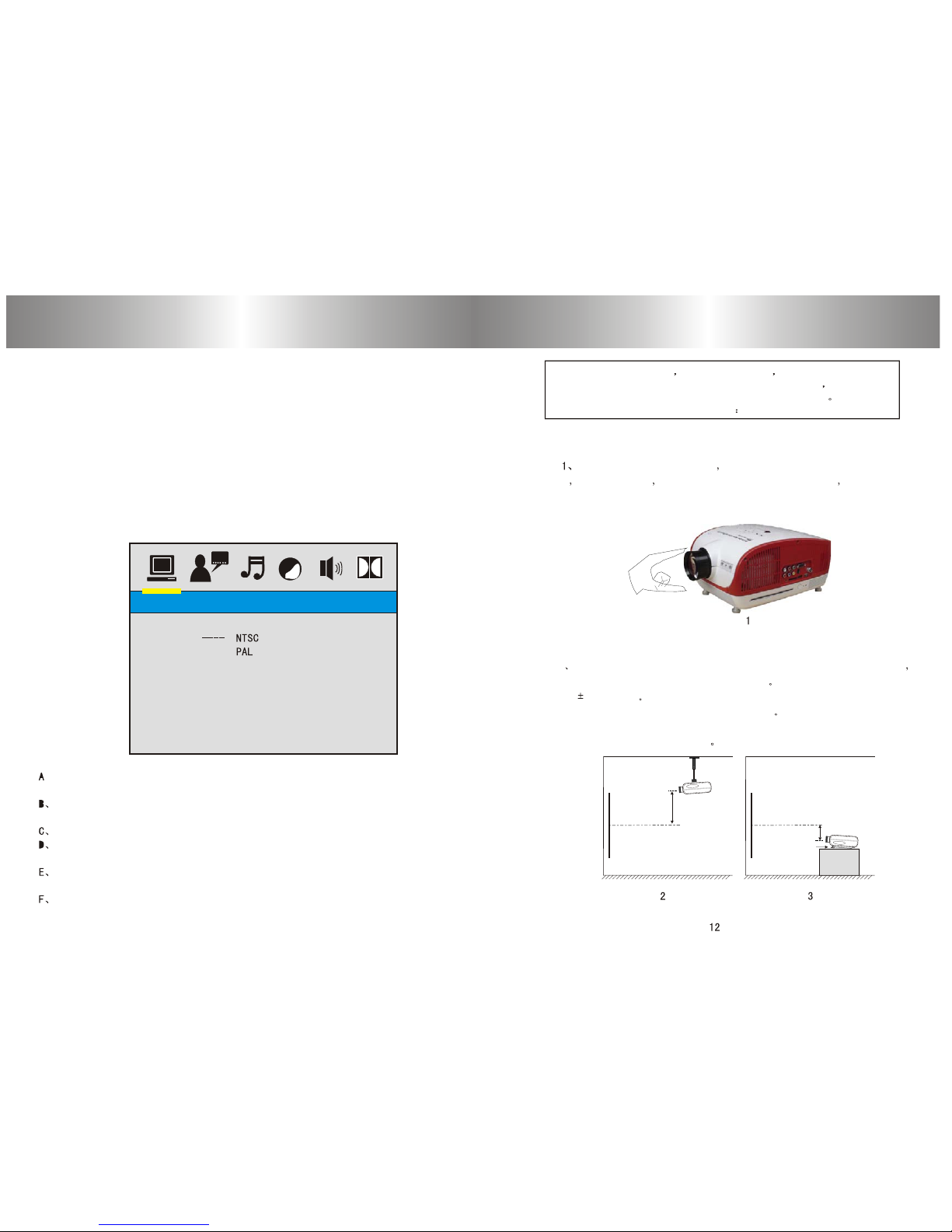

Menu setting method
1.Image menu adjustment
2.volume menu adjustment
3.function menu adjustment
4.system menu adjustment
5.PIP menu adjustment
6.preset menu adjustment
7.TV Search menu adjustment
DVD menu operation setting
HDMI or USB play setting
Maintenance
Trouble shooting
Specification
Accessory
Page 3
MODEL NUMBER
SERIES NUMBER
warning
Please remember the model Number
and series number if you need.
And please check all accessories
when you drop the carton package
Warning
Do not see the light from the lens ,it is high bright lamp.
It will damage your eye .specially for children
Warning :Do not place the projector in the wet condition,
avoid to getting an electric shock
Warning
when close the projector ,the fans will continue to turn 90seconds.
Before pull out the power cable, please be sure the fans stop to turn .
Or it will damage the projector lamp.
The remote control battery should be fixed correctly ,
Or it will damage the remote control.
Make sure the remote control out of children reach
About the remote control battery:
¼ÌÖμÌÖÎ
11
WARNING
When you use this projector , please read this manual carefully
WARNING
High Voltage ,do not open it ,
except for professional
1
It indicates there is a instruction
for important operation
It indicates there is a dangerous
voltage
26
Specification
LCD
Model
Input signal
video
audio
Output signal
audio
Component video ,s-video,
VGA , HDMI ,Ypbpr ,TV(optional), USB
Stereo
Stereo output ,coaxial output
5w*2 speaker and earphone
Native resolution
contrast ratio
800*600(support 720P,1080P)
800:1
LCD
Lens
Aperture
Focus
2.9
170mm
Lamp
Power
Colour -temp
life
working time
150w
9300k
8000hours
<10 hours
Size
Brightness
keystone
Voltage
power consumption
Working condition
Temperature
humidity
Store condition
Tempe ration
humidity
Remote control
Frequency
Machine
Size
weight
(If all parameter changed, do not note again)
90v-110v/ 60HZ
200
W
Page 4
Trouble shooting
problem
Possible situation
No image
If choose the right signal mode
If open the input signal devices
If connect the signal cable
If connect the signal cable well
Under VGA mode ,setting the computer
frequency must over 75KHz?
Projector
turns off
automatically
25
Lamp
doesn t
work
When you turn off the projector ,
the lamp too hot, please wait at least
5 minute ,then you can turn it on again.
Input power are wrong ,please confirm
your projector power specification 220V or 110V
Lamp are broken or out of service life
please replace the lamp and test it again
Safety precautions
Warning;
when use this projector ,please read this manual carefully.
If wrong operation ,it will cause electric shock or fire.so when use
and repair this projector ,please comply with the following points
1,Read manual
Before use this projector ,please
read full manual carefully and
operate according to this manual instruction
2,Clear
when clear this projector ,please pull
out the power cable. Use the wet cloth
to clear,not the cleasner
3.Accessory
please use our recommended accessory.
Or it will damage the projector.
4,Use environment
Donot place the projector in wet environment
5,installation and fix
please place this projector in stable table .
6, Ventilation
the ventilation in the projector are best
for projector work stably. Donot let the dust
wall up the filter. Or it will cause the projector
high-temperature protected. So please use the
water to clear the filter per month.
7, Power
please make sure the power same as your
projector inquiry specification. (220 V or 110V)
8, Earthing wire
this projector has earthing wire .
It is three pin plug.
9,protect the power cable
Please confirm the power cable
are perfect when connect the
projector.
10,Thunder
when the thunder happen or long time
no use , please pull the power cable
out of projector.
11,Repairment
As the high voltage inside ,please
donot open or try to repair the
projector by yourself. . Please ask a
professional technician to repair
the projector.
12, Far away Heat device
please make sure this projector far
away other heat device . It will
damage the projector service life
2
Dust cover the filter
The filter long time no clean,
please clean it by water
The voltage is too low or big fluctuation
Page 5

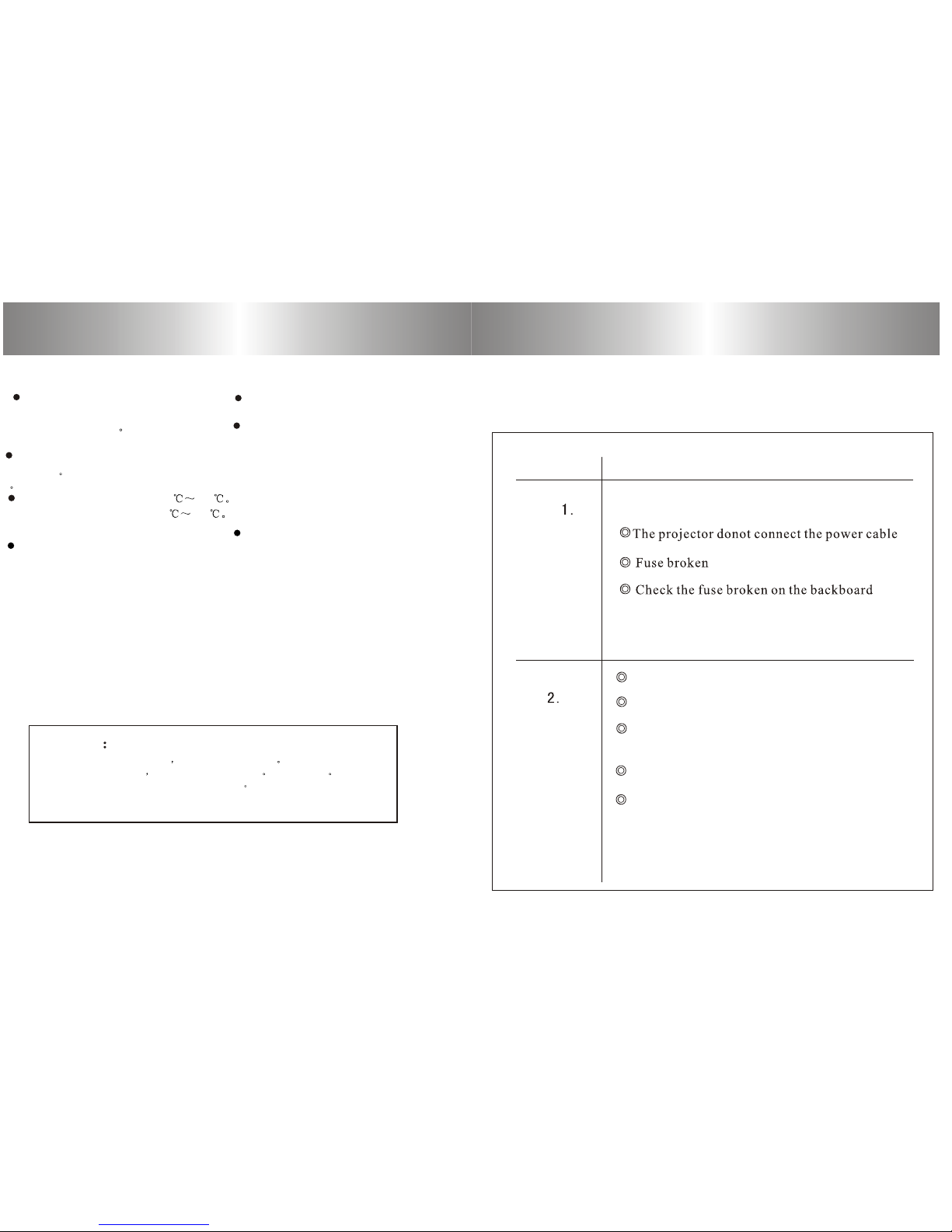

Trouble shooting
The projector operation is very simple . Just like to use TV.
please refer to this chapter when you encounter a problem
Problem
Possible situation
No power
Remote control
cannot open or
close the
projector
If open the power key
If there is no batteries in the remote control
If have obstruction between remote control
and projector
If have strong ray on the projector
This machine just turn off . You should
wait 5minutes and open the machine
again.
24
About the installation
In order to improve the projector service life,
It shouldnot place in a wet and
ventilation condition
Donot put the projector under the sunshine
directly
Projector working temperature: 0 +70
Projector store temperature : -20 +70
Fans will adjust the temperature It is controlled by system when the projector work,
the fans turn slowly or quickly so the fans noise are different But it is normal
when the projector work ,donot pull out the pwer cable If the fans stop to work,it will cause
the projector interior temperature very high, so it may damage the projector.
Warning
Caution
Donot block the ventilation-window
of projector
If the projector interior temperature
are too hot , the machine will be shut
off automatically.This is hot protected system.
So please clean the filter of projector
per month . It is very important.
Donot let the dust cover the filter.
About Open and close the projector
when open the projector ,connect
the power cable and press the "power"
key on the panel .the projector will
work ,but the lamp will be bright more
and more .After 5 minutes, the lamp work
normally
when close the projector , press the power
key again . And then the lamp shut off.
But the fans still work until 5minutes later.
When close the projector ,donot pull out
the power cable directly . After 5minutes,
the projector will shut off automatically.
3
Page 6

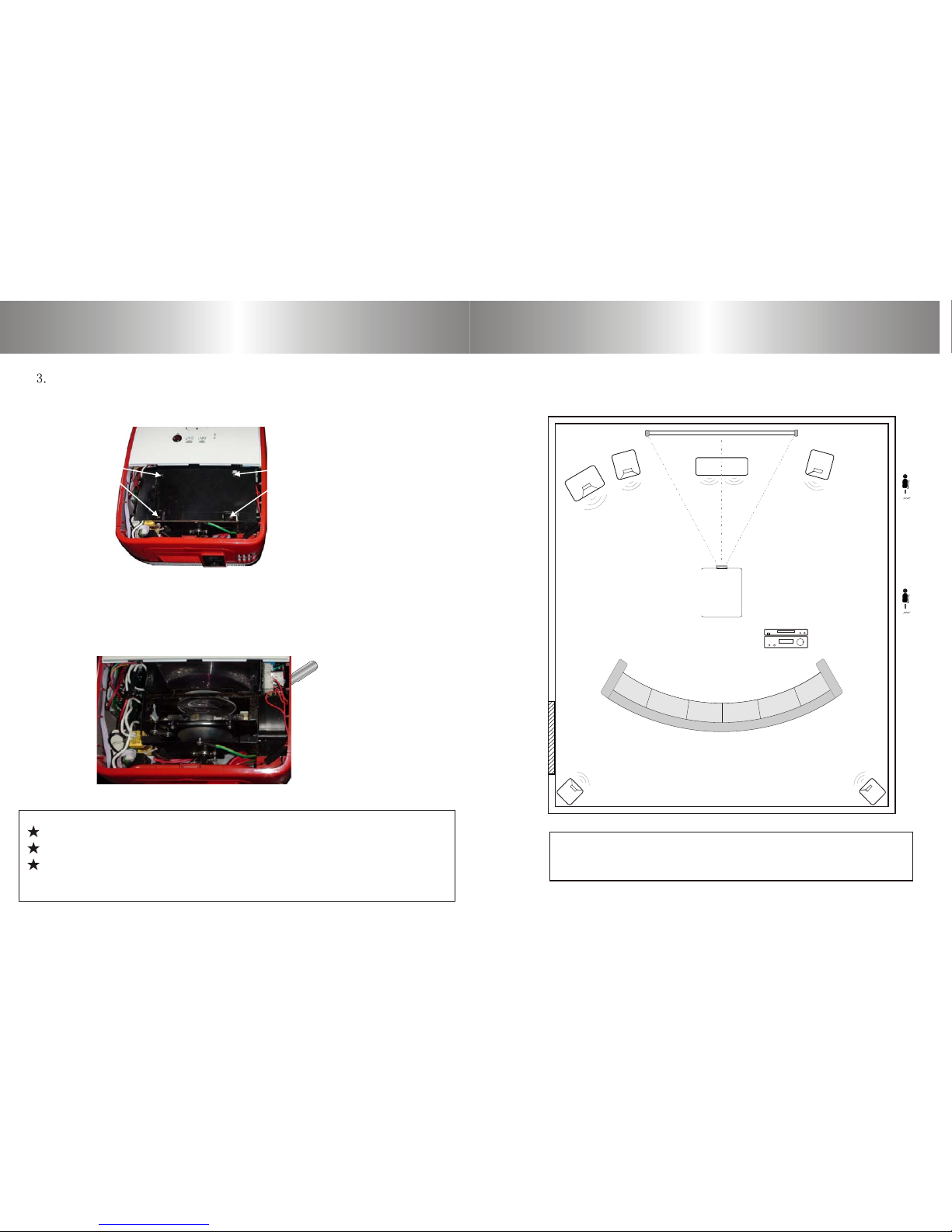

PROJECTOR INSTALLATION
Please use the setup instruction below:
Speaker
L
Subwoofer
Speaker C
Screen
Speaker
R
Appreciate seats
DVD
Amplifier
Projector
Speaker
Ls
Door
Speaker
Rs
In order to get good image quality ,donot let the sunlight shine
the screen directly .If you use the projector in the day time,
4
Installation
Maintenance
Use Screwdriver to remove the four screws as picture
Use a small screwdriver to insert the lamp terminal
to get the lamp out
Before replacing the lamp, make sure the lamp are cold.
Before open the lamp cover board,pull out the power cable
When replacing the lamp,donot drop some dirty goods inside the projector
23
4.
Page 7
warning

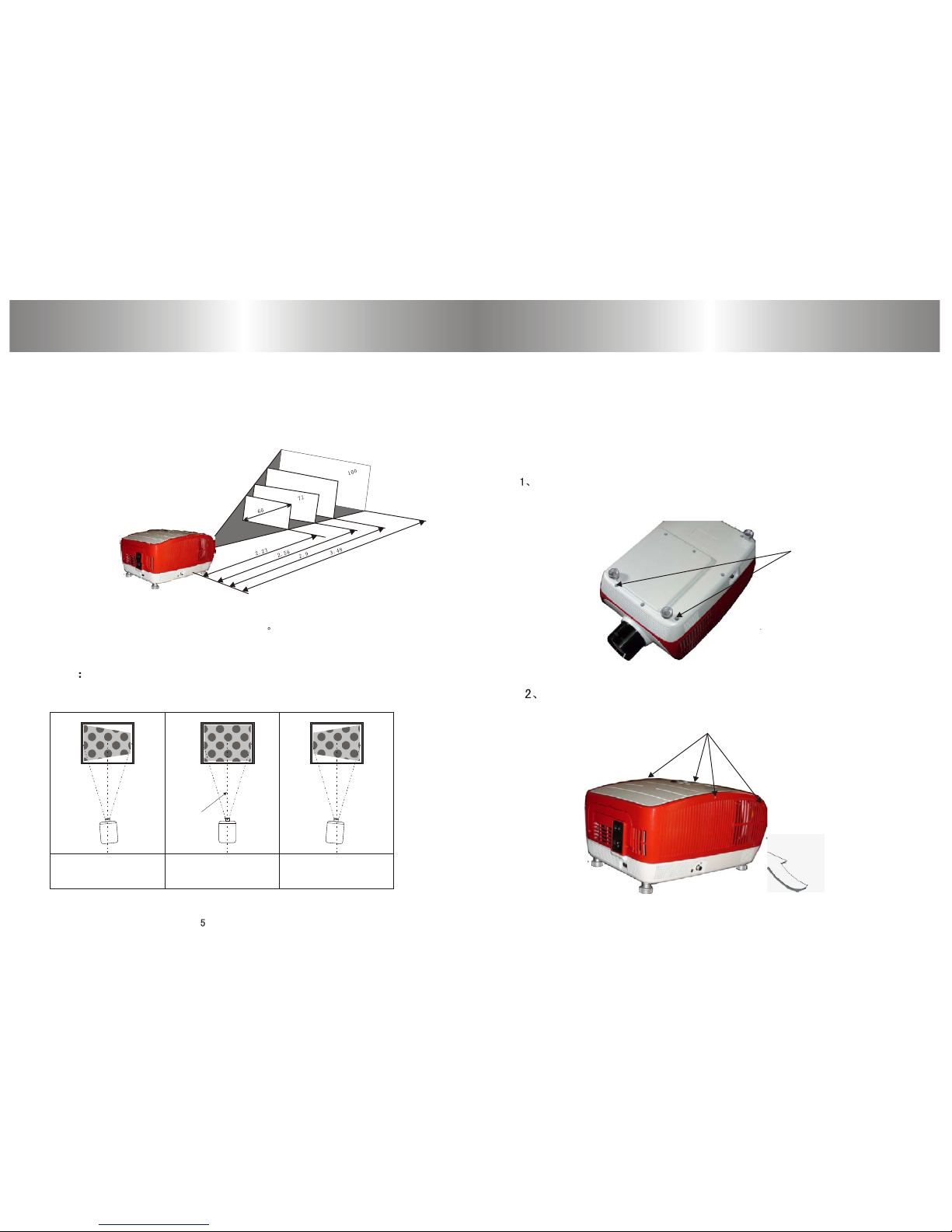

Please check the following picture to show the trapezoid adjustment
Incorrect installation,
the images right-left small.
Screen
Screen
symmetry
axis
Projector
Incorrect installation,
the images left-right small.
Installed correctly,
the image is rectangular.
The data maybe have 3% error,due to the image size according
to the distance between projector and screen if the distance is
less 2m or over 5m,the image would not be clear.
Projector Installation
Standard setting (front projection )
Please refer to the following instruction ,adjust your picture size and
distance, the projector must be put on a strong flat desk or suspended
on the ceiling by mounts
Maintenance
Replace the projector lamp
our projector lamp have 6months warranty ,But in different use environment
after 6000hours ,the lamp brightness will reduce and the image will become dark.
Therefore ,please replace the lamp according to the following steps:
2pcs screw
First inverse projector on the table and remove the 2screws as picture
22
4pcs screws
Put the projector on the table,remove the 4pcs screws and the cover
4:3 Image ratio
M
M
M
M
84
Inch
Inch
Inch
Inch
Page 8

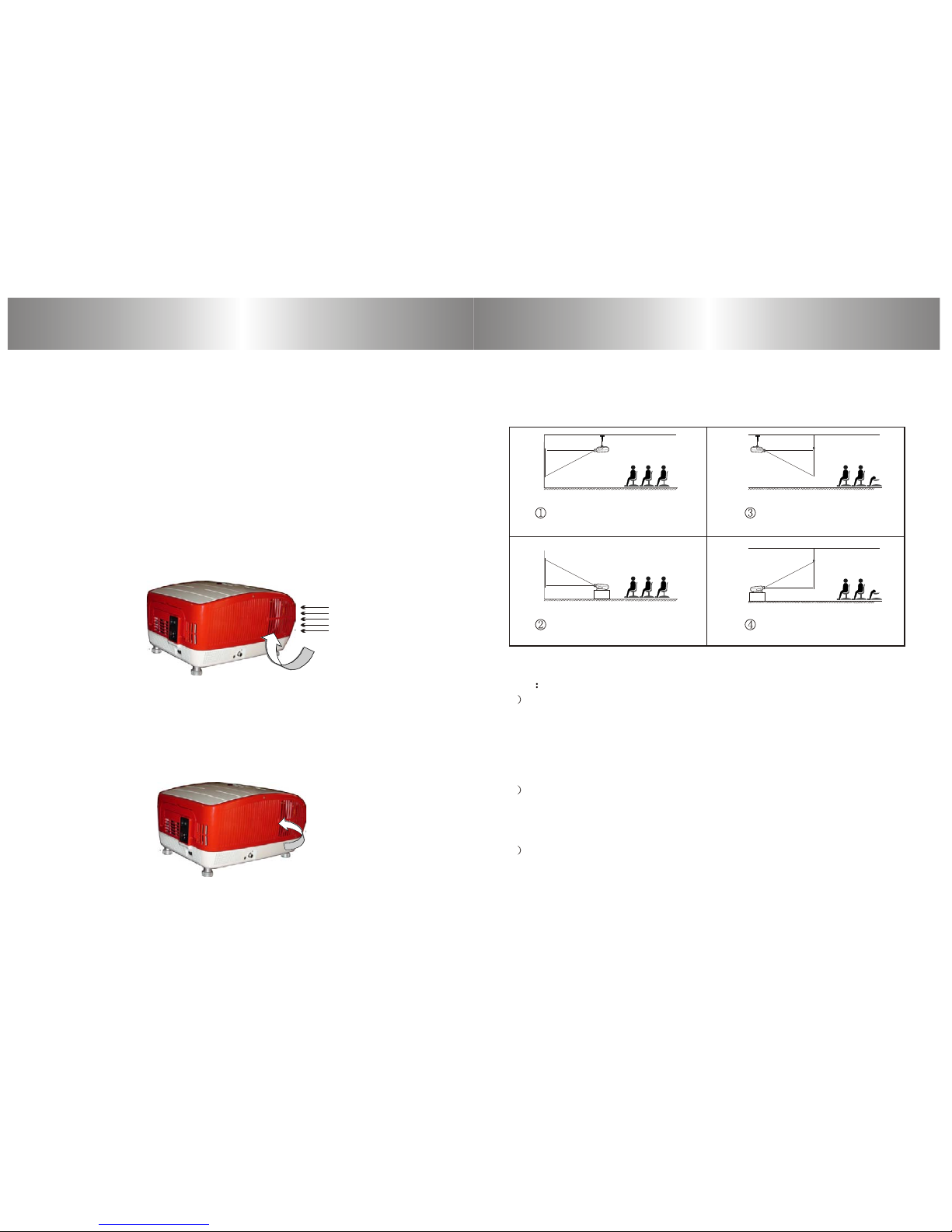

Front projection
ceiling mount
Front projection
Table mount
Rear projection
Ceiling mount
Rear projection
Table mount
screen
projector
screen
screen
screen
projector
projector
projector
Maintenance
When projector working ,the projector will be overheat
Now many projectors use fans to cold it .But our projector use
two filters to cold the projector .When use the projector,there
will be some dirt to cover the filter . So please clean the
filters per month.
Following step:
1.Remove the grille as picture
2.Clean the dust on the filter by water and dry the filter again.
And install the filte well
21
Projector installation
6
Warning
1 This projector might damage beyond repair when it is incorrectly mounted on
a ceiling or when its incorrectly installed on a surface or installed on a
incorrect surface. It may also inflict damage to persons within close vicinity.
2)This projector can only be used in an environment with a temperature not
exceeding the range of 0- 35 degree .The projector may malfunction if
temperatures vary outside the normal operating range.
3 The sharpness of the screen might be interrupted when the
projector is being used in a dusty,wet,moist or smoke filled
environment. The projector might malfunction in a moist or wet
environment.
4 Take care of sufficient ventilation around the projector.
Otherwise this projecctor might overheat and cause life threatening
situations
Installation method:
contact a proffessional service man to mount this projector to a ceiling
follow the instructions belowe for the corret projector positions:
Page 9
Projector installation
Input port instuction
This projector can support HDMI signal ,component video signal,s-video
VGA, and USB input ,TV signal ,the audio in and audio out function
Adjust the focus lens until the image is clear

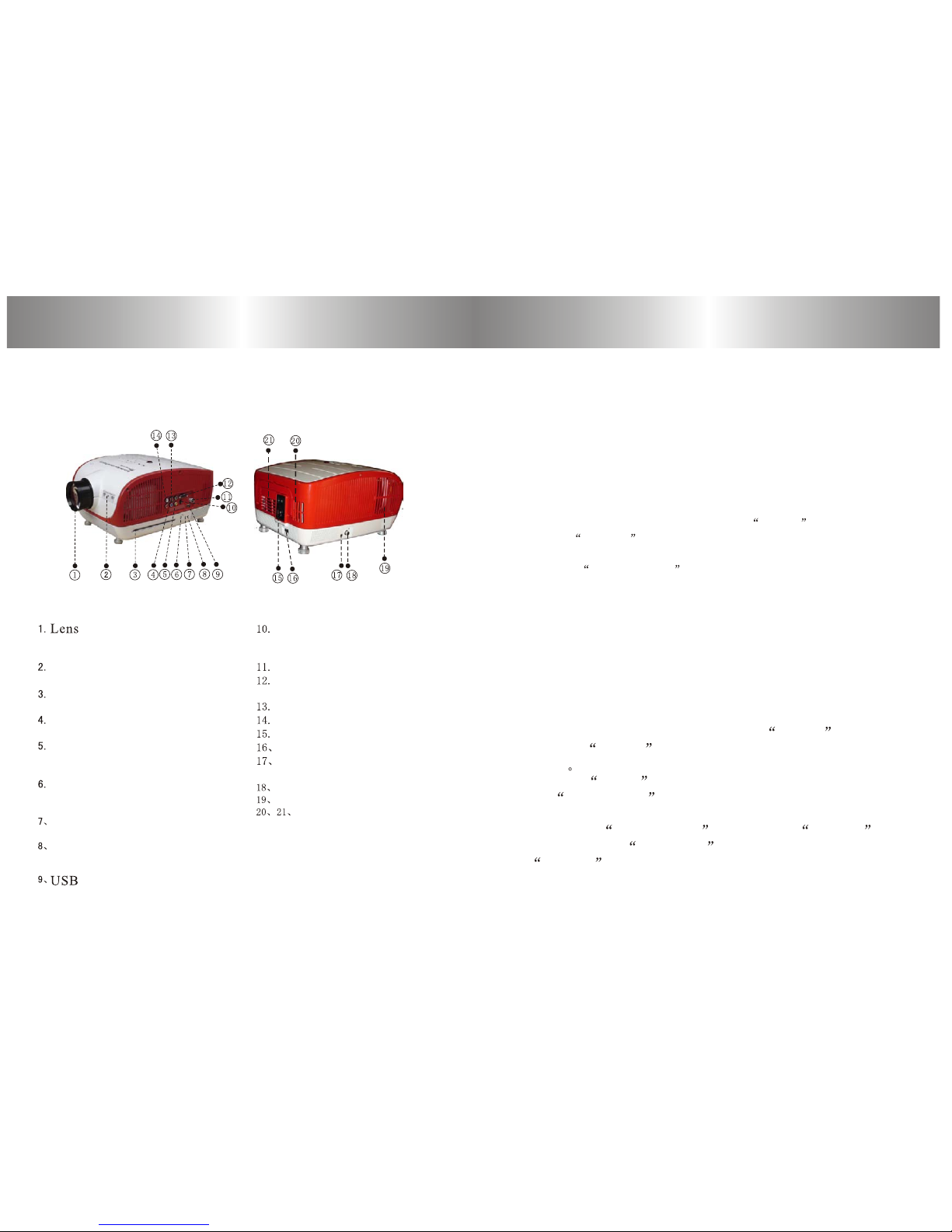

Panel brand
Logo
DVD window
The DVD inside or outside
Audio output
It can connect the amplifier
Video input
Disc output key
Press this key can replace the disc
DVD power indicator light
Choose the DVD channel,it is light
Situation indicator light
On DVD mode ,the light is blue ,if you press the
HDMI switch key on the remote ,the light is red
DVD channel,press the menu key,you can choose to play the
video or USB
7
S-VIDEO input
TV signal input
VGA input
Connect PC equipment
Component video input
Audio input
Power switch
HDMI signal input
Ear phone port
DVD audio coaxial output
Cold wind input port
Hot wind output port
HDMI and USB setting
If you want to paly the external HDMI signal or USB function,
,you must choose the DVD channel !
20
Play the external HDMI signal as following::
1.firstly open the projector power,the indicator light is flash,
Then press the power key on the panel or remote control ,
the projector begin to work
2.when blue screen appear ,press the source key on
panel or TV/AV Key on remote control,choose the DVD mode.
You can see the image which play the DVD disc .If you
press the HDMI switch key on the remote control ,it can play
the external HDMI signal .The DVD or HDMI indicator light
become red ,then you can enjoy your program.
Play the USB function as following:
1.firstly open the projector power,the indicator light is flash,
Then press the power key on the panel or remote control ,
the projector begin to work
2.when blue screen appear ,press the source key on
panel or TV/AV Key on remote control,choose the DVD
mode you can see the image which play the DVD disc .If you
press the Menu key on the remote control (please press
the mode switch key on the remote control,change the
Remote control to DVD mode ) Then entre the DVD system ,
choose the system setup ,then choose sources . You will
find the choice Disc /USB ,choose the USB and press
confirm key on the remote control. You will play the USB
Function.
Video signal input port
Page 10
Projector install
Connect the equipment without S-video
like DVD vidicon game
Connect the S-video equipment
like DVD vidicon game
Connecting an cable with matched
receiving antenna
Connect Mp4 AVI
and picturer of USB
HDMI connect
Back of projector
HDMI port ,under DVD mode ,
press HDMI switch on the remote control,
choose the external HDMI signal to play
8
DVD menu setting and reflected image play
Digital setup
When you choose the digital setup ,the screen will display as follow:
Digital setup
Op mode
dynamic range
dual mono
Op mode can setup for line out or FR adjust
Dynamic range can setup audio output range
If you adjust the DVD menu wrong and cause problem .the projector
cannot play the DVD disc. Please reset the menu . You can use the
factroy reset" ,then it will work well
.
Note:
Image display reflected 90degree
If you use projector in cold day ,you can use the reflected mirror to
install on the projector lens(as the above picture),you must adjust the focus lens
unitl the projection image are clearest .
19
VGA
TV
S-VIDEO
VIDEO
AUDIO
Audio output
Page 11
DVD menu operation setting
18
Speaker setup
When you choose the speaker setup ,it will display as following:
SPEAKER SETUP
DOWNMIX
SUBWOOFER
CENTER DELAY
REAR DELAY
FRONT
DOWNMIX set up the audio out for LT/RT, stereo
analog rear ,5.1speaker channel
SUBWOOFER set up the subwoofer open or close
Center deplyset up the center channel delay time
Rear delay set up the rear delay time
Frontset up the speaker volume higher or lower
Remote control instruction
9
HDMI input choise
you can choose the HDMI input
from other devices.
HDMI switch
Power
DVD open/close
Mode switch
This key for Mode choice (DVD or projector)
When press this key,the DVD code are red,
it means the remote control for DVD player.
When press this key again,the projector code
are blue.It means the remote control for projector.
Menu
confirm
Screen display
Title
Language
Caption
Angle
Ratio
PIP
TV/AV
chapter
Zoom
step
Audio
Mix
Vertical
Horizontal
Reverse
return
SUBPAGE
size
UP
Down
repeat
A-B
Preview
PBC
EPG
TEXT
HOLD
INDEX
REVAL
RETURN
SYSTEM
RESET
Slow display
Trapeziod+
Trapeziod-
Sound
DVD Mode or PROJECTOR MODE
Important Note :
1,this remote control can control the DVD player (Built inside) and projector .
So please use the mode switch key to choose DVD mode or projector mode.
2,Under DVD mode, all red key in the remote control can be used. Under Projector mode,
all blue key can be used.All white key can used under two modes.
3,when press mode switch ,if the indicator light are red,it means the remote cotnrol
can control the DVD menu ; if the indicator light are blue, it means the remote control
can control the Projector menu.
Under TV mode,it canadd or reduce TV channel
Confirm key
Number key
under TV mode,
you can choose the
channel number directly
Switch 16:9 or 4:3
( under VGA,HMI mode ,
the image only show 4:3
format under TV/AV mode,
the image can show 16:9
or 4:3 format)
It adjust the image trapeziod
Page 12

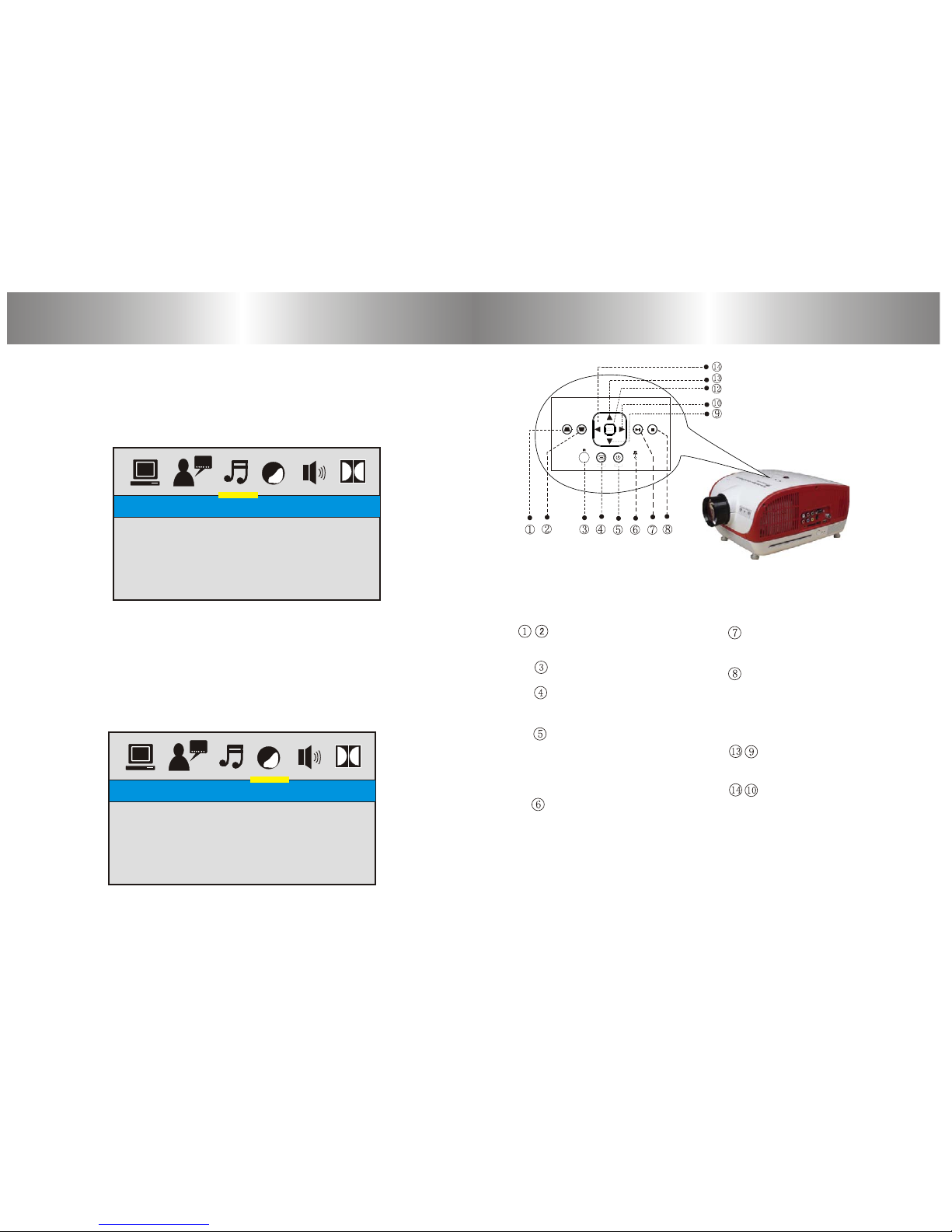

Panel keystoke instruction
Panel keystoke sketch map
Adjust the image trapeziod
Remote control reciver
Signal mode choice key ,for choose
different signal ,as PC,component
ATV,VIDEO,S-VIDEO,and DVD
POWER key ,for open /close projector
if close it must wait for release hot ,then
turn off the switch back of the projector
On working the indicator is light ,
on stay situation ,the light is flash
On DVD mode,press this key,
stop or begin the disc
On DVD mode ,press this key to stop to play.
press it again to play again ,if press it twice ,
it keep stopping.
Menu direction key ,can up/down
or choose TV channel
Menu direction Key ,can left/right
or adjust the volume higher or lower
10
DVD menu operation setting
Audio setup:
When you press the audio setup key ,it will display as following :
AUDIO SETUP
AUDIO OUT
MIC SETUP
KEY
ECHO
MIC VOL
17
Video setup:
When you press the video setup key ,it will display as following :
Video setup
BRIGHTNESS
CONTRAST
HUE
SATURATION
Page 13
If the projector is the new one please read projector install
chapter placed the projector connect the powerwire and the signelwire
the operation as follow:
1.Before use the remoter .
Put in two 7 size battery in it
2. Open the power switch on the backboard
the power light begin to flash
press the power key on the remote control or panel
the indicator light turn light
After 2 second the projector lamp begin work
began appear unclear white light on the screen
after 2 minute,the projector begin work
5. For the new projector. When the frist time to use maybe will appear image
unclear or trapezoid distortion please read image adjustment chapter
6. After the image is clear then you can watch program during watching
you also can setup the system parameter please read menu setting chapter
1.During use the projector press power key can let the projector
switch to stay situation
2.After inter into stay situation the projector under auto protect auto release hot
the indicator light is flase situation but here the projector is under auto protect
situation not accept any order if need to startup again must wait for finished
the release hot .
Open operation
Close operation
Power
16
DVD menu operation setting
Language setup:
When you choose the language setup ,the screen will
display as following
LANGUAGE SETUP
OSD LANGUAGE
AUDIO LANG
SUBTITLE LANG
MENU LANG
OSD LANGUAGE set up the menu words
AUDIO langset up the disc language
SUBTITLE LANG set up the disc display words
MENU LANG set up the disc menu display words
Note : B,C,D is relation with the disc that you play ,if can not
set .your disc no this function
Page 14
Image adjustment
turn the lens into the projector then turn it out slowly
at the same time looking at the resolution point carefully
when the image is very clearly (take the middle area of the image),it is the
best situation of the lens
Focus adjustment
The new projector using it first time commonly will
appear image faintness and the the image is trapezoid it is course
that not adjust well of the lens focus and the trapezoid
please follow the step the correction
2 adjust the trapeziod correction key-press orthe key on the remote
untile the screen image become square the trapezoid correction is
15degreen if can not adjust all the trapezoid distortion
need to minish the uprightness distance if use table
placed the projector can use the angle adjust key to change
the projector project angle
Trapeziod correction
Uprightness distance
Screen
projector
If can not adjust all the trapezoid distortion
need to minish the uprightness distance
Uprightness distance
Angle adjust
Screen
Projector
If can not adjust all the trapezoid diftortion
need to minish the uprightness distance
DVD menu operation setting
When you choose the DVD channel ,the DVD begin to work
when the DVD interface appear in the screen, put the disc inside
the projector , then you can enjoy your program.
Use remote control to operate the DVD menu ,please note the up/down
/left/right ,then press OK key
When the mode code is DVD,the light is red ,press the menu key ,
it will display the picture as follow:
System setup
TV SYSTEM
SOURCE
AUTO PLAY
VIDEO
TV TYPE
PASSWORD
RA TING
NEXT PAGE
AUTO
15
TV SYSTEM can choose 3 image standard ,the NTSC,PAL and AUTO
if it is unnormal ,you can switch it
Source can choose play USB ,the DVD VCD Mp3 Mp4
and AVI format ,JPG picture,the SD is no function
AUTO PLAY can choose open or close
Video can choose some format video ,it is the 1080P
HD signal output
TV type can choose 4:3 or 16:9,no need to adjust ,can adjust
the projector directly
Password and rating use for some disc that have
password or rating
Page 15
Menu settingMenu setting
Menu setting
Menu setting method
1. Using the projector press menu key,
the picture disply on screen to adjust the
menu(picture one)
2. press key the menu entre into
image > volume >
function > system > setting >
image adjust interface
3. Elect the adjust interface use key
elect the item that need to adjust(picture two
4. use key to adjust the elect item paremeter
5. Finished the elect item parameter press the
menu key again exit the page
6. Repeat operate the 2 5step
till finished all the parameter's setting
press exit key,exit the menu page
otherwise the menu page will exit automatically
after a period time
1. Image menu adjustment
a. Press menu key untile disply the
above picture of the menu
b. Press key elect the option
that need to adjust
c. Press key adjust
parallelisn elect parameter.
d. Press the "menu" key again exit
the menu page parameter adjust station.
ON
ENGLISH
note£º
¡° ¡±indicate fixed option£»
¡°¡± £»
¡°¡±
Note:
It means it has a certin choice
It means it has a subtitle choice
It means it has continuous
adjustable parameter
Loading...
