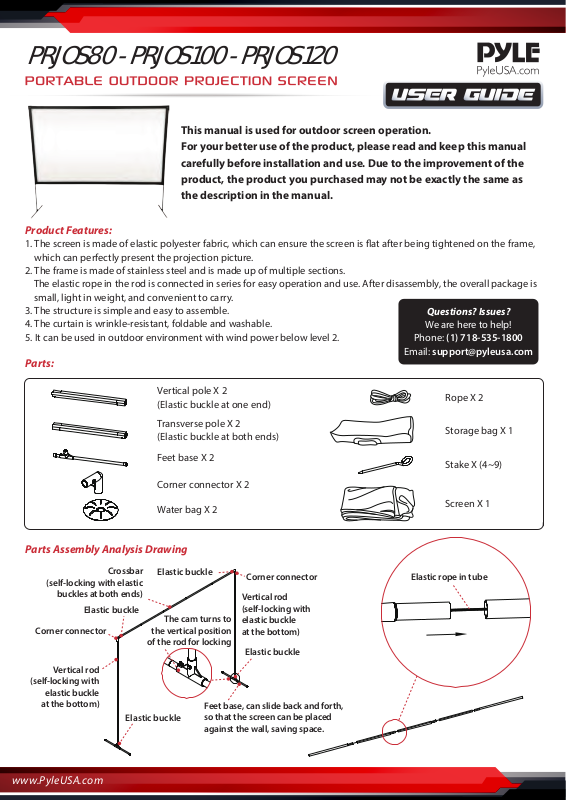

PRJOS80 - PRJOS100 - PRJOS120
This manual is used for outdoor screen operation.
For your better use of the product, please read and keep this manual
carefully before installation and use. Due to the improvement of the
product, the product you purchased may not be exactly the same as
the description in the manual.
Product Features:
1. The screen is made of elastic polyester fabric, which can ensure the screen is at after being tightened on the frame,
which can perfectly present the projection picture.
2. The frame is made of stainless steel and is made up of multiple sections.
The elastic rope in the rod is connected in series for easy operation and use. After disassembly, the overall package is
small, light in weight, and convenient to carry.
3. The structure is simple and easy to assemble.
4. The curtain is wrinkle-resistant, foldable and washable.
5. It can be used in outdoor environment with wind power below level 2.
Parts:
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: support@pyleusa.com
Vertical pole X 2
(Elastic buckle at one end)
Transverse pole X 2
(Elastic buckle at both ends)
Feet base X 2
Corner connector X 2
Water bag X 2
Parts Assembly Analysis Drawing
Crossbar
(self-locking with elastic
buckles at both ends)
Elastic buckle
Corner connector
Elastic buckle
The cam turns to
the vertical position
of the rod for locking
Corner connector
Vertical rod
(self-locking with
elastic buckle
at the bottom)
Elastic buckle
Rope X 2
Storage bag X 1
Stake X (4~9)
Screen X 1
Elastic rope in tube
Vertical rod
(self-locking with
elastic buckle
at the bottom)
www.PyleUSA.com
Elastic buckle
Feet base, can slide back and forth,
so that the screen can be placed
against the wall, saving space.
Page 2
Installation Steps (Reverse operation when disassembling)
1. Install the vertical rod and feet
base.
Vertical rod
Vertical rod
4. Insert the corner connector into
the vertical poles on
both sides
2. Put screen sides of the screen
into the vertical pole.
5. Push the vertical rod to both
sides to make the screen
equal width up
and down.
3. Insert the upper transverse pole
and corner connector.
6. Fill the water bag with water
and press it on both sides of the
feet base.
Outdoor Use
Note:
If the outdoor wind power exceeds level 2,
this product cannot be used to avoid
personal injury or product damage!
Use a water bag when there is no wind; when
you use it outdoors, use a ropes to tie both
sides of the screen to adjust the position of
the bolt and the length of the ropes (as
shown in the picture).
Note: Stake cannot be used on hard ground.
Rope
Stake
Rope
Rope
Stake
Rope
Stake
Stake
