PREA90WBT

Stereo Bluetooth Home Theater

Amplifier

USER GUIDE

READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT.

RETAIN THIS OWNER’S MANUAL FOR FUTURE REFERENCE.

Features:

• Bluetooth Wireless Streaming Ability

• Built-in USB Playback

• LED Display

• USB Flash Drive

• FM Radio with LED Digital Display

• IPOD/MP3 (3.5mm) Input

• MIC/OPTICAL/COAXIAL/HDMI/AC-3/DVD Inputs

• Desktop Stereo Hybrid Power Amplier

• Compact Home Theater-Stereo Receiver Style

• Built-in Bluetooth for Wireless Music Streaming

• Speaker Output

• Optical/Coaxial Digital Signal Inputs

• Multi-Channel Audio Input Selection

• MP3/WAV Audio Files Support

• Connect & Stream Audio from External Devices

• Front Panel Audio Control Center

• Radio Station Auto-Search Scan

• Spectrum Mode Functions

• Repeat Audio File Functions

• Channel Volume Adjustable

• Treble, Bass, Echo,Master & Microphone Volume Control

Technical Specs:

• Power Output: 1600 Watts

• Operating Voltage: 120V/240V

• Remote Control Battery: Need 2x ’AAA’ Battery (not included)

• MAX Power Output: 70 Watt x3 (@ 4 Ohm)

• RMS Power Output: 50 Watt x 3 (@ 4 Ohm)

• Tone Control: Bass, f=100Hz +/-12dB, Treble, f=10 KHz +/-12dB

• Tone Control for Mic: Bass, f=100Hz +/-8dB, Treble, f=10 KHz +/-8dB

• Frequency Adjustment: +/-2dB

• Signal to Noise Ratio: >75dB

• T.H.D.: <1%

• Radio Station Presets: Up to 40 Stations

• Separation Degree: >45dB

• Power Supply: 115V/230V, Switchable

• Dimensions (L x W x H): 16.93'' x 11.81'' x 4.53'' -inches

WIRELESS BT STREAMING OPERATION INSTRUCTION:

External devices which have a built-in Wireless BT feature can be connected

to this amplier wirelessly to play through the amplier's speakers.

If your amp is connected to speakers, you will hear audible tones which

will help for connecting.

1. Press the "INPUT" button located on the front panel and select "BT" mode.

2. Turn ON the Wireless BT of your external device.

What's in the Box:

• Desktop Stereo Amplier

• Remote Control

• FM Antenna

• Handles

• Screw

www.PyleUSA.com

2

California Prop 65 Warning

WARNING:

This product contains Lead (Pb) which is known to the state of
California to cause cancer birth defects and other
reproductive harm. Do not ingest.

For more info go to: www.P65warnings.ca.gov

3. Search for available BT devices and make sure to be within range of your

amp, and wait for your device to select "Pyle Speaker" on the pairing

devices lists of Wireless BT networks.

4. The unit is automatically ready to pair with your devices when you hear

audible tones.

5. Now you can play music on your external device through the amplier.

www.PyleUSA.com

3

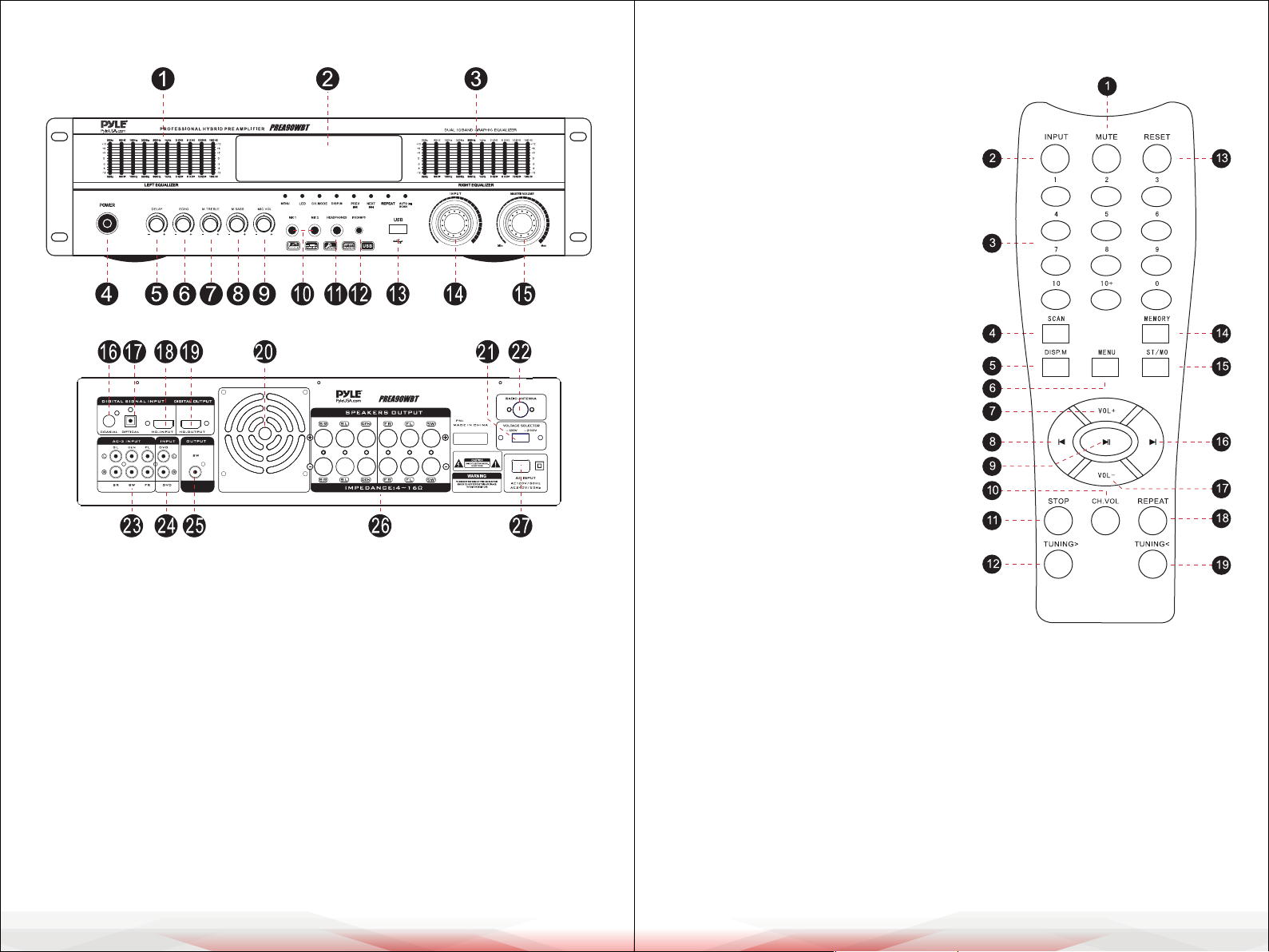

Front and Back Panel

1. Left Equalizer

2. LED Digital Display

3. Right Equalizer

4. Power ON/OFF Switch

5. Delay Control

6. Echo Control

7. Treble Volume Control

8. Bass Volume Control

9. Mic Volume Control

10. Mic 1&Mic 2 Input

11. Headphones Input

12. IPOD/MP3 Inputs Jack

13. USB Reader

14. Input Selection

15. Master Volume Control

16. Coaxial Input Jack

17. Optical Input Jack

18. HDMI Input

19. HDMI Output

20. Cooling Fan

21. 120V/240V Voltage Selector

22. FM Radio Antenna

23. AC-3 Inputs

24. DVD Input (L/R)

25. Subwoofer Output

26. Speaker Output

27. AC 120V/240V Input

Remote Control Functions

1. Mute button

2. Input button: Switch between input

sources.

3. Numeric key pad: In USB mode, use to

manually select tracks. In radio mode

use to manually select stored stations.

4. Scan button: Scan between stations.

5. Spectrum display mode.

6. Menu button: Controls function of

Master Volume (Volume, Bass, Treble,

Balance)

7. Master Volume + button: Increases

volume level.

8. Previous button: Move back through

tracks from USB Input

9. Play/Pause button: Play and pause

music from USB Input

10. Channel mode volume

11. Stop button: Stops music playing

from USB input

12. Tuning Forward button: Move forward

through radio stations.

13. Reset button: Resets volume to 20dB

14. Memory button: Allows user to save

selected stations.

15. Stereo/Mono button: Toggles between Stereo and Mono modes.

16. Next button: Move forward through tracks from USB input

17. Master Volume - button: Decreases volume level.

18. Repeat button: Repeats current track from USB Input

19. Tuning Back button: Move back through radio stations.
