Pyle PPHP87BTA User guide

Download

Page 1

Questions? Issues?

We are here to help!

Phone: (1) 718-535-1800

Email: [email protected]

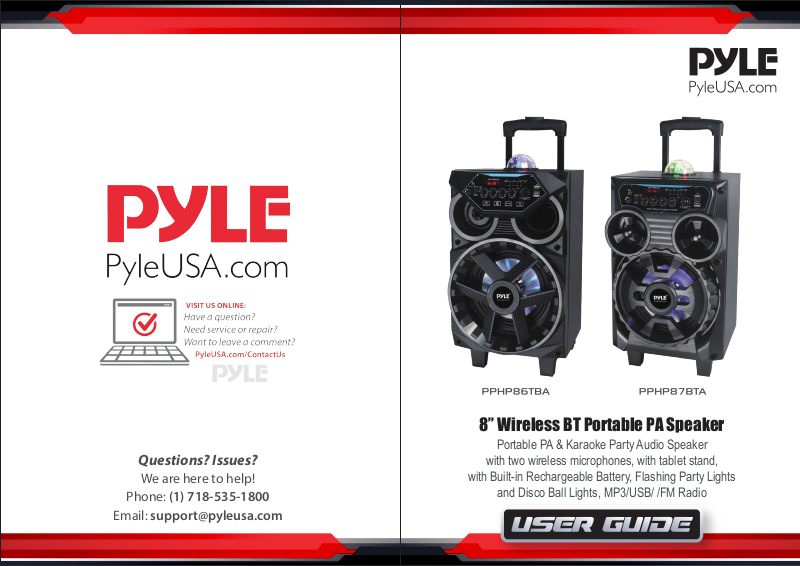

8’’ Wireless BT Portable PA Speaker

Portable PA & Karaoke Party Audio Speaker

with two wireless microphones, with tablet stand,

with Built-in Rechargeable Battery, Flashing Party Lights

and Disco Ball Lights, MP3/USB/ /FM Radio

Page 2

WARNING

1. DO NOT place objects on top of the device, as objects may scratch the device.

2. DO NOT expose the device to dirty or dusty environments.

3. DO NOT insert any foreign objects into the device.

4. DO NOT expose the device to strong magnetic or electrical eld.

5. DO NOT use the device in the rain

6. Please check with your Local Authority or retailer for proper disposaI of electronic products.

7. DO NOT disassemble the device. Only a certied service technician should perform repair.

8. The device has apertures to disperse heat. DO NOT block the device ventilation, the device may become hot and malfunction as a result.

CONTROL BOARD FUNCTIONS

1. Master volume control/Power swich

2. 3.5MM AUX input jack

3. Bass volume control knob

4. Treble volume control knob

5. Echo control knob

6. Microphone volume control knob

7. Charge LED indicator, red color is on charge mode, light o is full charge mode

8. DC 9V input jack

9. 6.5MM microphone input jack

10. Display screen

11. Short press to choose mode/Press and hold to turn ON/OFF light

12. Previous

13. Play/Pause/press and hold for TWS function

14. Next

15. Short press to start recording, and press again to save and play recording. Press and hold to play recorded les, press and hold again to quit recording.

16. Microphone priority button: When play recording, press and hold to delete current recording

17. USB and Micro SD Memory Card Slot

www.PyleUSA.com

Page 3

TROUBLESHOOTINGREMOTE CONTROL FUNCTIONS

1. Power: Used to turn on/o the MP3 player power.

2. MODE: Used to switch the AUX/USB/BT/ Radio

3. Mute button

4. In FM mode, press to search radio station automatically and save.

5. Next song in USB/In FM mode, short press to select saved radio station.

6. Previous song in USB//In FM mode, short press to select last frequency, press and hold to fast backtrack frequency.

7. EQ solution

8. Repeat song

9. Increase volume

10. Decrease volume

11. Play/Pause/In FM Mode, press to select saved radio station.

12. Choose song number directly/In FM mode, choose FM frequency directly.

Fault

No sound

Distortion of sound

Karaoke does not work

MP3 does not play

1. No input sound source.

2. Volume is too low.

1. Volume too high.

2. Speaker may be damaged

1. Microphone plug is not fully inserted.

2. Microphone switch is not on.

3. Microphone volume knob is at the lowest position.

1. The audio format in the USB is incorrect.

2. Improper operation has caused a process disorder.

3. USB disc is disconnected.

Possible Cause

Wireless BT Connectivity:

Built-in BT for Wireless Music Streaming

•

Solution

1. Use a better music signal.

2. Adjust volume.

1. Turn down the volume.

2. If speaker is damaged, repair or replace it.

1. Plug microphone properly into the socket.

2. Turn on microphone switch.

3. Adjust microphone volume properly.

1. Convert audio format into Mp3

format.

2. Reboot the machine.

3. Insert USB disc properly.

TWS FUNCTION

For increase sound eect, our unit provides TWS function as follows:

Step-1: Turn ON BT mode on your device and connect the machine.

Step-2: Press and hold each control board “TWS” button more than 3's, and you will

see "ON" on display, unit will start to connect the other unit automatically, now you can enjoy stereo sound, and adjusting one unit volume will aect the other unit.

Remark:

1. After connection, press and hold again one of control board "TWS" button more than 3's, you will see "OFF" on display, unit's TWS dis-connection.

www.PyleUSA.com

• Simple & Hassle-Free Pairing

• Works with All of Today’s Latest Devices

• Smartphones, Tablets, Laptops, Computers, etc.

• Wireless BT Version: 5.0

• Wireless BT Network Name: ‘PYLEUSA’

• Wireless Range: Up to 32’ ft.

This product can expose you to a chemical or group of chemicals, which may include “Lead and lead compounds” which is known in the state of California to cause cancer, birth defects, or other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.
