PPHP1548B
15'' Portable Wireless BT Subwoofer System
USB/Micro SD Card Reader/FM/Aux/Mic Inputs,
With LED Light, Wheel, Handle, Tripod & Remote Control
Page 2
WARNING!
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE THE COVER OF THIS UNIT.
THERE ARE NO USER - SERVICEABLE PARTS INSIDE.
REFER ALL SERVICING TO A QUALIFIED TECHNICIAN.
The lighting ash with arrow head symbol within an equilateral triangle is
intended to alert the user to the presence of “dangerous” voltage within the
product’s enclosure that may be of sucient magnitude to constitute a risk
of Electric shock to humans. Users should exhibit extra safety when this
symbol appears in this instruction manual and follow all precautions as
they are stated.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
in structions in this manual.
SAFETY INSTRUCTION
1. Please read the user manual carefully before use and retain for future reference.
2. The power supply must match the demand of the device with reliable ground
wire.
3. All covering signal should be complied with the demand of device.
4. The device should be located far away from high temperature, moisture and
powerful electromagnetic eld.
5. Max operating temperature is 113°F.
6. No naked ame sources, such as lighted candles, shall be placed on the product.
7. Clean only with dry cloth – The appliance should be cleaned only as
recommended by the manufacturer.
8. When not in use, unplug the unit from the mains.
9. To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and
without distortion.
10. Only use suitable means of transportation if you want to move the speaker.
www.PyleUSA.com
2
Page 3
Note:
• Once the WIRELESS BT devices are paired, there is no need to pair them again.
• If the speaker is connected via BT device but does not play with sound, please
turn of nearby devices and only leave one device to re-connect with the speaker.
• When inserting the USB/SD Card , make sure the direction you selected is correct.
Never insert violently to avoid damaging the USB/SD Card or the unit. If it doesn't
work, please check if the direction is correct.
• Turn off and pull out the USB/SD before turning off the speaker.
CONTROLS AND CONNECTIONS
4
5
6
7
8
VOLUM E
TREBLE
BASS
MIC.I N
ON
OFF
Micro SD
LED
9
TYPE C
10
5V 2A
11

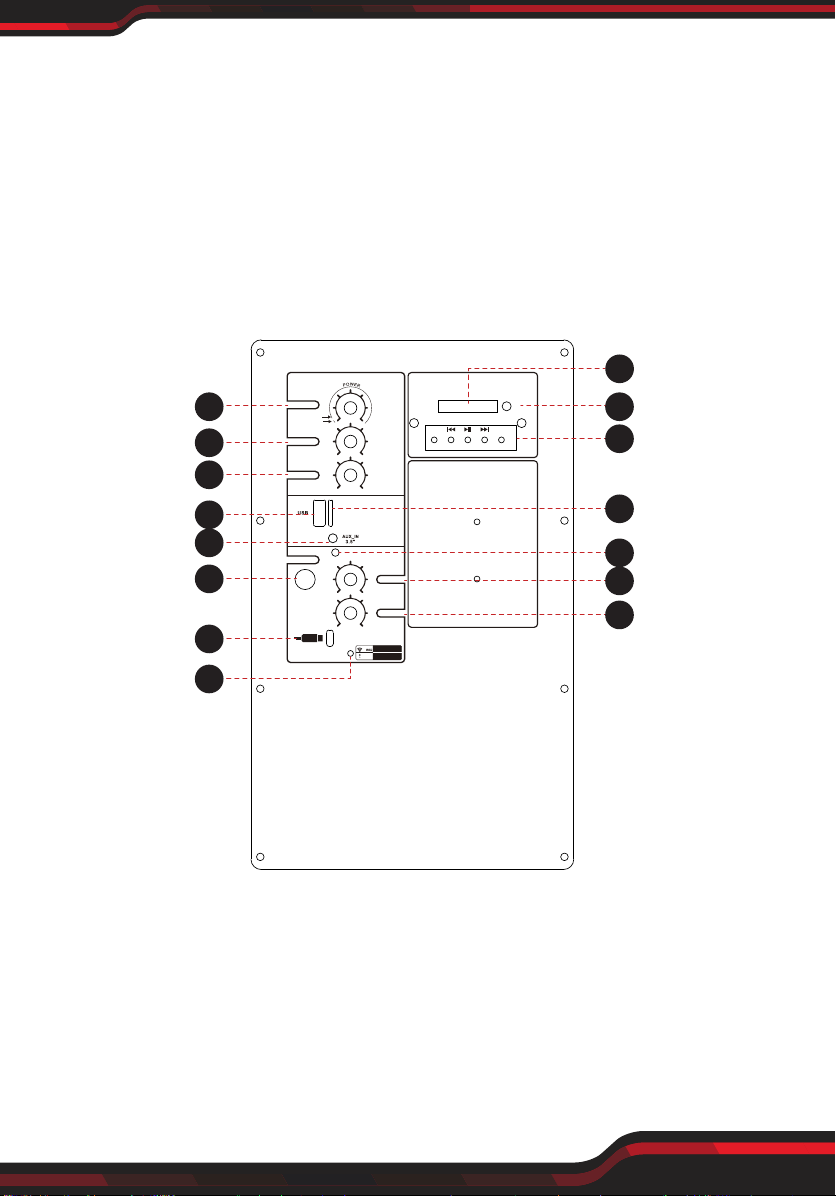

1. LED Screen
2. Function Buttons
3. IR: Remote control receiver
4. MP3 volume/Power switch
5. Treble control for high frequencies
6. Bass control for low frequencies
7. USB port
8. 3.5mm line input
MP3 PLAYER
MODE
TWS
Vocal
Remov e
IR
3
2
12
13
1
SLAKE
MIC.VOL
ECHO
CHARGE
THE BATT ERY
STOP CHAR GING
IMMED IATELY
14
15
9. Mic input jack
10. Type C charge port
11. Charge LED
12. Micro SD
13. LED switch (ON/OFF)
14. Microphone input volume control
15. ECHO control
www.PyleUSA.com
3
Page 4

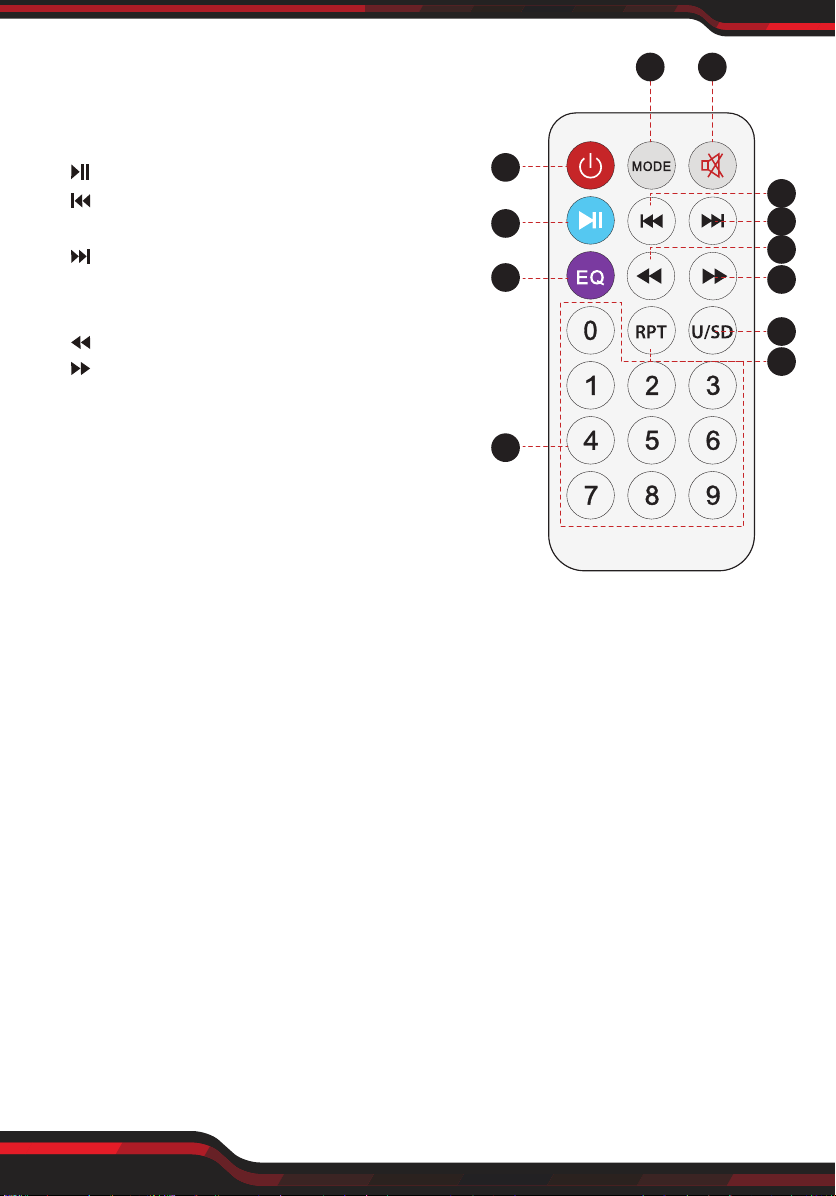

1. MODE: Switch between USB/ MICRO
SD/BT/FM/LINE IN
2. Mute mode
3. Standby mode
4. : Play/Pause
5. : when USB/MICRO SD: Previous Song
when FM: Swich to backward
6. : when USB/MICRO SD: Next Song
when FM: Swich to next channel
7. EQ: NORMAL, BASS, POP, ROCK, CLASS, JAZZ
8. : Fast forward
9. : Fall back
10. USB/MICRO SD control
SCAN: Press and hold to auto search
under FM radio
11. REP: Random/Single/Order
12. 0-9: Choosing music by numbers
3
4
5
1
Wireless BT Connectivity:
• Wireless Music Streaming Ability
• Quick & Hassle-Free Device Pairing
• Works with All of Your Favorite Wireless BT-Enabled Devices
(Smartphones, Tablets, Laptops, Computers, etc.)
• Wireless BT Network Name: ‘PYLE SPEAKER’
• Wireless BT Version: 5.0
1 2
6
7
8
9
10
11

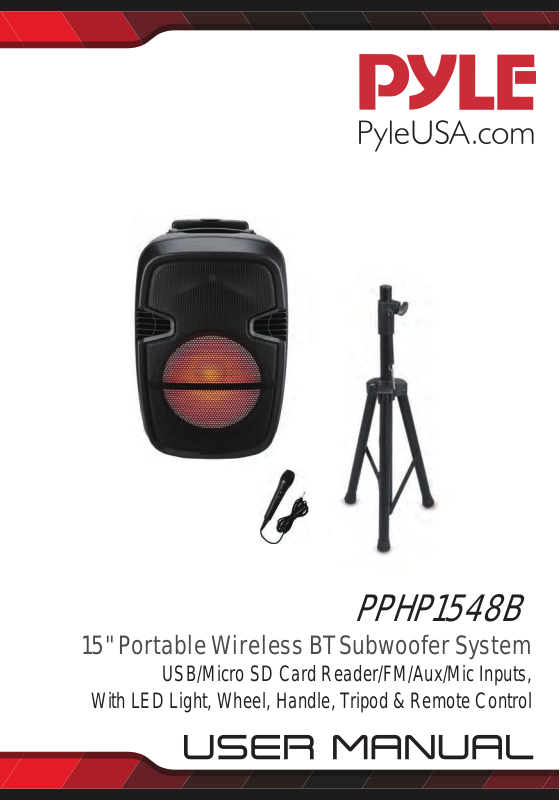

What's in the Box:
• PA Speaker System
• Wired Handheld Microphone
• Remote Control
• Speaker Stand
• 5V/2A Type C Cable (USB Cable)
Speaker Stand:
• 3.8' ft. Speaker Stand Holder Mount
• Quick and Easy Telescoping Height Adjustment
• Height Adjustable: 31.5'' - 45.6'' -inches
• Locking Safety Pin for Secure Placement
• Rugged and Durable Metal Construction
• Reinforced 35mm (1.375'') Engineered Tubing
www.PyleUSA.com
4
Page 5
• Conveniently Folds for Storage & Transport
• Knob-Style Tension Locking Mechanism
• Maximum Speaker Weight Load Capacity: Up to 110 lbs.
• Perfect for On-Stage or In-Studio Use
Features:
• True Wireless Stereo Speaker System
• Loudspeaker Studio Tested Design
• Built-in BT for Wireless Music Streaming
• Built-in Rechargeable Battery
• Sound System: 15'' Subwoofer and Piezo Driver
• Digital Display Screen with FM Radio
• USB Flash and SD Memory Card Readers
• MP3 Digital Audio File Playback
• Touch Button Audio Controls
• 1/4'' Audio Inputs for Microphone
• Master, Mic, Echo, Volume Setting
• Auto Scan and Store for Radio Stations
• Rugged & Heavy Duty Molded Cabinet Housing
• Carry Handles and Caster Wheels for Easy Transport
• 35mm Speaker Stand Mountable Insert
Technical Specs:
• Power Output: 1000 Watt MAX
• RMS Power Output: 20 Watt @ 4 Ohm
• MP3 Digital Audio File Compatibility
• Magnet: 20 Oz.
• Impedance: 4 Ohm
• Sensitivity: 90 dB
• T.H.D.: 10%
• Frequency Response: 20-20kHz
• Crossover Frequency: 3.5kHz
• Max. USB/SD Card Size: 32GB
• Power Supply: 7.4V/1800 mAh, Lithium-ion
• Battery Operated Remote Control Requires, 3V Lithium Cell (CR2025)
• Molded Speaker Cabinet Material: Polypropylene
• Power: 120/240V, Voltage Selector
• Dimensions (L x W x H): 15.7’’ x 14.6’’ x 26.8’’ -inches
