Page 1
USER’S MANUAL
PPHP803MU
PPHP103MU PPHP123MU PPHP153MU
www.pyleaudio.com
Page 2
Before using your new Speaker System Please review the
following instructions, for the safety and investment.
INSTRUCTIONS
Before connecting the speaker, make sure the system is off and the controls on the minimum level. On the
contrary the system could damage
1.Plug the power cable to the AC outlet and to the system and the speaker
2.Plug the microphone in the “MIC” input
3.Connect (CD, DECK, MP3, DVD, etc) on “LINE IN” input
4.Turn on the systems. A green LED will light up to indicate the speaker is on
5.Set the volume on the low level on the MIC and the LINE IN input
6.Increase the master volume (place on the right side of the LINE OUT *connector)
7.Set TREBLE and BASS controls to equalize the sound
8.A red LED will light up when the system detects overload power. You will must decrease the volume.
CAUTIONS
Do not place the microphone against the speaker, it can cause feedback echo and it will damage the system
EXTRA FUNCTIONS
6.3 And XLR connectors marker as LINE OUT can handle an amplifier or even another powered speaker
cabinet. On the bottom of the speaker there is a hole to place a stand.
Page 3
FEATURES
-8” Woofer
-compression Driver with 1 “ Titanium Diaphragm
-Full Featured 3 Channel Mixer
-XLR and 1/4”Mic Inputs
-XLR＆stereo RCA Line Input
-XLR and 1/4” Line Outputs
-Master Volume,Mic Level, Line Level
-Player MP3 USB Stick
-3.5mmAux-In Compatible With All Digital Music
-Frequency Response:45Hz-20KHz
-Power Output:300Watts RMS, 600Watts Peak
-Crossover Frequency:3.0KHz
- Integrated 35mm Speaker stand Mount
-Dimensions:11.8”WX9.8”DX17.3”H
Players,Including Iphone,with Remote control
-10” Woofer
-compression Driver with 1 “ Titanium Diaphragm
-Full Featured 3 Channel Mixer
-XLR and 1/4”Mic Inputs
-XLR＆stereo RCA Line Input
- 1/4” Line Outputs
-Master Volume,Treble,and Bass Controls,
-Player MP3 From SD Card / USB Stick
-3.5mmAux-In Compatible With All Digital Music
-Frequency Response:45Hz-20KHz
-Power Output:400Watts RMS, 800Watts Peak
-Crossover Frequency:3.0KHz
-110/220 Voltage Selectable
- Integrated 35mm Speaker stand Mount
-Dimensions:14.1”WX11.4”DX21.2”H
-12” Woofer
-compression Driver with 1.34 “ Titanium Diaphragm
-Full Featured 3 Channel Mixer
-XLR and 1/4”Mic Inputs
-XLR＆stereo RCA Line Input
- XLR &1/4” Line Outputs
-Master Volume,Treble,and Bass Controls,MP3
-Player MP3 From SD Card / USB Stick
-3.5mmAux-In Compatible With All Digital Music
-Frequency Response:30Hz-22KHz
-Power Output:500Watts RMS, 1000Watts Peak
-Crossover Frequency:2.2KHz
-110/220 Voltage Selectable
- Integrated 35mm Speaker stand Mount
-Dimensions:16.5”WX13.7”DX25.1”H
Control, Mic Level and Line Leve
Players,Including Iphone,
Mic Level and Line Level
Players,Including Iphone,
-15” Woofer
-compression Driver with 1.75“ Titanium Diaphragm
-Full Featured 3 Channel Mixer
-XLR and 1/4”Mic Inputs
-XLR＆stereo RCA Line Input
- XLR &1/4” Line Outputs
- Master Volume,Treble,and Bass Controls,MP3
-Player MP3 From SD Card / USB Stick
-3.5mmAux-In Compatible With All Digital Music
-Frequency Response:30Hz-22KHz
-Power Output:600Watts RMS, 1200Watts Peak
-Crossover Frequency:2.2KHz
-110/220 Voltage Selectable
- Integrated 35mm Speaker stand Mount
-Dimensions:19”WX15.7”DX29.1”H
Control, Mic Level and Line Level
Players,Including Iphone,
PPHP803MU
600Watts Powered Two-WAY PA Speaker
PPHP103MU
800Watts Powered Two-WAY PA Speaker
PPHP123MU
1000Watts Powered Two-WAY PA Speaker
PPHP153MU
1200Watts Powered Two-WAY PA Speaker
with Remote control
with Remote control
with Remote control
Page 4
SPECIFICATIONS:
PPHP803MU PPHP103MU PPHP123MU PPHP153MU
Woofer
Impedance 4ohms 4ohms 4ohms 4ohms
Sensitivity 93dB/m/w 94dB/m/w 95dB/m/w 97dB/m/w
Freq.Resp 40Hz-20KHz 40Hz-20KHz 30Hz-22KHz 30Hz-22KHz
Diameter 8" 10" 12" 15"
Coil Diameter 1.5" 2" 2.5" 3"
Magnet 30oz 40oz 50oz 60oz
Tweeter
Impedance 8ohms 8ohms 8ohms 8ohms
Sensitivity 100dB/m/w 100dB/m/w 100dB/m/w 100dB/m/w
Freq.Resp 800Hz-20KHz 800Hz-20KHz 800Hz-20KHz 800Hz-20KHz
Coil Diameter 1" 1" 1.34" 1.75"
Magnet 12oz 12oz 13.5oz 23oz
Built-in Amplifier Yes Yes Yes Yes
Electrical safety
All product s are fitted wit h a detachable p ower c ord (supp lied) which connects to the AC mains an d the back panel of the
loudspeake r. The po wer cord has an IE C fe male conn ector on one end a nd male mains connecto rs on the other en d. This
cord is suppli ed specially to accommodate the differe nt worldwi de safety an d electrical code requirements. The pow er
cord suppl ied w ith y our p roduct has a 3- pin t ype plug. Do not cut off or damag e the grounding plug. Like any electri cal
appliance, y our EON powered spe akers should not be u sed in water or when we t.
Product design and specifications are subject
to change without previous notice.
Page 5

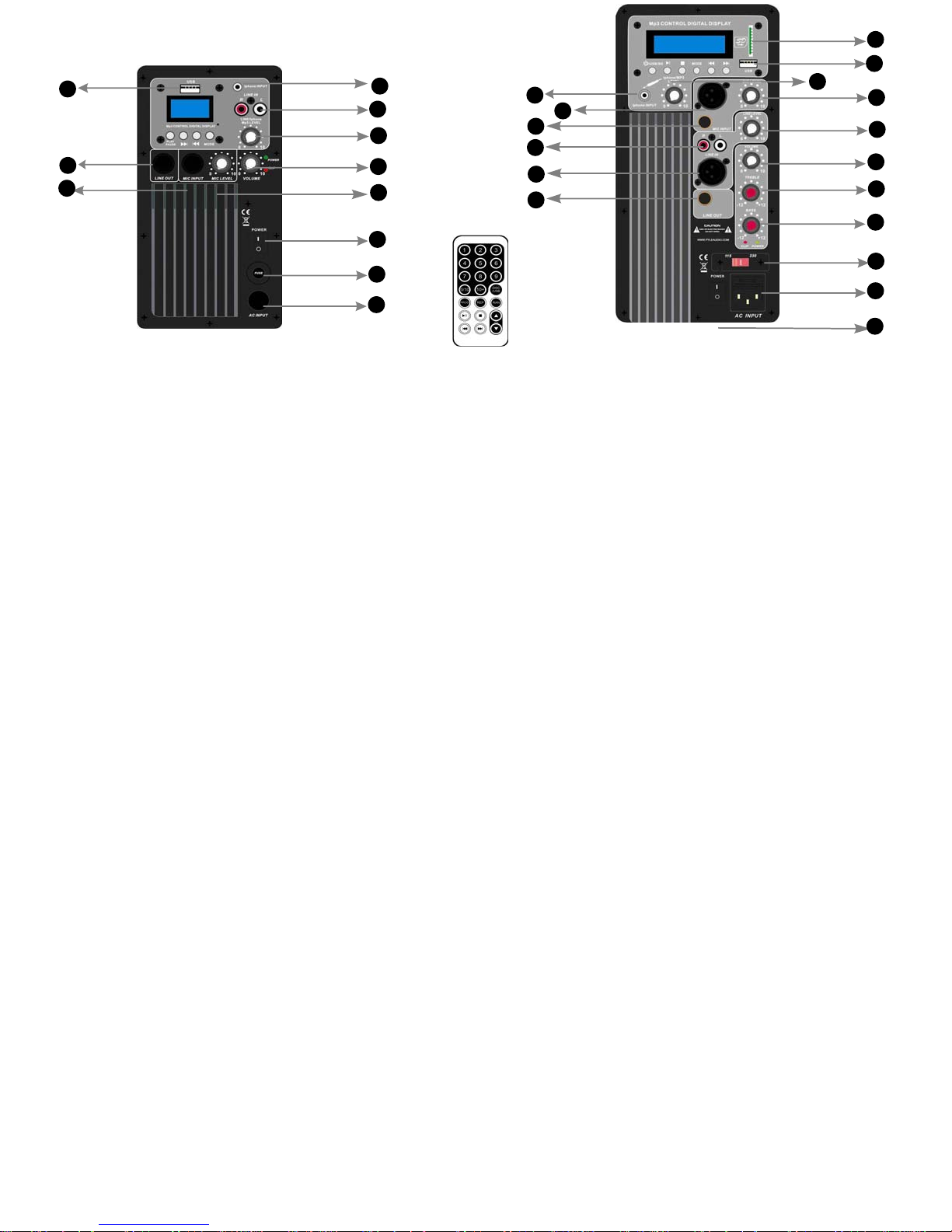

1.Iphone input
Allows you to conn ect an Iphone wit h a 3.5mm con nector.
2.Banlanced Mi croph one Input
Connector for a ba lance d microphone input .
4.RCA Line- In
Allows you to conn ect an ex ternel audio device(CD, radi o / DVD,e tc) with RCA conn ector s
5 .XLR Line-In
Allows you to conn ect an ex ternal audio device (CD, radio / D VD,et c) with XLR c onnectors
6.Signal outpu t
Use 6.35mm jack to connec t ampli fier or even another powered spe aker ca binet in cascade
using a XLR con nector
17.AC power
To connect th e AC power cord
16.On/Off Pow er Switch
Press to power on/ off the speak box
.Microphone in put
Allows you to conn ect a mic rophone with a 6.3mm connector.
3
9.MP3/ Iphone Volume control
Set the MP3/ Iphone volume lev el
11.Line-In signa l volum e control
Use this control t o set the v olume level of the Line-In signa l
12.Volume contro l
Set the volume lev el9
10.Mic volume co ntrol
Use this control t o set the v olume level of Microphone
13.Treble
Use it to set the treb le leve l
14.Bass
Use it to set the bass l evel
15
.
AC 110/2 20 Voltage Selectable
7/8. SD card /USB
PPHP803MU
PPHP103MU
9
9
4
10
16
18
17
1
12
5
2
8
11
12
7
8
9
10
13
14
15
17
16
3
4
5
6
2
1
18
.Fuse
Remote control
Page 6

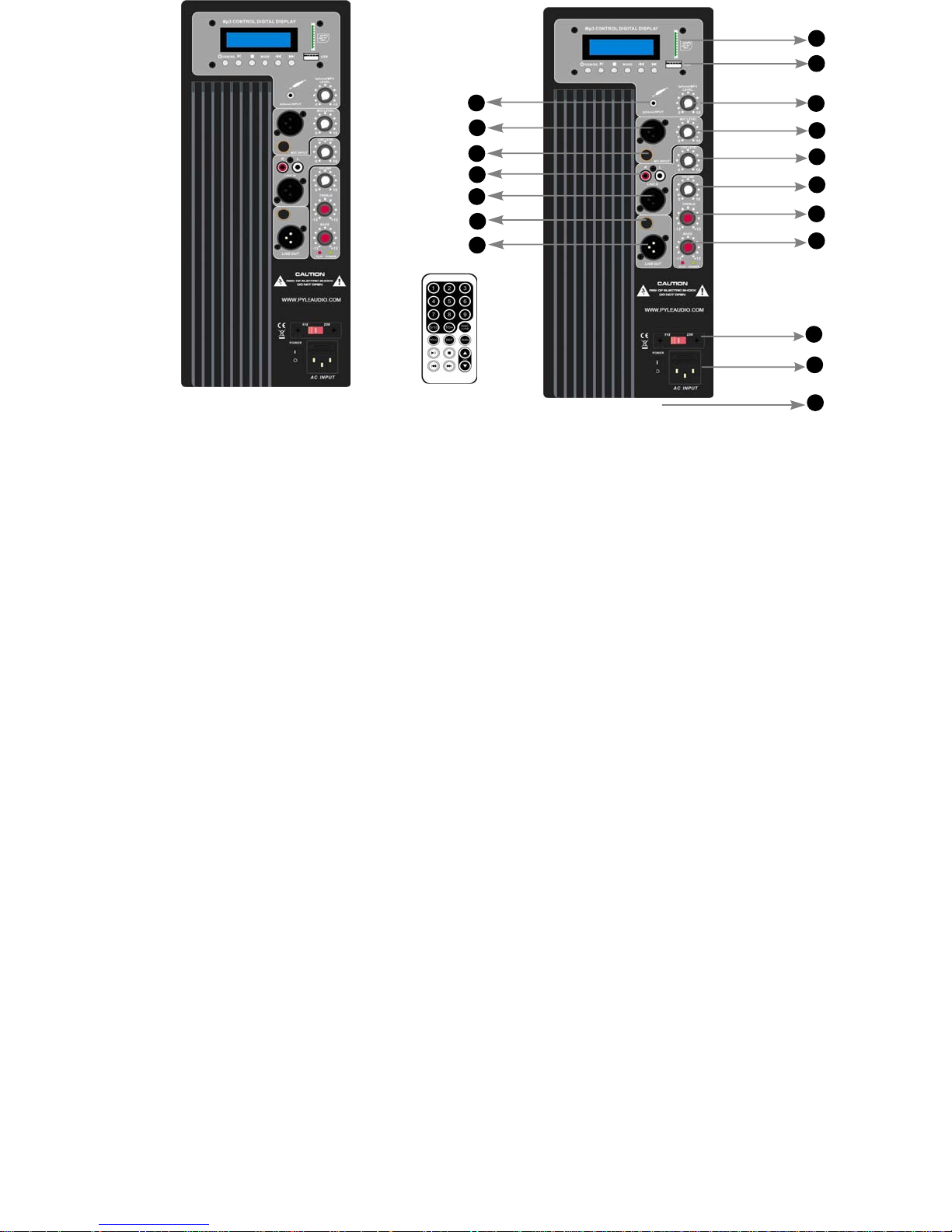

PPHP123MU
PPHP153MU
1.Iphone input
Allows you to connect an Iphone wit h a 3.5mm connector.
2.Banlanced Microph one Inp ut
Connector for a balance d micro phone i nput .
4.RCA Line-In
Allows you to connect an ex terne l audio d evice (CD, ra dio / DVD,etc) with RCA connect ors
5 .XLR Line-In
Allows you to connect an ex terna l audio d evice ( CD, rad io / DVD,etc) with XLR connectors
6/7.Signal output
Use 6.35mm jack to connect ampli fier or e ven ano ther po wered speaker cabinet in cascade
using a XLR connector
18.AC power
To connect the AC power cord
17.On/Off Pow er Swit ch
Press to power on/off t he spea k box
.Microphone input
Allows you to connect a mic ropho ne with a 6 .3mm co nnect or.
3
10.MP3/ Iphone Volume control
Set the MP3/ Iphone volume level
12.Line-In signal volum e contr ol
Use this control to set the volume l evel of t he Line -In sig nal
13.Volume control
Set the volume level
11.Mic volume control
Use this control to set the volume l evel of Microphone
14.Treble
Use it to set the treble leve l
15.Bass
Use it to set the bass level
16
.
AC 110/2 20 Volta ge Sele ctabl e
8/9. SD card /USB
12
13
14
15
8
9
10
11
16
18
17
1
2
3
4
5
6
7
Remote control
