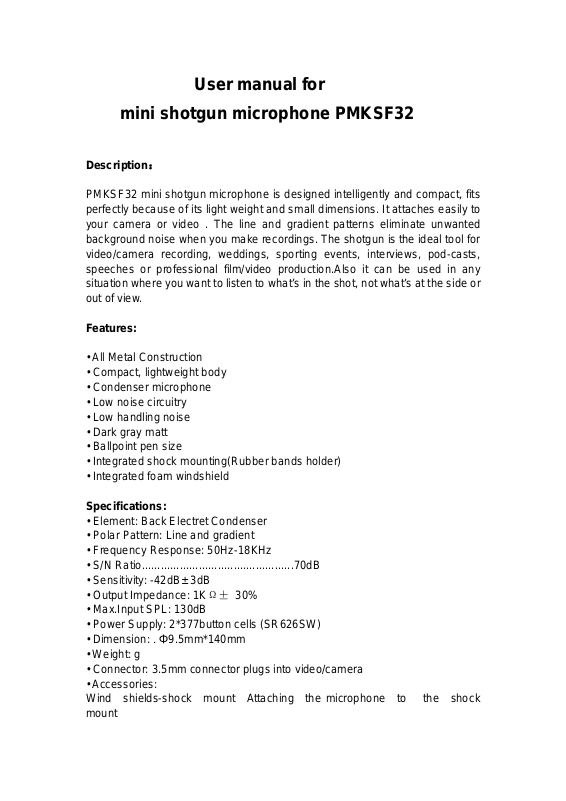

User manual for
mini shotgun mic rophone PMKSF32
Description：
PMKSF32 mini shotgun microphone is designed intelligently and compact, fits
perfectly because of its light weight and small dimensions. It attaches easily to
your camera or video . The line and gradient patterns eliminate unwanted
background noise when you make recordings. The shotgun is the ideal tool for
video/camera recording, weddings, sporting events, interviews, pod-casts,
speeches or professional film/video production.Also it can be used in any
situation where y ou w ant to lis ten to w hat’s in the shot , no t w hat’ s at the s ide or
out of view.
Features:
• All Metal Construction
• Compact, lightweight body
• Condenser microphone
• Low noise circuitry
• Low handling noise
• Dark gray matt
• Ballpoint pen size
• Integrated shock mounting(Rubber bands holder)
• Integrated foam windshield
Specifications:
• Element: Back Electret Condenser
• Polar Pattern: Line and gradient
• Frequency Response: 50Hz-18KHz
• S/N Ratio................................................70dB
• Sensitivity: -42dB± 3dB
• Output Im pedance: 1KΩ± 30%
• Max.Input SPL: 130dB
• Power Supply: 2*377button cells (SR626SW)
• Dimension: . Φ9.5mm*140mm
• Weight: g
• Connector: 3.5mm connector plugs into video/camera
• Accessories:
Wind shields-shock mount Attaching the microphone to the shock
mount
Page 2
How to use:
Push the mini shotgun mic into the hole in the center of
the crossed rubber bands in the hoops of the shock mount.
The microphone should be pushed in so that the rear rubber
bands sit in the middle of. The raised section of the
microphone, which is the battery compartment.
Battery replacement
The battery,when used under normal operating conditions should
have over 100 hours of continuous use;the battery is only
used when the microphone is plugged into the camera or
recording device.
The replacement batteries are two 1.5Volt SR626SW(D377B)which
can be purchased from any camera store. The positive side (+) of the
battery should face up when looking into the battery housing
with the shotgun section detached from the housing.
Note: Please take out batteries when not in use.
Pyle Audion
1600 63rd St.
Brooklyn, NY 11204
