Page 1
Element................................. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .B ac k El ec tr et C on de ns er
Polar Pattern..................................... .. .. .. .. .. .. .. .. .. .. .. .. .. Om ni -d ir ec ti on al
Frequency Response................................ .. .. .. .. .. .. .. .. .. .. 20 Hz - 20 KH z
Sensitivity............................. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. -4 5d B± 3d B
Output Impedance................................ .......................20 00
Ω± 3 0%
Max.Input SPL................................. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 13 0d B
S/N Ratio................................... .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. >7 0d B
Power Supply.................................... .. .. .. .. .. .. .. .. .. .. .. .. .. .. 1. 5V -1 0V
Cable................................... .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .Φ1. 5* 1. 2M
Dimension....................................................................
Φ5mm
Color................................... .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .S ki n
Connector..................................... .. .. .. .. .( PM EM S1 0) SH UR E ty pe 4 pi n mi ni X LR
(PM EM 1) St an da rd 3 .5 mm plug+1/4'’Atapte
r
Accessories................................. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. Wi nd sc re en
Model............................... .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. PM EM S1 0/ PM EM 1
Specifications
Figure 1: Polar pattern
Figure 2: Frequency response
PYLE PMEMS10/PMEM1 mini ear-hanging microphone is ideally suited for
vocal sound and speech application which requires much freedom of movement.
The unique tiny size and super light weight provides a comfortable and optimum
fit for any occasion.
Such as dance and sports instructors, Great for video use ,the mini microphone
is practically invisible.
The microphone ensures a perfect blend of the microphone for discreet
appliance.
It is available in Skin and Black Color.
Ge n era l
Fe a ture s
High quality back electret condenser capsule
Flat frequency response and superior EMI suppression
Omni
-d ir ec ti on al p ol ar p at te rn
Easy
to wear headband
Easy
fit foam windscreen
1. Place the headband around the side of the head.
2. Aim the microphone toward the corner of the speakers mouth.
3. Connect the microphone to the appropriate wireless headset.
4. Always use the supplied foam windscreen to control breath noise.
Ge n era l r u les f o r u se
Co n nec t o rs
Connectors:
SHURE type 4pin mini XLR
Ac c ess o r ies
Accessories: windscreen
Standard 3.5mm plug
1/4'’Atapter
Ad dr e ss : 160 0 63 r d. S tr eet B ro o kl y n N. Y. 11 20 4 ,U SA
Te l: 71 8- 535 -18 00, 1 -8 88- 318 -PY LE
Fa x: 71 8-2 36 - 24 00
UR L: ht tp : // www .py lea ud i o. com
E- ma i l: s ale s@p yl e au d io .co m
PYLE AUDIO INC.
201 2-PYL EAUDI O-PME MS10- PMEM1 -A000 1

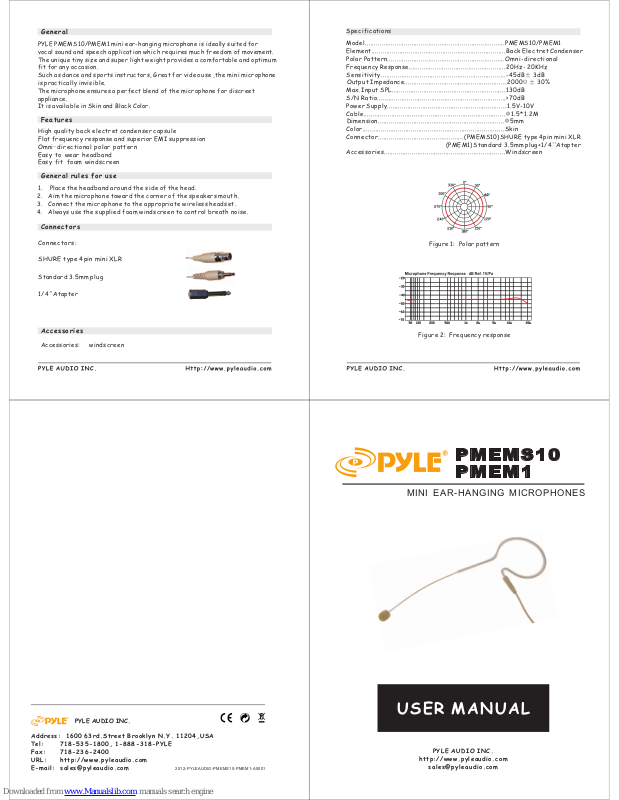

USER MANUAL
PY L E AU D IO IN C .
ht t p: / /ww w .py l ea u dio . com
sa l es @ pyl e aud i o. c om
MI NI EA R -HA N GI N G MIC R OPH ONE S
PMEMS10
PMEM1
