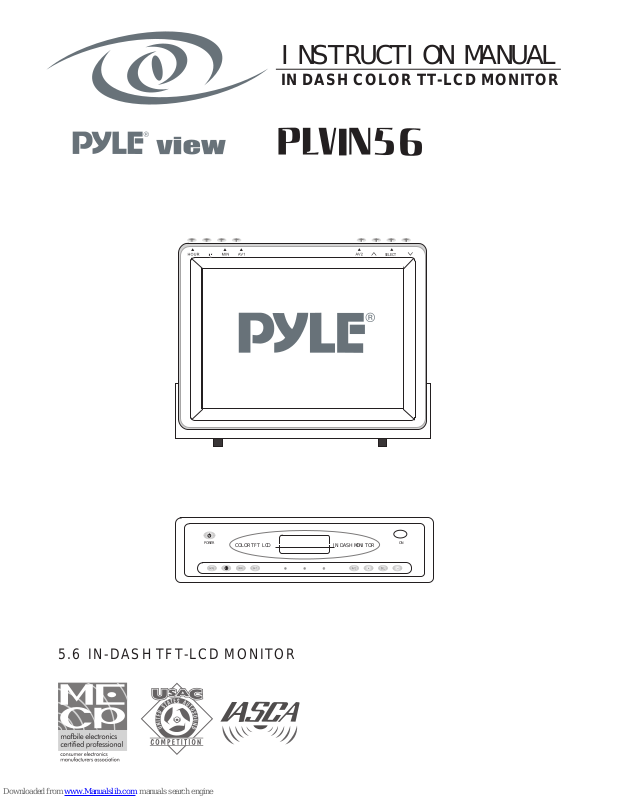

ＩＮＳＴＲＵＣＴＩＯＮ ＭＡＮＵＡＬ
IN DASH COLOR TT-LCD MONITOR
ＳＥＬＥＣＴ
ＰＯＷＥＲ
ＣＯＬＯＲ ＴＦＴ ＬＣＤ ＩＮ ＤＡＳＨ ＭＯＮＩＴＯＲ
ＯＮ
5.6 IN-DASH TFT-LCD MONITOR
Page 2
３０
３０
：：
９
０ ９
０
３
０３
０
：
：
９０９
０
3030
::
0
9
0
9
３０
３０
：
：
０９
０９
０－１２０
+/-30
120
2
4
6
5
3
1
1
4
3
5
6
2
POWER ON/OFF
REAR VIEW INPUT CHOICE
VIDEO INPUT CHOICE
COLOR/BRIGHT CHANGE
MODE SWITCH SELECT COLOR/BRIGHT MODE
ＰＯＷＥＲ
ＢＲＩ／ＣＯＬＢＲＩ／ＣＯＬ
ＡＶ１
ＡＶ２
ＲＥＭＯＴＥ ＣＯＮＴＲＯＬ ＵＮＩＴ
ＴＦＴ－ＬＣＤ ＭＯＮＩＴＯＲ
POWER
BRI/COL
REMOTE CONTROL UNIT
TFT-LCD MONITOR
Remote Control Operation
Operation
1.Press the open button and the
screen wil pop-up automatically.
2.Draw the screen along the horizontal direction until
it can not slide in this direction
Thanks for purchasing In-dash type TFT-LCD Monitor. Please read this menu
carefully before the installation.
********************************
AV1 AV2
3.Upturn the screen,
the maximum angle is 120 .
4.Adjust Angle: Horizontal: +/-30
Vertical: 0~120
Ｆｌｉｐ ｖｅｒｔｉｃａｌ
Page 3
ＡＶＡＶ２２
ＡＶＡＶ１ １
IN DASH MONITOR
1
2
3
4
12
13
5
6
78
9
10
11
Color lamp
Front the face
of the screen
Brightness lamp
11. Clock Adjusting Button
Push the button while this button is pushed to adjust the minute. Every push
will give one minute advance; Push the button while this button is pushed to
adjust the hour. Every push will give one hour advance.
Instruction for Panel Functions
7. VIDEO INPUT CHANGE- video input switch
This monitor can be connected with two video devices. AV1 is video for video
equipment such as VCD. Av2 is environmental image of the rear of the car when
reversing. Push these two buttons can switch between these two different video
input connected with the monitor. When AV1 button is pushed, lamp 10 will be
lightened. When AV2 button is pushed, lamp 8 will be lightened.
COLOR TFT-LCD
ＳＥＬＥＣＴＳＥＬＥＣＴ
4. Brightness/Color Decreasing Button
When choosing to adjust brightness, push this button to decrease brightness. When
choosing to adjust color, push this button to decrease color level.
5. Brightness/Color Button
Push this button to adjust brightness and color. The color indication lamp 12 on
the front face of the screen and the brightness indication lamp 13 will change
correspondingly.
6. Brightness/Color Increasing Button
When choosing to adjust brightness, push this button to increase brightness. When
choosing to adjust color, push this button to increase color level.
ＡＶＡＶ
１１
ＡＶＡＶ
２ ２
ＳＥＬＥＣＴ ＳＥＬＥＣＴ
1.Power--Monitor Power Switch
Push this button to turn on the monitor power supply. Power supply indication-lamp
9 will be turned on. Push this button again to turn off the monitor power supply.
Power supply indication-lamp 9 will be turned off.
2.Digital Quartz Clock
This screen is a digital quartz clock showing time in 12-hour style. AM represents
morning and PM represents afternoon.
3.OPEN-- Monitor auto pop-up button
Push this button to pop up the monitor automatically.
Page 4
Specifications
Electric Properties
1.Power Requirements: 12-14.4V DC
2.Power output: 10 W
3.Video color system: PAL/NTSC
4.TFT Display Angle: Horizontal:+45 ;Vertical:+55
Mechanic Rotate Angle: Horizontal:+30 ;vertical:0-+120
5.Effective Display Size: 5.6inch(diagonal)
6.Back light: 25 C Min=10,000h
7.Digital Clock display Mode: 12-hour LED Display
8.Clock Oscillation Mode: Quartz Crystal
9.Pixs: 960(H)x234(V)
Usage Environment
1.Environment Temperature: -10 C-+55 C
2.relative Humidity: <90%(+55 C)
