5.25’’ Waterproof Rated Off-Road Wireless BT Speakers
Amplified Vehicle Speaker System for ATV, UTV, 4x4, Jeep (1000 Watt)
Page 2
PLUTV53BTA Installation
1. To avoid potential shorts in the electrical system, be sure to disconnect the (-) battery cable
before installation. Use this unit with a 12-Volt battery and negative grounding only.
Failure to do so may result in a re or malfunction.

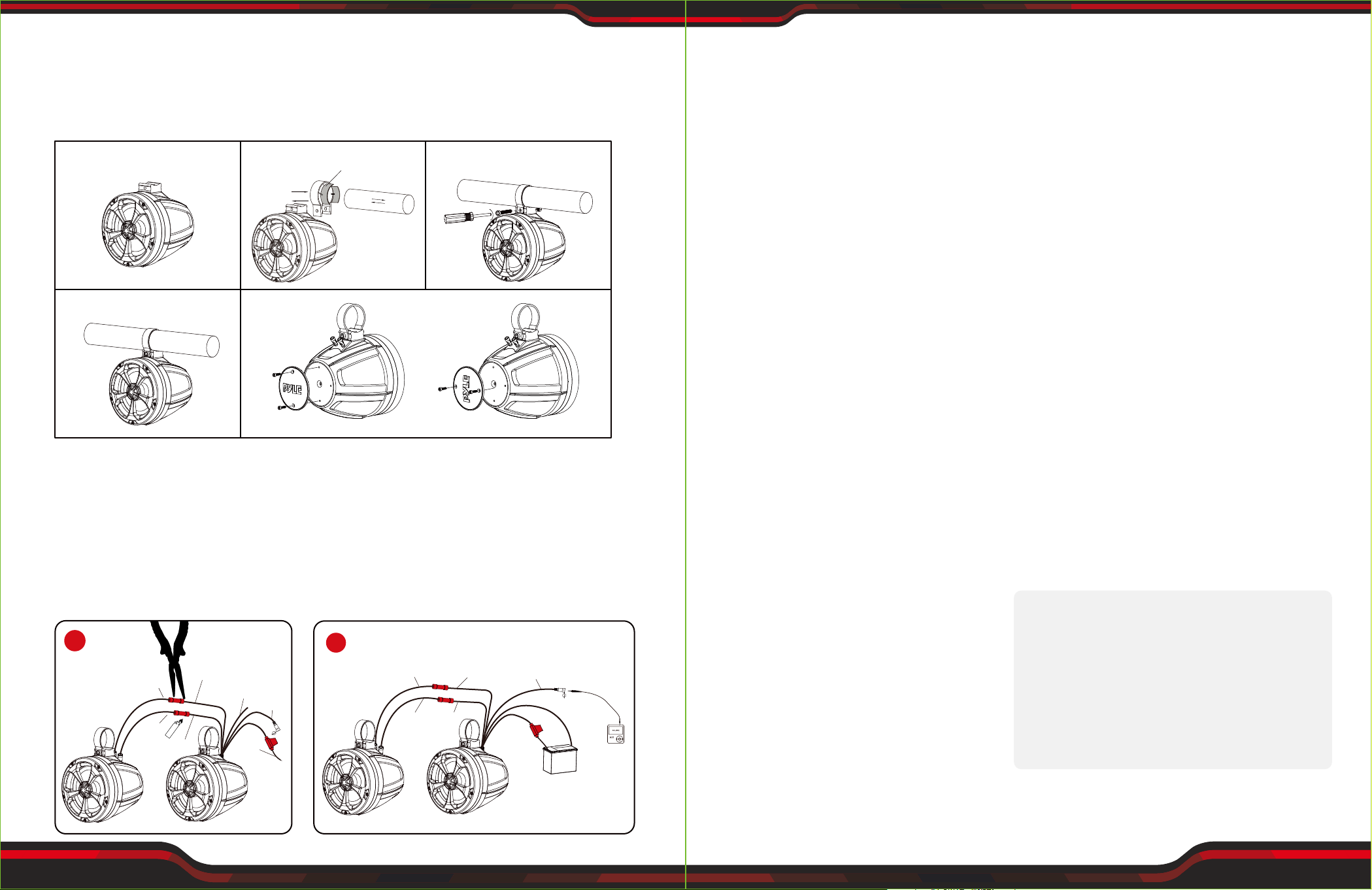

2. Speaker Mounting suggestion as below:
STEP 1 STEP 2 STEP 3
STEP 4 STEP 5
Step 1: Put the PLUTV53BTA speaker in a safe place.
Step 2: Slide in the buckle with rubber pad attached to the bracket stand of the speaker.
Attach the set to the handle bar of vehicle/ship.
Step 3/4: Attach screw to lock the buckle.
Step 5:
Option for adjustable PYLE logo---Unbolted the screws rst, adjusting logo direction,
then re-x screws.
Step 6: Using accessories of Butt Connector to Connect Speaker wires (See Illustration 1)
Step 7: Using accessories of Butt Connector to Connect Power Cable (See Illustrations 2)
1
Gray/Black
Gray
-
+
Gray
Gray/Black
-
Black
+
AUX
IN
Red
Rubber Pad
2
Gray/Black
-
+
Gray
Gray/Black
-
+
Gray
AUX IN
+
Power
-
BlackRed
Features:
• Pro Audio PowerSport Speakers
• Amplied (Active) Speaker System
• Wireless BT Music Streaming Ability
• Bridged Sound System: (2) x 5.25'' Woofers + (2) x 1’’ Tweeters
• Marine Grade Waterproof Rated Construction
• Weatherproof & Water-Resistant Housing
• 2-Way Full Range Stereo Sound Reproduction
• Built-in Digital Sound Processing Amplier
• Integrated Speaker Power & Wiring Harness
• Compact Size & High-Powered Output
• Impressive Bass Response
• Aux (3.5mm) Input Jack
• Connect & Stream Audio from External Devices
• Sleek Design, Machine Molded Speaker Cabinet Housing
• Rugged, Universal Mount Bracket Design for Roll-Bar / Roll-Cage
• Used for O-Road Outdoor Vehicles: ATV, UTV, 4x4, Jeeps, Marine Watercraft
Wireless BT Connectivity:
• Simple & Hassle-Free Pairing
• Instant Wireless Audio Streaming Ability
• Works with All of Today’s Latest Devices
• Smartphones, Tablets, Laptops, etc.
• Wireless BT Network Name: ‘PyleUSA’
• Wireless Range: 30+ ft.
• *Wireless BT Receiver Module Built-Into
Amplier of Main/Active Speaker
• Wireless BT Version: V5.0
Technical Specs:
• Speaker Power: 1000 Watt MAX
• Amp Power: 2 x 250 Watt MAX @ 4 Ohms (2 x 125 Watt RMS)
• Amp Type: 2-Channel, Class D
• Marine Grade Waterproof Rating: IP-X45
• Speaker Type: Polypropylene Cone, Butyl Rubber Surround (x2)
• Tweeter Type: Neodymium Dome (x2)
• Frequency Response: 80Hz-20kHz
• Impedance: 4 Ohm
• Magnet Type: 24 oz. Circuit
• Mid-Woofer Voice Coil Type: 1'', Aluminum
• Sensitivity: 88 dB +/- 2 dB @ 1M/1W
• Anti-Thump Turn-On
• Soft Turn On/O
• T.H.D: <0.05%
• S/N Ratio: >80dB
• Channel Separation: >65dB
• Amp Freq. Response:20Hz- 20kHz
What’s in the Box:
• (2) 5.25'' Amplied Main Speaker
• Speaker Connection Wires, 6.5' ft.
• (2) Butt Connectors, 16-22 AWG
• (2) 1.75” Aluminum Mounting Brackets
• (2) 2” Aluminum Mounting Brackets
• (2) 6.5” x 0.95” x 0.67”Inches Rubber Pads
• (2) 5.7” x 0.95” x 0.67”Inches Rubber Pads
• (2) 6x50mm Hexagon Socket Head Cap Screws
• (2) Stainless Steel Nuts
• Fuse: 1 x 15A
• Power Supply: DC 12V
• Universal Mounting Brackets Roll-Bar/Roll-Cage Diameter: 1.75’’ ~ 2.0’’ –inches
• Speaker Dimensions: 6.5’’ x 7.1’’ x 9.5’’ -inches, with Bracket (-Each)
