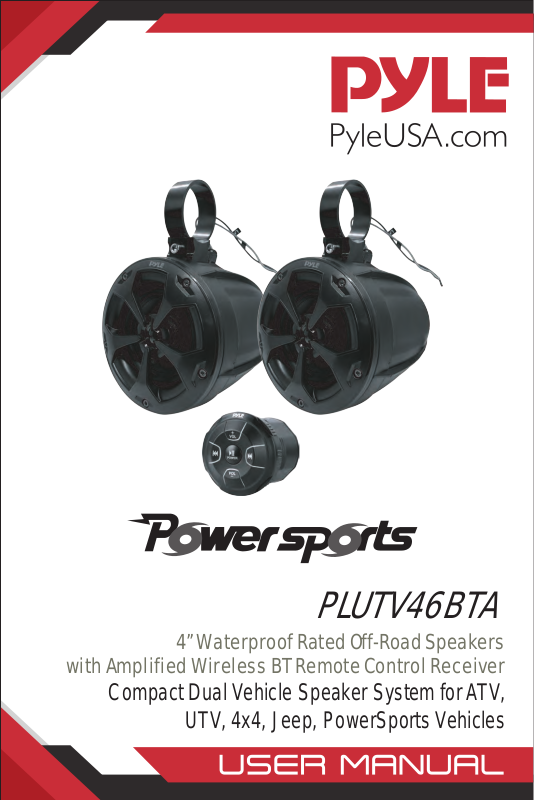

Pyle PLUTV46BTA User Manual

PLUTV46BTA

4’’ Waterproof Rated Off-Road Speakers

with Amplified Wireless BT Remote Control Receiver

Compact Dual Vehicle Speaker System for ATV,

UTV, 4x4, Jeep, PowerSports Vehicles

PLUTV46BTA Installation

Speaker Mounting suggestion as below:

EVA Pad

Auto Reconnection:

Step 1: Unbolting the mounting bracket.

Step 2: Slide in the buckle with rubber pad attached

to the bracket stand of the speaker.

Attach the set to the handle bar of vehicle/ship.

Step 3/4: Attach screw to lock the buckle.

Step 5: Use Butt Connector accessories to Connect Speaker wires

(See Illustration 1,2,3).

1

White

www.PyleUSA.com

2

+

+

White

/Black

AMP

-

-

Gray

+

+

/Black

Gray

2 3

-

-

AMP

AMP

BT Pairing and Connection

Power:

1. Press and hold the power button to power ON/OFF.

Wireless BT Streaming Connection:

a. Ensure BT ability is activated, then search for the PLUTV46BTA from your

BT-enabled device. The light will turn blue and blinks while waiting for BT

connection.

b. The PLUTV46BTA BT Network Name will appear as “PyleUSA” (No password

is required for connecting).

c. When the BT is connected, the light will turn blue and stops blinking.

AUX-IN:

a. Double click power button to switch BT mode to Aux-in mode.

Auto Reconnection:

a. When the device is out of the BT range, BT will be disconnected automatically,

the light turns blue while blinking.

b. BT will automatically reconnect when detected in range again in 10 minutes.

c. Disconnected BT after 10 minutes, you need to process BT connection

steps (above) to reconnect BT again.

d. If the other device occupied the BT during this period (10mins), you need

to process BT connection steps (above).

e. If there is no connection during this period (10mins), it will turn to standby

mode.

www.PyleUSA.com

3
