PLUTV44BTR

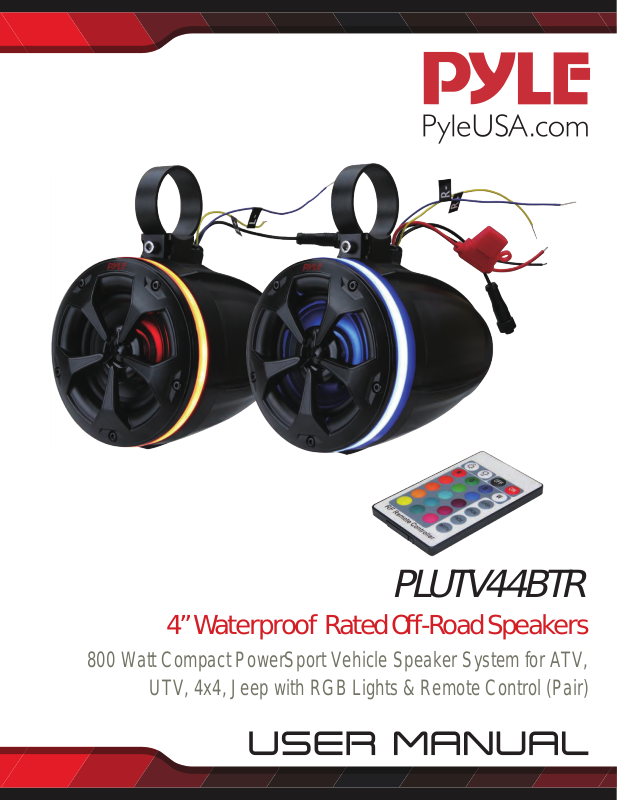

4’’ Waterproof Rated Off-Road Speakers
800 Watt Compact PowerSport Vehicle Speaker System for ATV,
UTV, 4x4, Jeep with RGB Lights & Remote Control (Pair)
Page 2
PLUTV44BTR Installation
Speaker Mounting suggestion as below:
EVA Pad

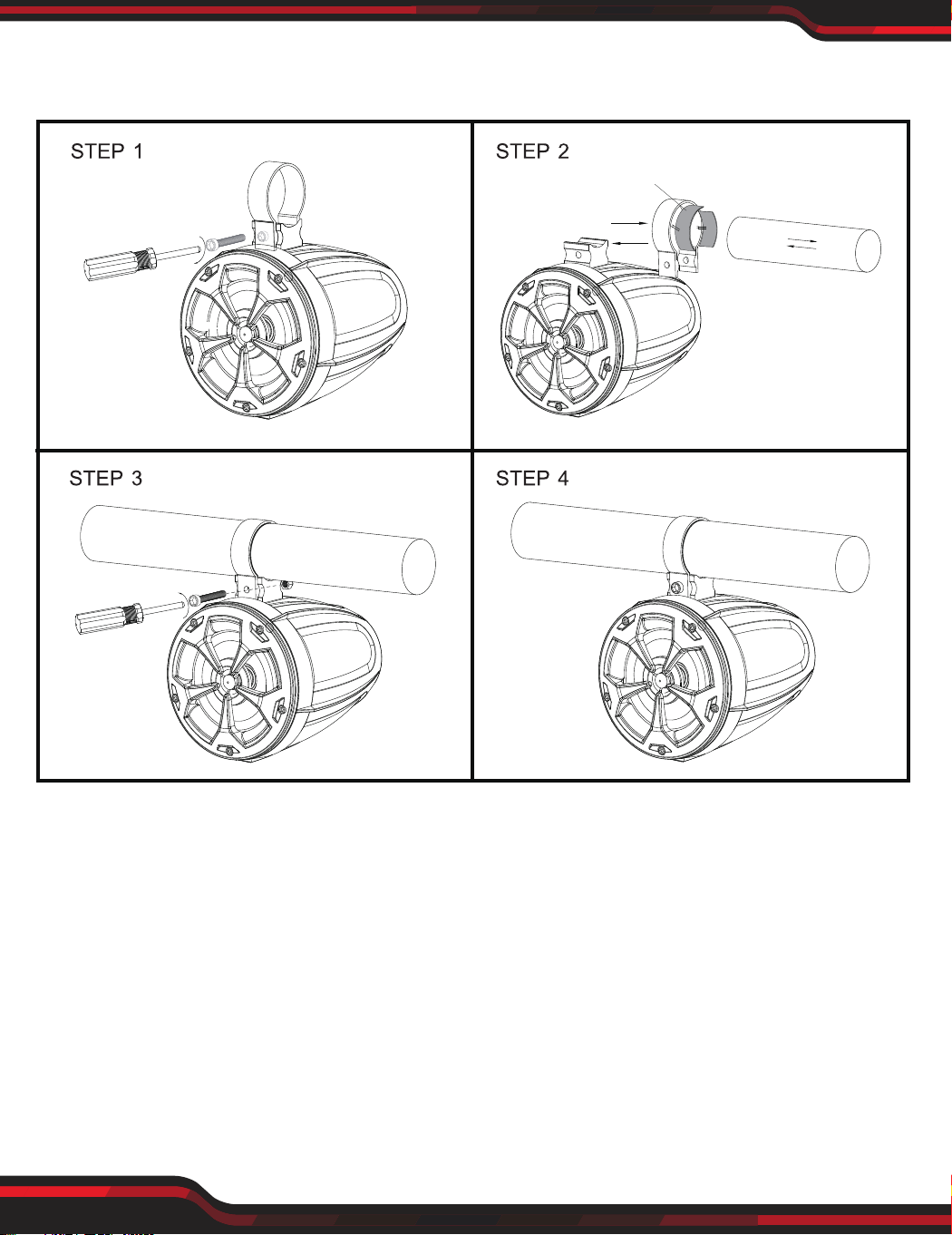

Step 1: Unbolting the mounting bracket
Step 2: Slide in the buckle with rubber pad attached to the bracket stand of the speaker
Attach the set to handle bar of vehicle / ship
Step 3/4: Attach screw to lock the buckle

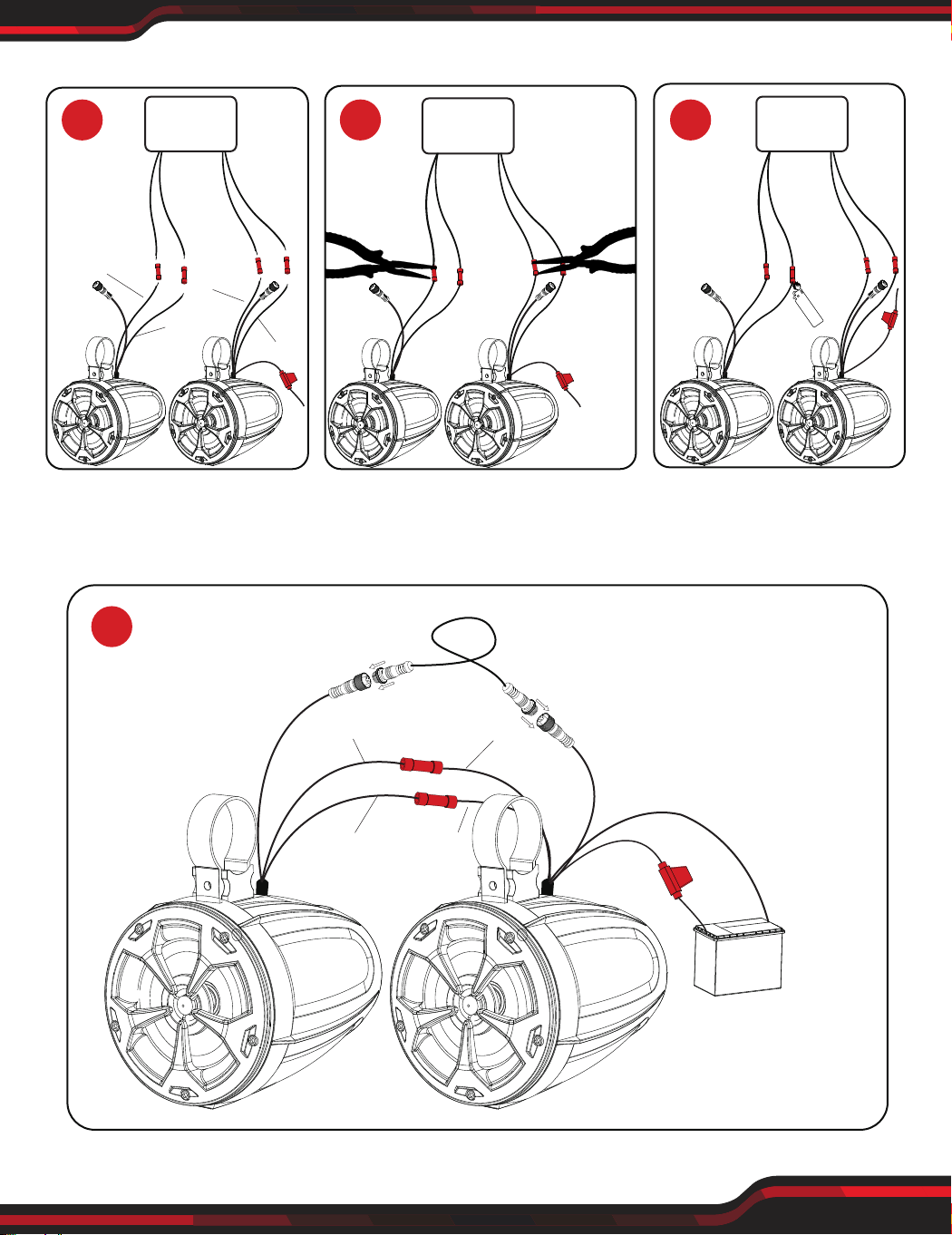

Step 5: Using accessories of Butt Connector to Connect Speaker wires (See Illustration 1,2,3)
www.PyleUSA.com
2
Page 3
1
Blue
-
-
AMP
+
Blue
+
yellow
-
-
yellow
+
+
2 3
AMP
Step 6: Connected two speakers by RGB connect wire, see the drawing in below
(See Illustration 4)
AMP
4
yellow
+
-
Blue
yellow
-
+
Blue
RGB Connect
+
-
+
Power
BlackRed
-
www.PyleUSA.com
3
Page 4

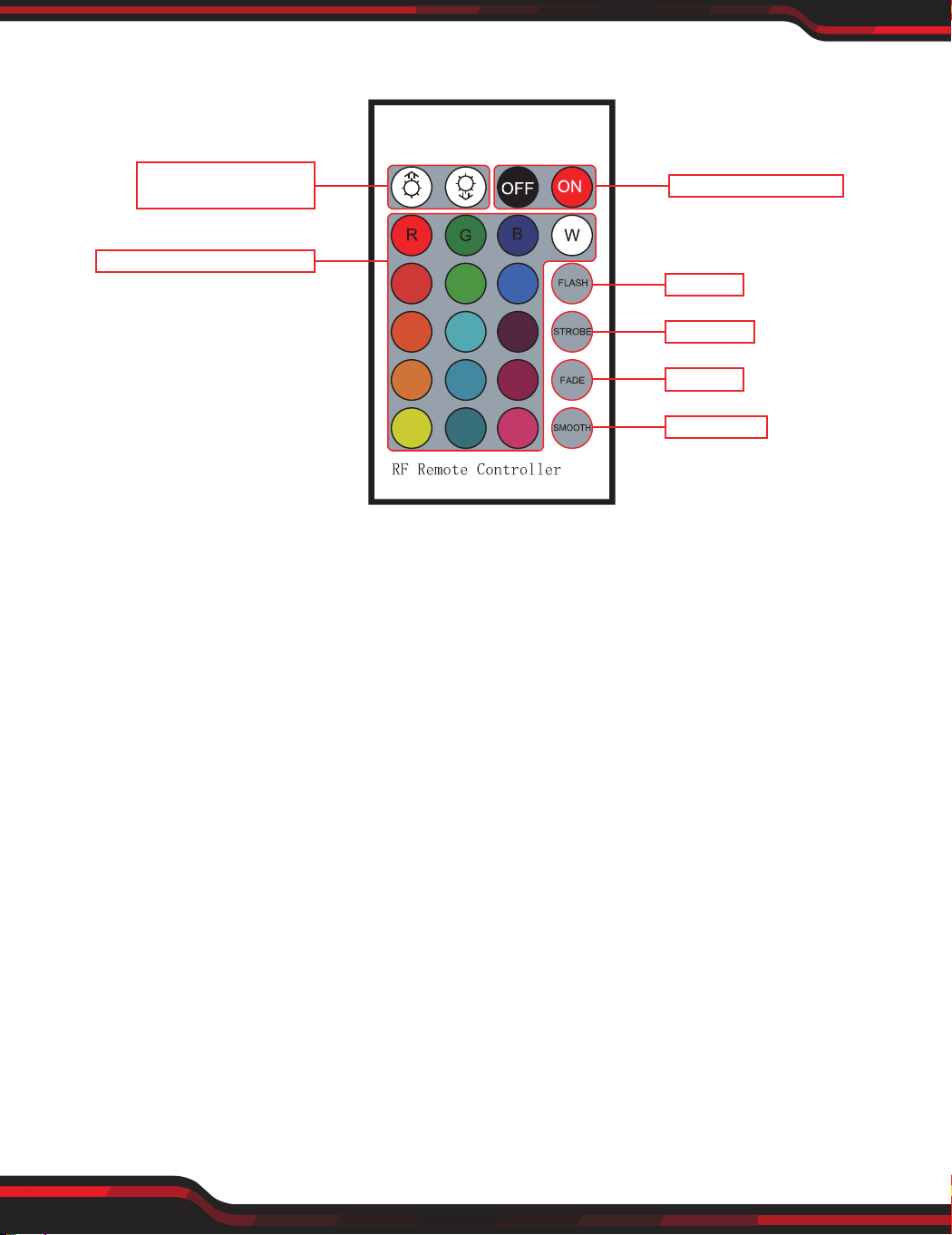

Remote Control Functions
BRIGHTNESS &
SPEED UP/ DOWN
STATIC COLOR CHOICE
POWER OFF/ON
FLASH
STROBE
FADE
SMOOTH
• 16 static colors for choice with 8 kind of brightness which can adjust up and down.
• 3 colors ash, 4 colors strobe, 7 colors fade, 7 colors smooth, all modes can adjust the brightness
and speed.
• In static color mode, the brightness can adjust up and down.
Features:
• Pro Audio PowerSport Speakers with RGB Lights
• Compact & High-Powered Output
• Marine Grade Waterproof Rated Construction
• Weatherproof & Water-Resistant Housing
• Sound System: (2) x 4.0'' Woofers + (2) x 0.5’’ Tweeters
• 2-Way Full Range Stereo Sound Reproduction
• Impressive Bass Response
• Integrated Speaker Power & Wiring Harness
• Sleek Design, Machine Molded Speaker Cabinet Housing
• Rugged, Universal Mount Bracket Design for Roll-Bar / Roll-Cage
• Used for O-Road Outdoor Vehicles: ATV, UTV, 4x4, Jeeps, Marine Watercraft
www.PyleUSA.com
4
Page 5
What’s in the Box:
• (2) 4'' -inch O-Road Speakers
• (2) Speaker Connection Wires, 6.6' ft.
• (4) Wire Butt Connectors, 16-22 AWG
• (2) 5.9’’ x 0.7’’ x 0.2’’ -inches EVA Pads
• (2) 6.5’’ x 0.7’’ x 0.08’’ -inches EVA Pads
• RGB Connection Wire, 6.6’ ft.
• Remote Control
• Warranty card
• Owner‘s Manual
Technical Specs:
• Power Output: 800 Watt MAX
• Marine Grade Waterproof Rating: IP-X5
• Speaker Size: 4’’ -inch (Each)
• Speaker Style: Passive Speakers
• Speaker Type: Polypropylene Cone, Butyl Rubber Surround (x2)
• Tweeter Type: Neodymium Dome (x2)
• Frequency Response: 85Hz-20kHz
• Impedance: 4 Ohm
• Magnet Type: 20 oz. Circuit
• Mid-Woofer Voice Coil Type: 1.0'', Aluminum
• Sensitivity: 90 dB +/- 2 dB @ 1M/1W
• Universal Mounting Brackets Roll-Bar / Roll-Cage Diameter: 1.25’’ ~ 2.0’’ -inches
• Remote Control Battery Operated, Requires (1) x CR2025 Batteries (Included)
• Battery Type: 3.2V Lithium-ion 150mAh
• Speaker Dimensions: 5.6’’ x 8.4’’ x 7.3’’ -inches, with Bracket (Each)
This products can expose you to a chemical or group of checmicals, which
may include ”Di (2-ethylhexyl) phthalate (DEHP)” which is known in the
state of California to cause cancer, birth defects, or other reproductive harm.
For more info, go to https://www.p65warnings.ca.gov/.
www.PyleUSA.com
5
