PLUTV40BK
4” Waterproof Rated Off-Road Speakers
900W Compact Power Sport Vehicle
Speaker System for ATV, UTV, 4x4, Jeep (Pair)
Page 2
PLUTV40BK Installation
Please note:
The below instructions refers to most common bar sizes: 1.5”, 1.75” and 2”.
But using the supplied rubber pads will allow you to mount these speakers
on any bar size measured between 1.5” and 2”.

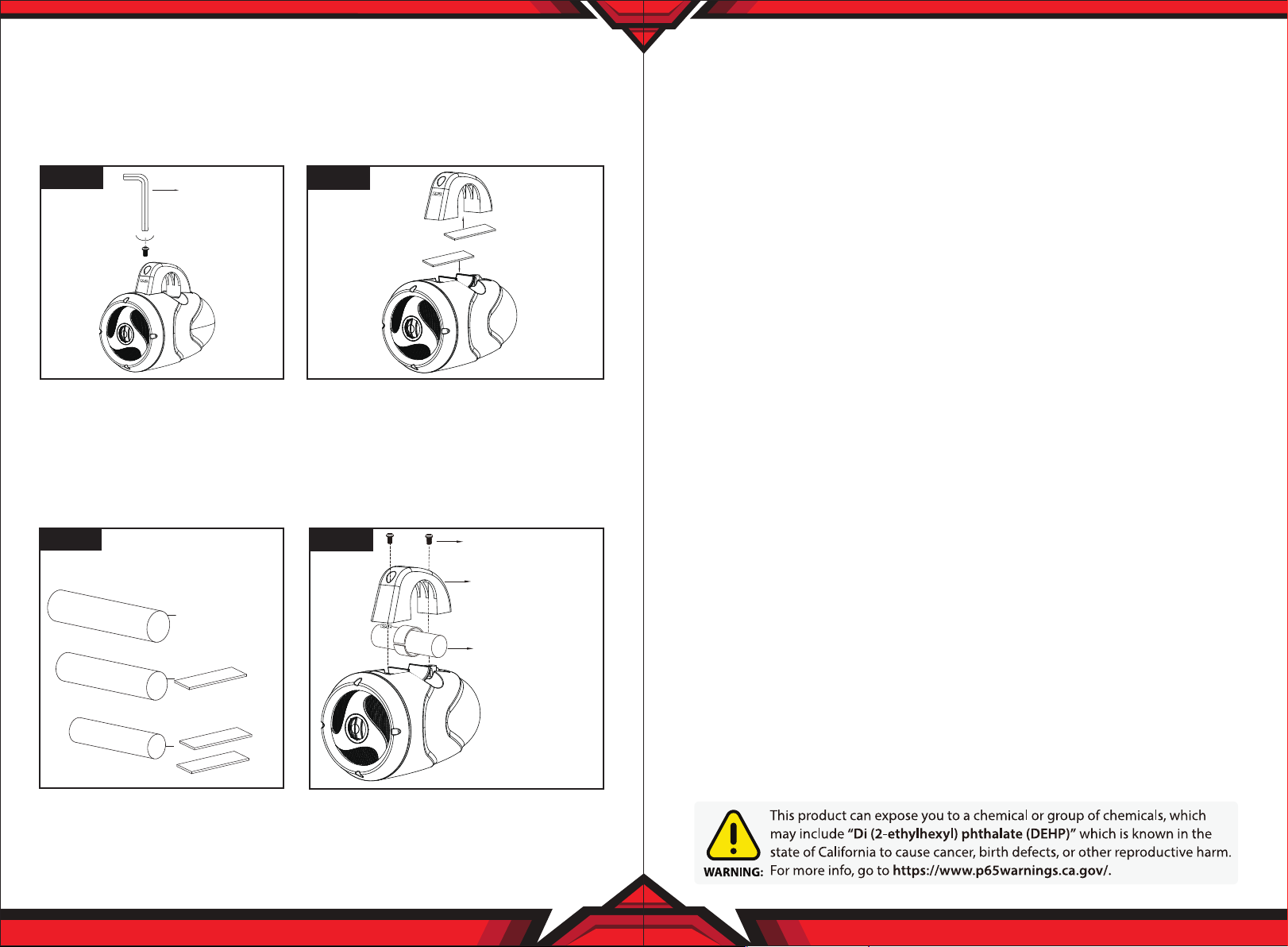

Step 1
Remove Both
Screws
Remove the two screws from the
bracket to separate the speaker
pod and the bracket.
Step 3
* The pad should go all the way
around the bar. If the pad is too
long, cut the extra length.
2” Bar
1.75” Bar
1.5” Bar
2” Bar doesn’t require
padding.
4.5” par
4.5” par
4.5” par
Step 2
The rubber pads will need to be cut to
length, so they t the speaker pod and
the bracket. After the rubber pads have
been cut, remove the white protective
layer and stick them to the speaker pod
and the bracket.
Step 4
Screws
Mounting Bracket
Mounting Bar
Features:
•
Pro Audio Power Sport Speakers
•
Compact & High-Powered Output
•
Marine Grade Waterproof Rated Construction
•
Weatherproof & Water-Resistant Housing
•
Sound System: (2) x 4'' Woofers + (2) x 1” Tweeters
•
2-Way Full Range Stereo Sound Reproduction
•
Impressive Bass Response
•
Sleek Design, Machine Molded Speaker Cabinet Housing
•
Rugged, Universal Mount Bracket Design for Roll-Bar / Roll-Cage
•
Used for O-Road Outdoor Vehicles: ATV, UTV, 4x4, Jeeps, Marine Watercraft
•
Quick Nickel Plated Push-in Terminal for Speaker Wiring
What's in the Box:
•
(2) O-Road Speakers
•
(6) Rubber Pads 4.53'' x 1.18'' x 0.12'' -inches
Technical Specs:
•
Power Output: 900 Watt MAX
•
Marine Grade Waterproof Rating: IP-X5
•
Speaker Size: 4” -inch (Each)
•
Speaker Style: Passive Speakers
•
Speaker Type: Polypropylene Cone, Butyl Rubber Surround (x2)
•
Tweeter Type: Neodymium Dome (x2)
•
Frequency Response: 105Hz-20kHz
•
Impedance: 4 Ohm
•
Magnet Type: 30 oz. Circuit
•
Mid-Woofer Voice Coil Type: 1.0'', KSV
•
Sensitivity: 90 dB +/- 2 dB @ 1M/1W
•
Universal Mounting Brackets Roll-Bar / Roll-Cage
•
Diameter: 1.5” ~ 2.0” -inches
•
Speaker Dimensions: 5.7” x 8.0” x 7.4” -inches, with Bracket (Each)
Remove the backing o the pad
and wrap it around the bar.
www.PyleUSA.com
2
Screw the two screws evenly, until snug.
Once the position is veried, tighten the
screws another half-turn.
DO NOT OVERTIGHTEN!
www.PyleUSA.com
3
