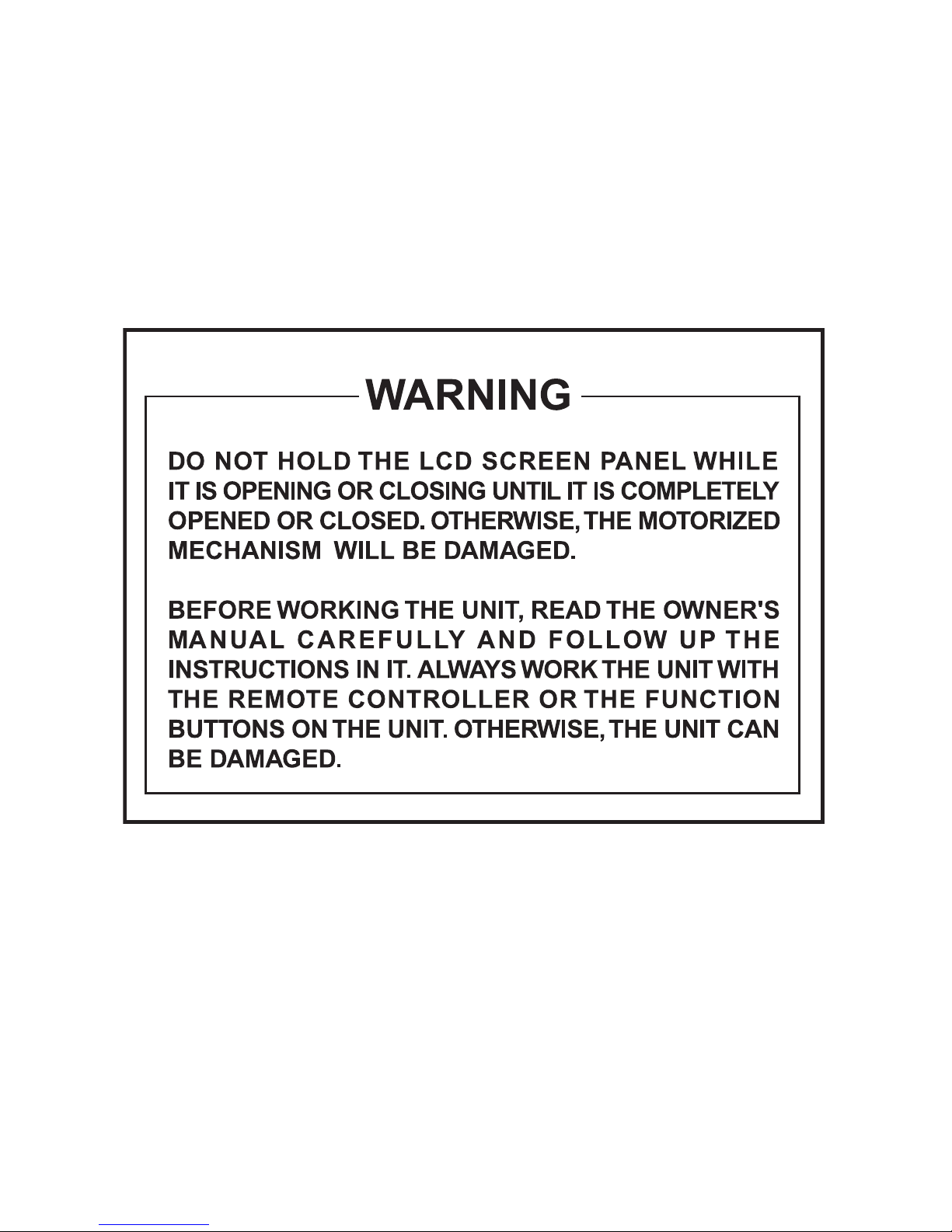

Pyle PLTV71 User Manual

PRINTED IN KOREA

32

SPECIFICATION

General

Power Requirement 14.4V CD (11~16V)
Consumption 1.5A
Operating Temperature -10˚C ~ 60˚C

Audio Input Sensitivity 1.0V / 22㏀
Audio Output Voltage 0.5V / 1㏀
Video Input Signal 1.0Vpp/75Ω
Video Output Signal 1.0Vpp/75Ω
Speaker Built in (1W)
Dimensions 178(W) X 50(H) X 155(D)mm
Weight 3.5kg (Gross)

Monitor Section

Screen Size 7 Inch Wide
LCD Type Transparent Type TN LCD
Drive System TFT Active Matrix
Number of Pixels 336, 960 (1,440 X 234)
Effective Pixels 99.99% or more
Back Lighting U-

Shaped Cold Cathode Fluorecent Tube

Color System NTSC/PAL

FM Transmitter

Frequency 89.5MHz ~ 90.2MHz

Specifications are subject to change without notice.

CONNECTING TO CD CHANGER and AV SOURCES

31

DIVERSITY

ANTENNA INPUT

AV3-IN

Ext. AV3

ANT

BATT

ACC

V4-IN

PRE-OUT

S-BRAKE

REVERSE

V-OU T

RED

WHITE

CD (VCD)

Changer

8Pin

DIN

RED

WHITE

YELLOW

AV1

-IN

Audio Right

Audio left

Video

Ext. AV1

V2-IN

YELLOW

REAR VIEW

CAMERA

GROUND

FM

RADIO

RED

WHITE

YELLOW

Audio right

Audio left

Video

YELLOW

Video ouput

To a switched power output

terminal of the reverse gear

GREEN

BLUE

RED

YELLOW

V4-IN PUT

FM Transmitter Antenna

Battery wire + 12V

BLACK

(To car chassis)

Ground wire

Audio right output

Audio left output

Parking Sensor wire

VIOLET

Ignition wire + 12v

MONITOR

30

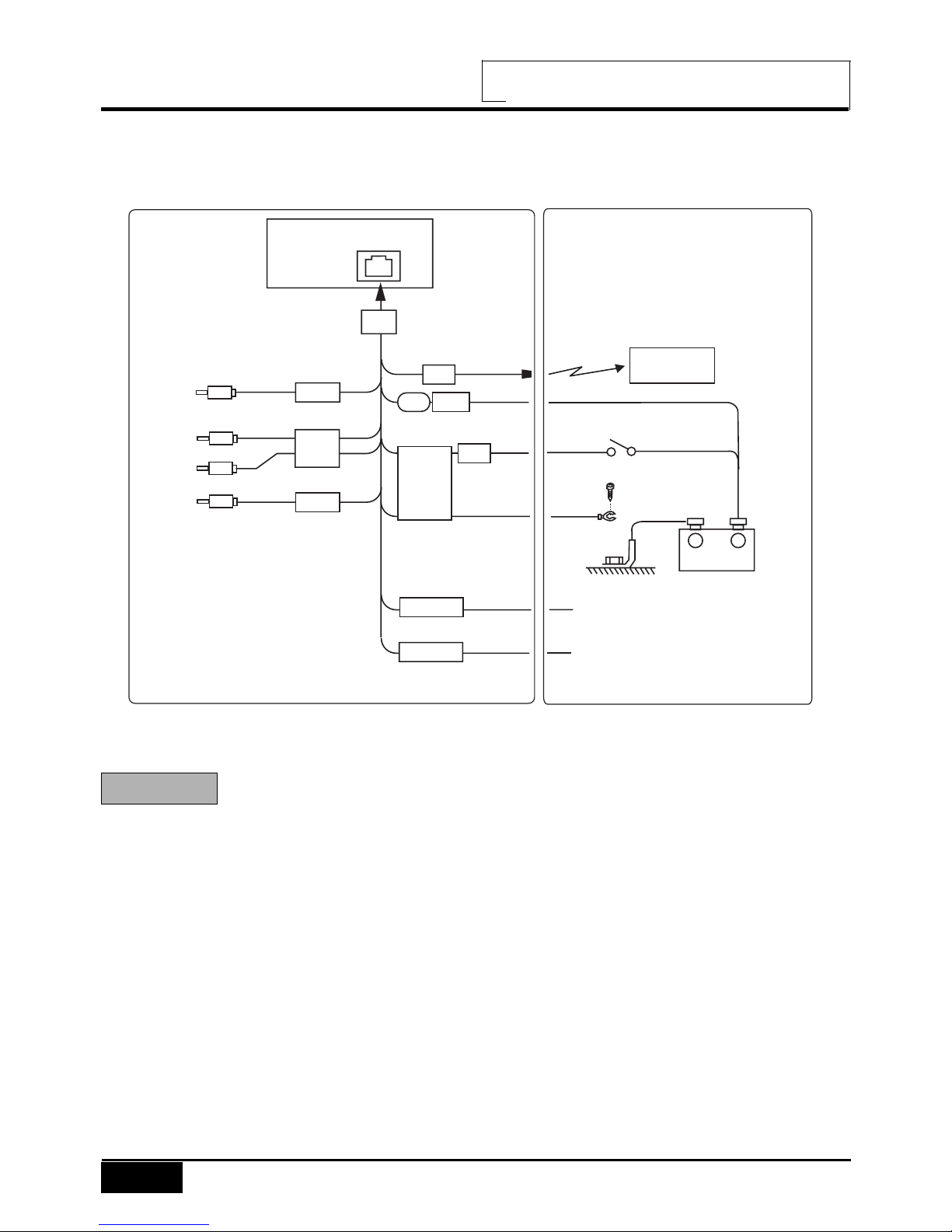

BASIC CONNECTIONS

(BLACK)

(RED)

(YELLOW)

ANT

(VIOLET)

FM RADIO

IGNITION KEY

-

+

Battery

(BROWN)

To the parking brake signal lead.

(ORANGE)

To the switched power output
terminal of the reverse gear.

FUSE

1A

BATT

ACC

FILTER

BOX

3A

S-BRAKE

REVERSE

V-OUT

PRE­OUT

V4-IN

(YELLOW)

(RED)

(WHITE)

(YELLOW)

1. Do not connect the BATTERY wire (yellow color wire) to ignition or
the ACC wire (red color wire) to Battery. The battery can be discharged.

2. Do not connect the PARKING BRAKE wire (brown color wire) to the
battery or the ACC. The unit can be damaged.

3. Be sure not to take off the protection cloth for the ANTENNA wire

(violet color wire). If it is taken off and touches the steel part of the

car,

the unit may have problems in working.

NOTE

29

Strap

Be sure to use the strap to secure
the back of the unit in place to
prevent sound cuts or skips.
The strap can be bent by hand to the
desired angle.

Holder

After inserting the holder into the
dashboard, select the appropriate
tabs according to the thickness of the
dashboard material and bend them
inwards to secure the holder in place.

How to Detach the Mounting
Frame

1. Insert release keys into the slots A.

2. Remove the frame B from the unit.
Keep the release key in the safe
place as you may need it in the future
to remove the unit from the car.

NOTE : Keep the release keys in the
safe place as you may need if in the
future to move the unit from the car.

INSTALLATION

PRECAUTIONS

Choose the mounting location carefully so that the unit will not interfere with the normal
driving functions of the driver.
Avoid installing the unit where it would be subject to high temperatures, such as from
direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or
excessive vibration.
Use only the supplied mounting hardware for a safe and secure installation.
Be sure to remove the front panel before installing the unit.

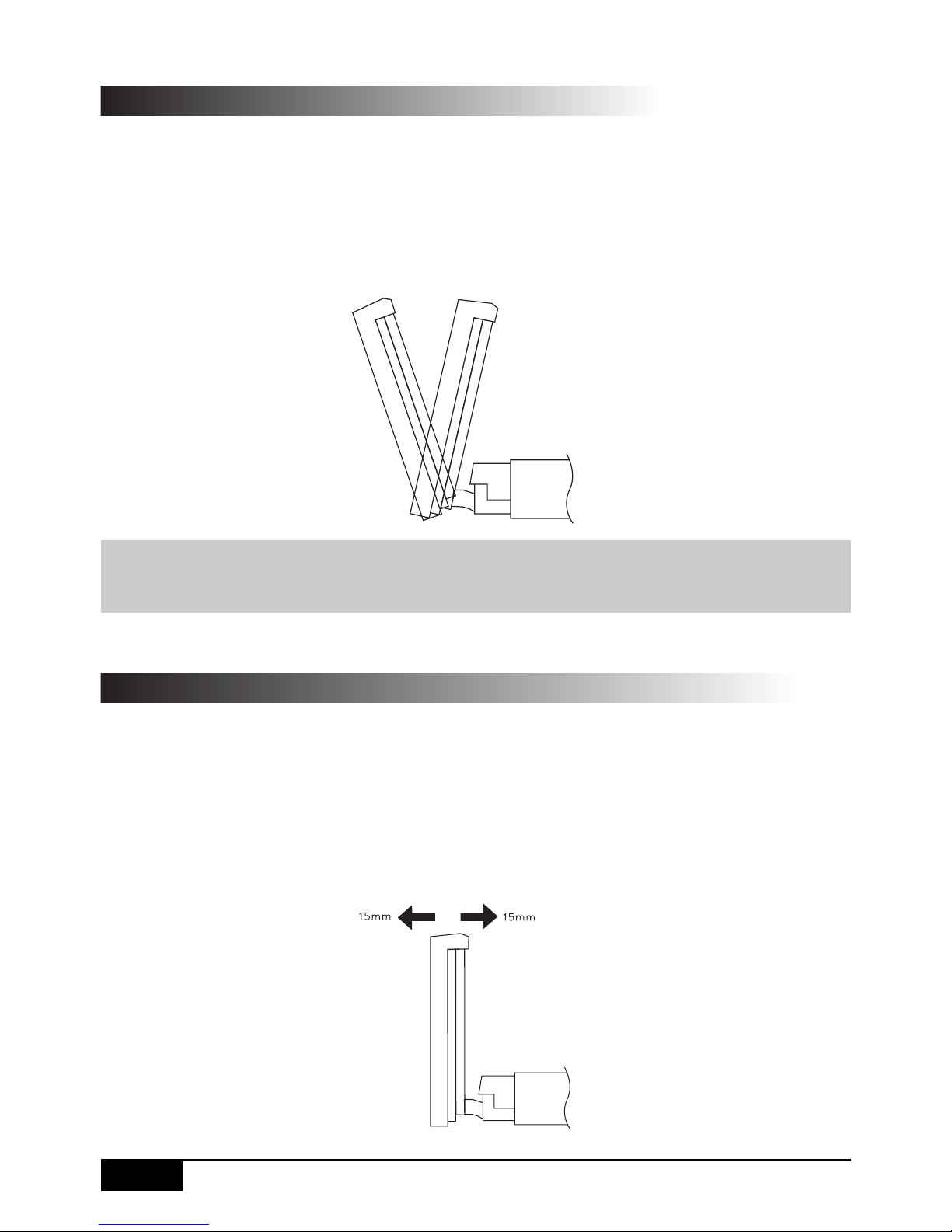

Mounting angle adjustment

Adjust the mounting angle to less than 20。.

MOUNTING EXAMPLE

Installation in the dashboard

3

2

2

A

B

Convenient spot
on the fire wall

Metal
Mounting Strap

Tapping Screw

28

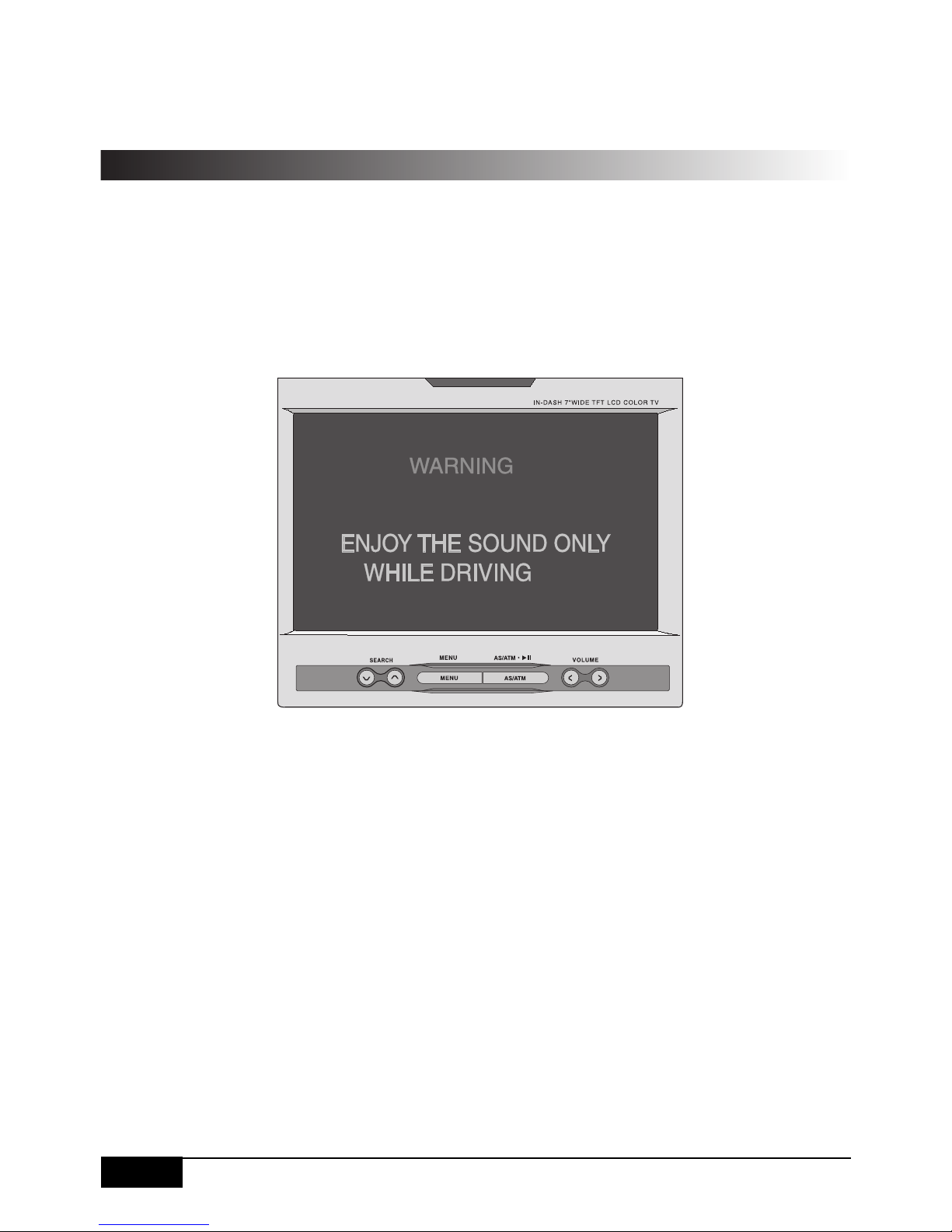

The monitor shows following warning picture when the parking brake is not set or when
driving to prevent traffic accident that may be caused while watching the screen.
The monitor shows the warning picture only and does not show any other pictures, but you
can enjoy the sound and you can also adjust the sound volume.

WARNING SCREEN

27

AV INPUT ON THE FRONT OF THE UNIT

1.Connect a AV source output to AV input on the front of the unit.

2.Press the MODE button to select AV1 mode.

3.5 o AV Input on the front of the unit is connected with AV1 Input on the rear the unit. If
the AV sources are connected both Input terminals, the 3.5 o AV Input has priority in
working.

(3.5ø MONO)

(3.5ø STEREO)

NOTE

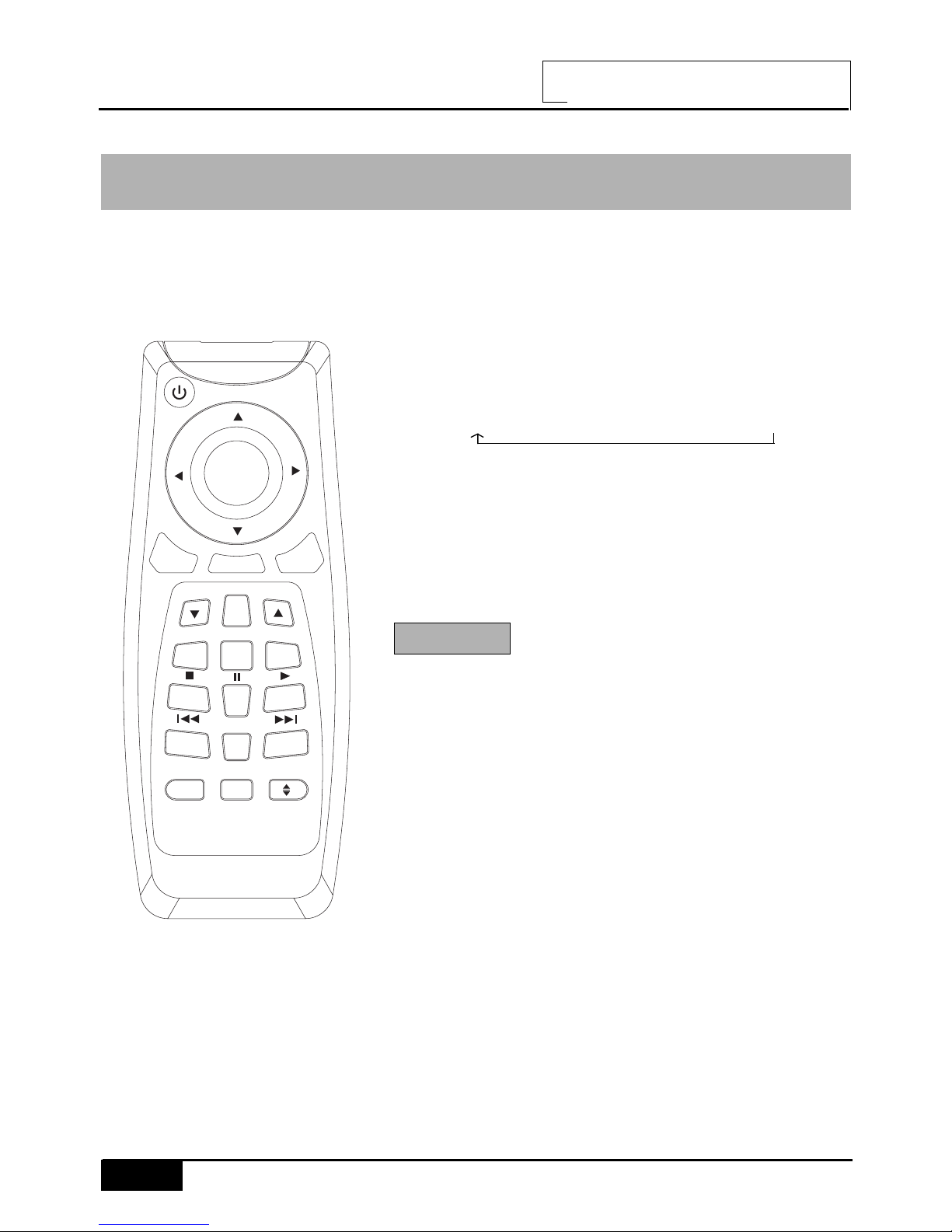

DIRECT CD CHANGER CONTROL

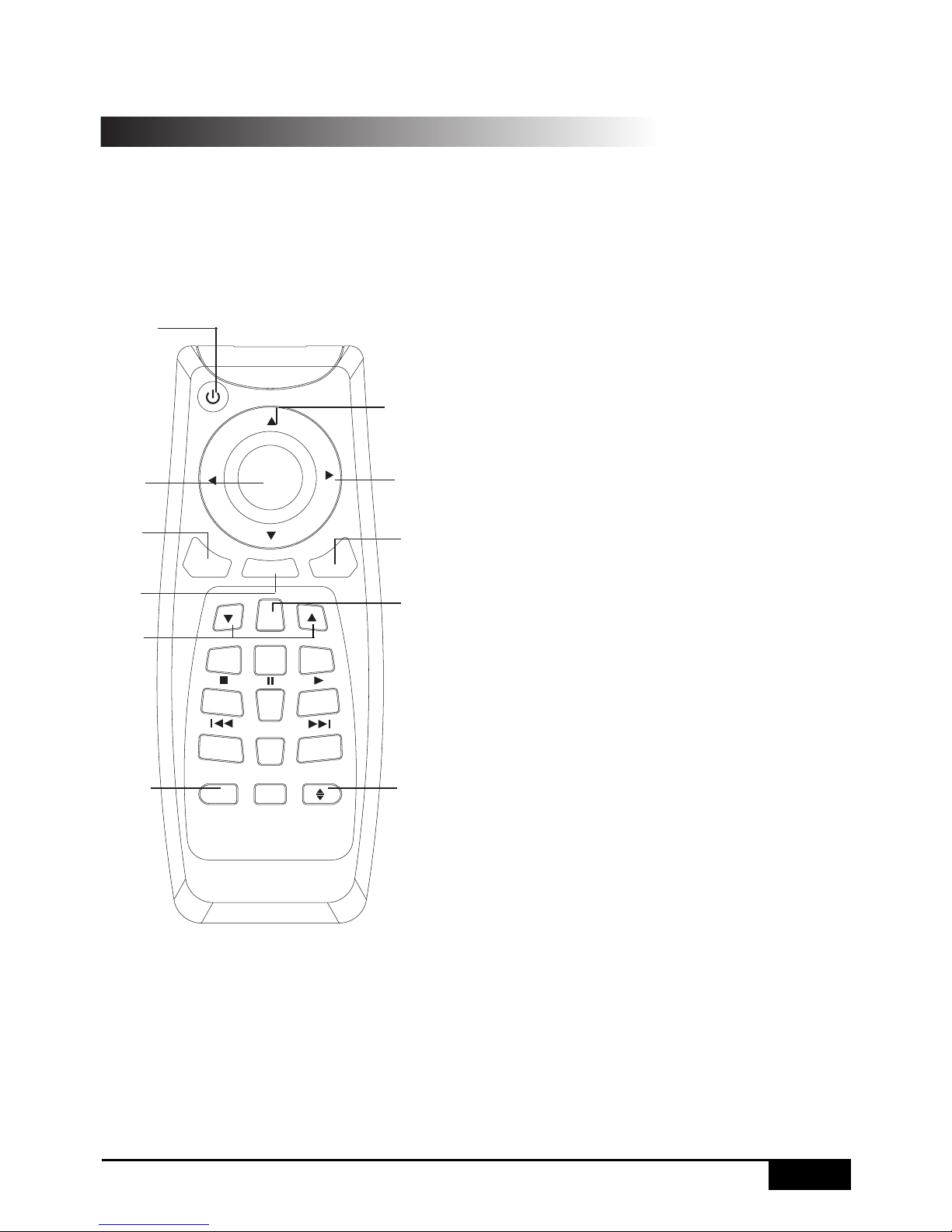

On the CD changer mode, you can directly control CD changer functions just by pressing
the buttons on the remote contoller for our monitor unit.

STOP ■ button : to make the playing of the disc stop.
PAUSE button : to stop the playing of the disc .

press again to play again.

PLAY button : to make the disc play
REW button : to quickly move backward of the disc until you reach

the desired section of the track.

FF button : to quickly move forward of the disc until you reach

the desired section of the track.

DISC ▲ button : to search forwards through the discs in a CD changer

until you reach the desired disc.

DISC ▼ button : to search backwards through the discs in a CD changer

until you reach the desired disc.

TRACK ▶ button : to search forwards through the tracks on the disc

until you reach the desired track.

TRACK ◀ button : to search backwards through the tracks on the disc

until you reach the desired track.

1. The AS/ATM button on the remote controller can be used as the PAUSE button.

2. When the CD changer mode is selected again after switching the CD changer mode to
other modes or the power of the monitor unit is tuned on again after tuned it off, the
disc plays at the last played position.

3. When the ignition is switched on again after the car key is pulled out on CD changer
mode, the disc plays at the beginning of the track last played.

26

NOTE

1. Press the SEARCH UP/DOWN button to select REPEAT.

2. Press the TILT UP/DOWN button on the remote controller to select the item.

Each time you press the button, the item changes as follows.

OFF <-> ONE <-> ALL

ALL: All the track on the current disc will be played repeatedly
ONE: The selected track on the current disc will be played repeatedly.
OFF: REPEAT will be off.

25

REPEAT

RANDOM

1. Press the SEARCH UP/DOWN button to select RANDOM.

2. Press the TILT UP/DOWN button on the remote controller to select the item.

Each time you press the button, the item changes as follows.

OFF <-> ONE <-> ALL

ALL: The tracks on all the discs in the CD/VCD changer will be played

in random order.
ONE: All the tracks on the current disc will be played in random order.
OFF: RANDOM will be off.

1. Press the SEARCH UP/DOWN button to select INTRO SCAN.

2. Press the TILT UP/DOWN button on the remote controller to select the item.

Each time you press the TILT UP/DOWN button, the item switches as follows.

OFF <-> ONE <-> ALL

ALL: The first 10 seconds of each track of all the discs will be played in succession..
ONE: The first 10 seconds of each Track of the selected disc will be played

in succession.

OFF: INTRO SCAN will be off

INTRO SCAN

1. Press the SEARCH UP/DOWN button to select DISC NUMBER.

2. Each time you press the TILT UP button on the remote controller, the disc in the CD

chagner will be selected forward and the displayed disc number increases by one.

3. Each time you press the TILT DOWN button on the remote controller the disc will be

selected backward and the displayed disc number decreases by one.

24

CD STATUS

This is to show the current CD status such as DISC CHECK, SEEK ,PLAY and PAUSE.

PLAY TIME

This shows playing time of the disc being played.

DISK NUMBER

1. Press the SEARCH UP/DOWN button to select TRACK NUMBER.

2. Each time you press the TILT UP button on the remote controller, the next track number

will be selected and the displayed track number increases by one.

3. Each time you press the TILT DOWN button on the remote controller, the previous

track number will be selected and the displayed track number decreases by one.

TRACK NUMBER

23

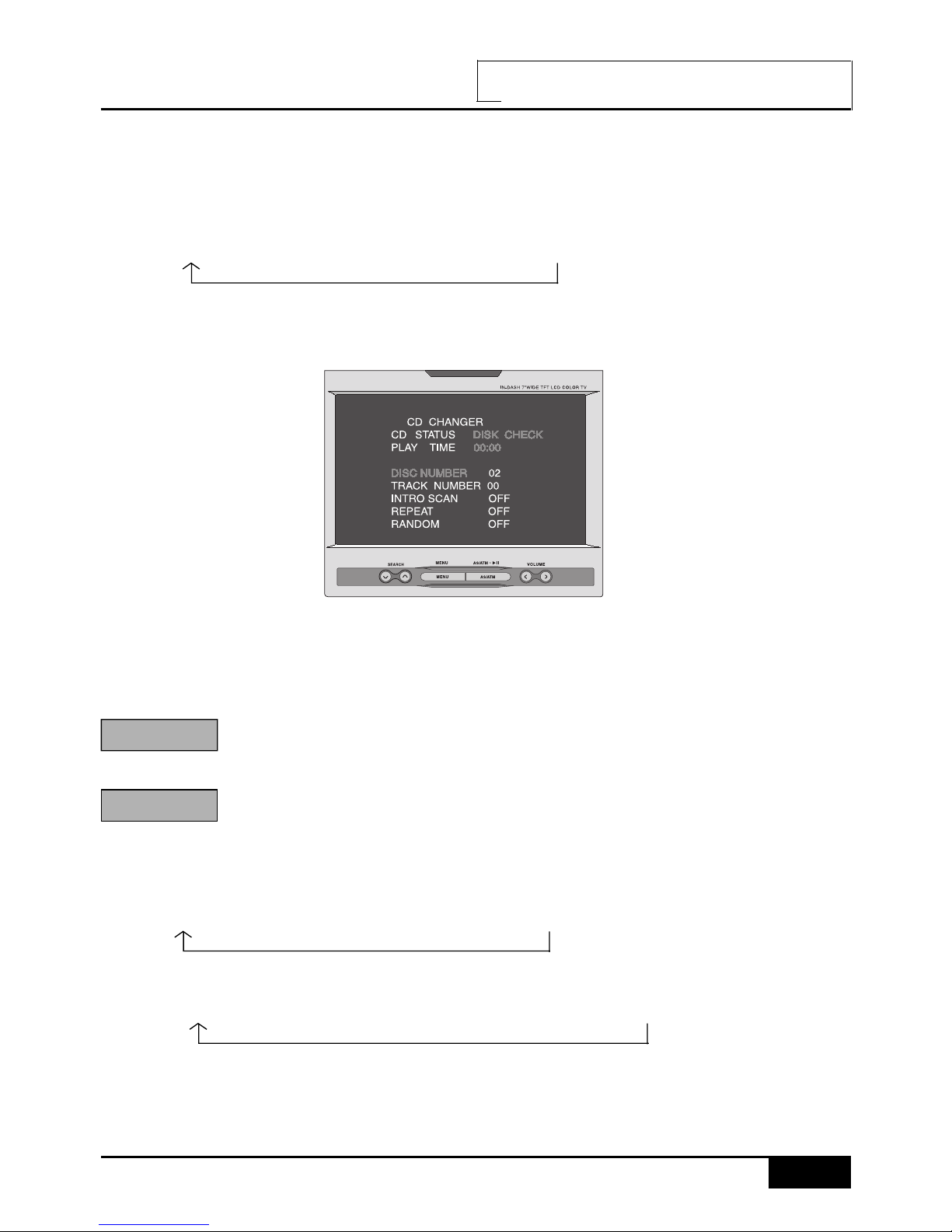

When a CD /VCD changer is connected to this unit, the AV4 mode changes to CDC/VCD
mode and CD CHANGER menu is displayed on the screen when AV4 mode is selected,

1. Press the MODE button to select the CD/VCD CHANGER (AV4) mode.

Each time you press this button, the mode changes as follows.

TV -> AV1 -> AV2 -> AV3 -> AV4 (CD or VCD CHANGER)

2. When CD/VCD CHANGER (AV4) mode is selected,The monitor shows following CD

CHANGER menu.

3.Press the SEARCH UP/DOWN button to select the item.

4.Press the TILT UP/DOWN button on the remote controller to adjust the level of the
selected item. It can be also adjusted upward with the SELECT button on the unit.

The video output of VCD changer must be connected video 4 input of this unit.

1. The CD changer can be directly controlled with the remote contoller for our monitor unit.

For more information, see page 25.

2. Each time the MENU button is pressed while a music CD is being played, the menu is

selected as follows.
CD CHANGER -> FUNCTION -> CONTROL -> PICTURE

3. Each time the MENU button is pressed when a Video CD is being played, the menu is

selected as follows.

CD changer -> FUNCTION -> CONTROL -> PICTURE -> OSD off

4. The TILT button on the unit is to adjust the angle(tilt) position of the monitor when the

monitor is opend. But whem the monitor is closed, the track up or down can be selected
with the TILT button on the unit.

CD CHANGER CONTROL

CD CHANGER MENU

NOTE

NOTE

22

DIMMER

This is to adjust the background illumination of the screen subject to
the brightness of the outside.

1. Press the MENU button until PICTURE menu is selected.

2. Press the SEARCH UP/DOWN button to select DIMMER.

3. Press the VOLUME ◀ or ▶ button to select STANDARD/MILD/USER.

Each time the VOLUME ◀ or ▶ button is pressed, the item is selected as follows.

STANDARD <--> MILD <--> USER

STANDARD: Select this at daytime.
MILD: Select this at nighttime.
USER: Select this to adjust the picture quality at your discretion.

1. This unit is set at DIMMER STANDARD at ex factory

2. When the items for picture quality is adjusted at your disposal, the DIMMER mode

changes to USER.

NOTE

21

PICTURE QUALITY CONTROL

CONTRAST

1.Press the MENU button until following PICTURE menu is selected.

BRIGHTNESS

1.Press the MENU button until PICTURE menu is selected.

2.Press the SEARCH UP/DOWN button to select BRIGHT.

3.Press the VOLUME ◀ button for a darker screen.

Press the VOLUME ▶ button for a brighter screen.

2.Press the SEARCH UP/DOWN button to select CONTRAST.

3.Press the VOLUME ◀ button for less contrast.

Press the VOLUME ▶ button for stronger contrast.

COLOR

1.Press the MENU button until PICTURE menu is selected.

2.Press the SEARCH UP/DOWN button to select COLOR.

3.Press the VOLUME ◀ button for a paler color of the picture.

Press the VOLUME ▶ button for a deeper color of the picture.

TINT

1.Press the MENU button until PICTURE menu is selected.

2.Press the SEARCH UP/DOWN button to select TINT.

3.Press the VOLUME ◀ button for a stronger red level of the picture.

Press the VOLUME ▶button for a stronger green level of the picture.

PICTURE MENU


CONTRAST 15
BRIGHT 15
COLOR 15
TINT 15
DIMMER 15

1. Press the MENU button until CONTROL menu is selected.

2. Press the SEARCH UP/DOWN button to select SCREEN.

3. Press the VOLUME ◀ or ▶ button to select the desired aspect ratio.

Each time you press this button, the aspect ratio changes as follows.

NORMAL <-> FULL <-> ZOOM <-> WIDE

The aspect ratio can be directly selected with the A (ASPECT) button
on the remote controller on any mode. For more information, see page 11.

20

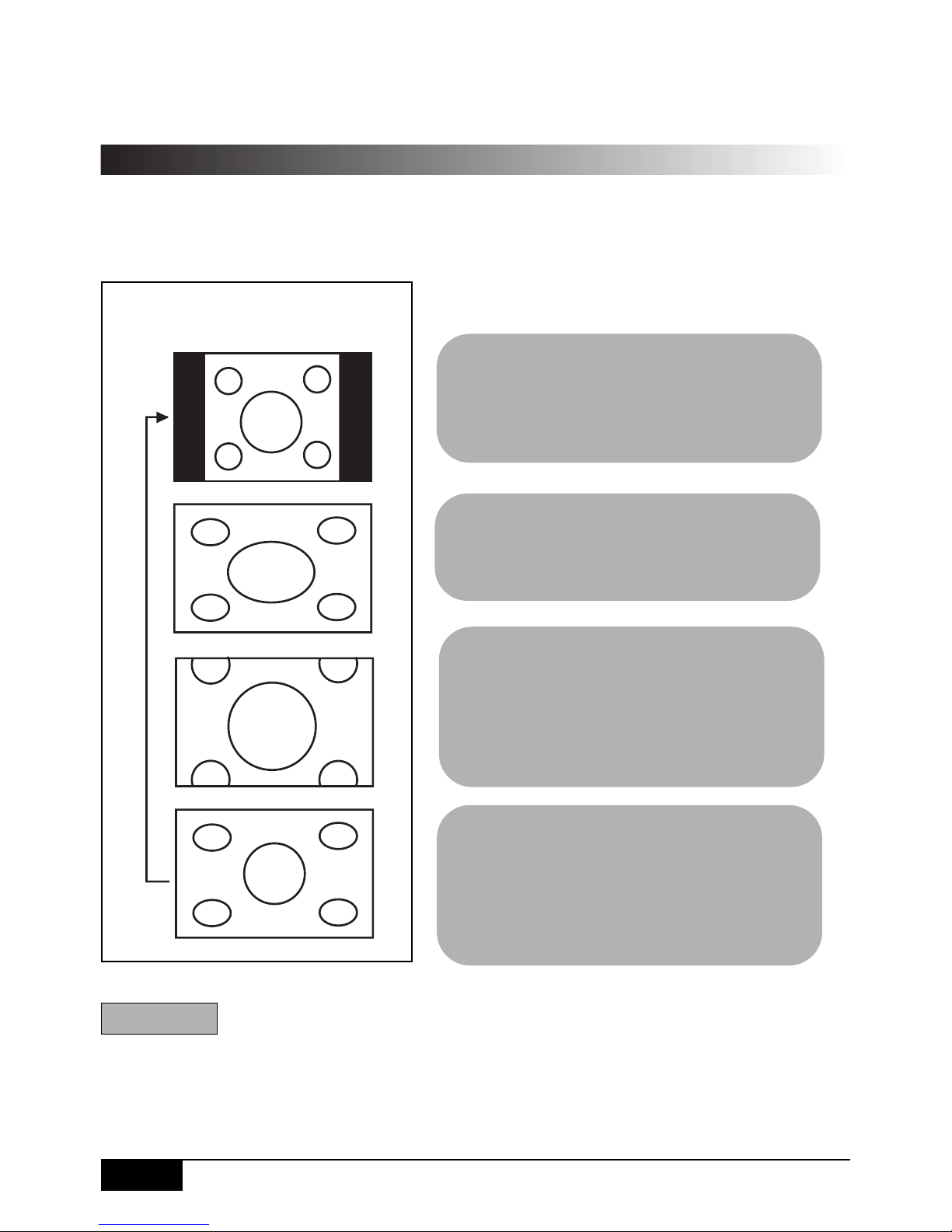

SELECTING ASPECT RATIO

NOTE

SETTING THE CAMERA IN

19

1. Press the MENU button until CONTROL menu is selected.

2. Press the SEARCH UP/DOWN button to select CAMERA IN.

3. Press the VOLUME ◀ or ▶ button to select ON or OFF.

If a Back View Camera is connected to this unit, select ON and if it is not connected to
this unit, select OFF.
Each time you press this button, ON/OFF switches as follows.

OFF <--> ON

BACK VIEW CAMERA

Connect video output of the Back View Camera to video 2 input of this unit, and then
select CAMERA IN ON on the CONTROL menu.

WATCHING THE BACK VIEW CAMERA PICTURE

Set the shift (gear) at R(reverse) on any mode or press the MODE button to select AV2
mode. The monitor shows the back view camera picture.

If AV2 mode is selected with the MODE button when the shift is not set at R(reverse), the
monitor does not show the back view camera picture. The monitor shows WARNING
picture.

WIRING CONNECTION

1. Connect the Back View Camera video output only to AV2 video Input on the rear of the

unit. Use the back view camera for the car only.

2. Connect the REVERSE connection wire (orange color wire) to a switched power output

terminal of the R(reverse) gear.
For more information, see page 29.

NOTE

18

NAVIGATION

SETTING THE NAVIGATION SYSTEM

1. Press the MENU button until CONTROL menu is selected.

2. Press the SEARCH UP/DOWN button to select NAVI IN.

3. Press the VOLUME ◀ or ▶ button to select ON or OFF.

If a NAVIGATION system is connected to this unit, select ON and if it is not connected
to this unit, select OFF.
Each time you press this button, ON/OFF switches as follows.

OFF <--> ON

Connect AV output of the NAVIGATION system to AV3 input of this unit and then select
NAVI IN ON on the CONTROL menu.

WATCHING THE NAVIGATION PICTURE

Press the NAVI button the remote controller on any AV mode. or press the MODE button
to select AV3 mode. The monitor shows the navigation picture

When the shift (gear) is set at R(reverse) on NAVIGATION mode and a back view camera
is connected to this unit, the monitor shows the back view camera picture.

CONNECTION TO THE UNIT

Connect a NAVIGATION AV output only to AV3 Input on the rear of the unit with RCA jack
type AV wires only.

NOTE

CONTROL MENU

CONTROL

NAVI IN AV1
CAMERA IN ON
SCREEN NORMAL

17

NOTE

1.Press the SEARCH UP/DOWN button to select SKIP on TUNING menu.

2.Press the VOLUME ◀ or ▶ button to select SKIP ON/OFF.

ON: The channel No is skipped
OFF: The chnnel No is stored.

1.Press the SEARCH UP/DOWN button to select FINE on TUNING menu.

2.Press the VOLUME ◀ or ▶ button to adjust fine tuning.

To automatically store the station into the CHANNEL No (02-69),

1. Press the SEARCH UP/DOWN button to select AUTO MEMORY on TUNING menu.

2. Press the VOLUME ▶ button to store the TV staion automatically into the channel.

No (02-69). The TV station can be stored up to 30 stations from
low frequency to high frequency in order. The auto stored stations each will be
shown about for 10 seconds after the auto memory is completed.

1. The auto memory can also be made by pressing the AS/ATM button on the remote

controller.

2.You can also check the auto stored channel No by pressing the BAND button

on TV mode.The auto stored stations each will be shown about for 10 seconds
when the BAND button is pressed on TV mode.

MANUAL MEMORY

FINE TUNING

AUTO MEMORY

WATCHING THE TV

16

TUNING MENU

NOTE

The monitor only shows the warning picture while driving to prevent traffic accident
that may be caused when watching the screen.
To watch TV, park the vehicle in a safe location and set the parking brake.
If the parking brake is not set, the monitor does not shows the picture.
but you can only enjoy the sound and you can also adjust the sound volume.

1. Press the MODE button to select TV mode.

2. Press the MENU button repeatedly until TUNING menu is selected.

The monitor shows following picture.

Press the VOLUME ◀ or ▶ button to select the desired channnel No.

1. You can also select the channel no by pressing the number (0-9) button on the remote

controller.
To select CH 6: Press No 0 and then No 6 button or just No 6 button.
To select CH 11: Press No 1 and then No 1 button again.

2. If the monitor displays in black & white color, select the color system again for the video
source.

SELECTING THE CHANNEL

TUNING

CHANNEL 66

SKIP ON
FINE +00
AUTO MEMORY

▶

ADJUSTING THE TILT POSITION

1. Press the MENU button to select FUNCTION menu

2. Press the SEARCH UP/DOWN button to select TILT.

3. Press the VOLUME ◀ button when MOVE FORWARD is selected.
Each time you press the VOLUME ◀ button, the monitor will slant backward one
step each. The TILT position can be adjusted in 5 steps: +2, +1, 0, -1, -2.

4. Press the VOLUME ▶ button when MOVE FORWARD is selected. Each time you
press the VOLUME ▶ button, the monitor will slant forward one step each. The TILT
position can be adjusted in 5 steps: +2, +1, 0, -1, -2.

15

1. When MOVE BACKWARD is selected, the TILT position can be adjusted in 4 steps:

+1, 0, -1, -2.

For more informatin, see page 8.

2. When a CD/VCD changer is connected to this unit, the TILT UP/DOWN button on the
remote controller on CDC mode changes to adjusting buttons to adjust the lever of the
selected items on CD CHANGER menu.

3. To control the air conditioner button and etc behind the monitor that is opened, press
the TILT UP/DOWN button on the unit for more than 3 seconds.
The monitor slants forward until it goes to horizontal postion.
Press the TILT UP/DOWN button again to return to original postion.

ADJUSTING THE MONITOR POSITION

1. Press the MENU button to select FUNCTION menu.

2. Press the SEARCH UP/DOWN button to select MOVE

3. Press the VOLUME ◀ button when MOVE BACKWARD is selected.
The monitor will slide one step (15mm) to the front.

4. Press the VOLUME ▶ button when MOVE FORWARD is selected.
The monitor will slide one step (15mm) to the back.

1. If the VOLUME◀ button is pressed when MOVE FORWARD is selected, CHECK the
monitor will not slide to the front..

2. If the VOLUME ▶ button is pressed when MOVE BACKWARD is selected, the monitor

will not slide to the back.

3. If the VOLUME ◀ or ▶ button is pressed when TILT position is at +2, the monitor will
not slide at all.

ADJUSTING THE SLIDE POSITION

NOTE

NOTE

TURNING BUILT IN SPEAKER ON/OFF

14

This is to listen the sound of AV sources with built in speaker or the car speakers when the
audio output (PRE-OUT) of this unit is connected to the audio input of the car radio.

1. Press the MENU button to select FUNCTION menu.

2. Press the SEARCH UP/DOWN button to select SPEAKER.

3. Press the VOLUME ◀ or ▶ Button to select ON or OFF.
ON: Built in speaker on.
OFF: Built in speaker off

1. The built in speaker does not work while FM TRANS ON is selected.

2. The volume of the monitor unit can not be adjusted when SPEAKER OFF is selected.
Adjust the volume with the volume button/knob of the car radio.

NOTE

2. Press the SEARCH UP/DOWN button to select FM TRANS.

3. Press the VOLUME ◀ or ▶ button to select ON/OFF

ON: FM mode on.
OFF: FM mode off.

4. Press the SEARCH UP/DOWN button again to select FM FREQ.

5. Press the VOLUME ◀ or ▶ button to select the FM frequency

1. While FM TRANS ON is selected, the built in speakers are not working.

2. The FM frequency of this unit is set at 89.5MHz at ex factory.

3. The FM frequency range that can be selected is 89.6 - 90.2MHz

SELECTING THE FUNCTION

TURNING FM TRANSMITTER ON/OFF

13

This is to listen the sound of AV sources connected to this unit with the car speakers. Set
the FM frequency of the built in FM transmitter at a FM frequency not using for FM
stations. And then, set the FM frequency of the car radio at the same frequency of the FM
transmitter.

1. Press the MENU button to select FUNCTION menu.
The monitor shows following picture.

FUNCTION MENU

NOTE

FUNCTION

FM TRANS OFF
FM FREQ 98.5MHz
SPEAKER ON
TILT 0
MOVE FORWARD

SELECTING THE MENU

12

You can select the menu to make this unit or AV sources connected to this unit work in
best conditions.

POWER

POWER

S

E

A

R

C

H

S

E

A

R

C

H

VOL

VOL

AS/ATM

MODE

MUTE

1

2

3

4

5

6

7

8

9

A

0

NAVI

CH

CH

MENU

ASPECT

OPEN/CLOSE

TRACK

+

TRACK

-

DISC

+

DISC

-

1. Press the MENU button to select the desired menu.
Each time the MENU button is pressed, the menu is
selected as follows.

FUNCTION -> TUNING ->CONTROL -> PICTURE -> OSD OFF

2. Press the SEARCH UP/DOWN button to select the
item that you want to adjust. The back ground color
of the selected item changes to red.

3. Press the VOLUME ◀ or ▶ button to adjust the
selected item.

1. The OSD automatically disappears about 10 seconds
later after it appears on the screen. But if you want
to erase it by manual, press and hold the MENU
button until it is disappeared.

2. If a CD/VCD changer is connected to the monitor
unit, the monitor shows the CD control menu when

AV4 mode is selected.

NOTE

11

Press the MODE button to select the mode. Each time you press the MODE button, the
mode changes as follows.

1.When a CD/VCD changer is not connected to this unit
TV -> AV1 -> AV2 -> AV3 -> AV4

2.When a CD/VCD changer is connected to this unit

TV -> AV1 -> AV2 -> AV3 -> CD/VCD changer

1. Both AV1 and AV3 have audio and video input each, but both AV2 and AV4 have only
video input each.

2. The CD changer must be connected to the 8 pin DIN socket on the rear of the unit with
8 pin DIN cable in our CD changer gift box.

3. The video output of VCD changer must be connected to AV4 video input.
If the video output of VCD changer is not connected to AV4 video input, AV4 video input
can be used for video input of other video source.

4. The AV output of the navigation must be connected to AV3 input.

5. The video output of a Back View Camera must be connected to AV2 video input.

6. Only use the 8 pin DIN cable in our CD/VCD changer gift box when you connecct the
CD/VCD changer to the unit. Using other 8 pin DIN cable can damage the monitor unit.

SELECTING MODE

NOTE

10

Each time you press the A (ASPECT) button on the remote controller, the picture mode
switches between Normal, Full, Zoom and Wide mode.

SELECTING THE ASPECT RATIO

NORMAL MODE

The monitor displays normal picture at the
center of the screen with the proportion of
4 to 3. The screen shows a vertical black
belt at each side.

FULL MODE

The monitor displays normal picture wider
by stretching out horizontally with the
proportion of 16 to 9.

ZOOM MODE

The monitor displays normal picture wider
by stretching out horizontally and
vertically with the proportion of 4 to 3. The
screen doesn’t show upper and down
part of the picture slightly.

WIDE MODE

The monitor displays normal picture wider
by unevenly stretching out horizontally
with the proportion of 16 to 9. The
stretching proportion is bigger toward
each side of the picture.

You can also select the aspect ratio at SCREEN on CONTROL menu. For more
information, see page 19.

NOTE

9

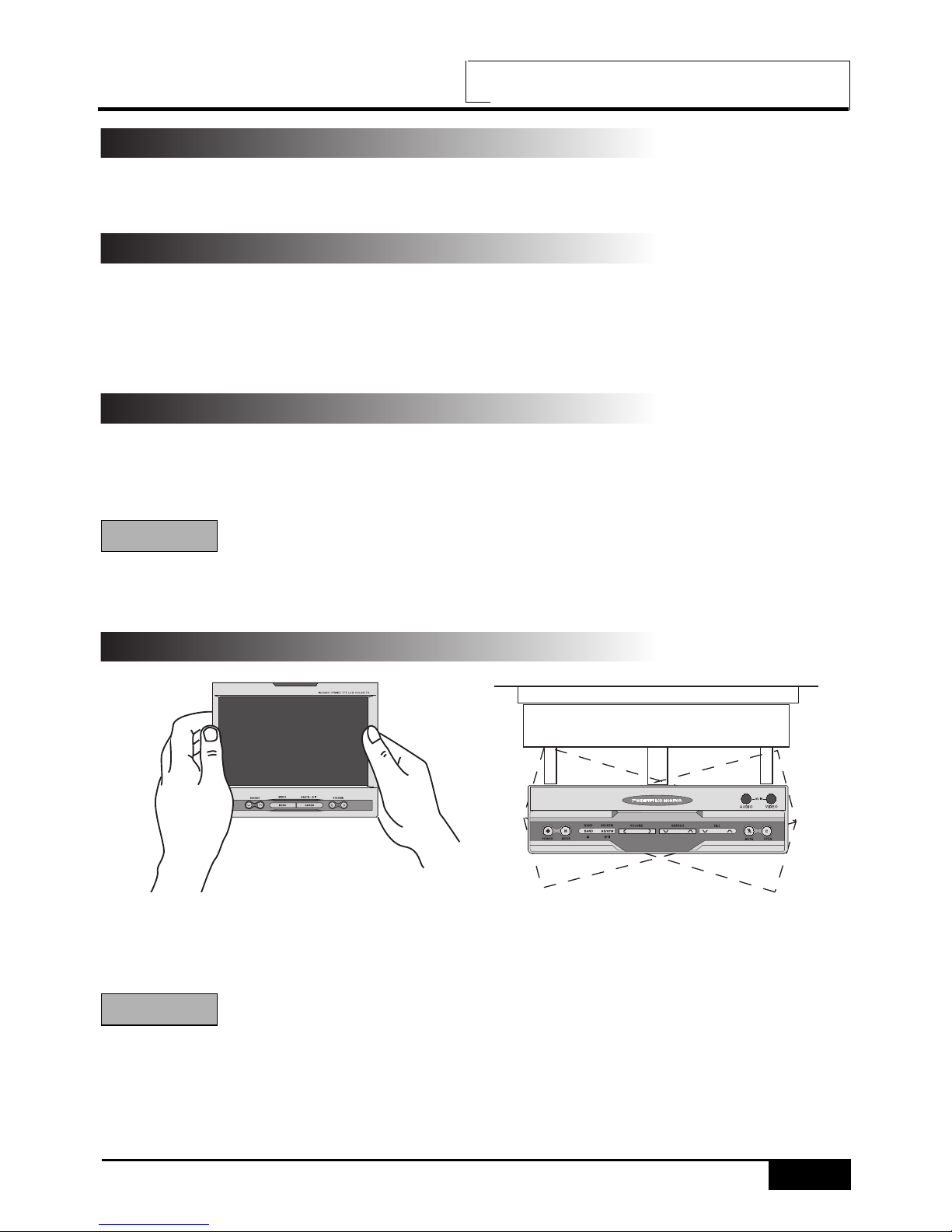

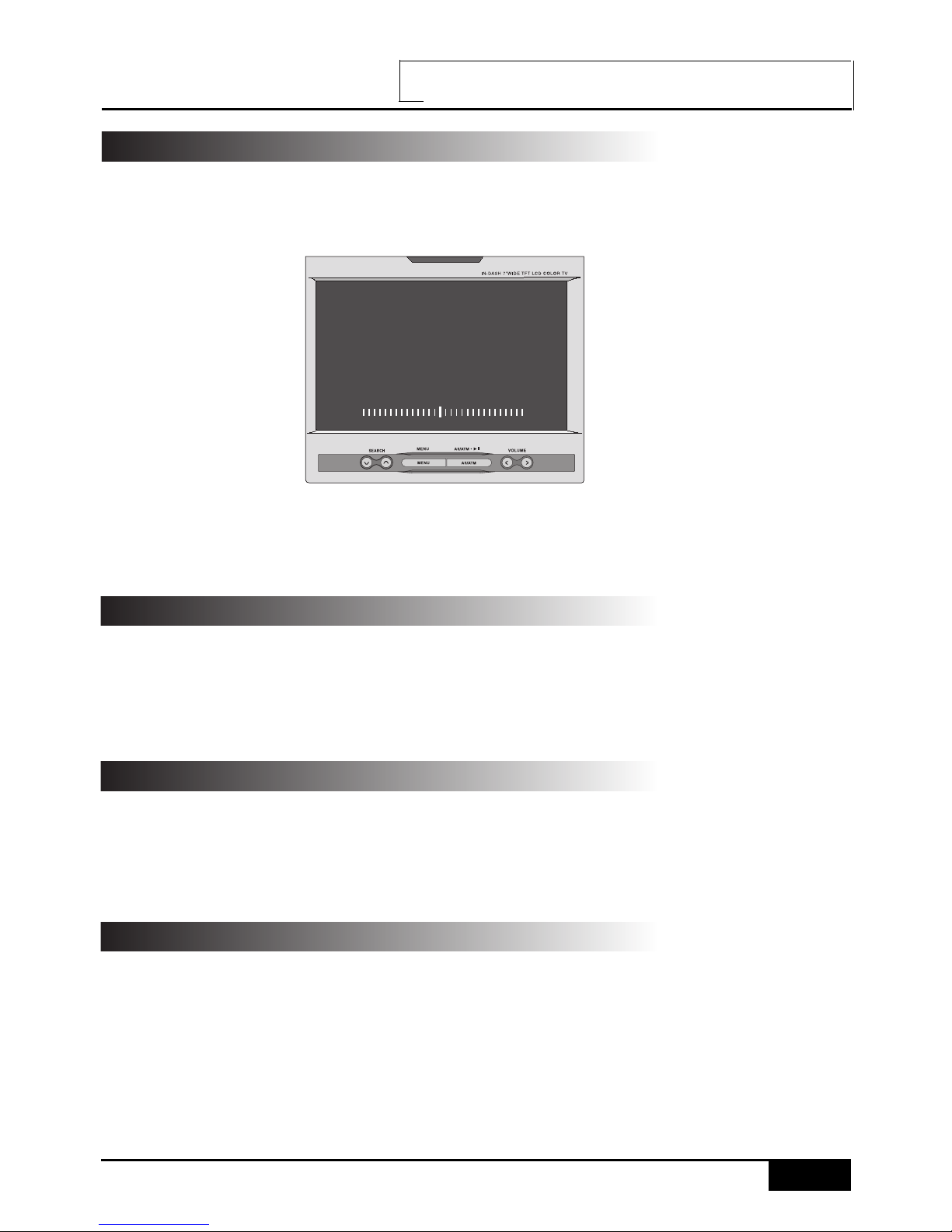

ADJUSTING THE LEFT/RIGHT VIEWING POSITION

The monitor’s left/right position can be adjusted easily by hand-operating as the picture
below.

ADJUSTING VOLUME

RESET

AUDIO MUTE

Press the VOLUME < or > button to adjust the volume level of the built in speaker.

NOTE

1.The volume adjustment dose not work while the FM TRANSMITTER is on.

2.When the audio PRE-OUT of this unit is connected to your car radio, adjust the volume

level with the volume knob/button of the car radio.

Press the MUTE button to make the sound quiet. Press the MUTE button again to return
to the previous audio level

1. When the unit does not seem working right, press the RESET switch with a pencil or
other pointed object. The RESET switch is mounted behind the small hole on the upper
right of the front of the unit.

2. If the RESET switch is pressed, the power will be off. Press the POWER button to turn
power on.

3. If reset does not solve the problem, consult your installer.

NOTE

1. When the mode is changed on MUTE mode, the MUTE will keep on working.

2. When the audio PRE-OUT of this unit is connected to your car radio, the MUTE does
not work.

3. The MUTE does not work while the FM TRANSMITTER is on.

󳦋󳦌

70。.110。

The TILT position can be adjusted in 5 steps by pressing the TILT UP/DOWN button on
the monitor unit. Each time you press the TILT UP button, the monitor slants backward
one step.Each time you press the TILT DOWN button, the monitor slants forward one
step.

ADJUSTING THE TILT POSITION

8

NOTE

The TILT position can be also adjusted by pressing the VOLUME ◀ or ▶ button on the
remote controller at TILT on FUNCTION menu. For more information, see page 15.

ADJUSTING THE SLIDE POSITION

1. Press the MENU button to select FUNCTION menu.

2. Press the SEARCH UP/DOWN button to select MOVE

3. Press the VOLUME ◀ or ▶ button to select FORWARD or BACKWARD .
The monitor will slide one step (15mm) to the front or the back.
For more information, see page 15.

Press the POWER button to turn the power on. The sound works, but the monitor will not
open.

1. Press the POWER button again to turn the power off.

2. If you turn the power off by pressing the POWER button when the monitor opens, the
monitor will not close. When the car key is pulled out or the OPEN/CLOSE button is
pressed, the monitor will automatically close.

BASIC OPERATION

POWER ON

OPENING THE MONITOR

1. Press the POWER button to turn power on.

2. Press the OPEN/CLOSE button to open the monitor.
The monitor opens at last position before it was closed

If the OPEN/CLOSE button is pressed to open the monitor when the power is off, the
monitor will open and the power will turn on.

7

POWER OFF

1. Hold left and right upper side of the monitor and set the left and right angle of the
monitor parallel with the front of unit as the picture.

2. Press OPEN/CLOSE button.The monitor will close.

CLOSING THE MONITOR

1. If the left and right angle of the monitor is not parallel to the front of the unit, the monitor
can not be closed.

2. If the OPEN/CLOSE button is pressed to close the monitor when the power is on,the

monitor will only close. But the sound is still on. Press the POWER button to turn the
sound off.

NOTE

NOTE

REPLACING BATTERY

6

Replacing battery
Applicable battery : Use two “AAA”sized

dry batteries.

1. Opening the battery cover.

Push and slide the cover in the arrow
direction, and the cover will be removed.

2.Replacing the battery.

Remove the old batteries.
Insert new ones matching the (+) and (-)
polarities as shown in the diagram inside
the unit.

3. Closing the cover.

Push the cover in the arrow direction until
a click is heard.

POWER

POWER

S

E

A

R

C

H

S

E

A

R

C

H

VOL

VOL

AS/ATM

MODE

MUTE

1

2

3

4

5

6

7

8

9

A

0

NAVI

CH

CH

MENU

ASPECT

OPEN/CLOSE

TRACK

+

TRACK

-

DISC

+

DISC

-

①①

POWER ON/OFF BUTTON

②②

.MODE SELECTION BUTTON

③③

AS/ATM BUTTON

④④

SOUND MUTE BUTTON

⑤⑤

VOLUME UP/DOWN BUTTON

⑥⑥

SEARCH UP/DOWN BUTTON

⑦⑦

OPEN/CLOSE BUTTON

⑧⑧

CHANNEL UP/DOWN BUTTON

⑨⑨

NAVIGATION BUTTON

⑩⑩

ASPECT BUTTON

⑪⑪

MENU SELECTION BUTTON

①

④

③

⑨

⑧

⑦

⑪

⑤

⑩

⑥

②

REMOTE CONTROLLER

5

1.POWER ON/OFF BUTTON

2.MODE SELECTION BUTTON

3.CD MENU SELECTION BUTTON (BAND)

4.CD PAUSE BUTTON(AS/ATM)

5.VOLUME BUTTON

6.SEARCH BUTTON

7.TILT BUTTON

8.AUDIO MUTE BUTTON

9.MONITOR OPEN/CLOSE BUTTON

10.MENU SELECTION BUTTON

11.RESET HOLE

12.AUDIO INPUT

13.VIDEO INPUT

INTRODUCTION

MONITOR

4

⑥

①

②

③⑤④

⑥

⑦

⑧⑧

⑨⑨

⑪

⑩

④

⑤

⑫
⑬

The exclamation point within an equilateral triangle and ““CAUTION””are intended to
alert the user to the presence of important operating instructions. Failure to heed
the instructions can result in injury or material damage.

Operation of some of the functions of this unit is very complex. Because of this, it
was deemed necessary to place these functions into a special SETUP screen. this
will restrict operation of these functions to times when the vehicle is parked. This
ensures the focus of the driver’s attention will be on the road and not on the unit.
This has been done for the safety of the driver and passengers.

TEMPERATURE

Be sure the temperature inside the vehicle is between +60。C (+140。F) and -5。C (+23。F)
before turning your unit on.

FUSE REPLACEMENT

When replacing the fuses, the replacement must be the same amperage as shown on the
fuse holder. If the fuse(s) blow more than once, carefully check all electrical connections
for shorted circuitry. Also have your vehicle’s voltage regulator checked.

If you have problems, do not attempt to repair the unit yourself. Return it to your
purchasing dealer.

Make sure the unit will not be exposed to :

▶ Direct sun & heat
▶ High humidity
▶ Excessive dust
▶ Excessive vibrations

MAINTENANCE

INSTALLATION LOCATION

CAUTION

!

3

CAUTION

The exclamation point within an equilateral triangle and ““CAUTION””are intended to
alert the user to the presence of important operating instructions. Failure to heed
the instructions can result in injury or material damage.

DO NOT RAISE THE VOLUME EXCESSIVELY

Keep the volume at a level, where you can still hear outside noises while driving .
Driving while unable to hear outside could cause an accident.

DO NOT USE THIS EQUIPMENT OUTSIDE THE VEHICLE

Do not use this equipment for purposes other than those listed for a vehicle.
Failure to do so may result in an electric shock or an injury.

KEEP FOREIGN OBJECTS OUT OF THE MONITOR COMPARTMENT

Keep foreign objects out of the monitor compartment.
Also, avoid placing your hands in the area where it might interfere with the monitor’s
operation.

STOP THE VEHICLE BEFORE CARRYING OUT ANY OPERATION THAT COULD
INTERFERES WITH YOUR DRIVING.

If the operation of this unit (such as raising or lowering of the monitor, etc.) interferes with
you driving, stop the vehicle in a safe location before attempting operation.

DO NOT MIX NEW BATTERIES WITH OLD BATTERIES. INSERT WITH THE
CORRECT BATTERY POLARITY

Do not mix new batteries with old batteries and do not replace with other than specified
batteries. When inserting the batteries, be sure to observe proper polarity (+ and - ) as
instructed. Battery rupture or chemical leakage can cause an injury or equipment
malfunction.

!

2

DO NOT DISASSEMBLE OR ALTER

KEEP SMALL ARTICLES OUT OF THE REACH OF CHILDREN

USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES

HALT USE IMMEDIATELY IF A PROBLEM APPEARS

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM
SAFELY DRIVING YOUR VEHICLE

Attempts to disassemble or alter may lead to an accident, fire and / or electric shock.

Store small articles (screws etc.) in places not accessible to children. If swallowed, consult
a physician immediately.

Replace fuses only with fuses of the same ampere rating. Failure to do so may result in a
fire and / or damage to the vehicle.

When problems appear, stop using the system immediately and contact the dealer from
whom you purchased the equipment.

The exclamation point within an equilateral triangle and ““WARNING””are intended
to alert the user to the presence of important operating instructions.
Failure to heed the instruction will result in severe injury or death.

DO NOT WATCH VIDEO WHILE DRIVING

Watching the video may distract the driver from looking ahead of the vehicle and cause an
accident.

Any function that requires your prolonged attention should only be performed after coming
to a complete stop. Always stop the vehicle in a safe location before performing these
functions. Failure to do so may result in an accident.

!

WARNING

1

CAUTION : Any changes or modifications in
construction of this device which are not expressly
approved by the party responsible for compliance
could void the user’’s authority to operate the
equipment.

MOTORIZED 7

””

IN -DASH

LCD COLOR TV

MODEL:

PLTV71
